A3.2(21) High-Fidelity Hi-End Grade Integrated Amplifier
Delve into the realm of artistry, swaying in sound.
Bridged monaural output power: 500W @ 8
Stereo output power: 200W @ 8
600VA UI-type transformer
OLED display screen
ELNA capacitors
Nichicon capacitors
XMOS XU208 USB chip
Qualcomm Bluetooth chip CSR 8675
AK4493 DAC chip
Silvery Brilliance, Visual Pioneer

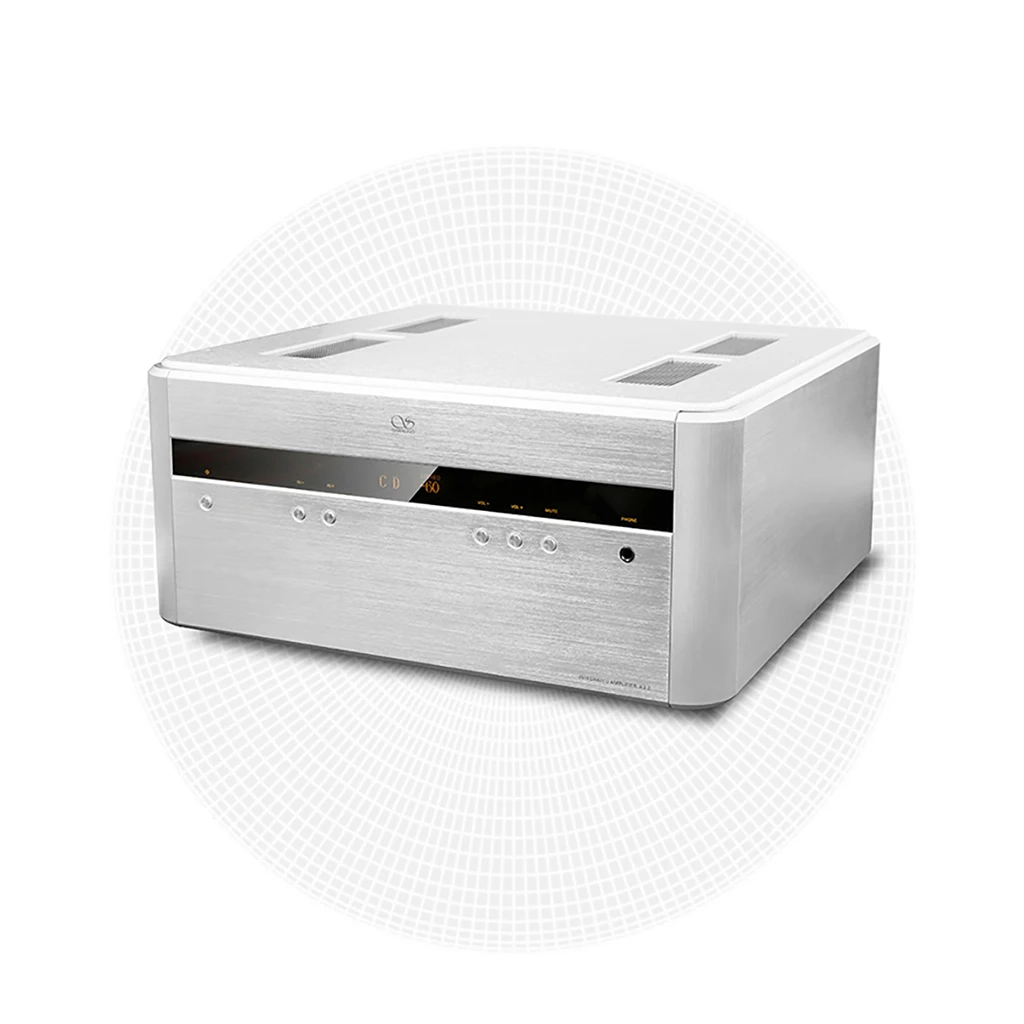

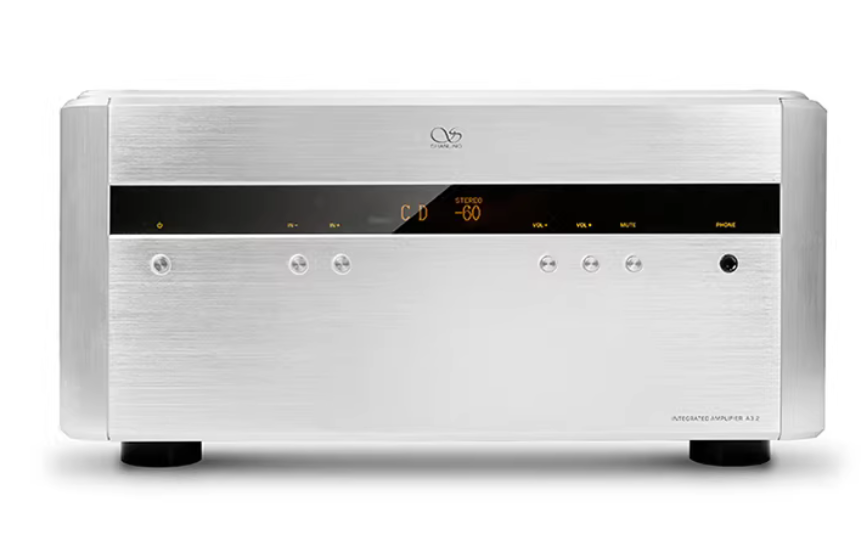

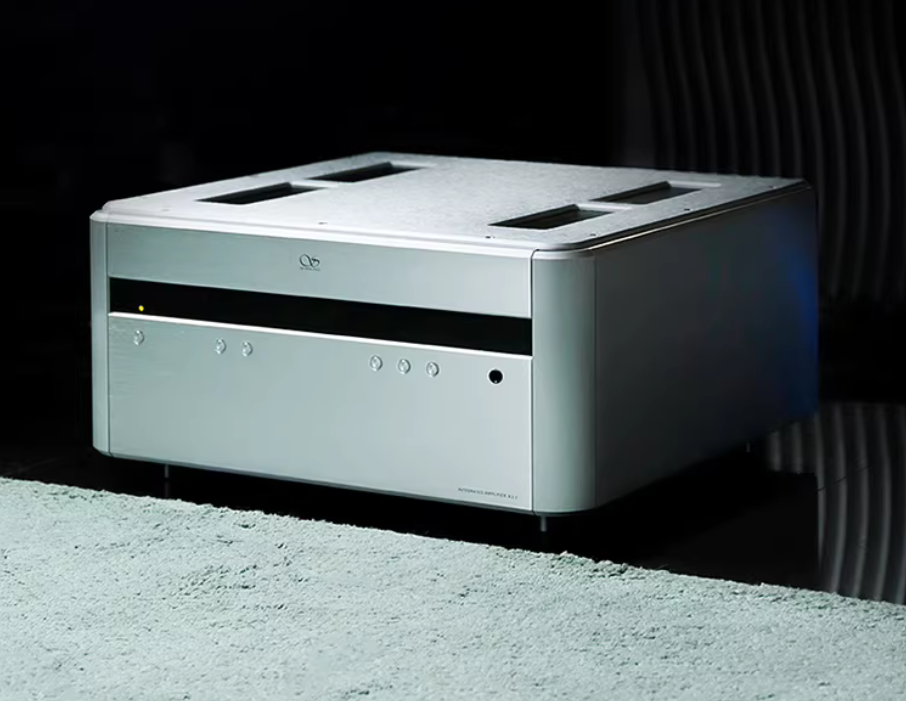

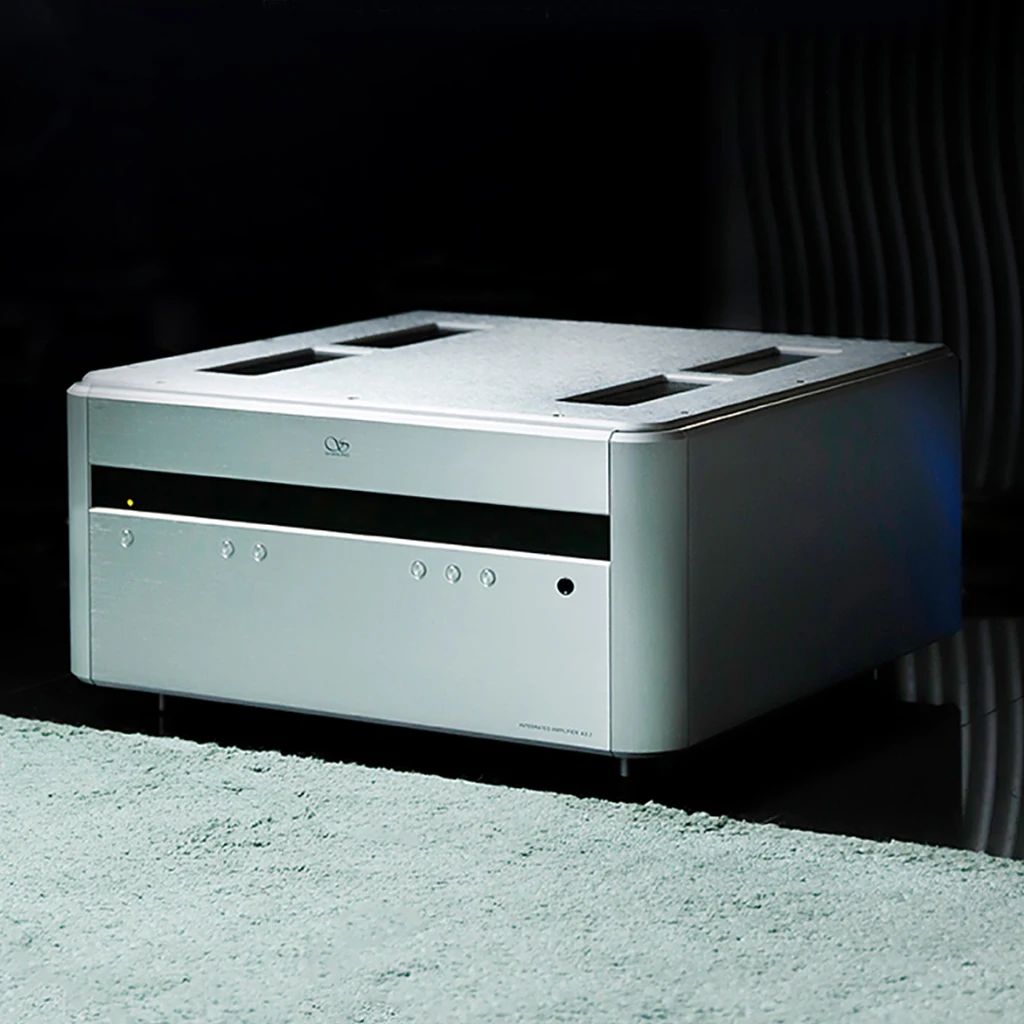

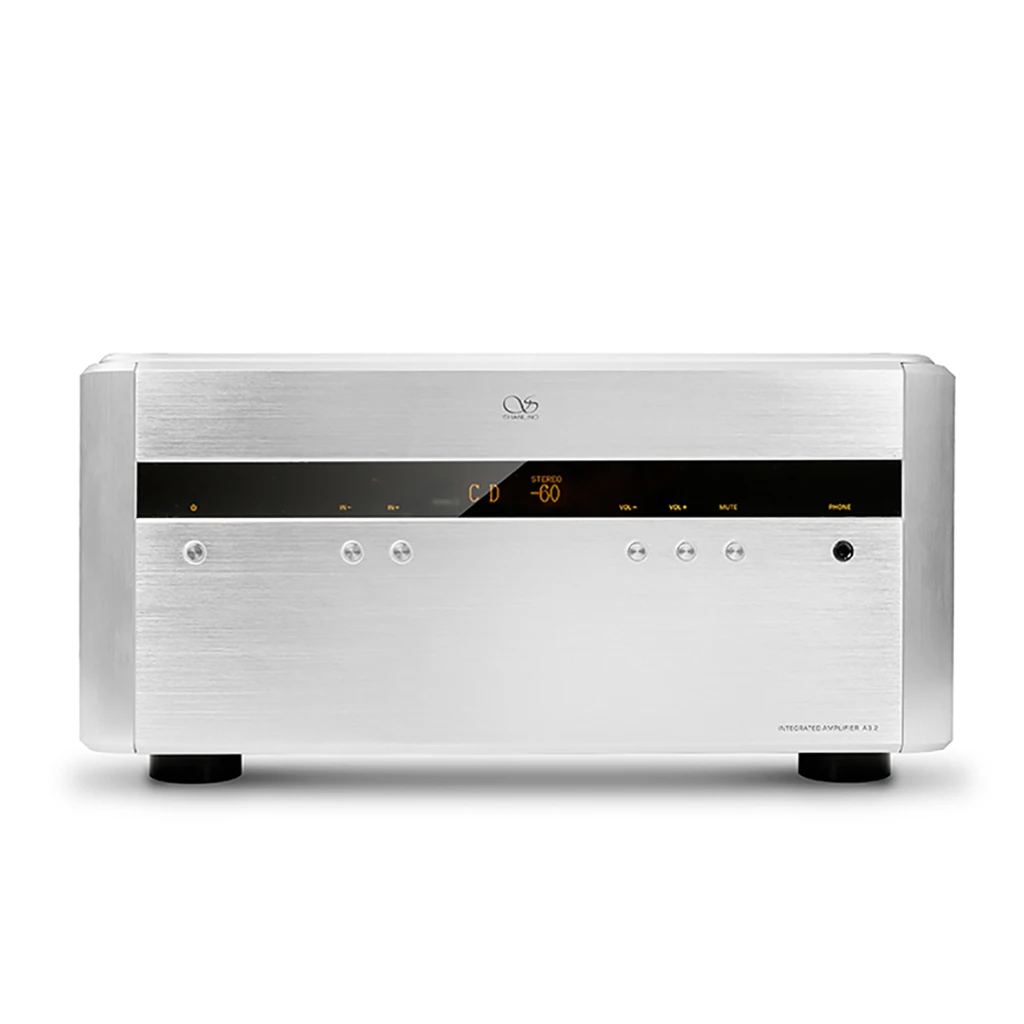

A3.2(21) continues the classic flagship series front panel design of Shanling, using an OLED display screen that remains clear even from a distance, simple yet dignified.
Continues the excellent craftsmanship and design of the previous generation, utilizing CNC processed metal panels to ensure stability and effectively prevent resonance.
Enhanced humanization and comfort with enlarged button size, showcasing a bold style and appropriate key travel adjustment.
Adjustable Gain for Proficient Control
A3.2(21) features gain adjustment in stereo and monaural modes, with bridged monaural output power up to 500W @ 8 and stereo output power up to 200W @ 8.
Equipped with 2 gain settings, making A3.2(21) effortlessly compatible with various speakers and supporting 6.35mm headphone output.
Core Circuits for Superior Performance
Combining 33 years of accumulated wisdom in circuit design by Shanling with revolutionary innovative designs from engineers, enhancing A3.2(21)'s anti-interference capabilities and efficient output of high power, ensuring the amplifier's efficiency and enhancing various aspects such as transparency, detail, and dynamic characteristics of sound.
Stable Power Supply for Grandeur

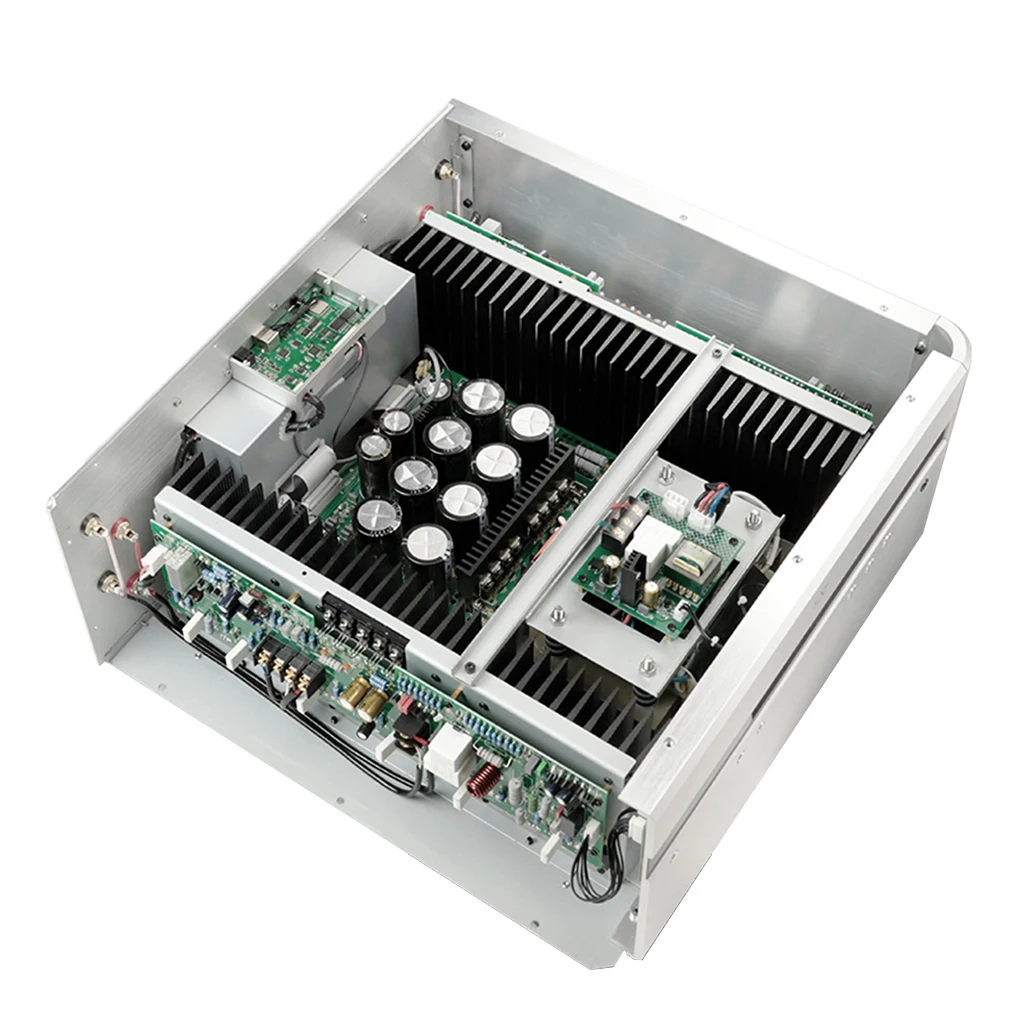

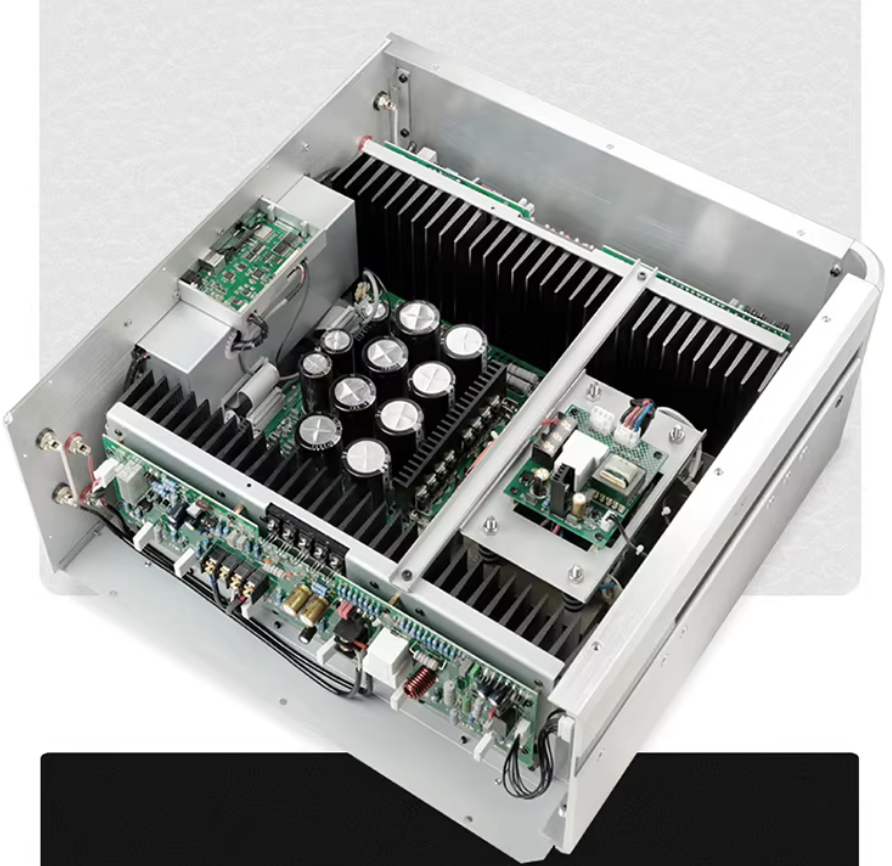

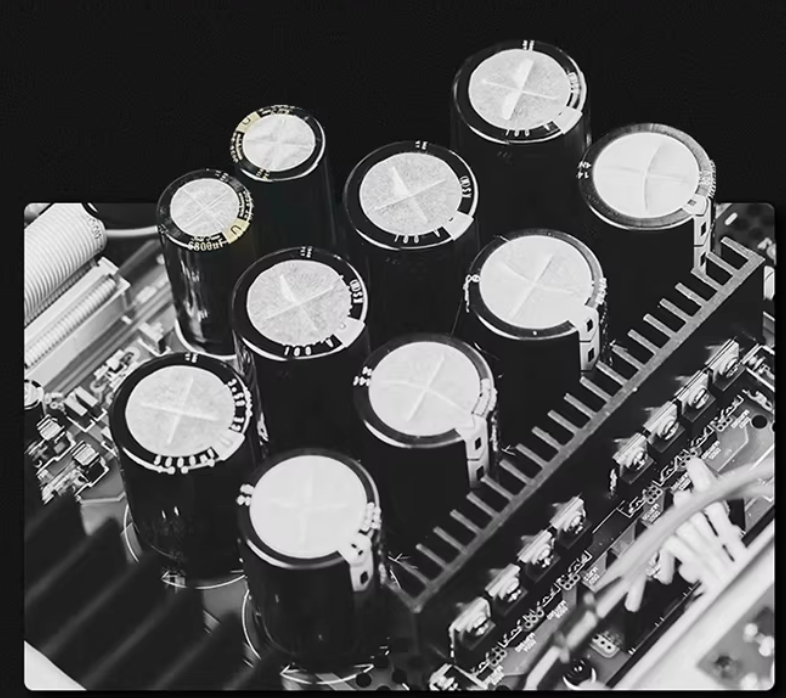

A3.2(21) is equipped with a high-performance linear 600VA UI-type transformer, utilizing 4 10000F ELNA capacitors and 4 5600F Nichicon capacitors, with rectifying diodes, 6 pairs of high-power 2SC3264 and 2SA1295 transistors from SanKen of Japan, low internal resistance, supporting high power, providing abundant energy to the subsequent circuit, delivering an immersive experience with pure sound, creating a music hall-level enjoyment.
Unleashing Potential, Core Stirring
A3.2(21) employs the X MOS XU208 USB chip, under the aegis of the flagship XU208 chip from XMOS, achieving USB asynchronous audio decoding, and supporting up to 768kHz/32bit, DSD 512, unleashing the potential of sound, highly restoring authentic sound effects, delivering rich and outstanding sound.
Classic Tuning, Thrilling Sound Waves
Shanling's 33-year-old acoustic tuning expertise is upgraded once again, featuring the classic AK4493 DAC chip. Equipped with ultra-low noise LDO linear regulated power supply, delivering dense and transparent vocals, fully displaying the fresh and natural characteristics of sound.
High-Speed Bluetooth, Intelligent Experience

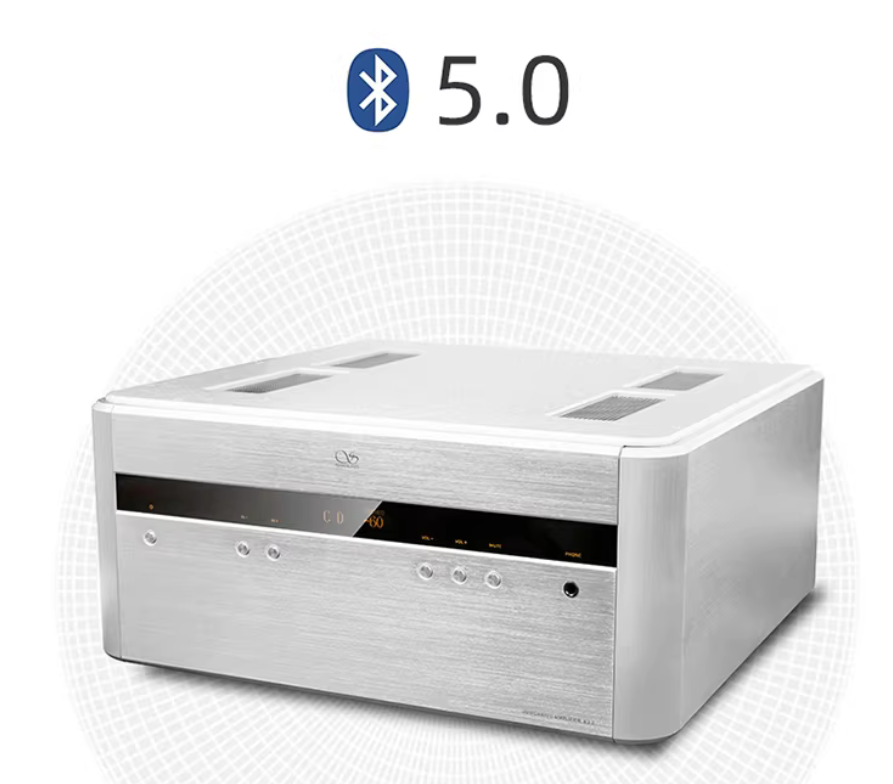

A3.2(21) adopts the Qualcomm Bluetooth chip CSR 8675, with unidirectional Bluetooth 5.0 function, supporting multiple Bluetooth protocols, low latency, and high stability. Supporting a wide range of Bluetooth encoding formats, providing you with a choice of premium experiences!
Bluetooth reception supports:
LDAC, LHDC, aptX HD, aptX, SBC
Luxurious Material, Superior Enjoyment

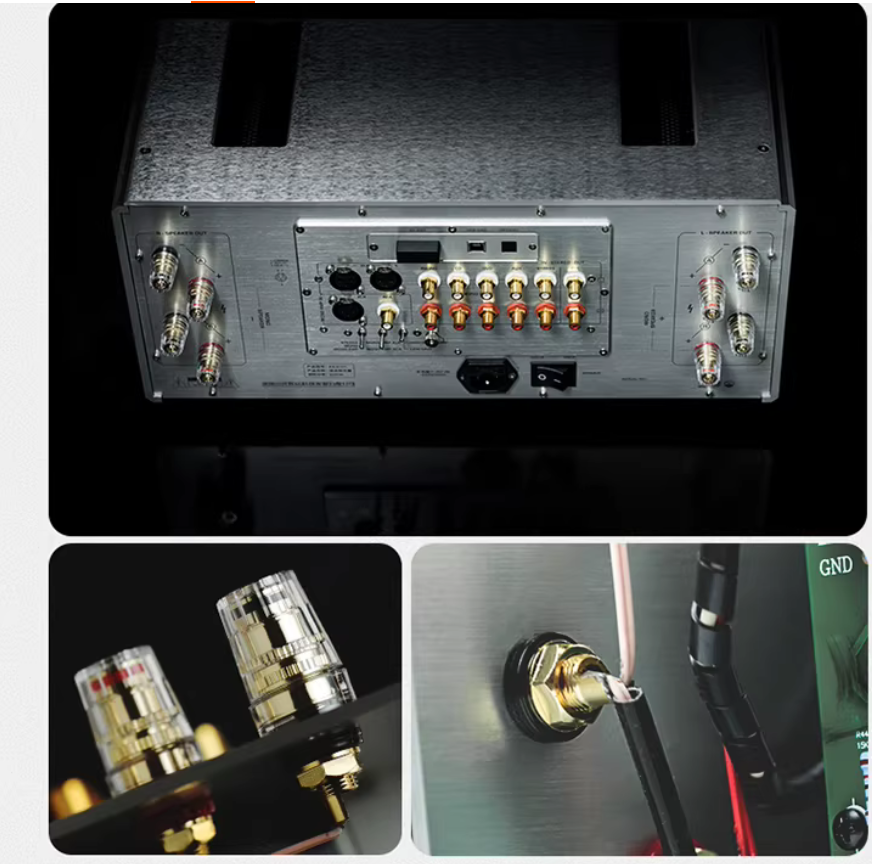

The A3.2(21) body features six pairs of CMC 816 gold-plated input terminals and 3 NEUTRIK gold-plated balanced sockets, effectively reducing signal loss.

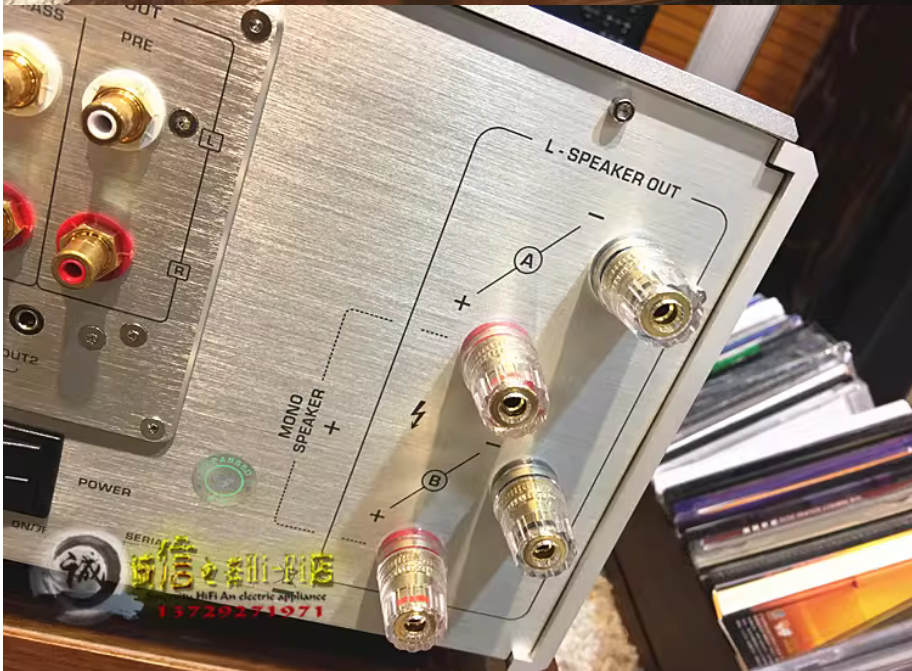

Equipped with four pairs of pure copper gold-plated speaker binding posts, the power supply circuit and speaker output section utilize high-purity three-core monocrystalline copper wires. The luxurious materials coupled with excellent craftsmanship and design bring you superior quality enjoyment.
Wide Compatibility, Scene Interconnection

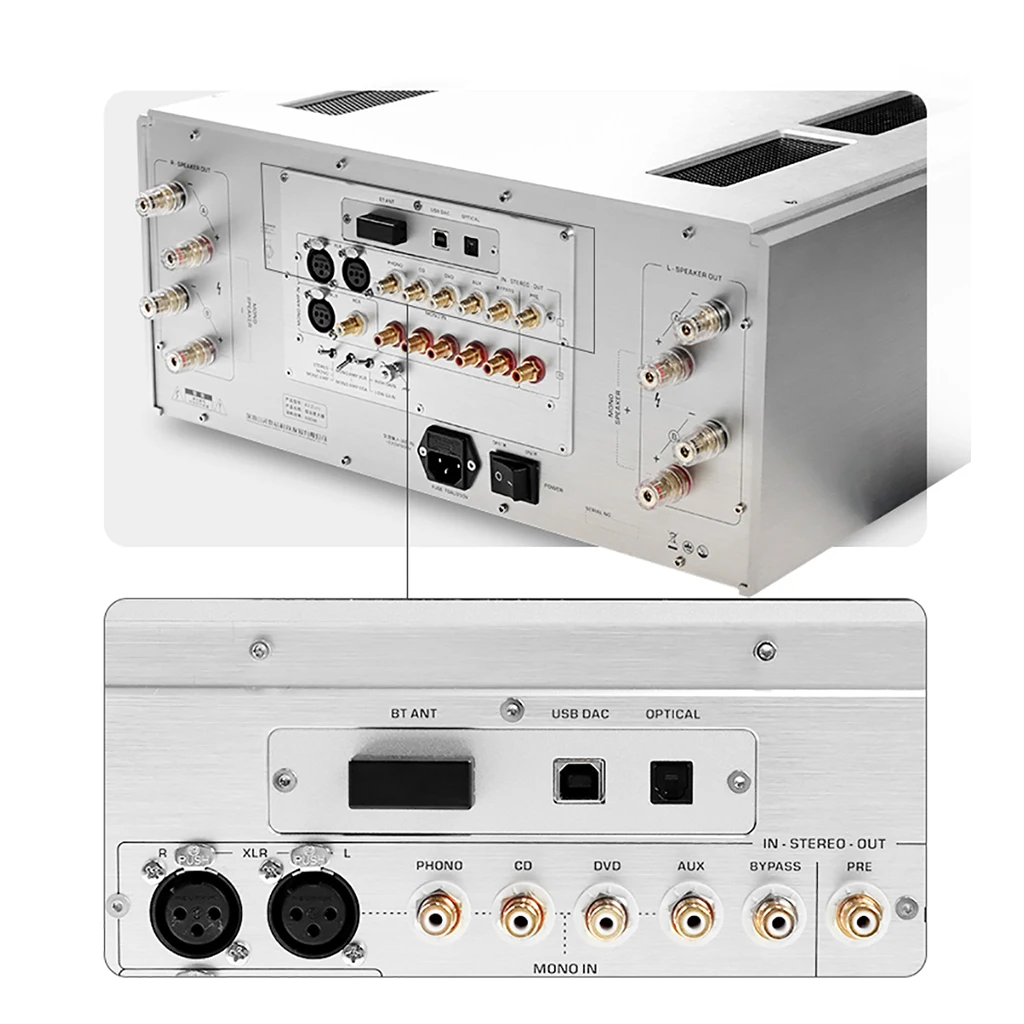

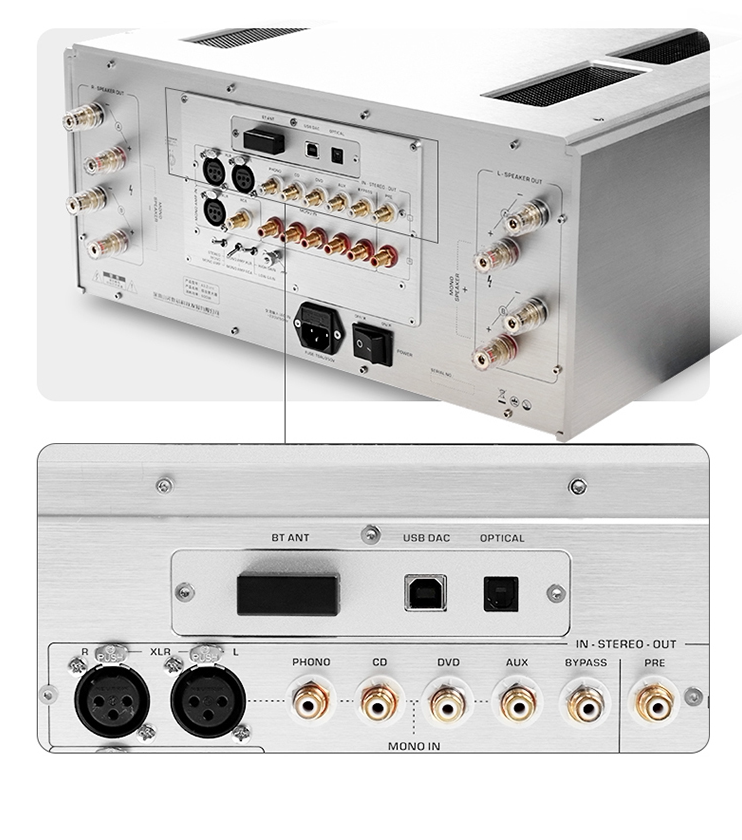

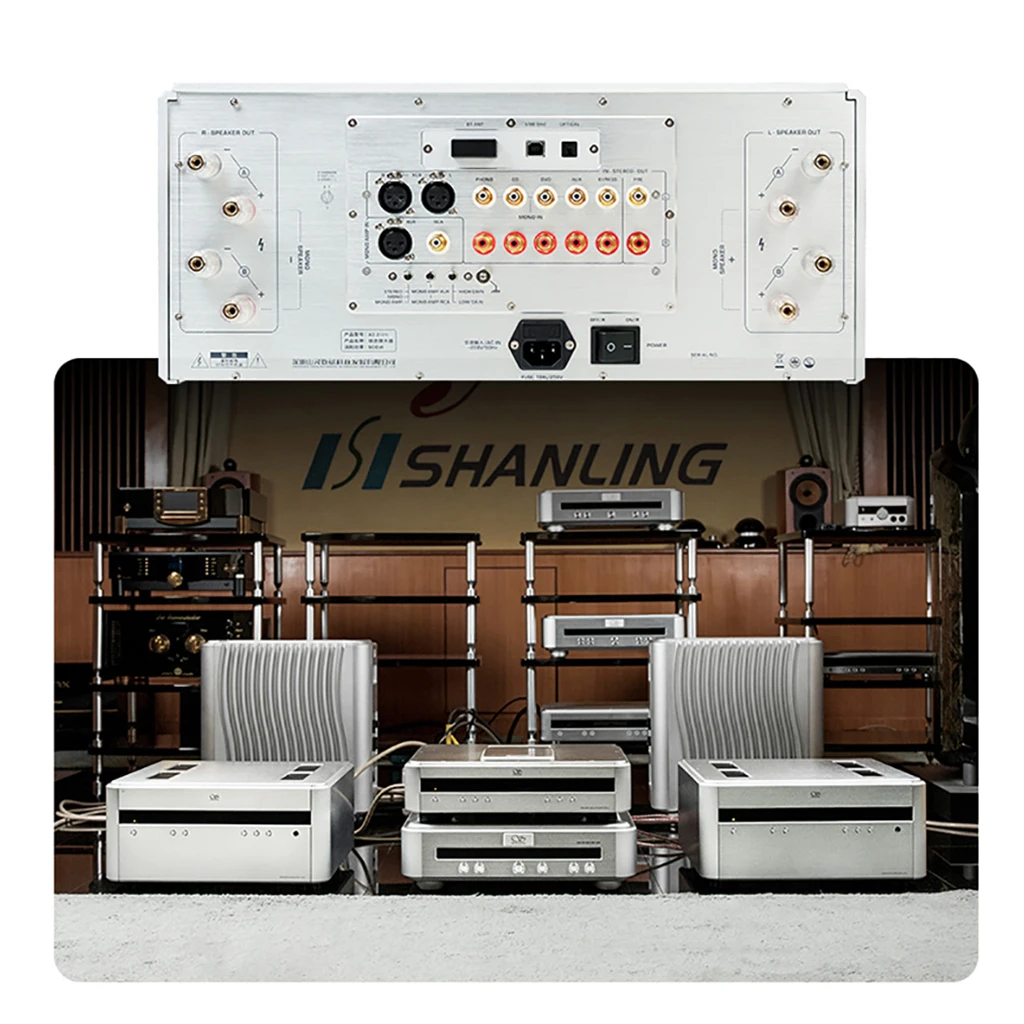

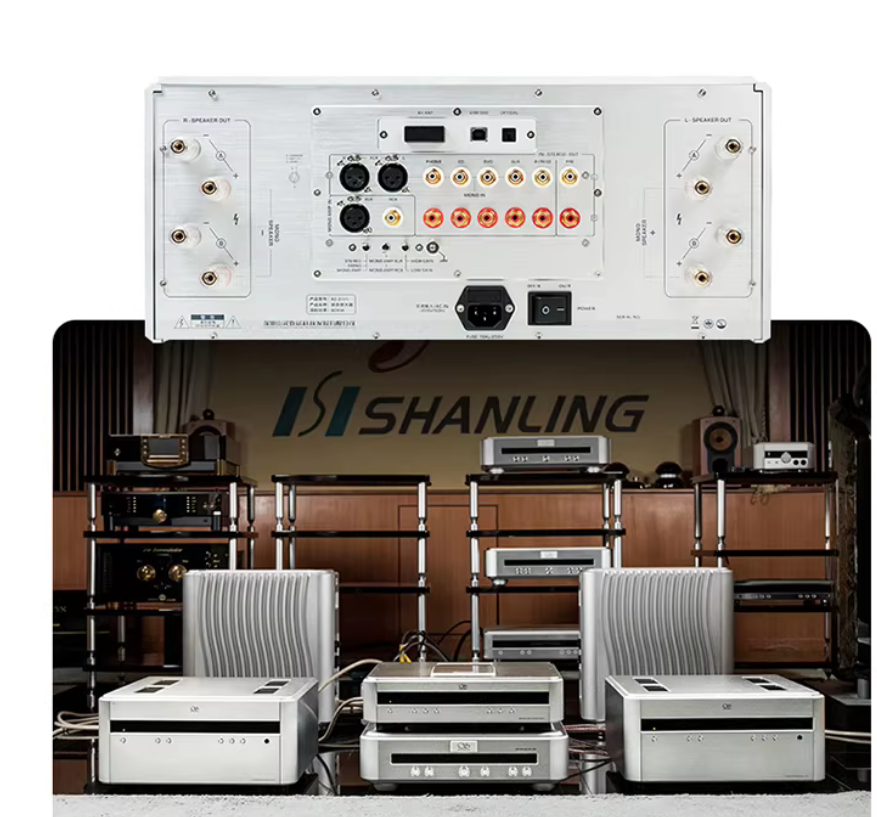

A3.2(21) supports Bluetooth input, optical input, USB DAC input, simply refer to the back panel connection diagram to widely support various devices such as mobile phones, computers, CD players, etc., realizing various scene interconnections.
Specifications
Dimensions: 460x455x226mm (Width × Depth × Height)
Net Weight: Approximately 29kg
Output Method: Speakers Out
Maximum Output Power: 200W @ 8 (Stereo), 400W @ 4 (Stereo), 500W @ 8 (Bridge)
Frequency Response: 10Hz~30kHz (-0.5dB)
Headphone Output Power: 195mW @ 32, 750mW @ 300
Input Sensitivity: 600mV @ 47k
Total Harmonic Distortion: <0.01%
Signal-to-Noise Ratio: >98dB (A-weighted)
DAC Decoding Chip: AK4493EQ USB
Receiving Chip: XU 208-128-QFN 48-C 10(X MOS)
Bluetooth: Bluetooth 5.0 CSR 8675
Power Supply: 220-235v or 110-120v, we send the right version for you
Display Method: OLED
Display Screen Input Method: CD, Optical, Bluetooth, USB
Optical Input: Supports up to 192kHz/24bit
USB Input: Supports up to PCM768kHz/32bit, DSD 512
Bluetooth Input: Supports LDAC, LHDC, aptX HD, aptX, AAC, SBC
Manual: 1 copy
Warranty Card: 1 piece
Three-Prong Power Cord: 1 piece
USB Cable: 1 piece
Remote Control: 1 piece
