Details:

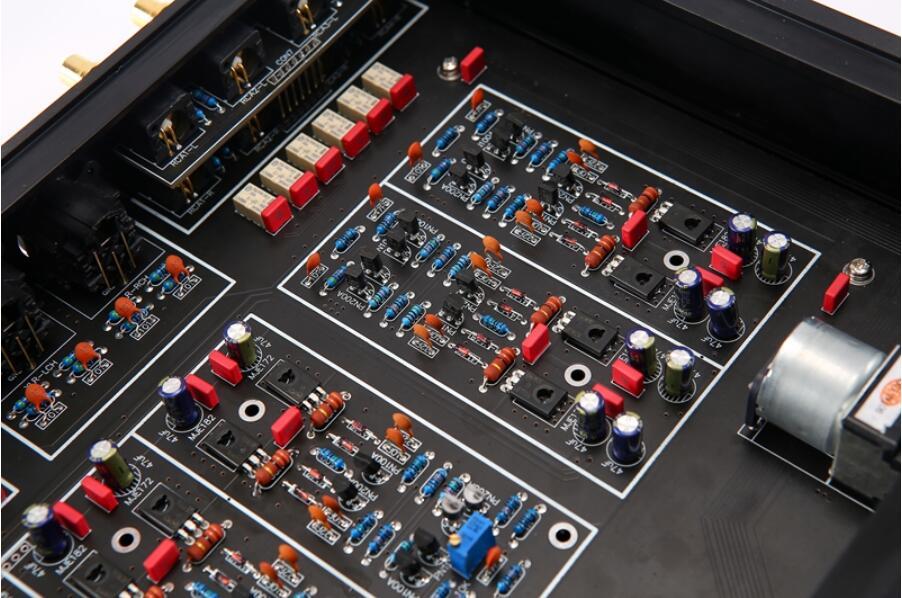

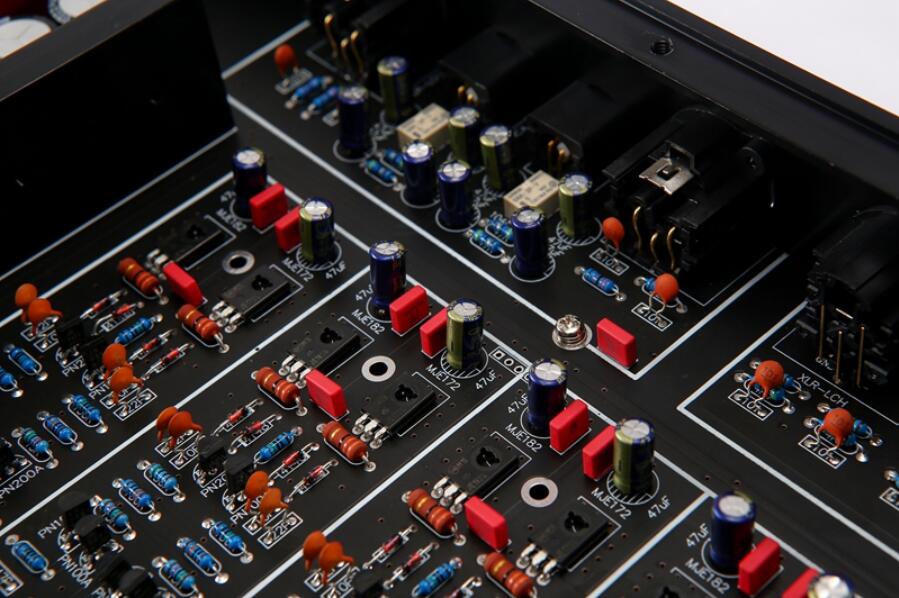

Based on the classic Bryston BP-26 pre-amplifier circuit.
Use ELNA 4700UF/50V*2 main filter capacitor, electrolytic capacitor signal secondary circuit uses ELNA, and other capacitors use German Siemens and WIMA.
The use of high-quality metal resistors ensures a good signal-to-noise ratio of the whole machine.
Use Japanese quad ALPS electric motor potentiometer.
Use BingZi 25W potting glue to seal the transformer.
Use CNC to process all-aluminum chassis.
XLR balanced input and output standard wiring, 1 ground 2 negative 3 positive.
Specifications:

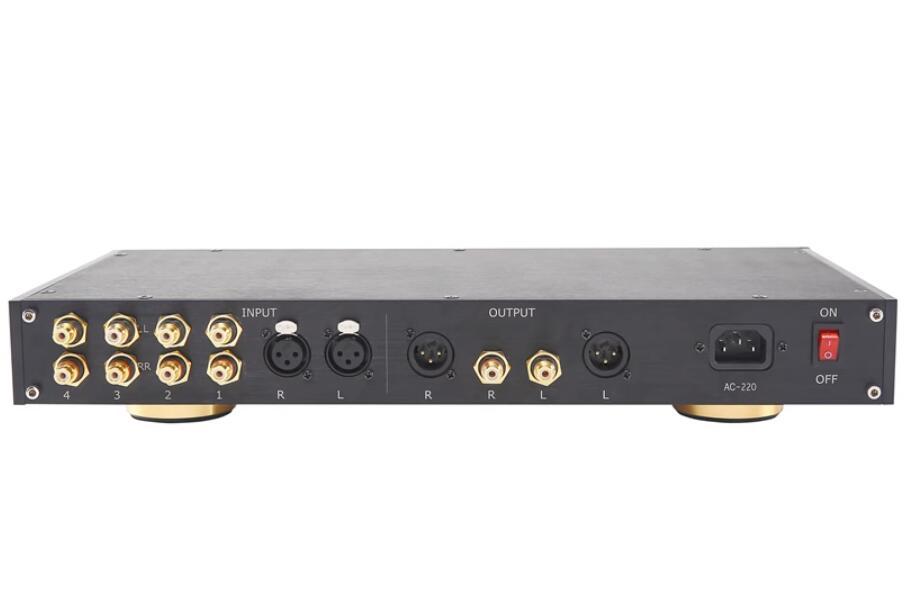

Input interface: RCA single-ended input *4 group, XLR balanced input *1 group
Output interface: RCA single-ended output * 1 group, XLR balanced output * 1 group
Frequency response: 20Hz-20KHz
Magnification: 6 times
Input impedance: 42K
Signal to noise ratio: 116DB
Distortion: <0.01%
Working voltage: AC115V or AC230V (optional)
Dimensions (W*H*D) 430*55*210MM
Weight: about 3.7KG
List:
1 × Finished Pre-amplifier
1 × Remote control (no battery)
1 × AC power cord
