Product Details:
Based on the classic MBL6010 pre-amplifier circuit.

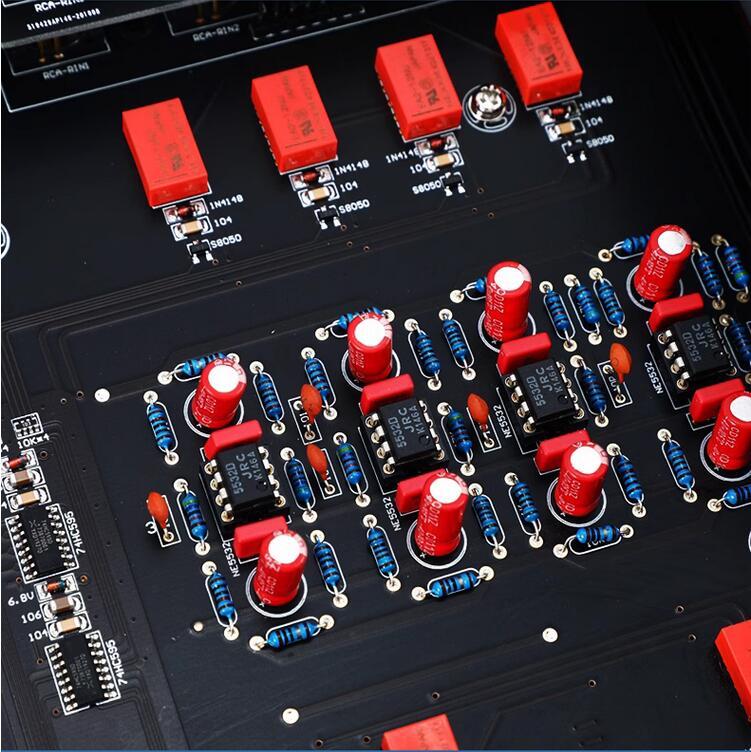

Use original JRC5534 JRC5532 op amp. (Gold-plated IC op amp socket, you can freely replace other op amp IC according to your preference)
Use ELNA 4700UF/50V*2 main filter capacitor, and other capacitors use German Siemens and WIMA.
The use of high-quality metal resistors ensures a good signal-to-noise ratio of the whole machine.

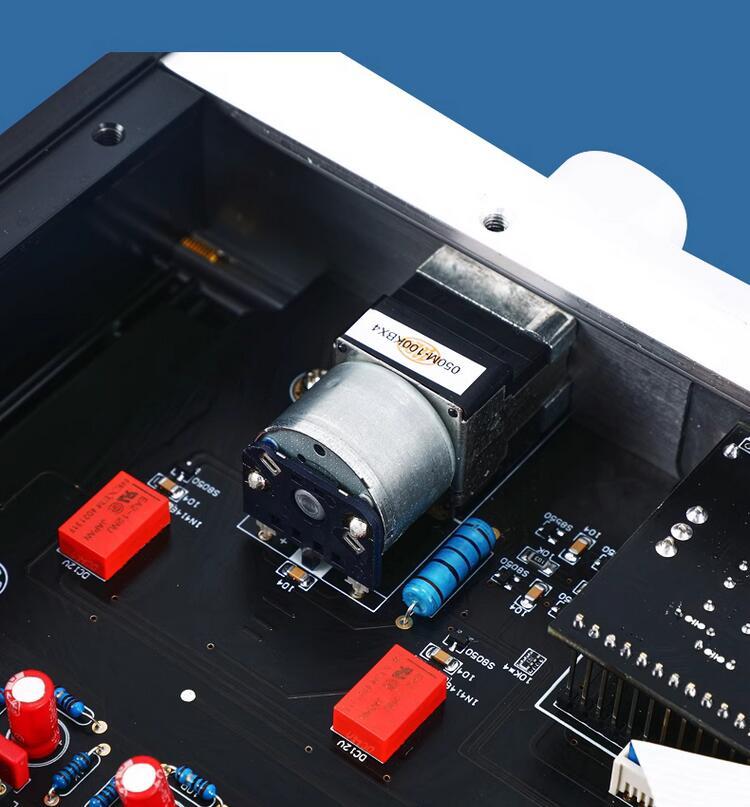

Use Japanese quad ALPS electric motor potentiometer.

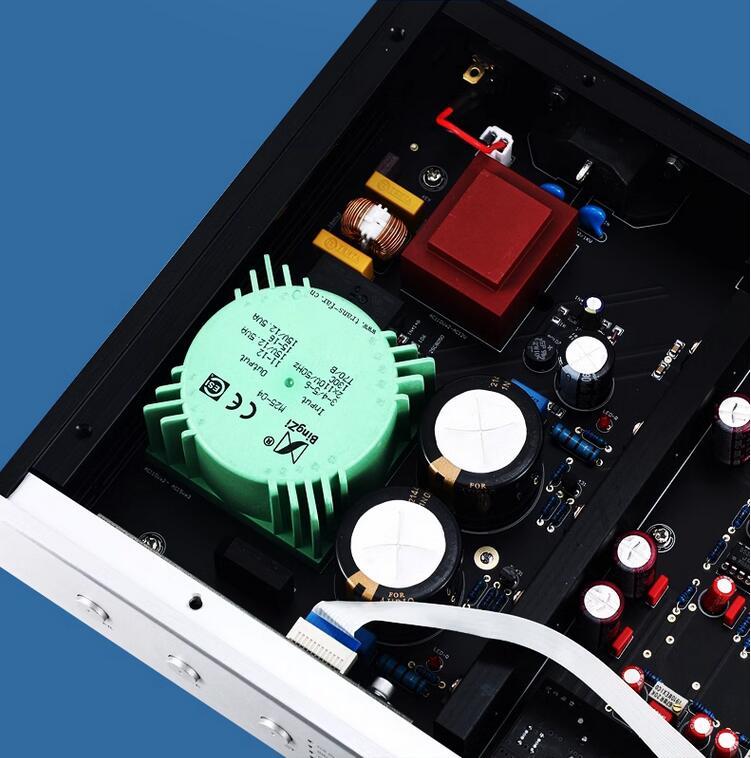

Use BingZi 25W potting glue to seal the transformer.

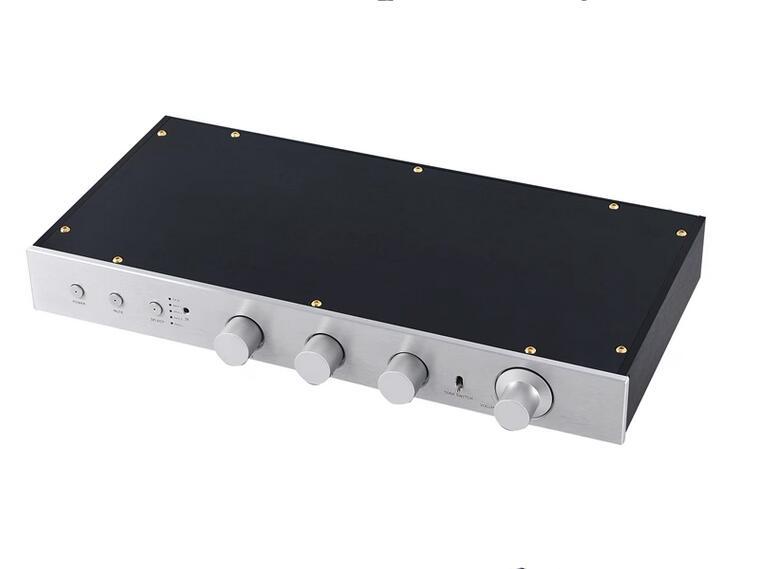

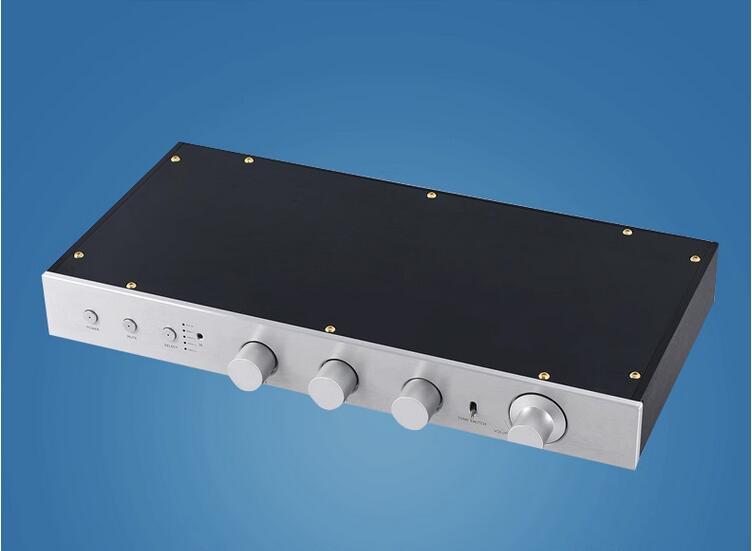

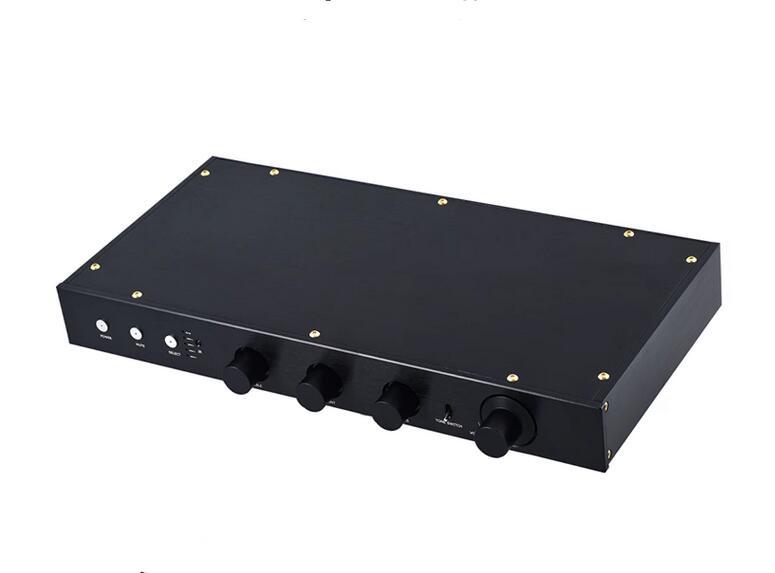

Use CNC to process all-aluminum chassis.
With buffered input, the sound is very vivid and the density of the sound is increased.
XLR balanced input and output standard wiring, 1 ground 2 negative 3 positive.
Specifications:

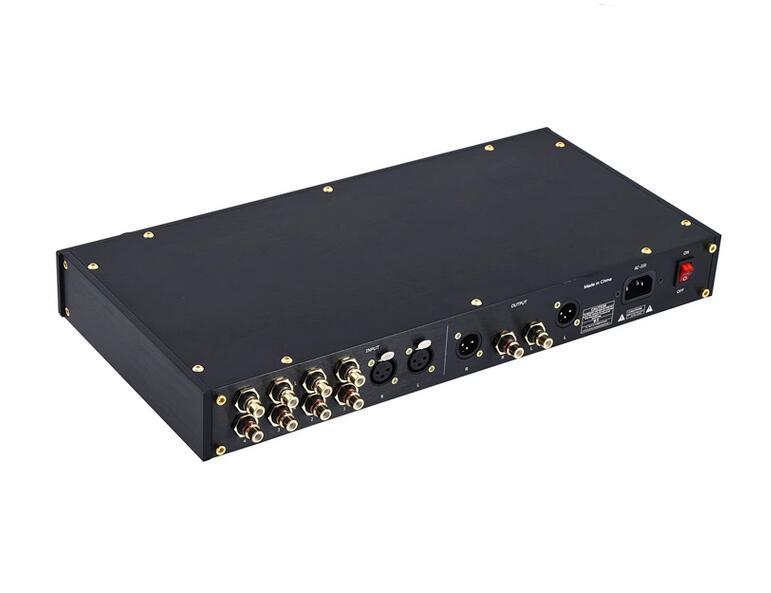

Input interface: RCA single-ended input *4 group, XLR balanced input *1 group
Output interface: RCA single-ended output * 1 group, XLR balanced output * 1 group
Signal to noise ratio: 123dB
Working voltage: AC115V or AC230V (optional)
Dimensions (W*H*D) 430*55*210MM
Net weight: about 3.8KG
Package list:
1 × Finished Preamplifier

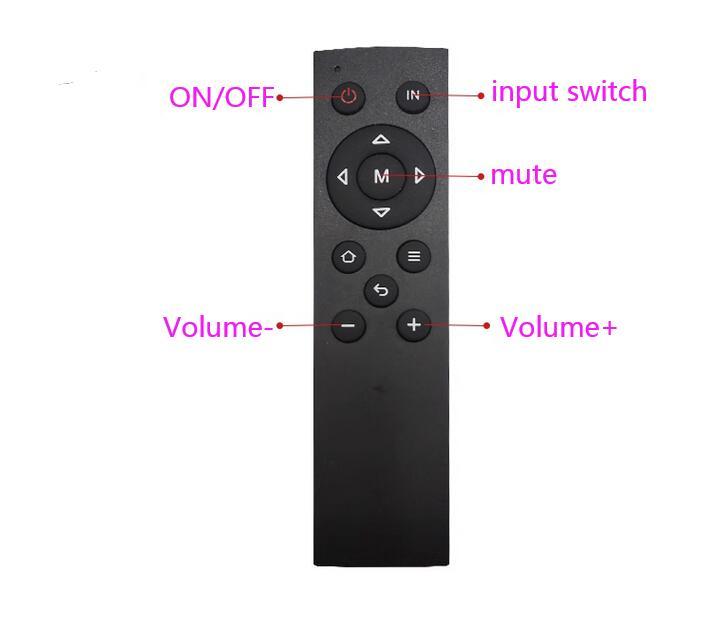

1 × Remote control (no battery)
1 × AC power cord
