Product details:
AM9 performs well in terms of charm, sound field, details, etc., with balanced distribution in low frequency, mid frequency, and high frequency, and overall quality is very high.
Fully balanced Class A design.

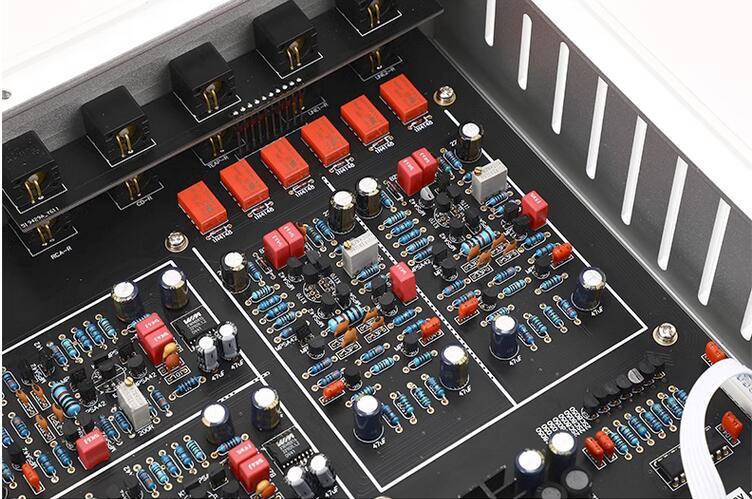

Discrete amplification circuit.
digital Volume Control .
Optimized design with reference to Goldmund circuit, stable performance, good user experience, and high audio quality.

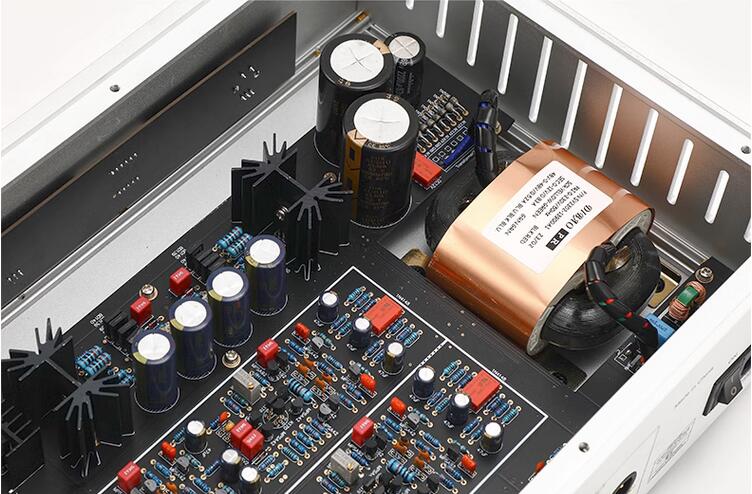

Customized R-type transformer, ELNA audio filtering capacitor.
Fully discrete high-power voltage stabilizing circuit, with a quiet background and transparent sound.
The differential circuit uses precision paired K170 Field-effect transistor, dynamic group, and rich details.
XWM8816 digital volume control chip, further reducing distortion, with zero deviation between left and right channels.
Parameters:
Model: AM9

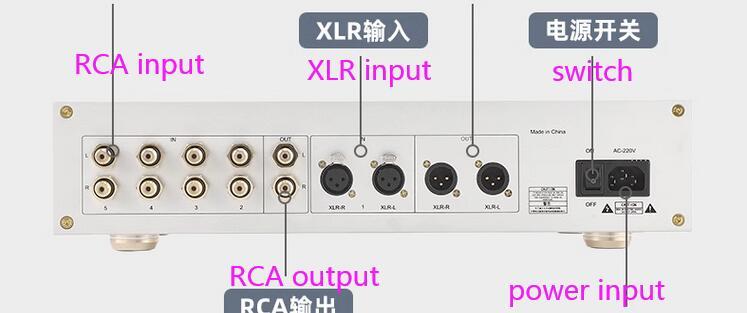

Input: RCA4 group, XLR1 group
Output: RCA1 group, XLR1 group
Input voltage: AC220V/AC110V
Standby power consumption: 26W
Volume control chip: XWM8816 * 2
Total harmonic distortion: 0.005%
Signal to noise ratio: 115db
Frequency response: 20-20KHz

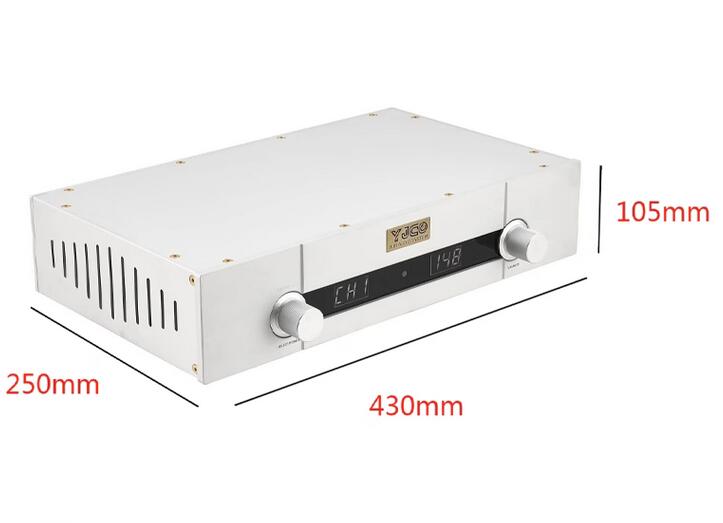

Size: 430 * 250 * 105mm
Weight: 5.4kg
