Product Details:
LT1084 is a high-power linear three-terminal regulator integrated circuit produced by Linear Technology, with an output current of up to 7A. It can operate under a dropout voltage as low as 1V; it can provide a guaranteed minimum dropout voltage through an on-chip correction circuit under a variety of current levels, and can adjust the output voltage accuracy to 1%. Its voltage regulation rate is 0.015%, load regulation rate is 0.01%, with thermal power consumption limit protection.
Not all devices use such a high current, but because the output current is sufficient, the internal resistance of the power supply is very low. Even if the device consumes 100MA, there is a very good positive improvement, the ability is sufficient, the low-frequency bounce force is obviously enhanced, suitable for Tube filament circuit, digital turntable, portable DAC and other equipment
Input and output minimum voltage difference: 2.5V (LT1083 is not suitable for large voltage difference work, input and output are best within 10V, 3-5V is best, this is a linear IC, power consumption is proportional to the pressure difference, the maximum voltage difference (Over 20V)
Specifications:
Input voltage range: 2.5-38V
Output voltage range: 1.25-36V (current up to 7A)
PCB size: 44 * 116MM
Net weight: 0.13KG
Package list:

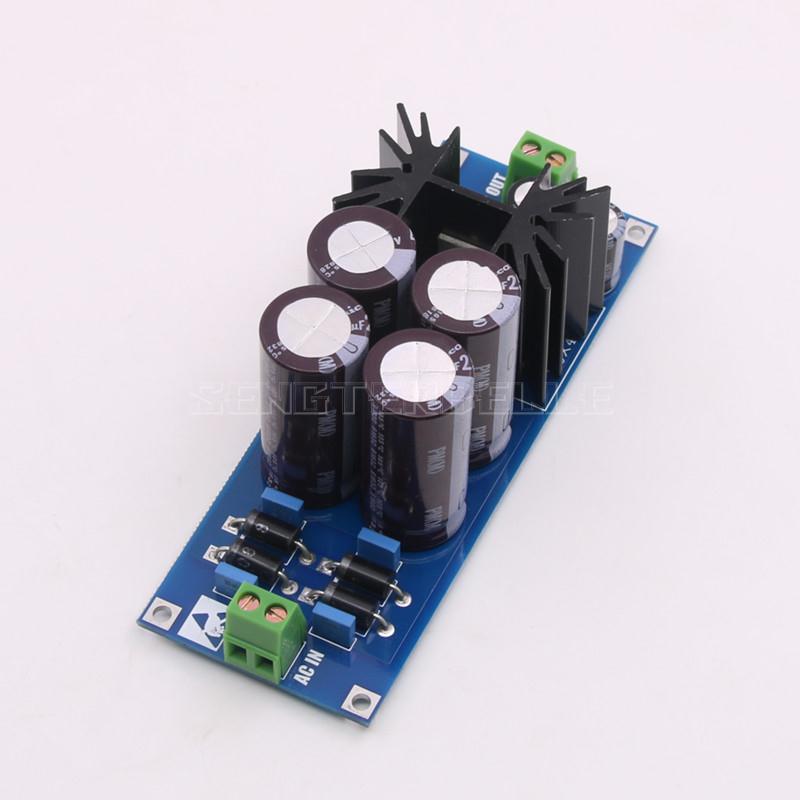

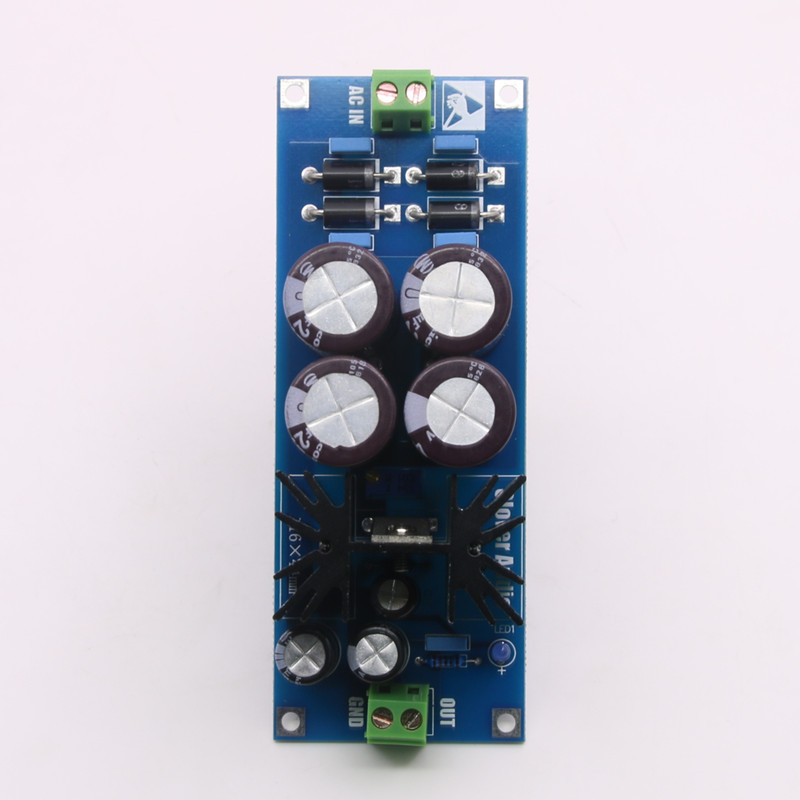

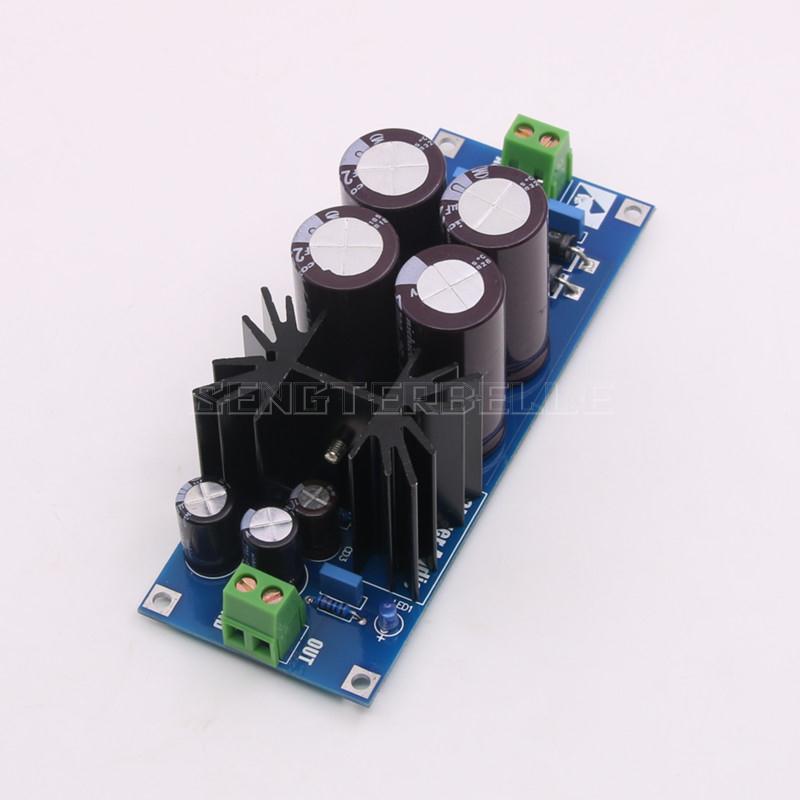

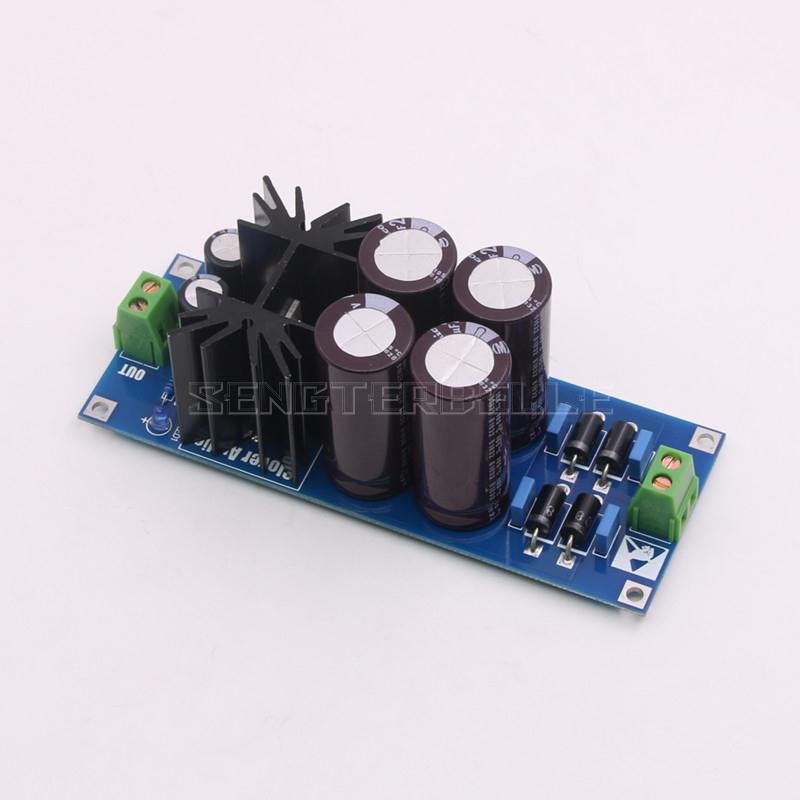

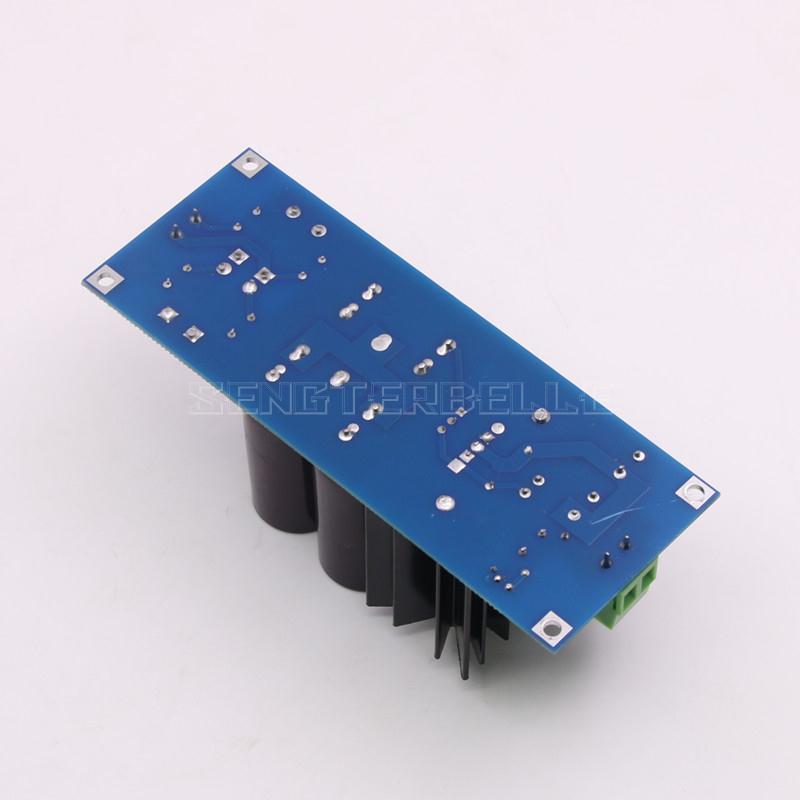

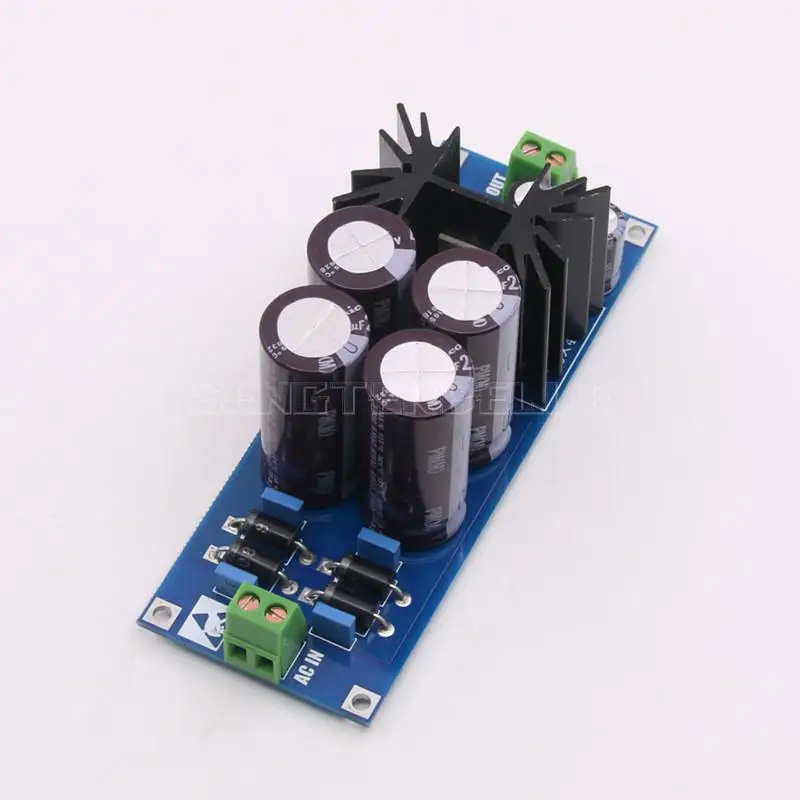

1 × Assembled boad
