Functional information:
The M×L6010 circuit, one of the world’s three major audiophile preamp、, the circuit of the machine is basically the same as the original circuit, and the output delay input has been added. Three single-ended RCA, and one balanced input, one RCA single-ended output, and one balanced Output, where the AUX input has a buffer stage, and the other two groups are pure amplification, so that a preamp with multiple styles and materials are also tried to be close to the original machine. One shared as many as 12 op amps. Continuous tuning, tuning, and sound. The closer it is to the original style, the sound quality is transparent and non-stained, pure HIFI style, three-frequency equalization, and original sound reproduction. It can be said that it is a preamp machine that tests your audio equipment. In the continuous audition and tuning, They are all based on the style close to the original machine, such as the use of capacitors, the adjustment of the capacity, etc., which are all corrected in the slow sound calibration, and the modification and recalibration will take a lot of time and energy. Finished with the enthusiasm and perseverance of enthusiasts, this is also a fun, and only enthusiasts can understand
Parameter:
Product Name: B601 fully balanced preamplifier
Magnification: 7 times
Harmonic Distortion: (THD) ≤0.003% (1kHz)
Frequency Response: 10Hz-50kHz (±0.5db)
Signal To Noise Ratio: ≥100DB
Rated Voltage: 220V
Input Impedance: 50K

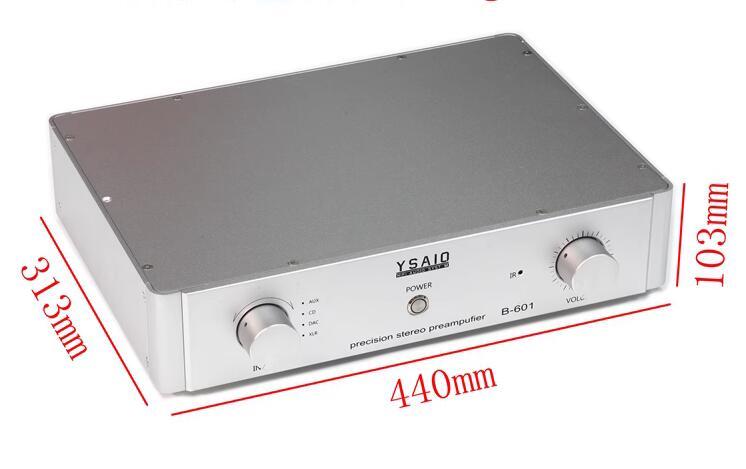

Net Weight: 6.2KG
Input Voltage: 220V/110V
Packaging:
1 × Preamplifier
1 × AC cable

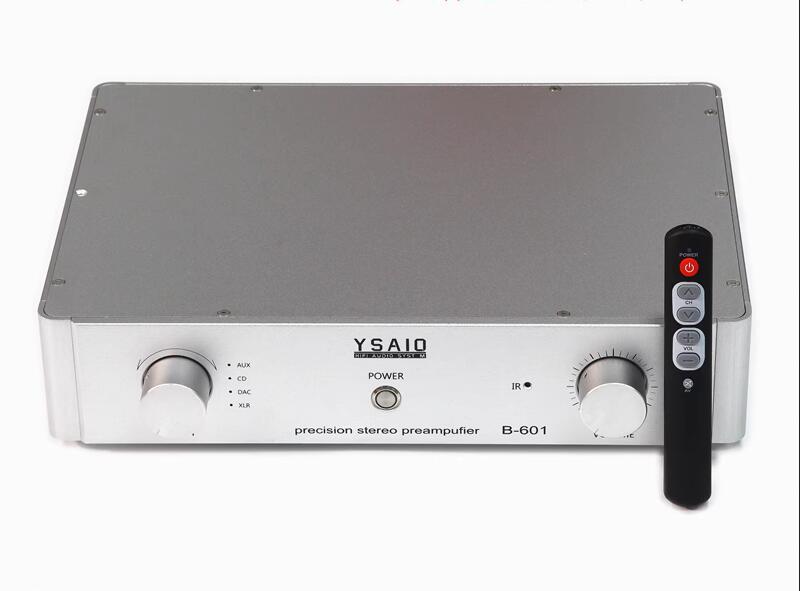

1 × Remote Control
