Parameter:
Input voltage: AC 230Vac (115Vac optional)
Output options: DC 5V / 7V / 9V / 12V / 15V / 16V / 18V / 19V / 24V /1.0A for choose
Output terminal: DC 5.5mm / 2.1mm two output at the same time (positive and negative)
Voltage indicator: 3 bit blue LED digital display
Voltage range: + 5%
Dimensions: 155 X 110 X 63mm
Weight: 1.5 kg

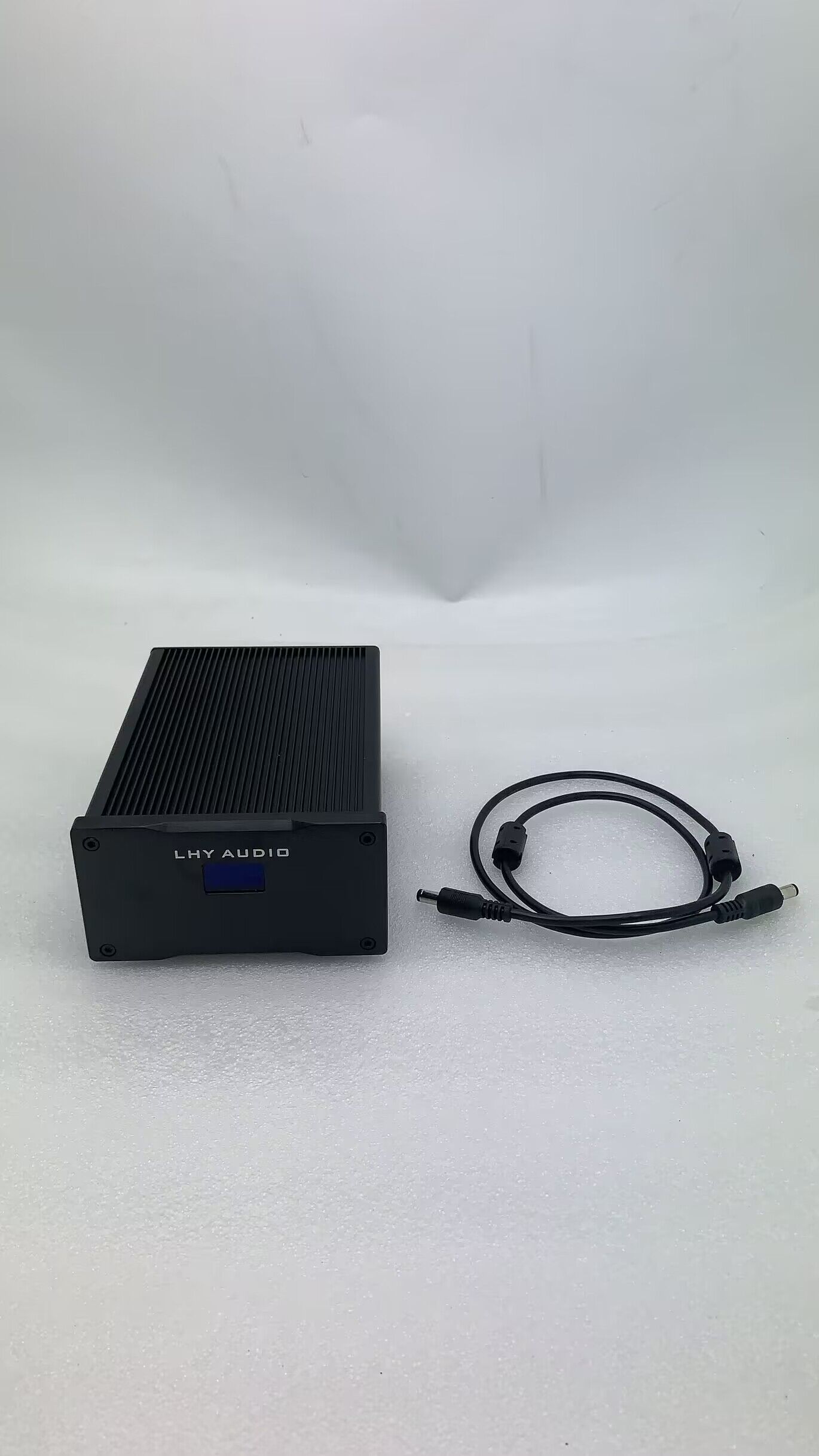

Random accessories: DC5.5 - 2.1 mm dual head DC power output line, length 0.8 m
Materials:
Imported hifi audio commonly used TALEMA 25VA seal ring cattle
Ultra low noise stabilized voltage circuit composed of precision reference + high speed operational amplifier and +MOS output tube

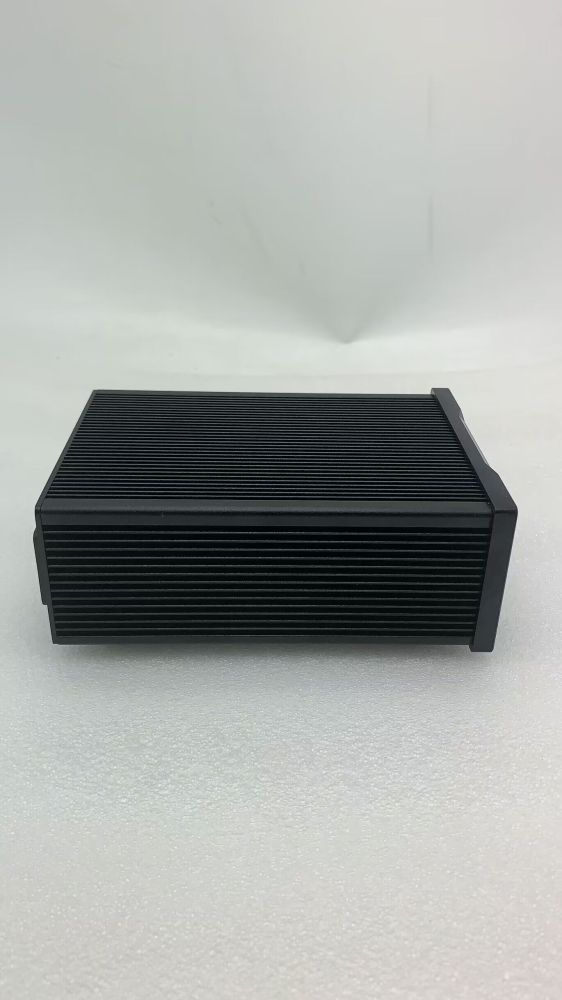

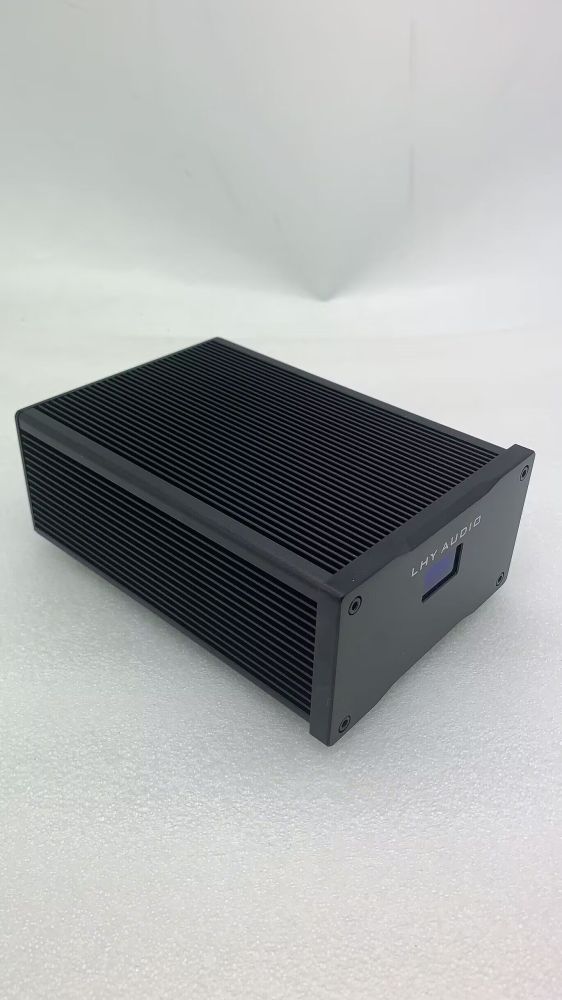

Thick textured aluminum alloy housing with heat sink to ensure heat dissipation

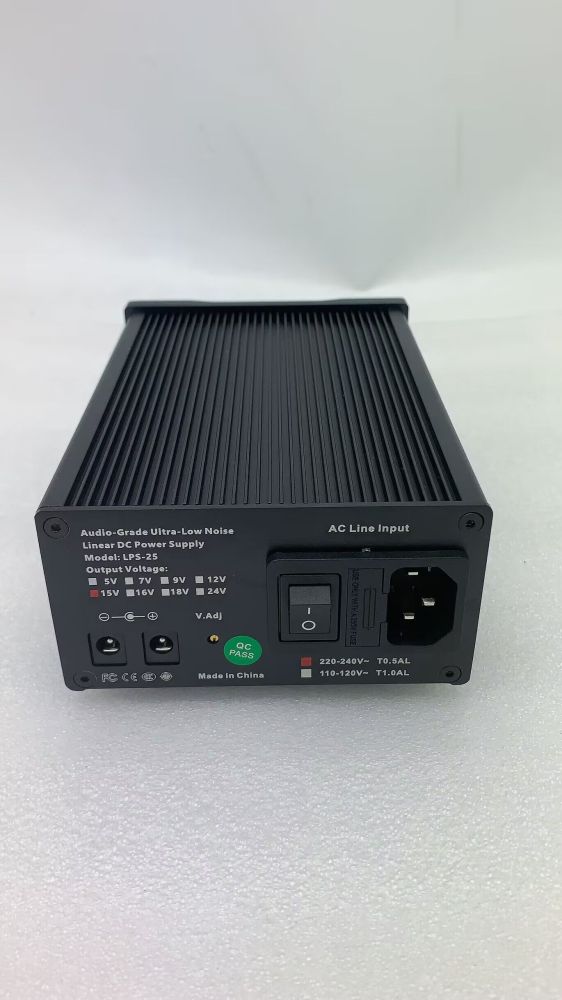

Shute IEC AC power input socket + EDK power switch
The output voltage can be adjusted by the multi turn potentiometer
Vishay fast recovery large current finishing diode
Full copper high current DC output stand
Multiple precision high current filter inductor

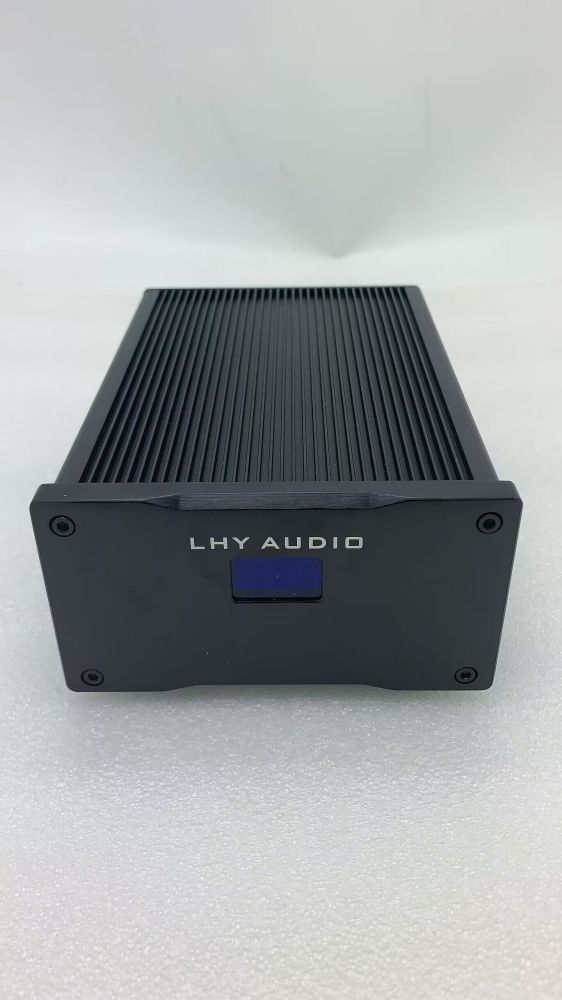

Panel with 3 bit blue LED digital voltage indication
