Product parameters:
Model: DC300

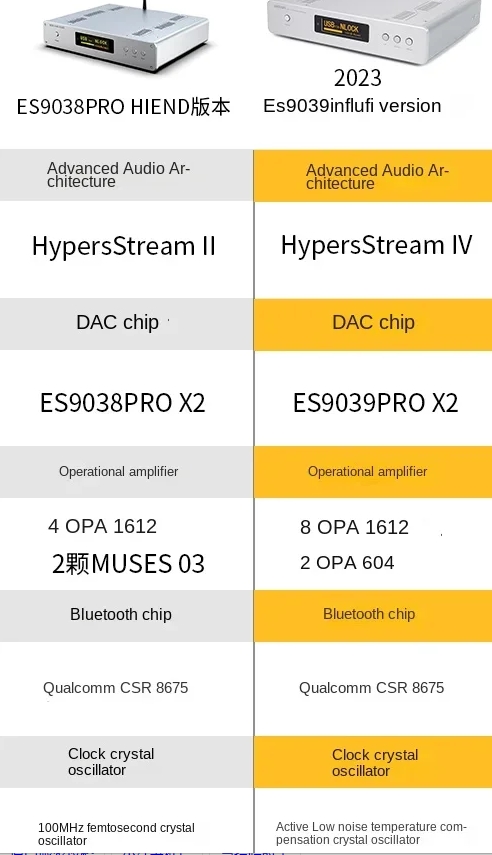

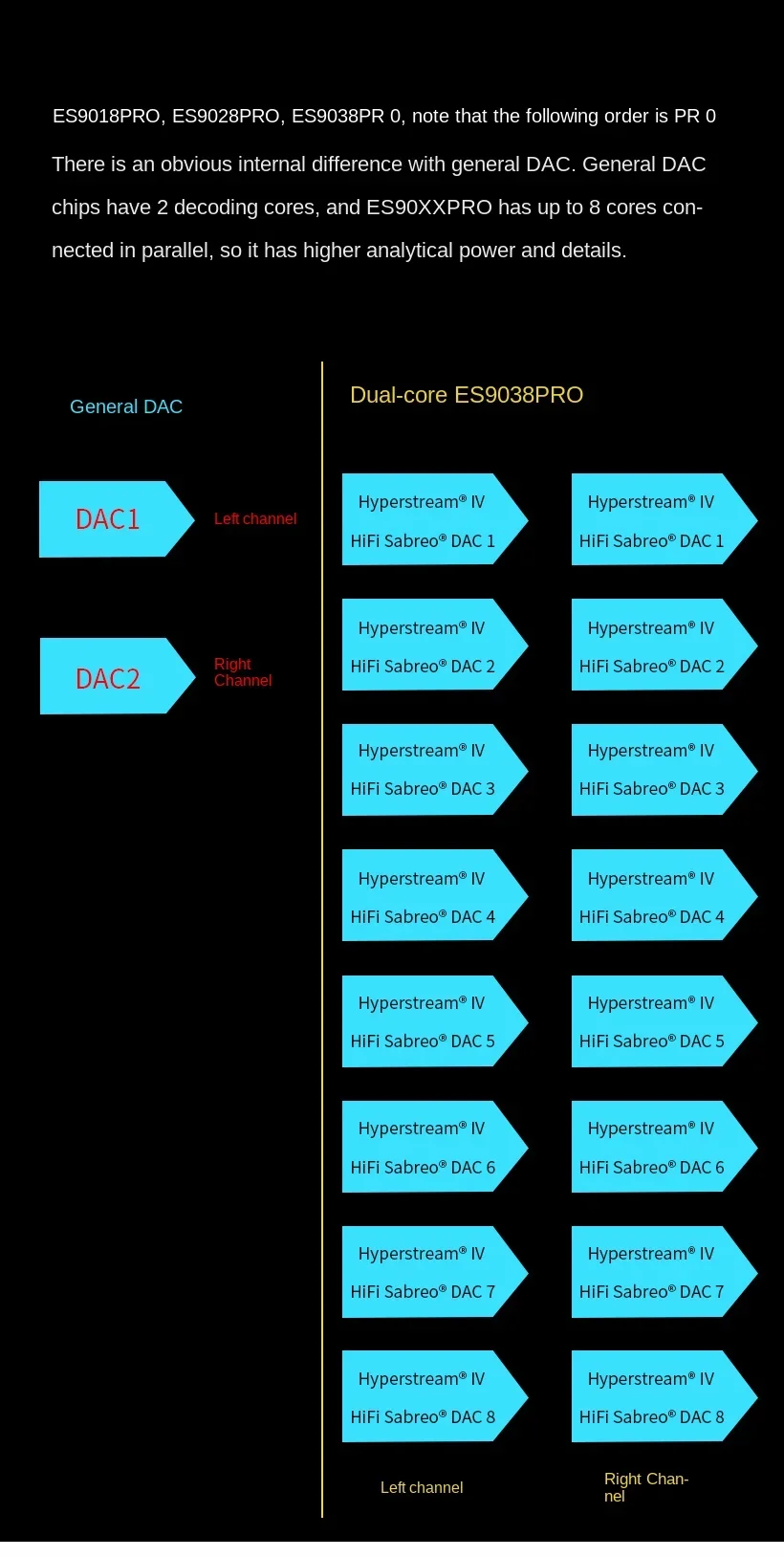

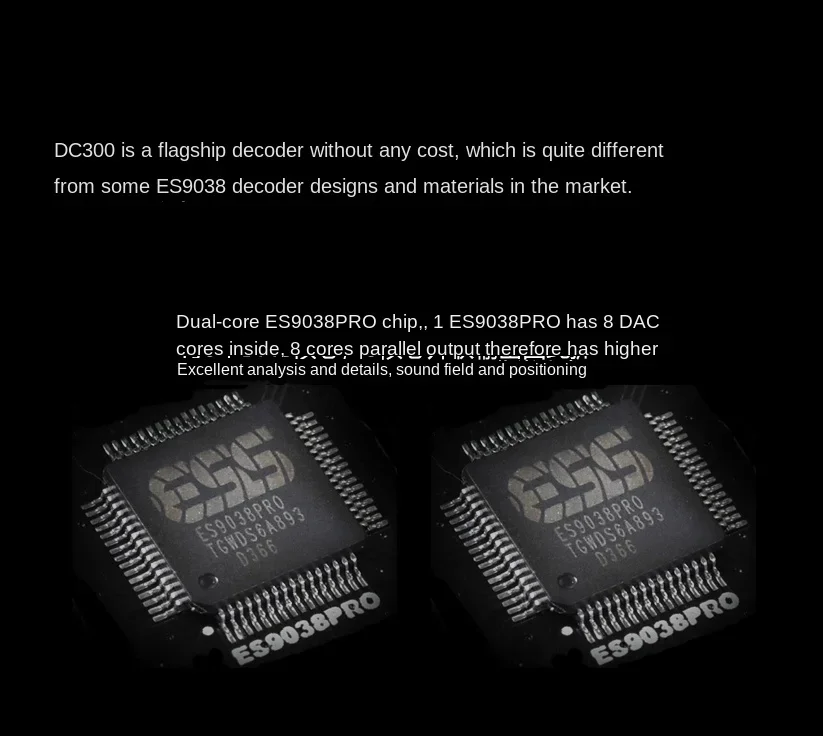

Decoding solution: ES9038PRO dual core
Product size: Width 318mmX Height 62mmX Depth 248mm

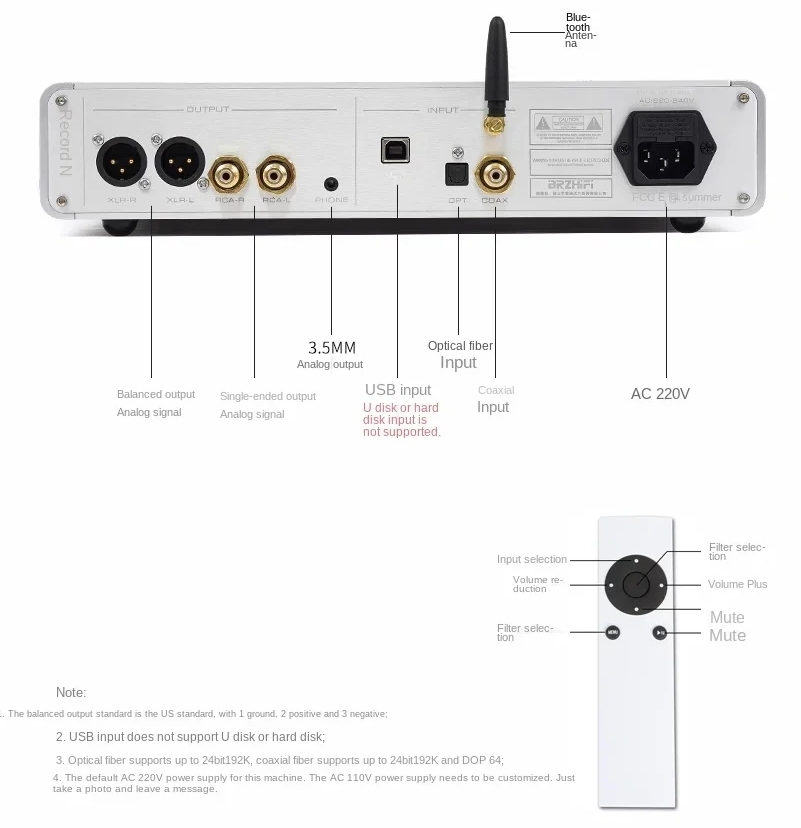

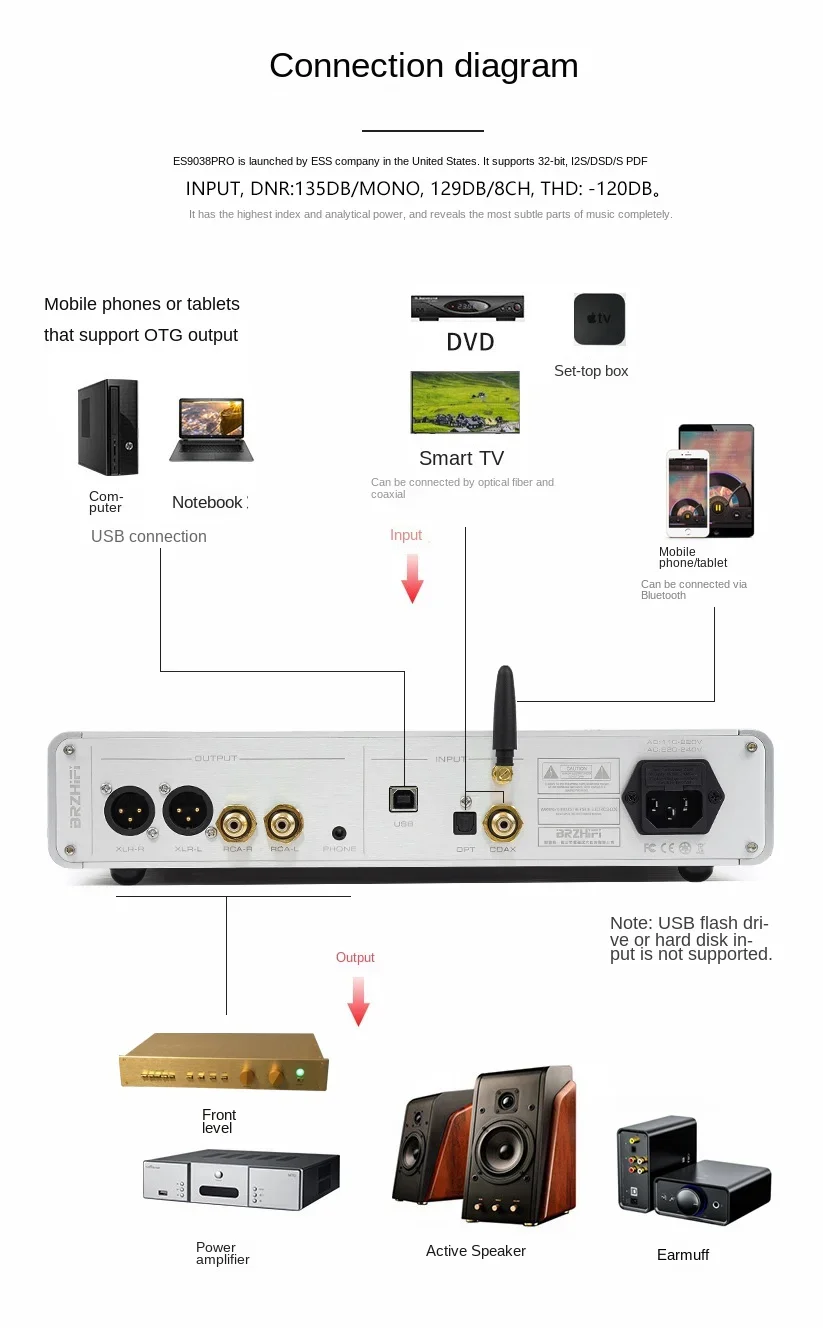

Digital input: USB/mobile phone OTG, BLU Bluetooth, COAX coaxial, OPT optical fiber

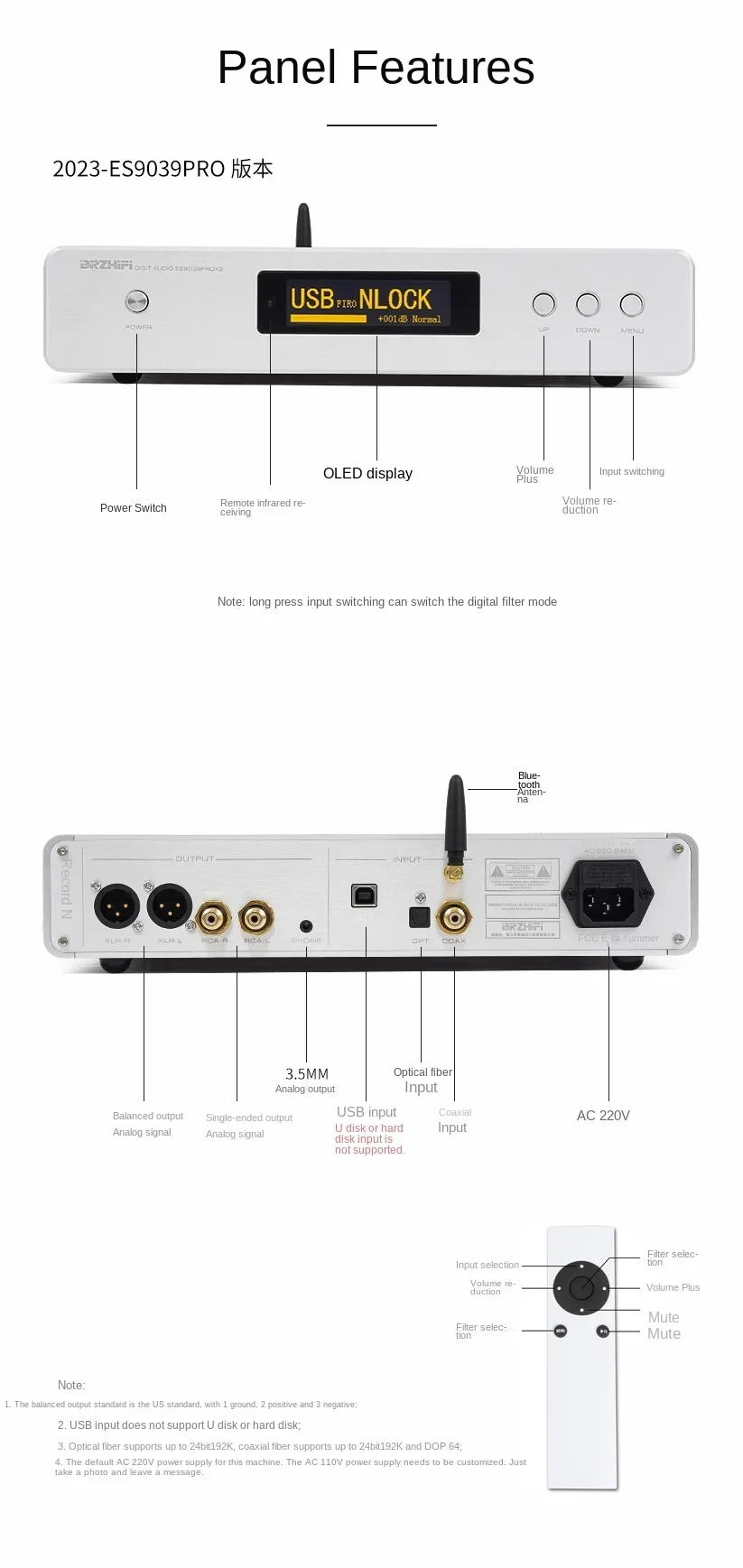

Output interface: single-ended analog signal, balanced analog signal, 3.5MM analog signal
USB input: PCM 44.1K~384K24/32bit DSD64~DSD512Windows/Vista/Linux/Mac OSX/Dapile; Windows requires driver
Coaxial optical fiber: PCM 44.1K~192K16~24bit (COAX input supports DOP64)
Bluetooth input: AAC/SBC/APTX/APTX-LL/APTX HD/LDAC
Dynamic range:>120dB, distortion rate 0.0005%
Frequency response: 20Hz-20kHz+/-0.08dB
Line output: RCA output level single-ended 2.3Vrms, XLR balanced 5.6Vrms
Rated power: 25W AC110~AC240V (AC110V needs to be customized)

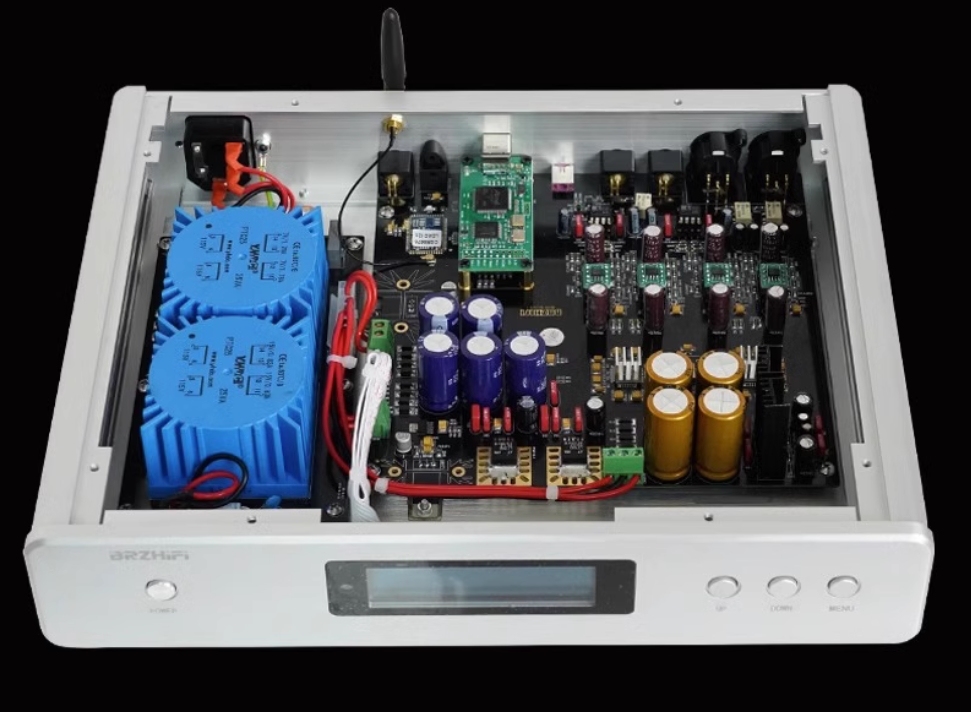

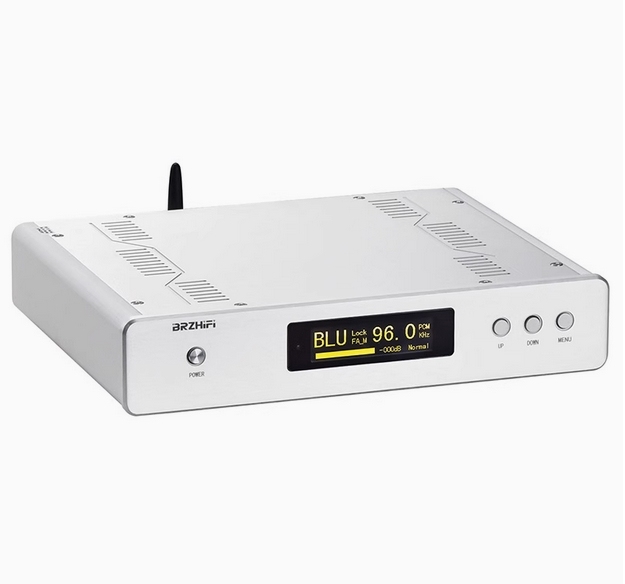

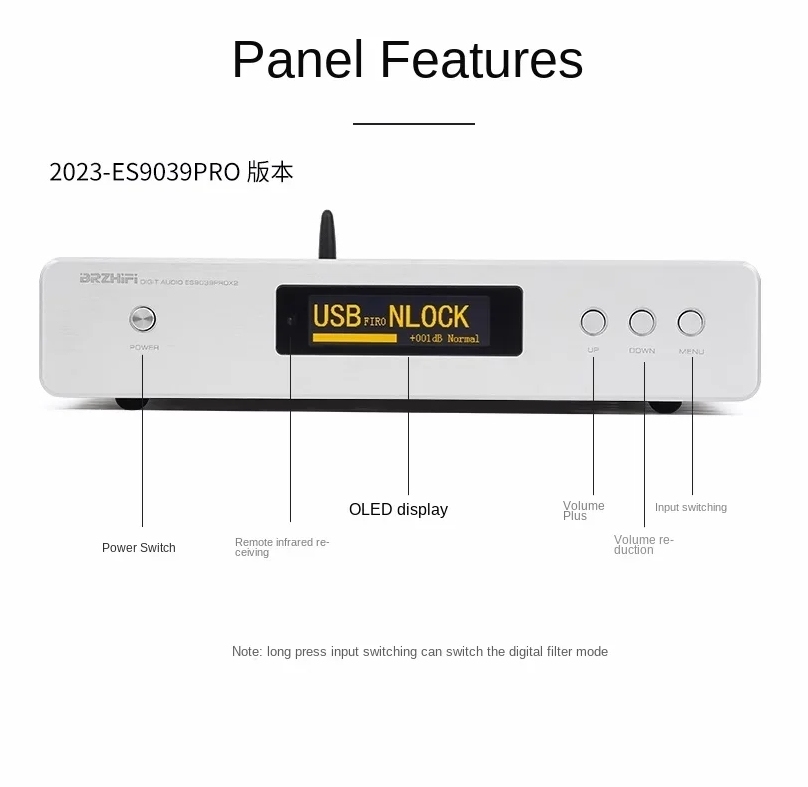

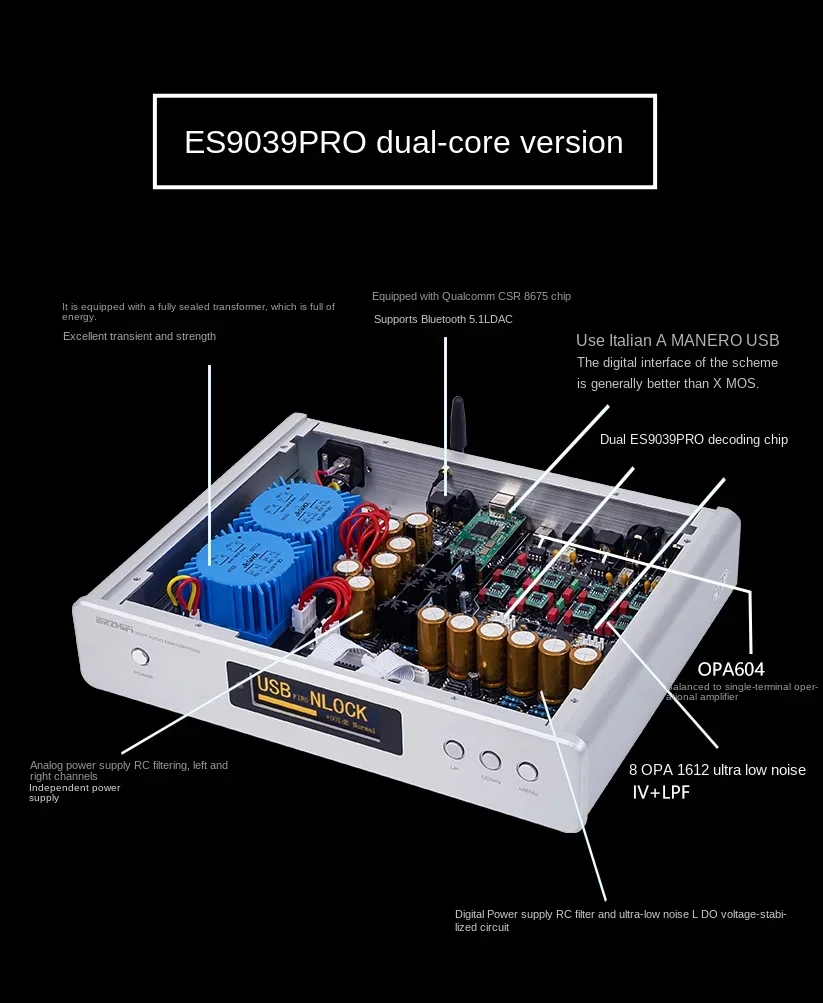

The reason why the sound quality is better than similar products is because of the use of better materials and excellent design. The materials are much better than those of the peers. We use the flagship MUS03 op amp, which is much more expensive than the MUS02 op amp, and a femtosecond clock. crystal oscillator. A large number of voltage-stabilized LDOs are LT Lingte's high-end products, etc. The transformers are two blue A-core fully sealed low-magnetic leakage transformers, which are quite hot! In addition, the outer shell is a high-end CNC shell, and the OLED display is a 2.08-inch large shielded high-definition display. It's not that low-resolution, small-size OLED screen.
Bluetooth uses CS8675 by default, which is currently the Bluetooth chip with the best sound quality and accuracy. The price is also the most expensive Bluetooth chip.
