E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board

SKU:
on sale
5.0 (2 Reviews)
6 Sold
$149.00 $137.08
-8%
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (12)
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
1/1
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • E405 MJ15024G/MJ15025G 200W+200W 4ohm 2SA1930/2SC5171 Completed Amplifier board high power finished amplifier board
  • Description
modelE405
Output channel2.0 channel
power amplifier tube MJ15024G*6 MJ15025G*6
frequency response range20-20KHz
voltage

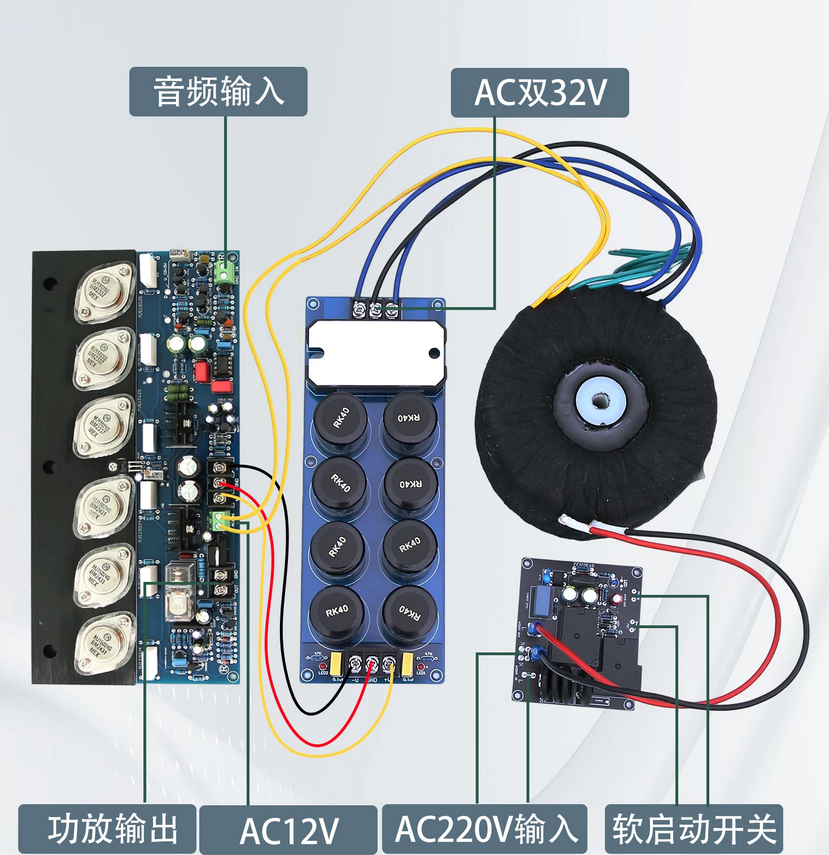

AC32V-0-AC32V rectifier bridge 0-AC12V
AC32V-0-AC32V rectifier bridge 0-AC12V
output power
Class A and B 200W * 24 Ω
Class A 60W * 2/4 Ω
Total Harmonic Distortion
THD+N<0.1%
protection mechanism
Mid point voltage protection, startup delay protection

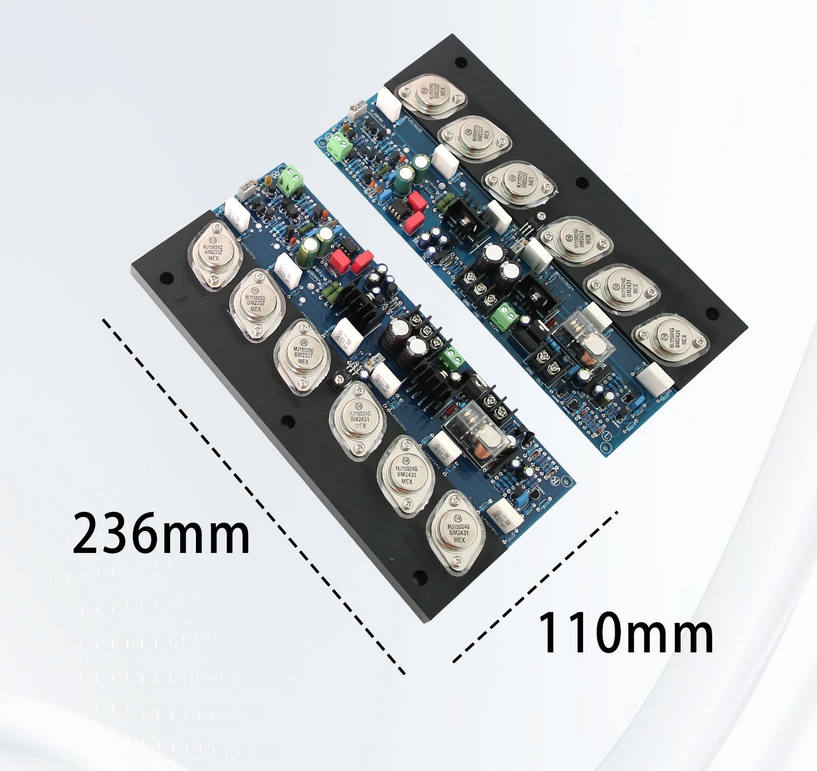

size 110*236mm
weight  0.5KG+0.5KG

 first adjust the differential input stage current is 2MA: adjust VR1 (500R) adjustable resistance to make         C, D two point voltage is 1.5-2V (R9 (1K) resistance voltage at both ends); at this time the input differential current is 1.5-2MA, this value is the best sound quality

tube static current is 100MA: adjustable resistance VR2 (1K) to make A and B two points voltage 22MV, at this time the static current I=22MV/0.22R resistance is 100MA; if the customer heat sink is large enough, the static current can be increased, and the general 100MA-300MA sound effect is the best.
