Product Details:

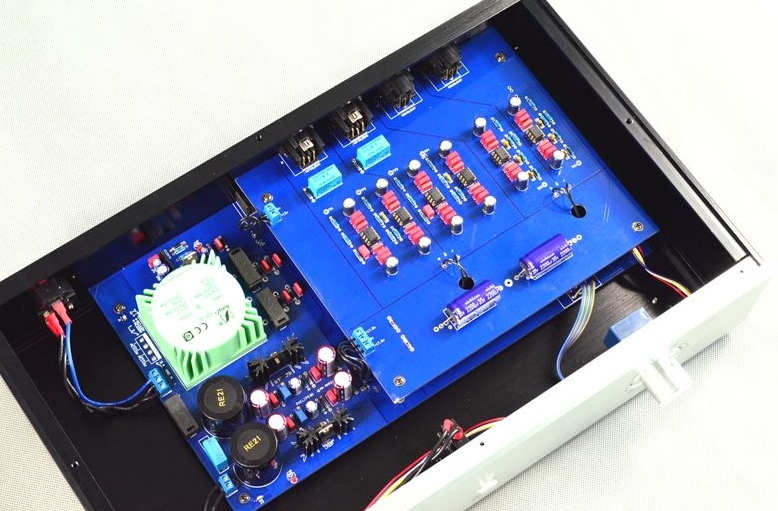

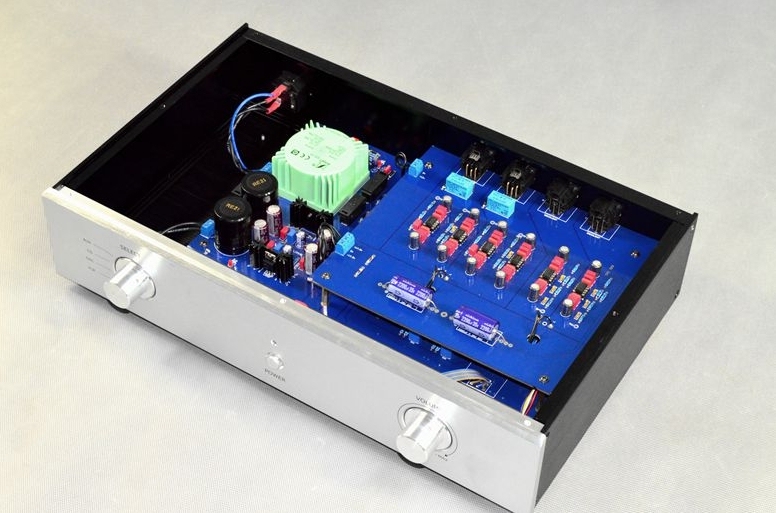

This preamplifier is basically the same as the MBL6010 circuit, with added delay output, transparent sound quality without distortion, and tri frequency equalization.

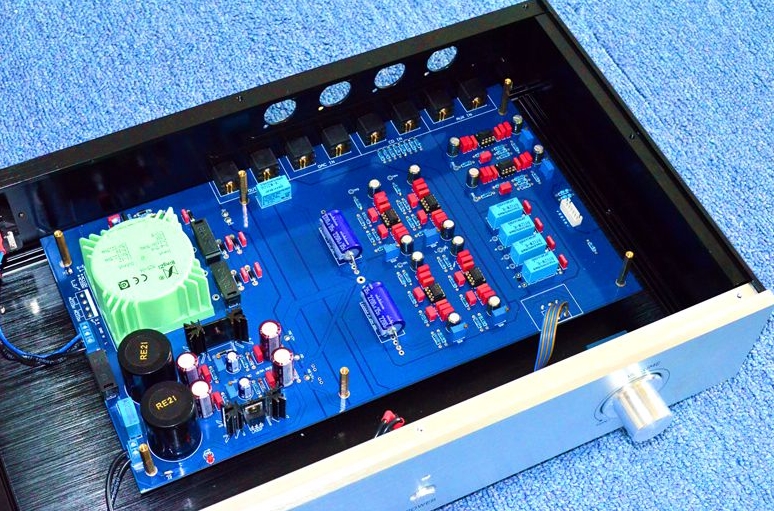

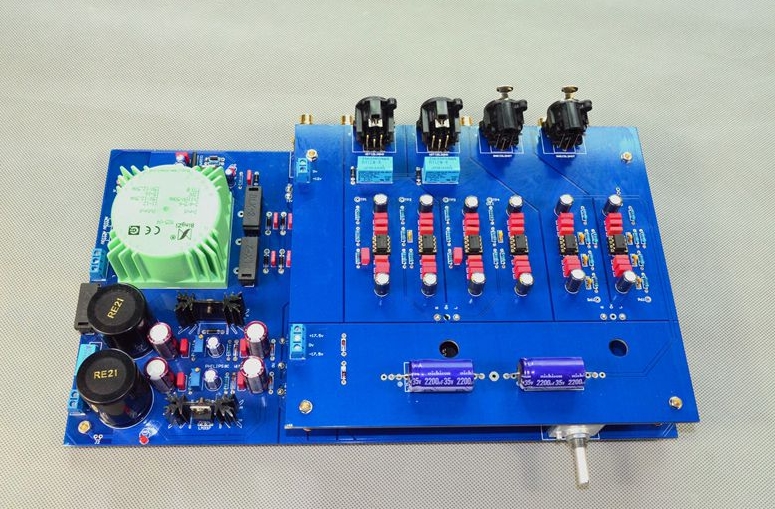

Double layered design, layout work.exquisite craftsmanship.

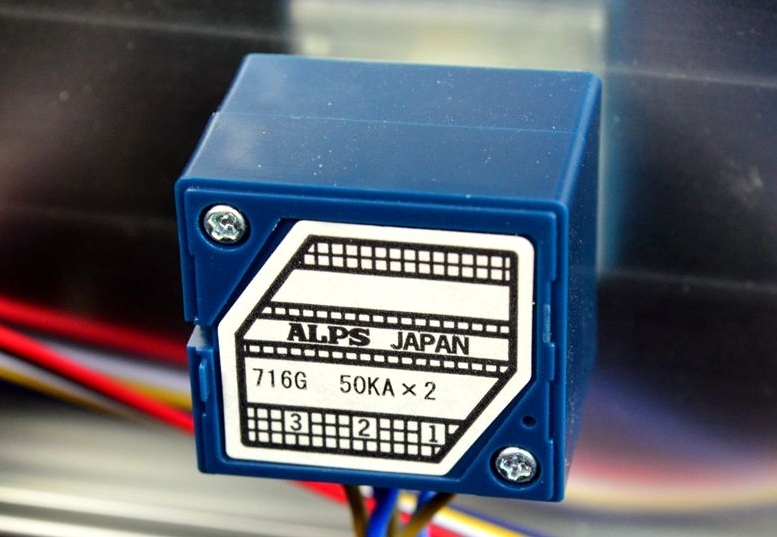

Imported capacitors, resistors, and other components (such as German WIMA capacitors, Japanese Nichicon capacitors, Japanese ALPS27 potentiometers, TAKAMISAWA relays).

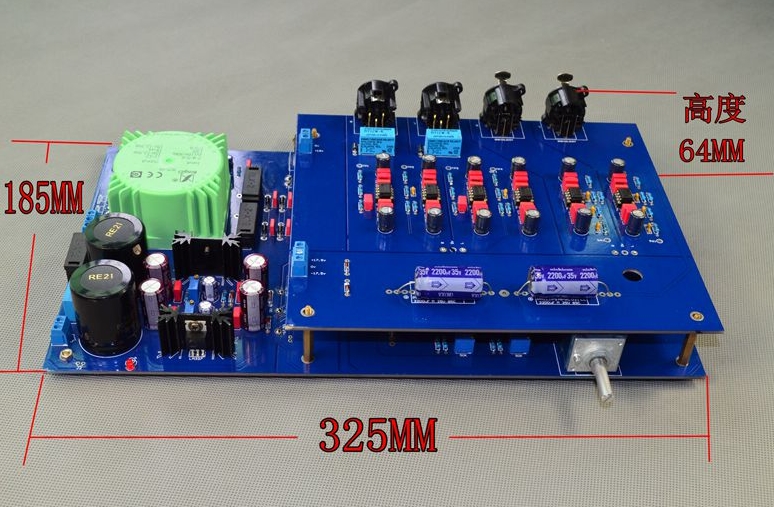

Specially designed fully balanced input board, carefully tuned.
Pure copper input socket and balanced terminal.
Parameters:
Input voltage: AC220V (/110V)

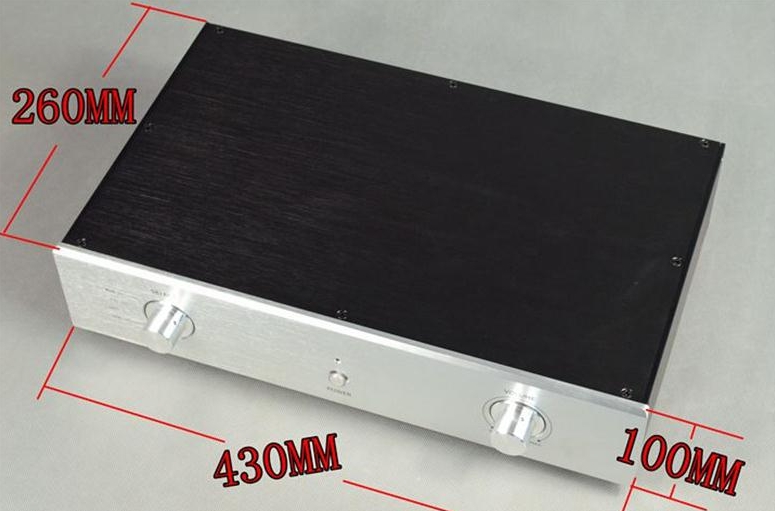

Size: Width 430mm, Depth 260mm, Height 100mm
Weight: about 4.6 kg

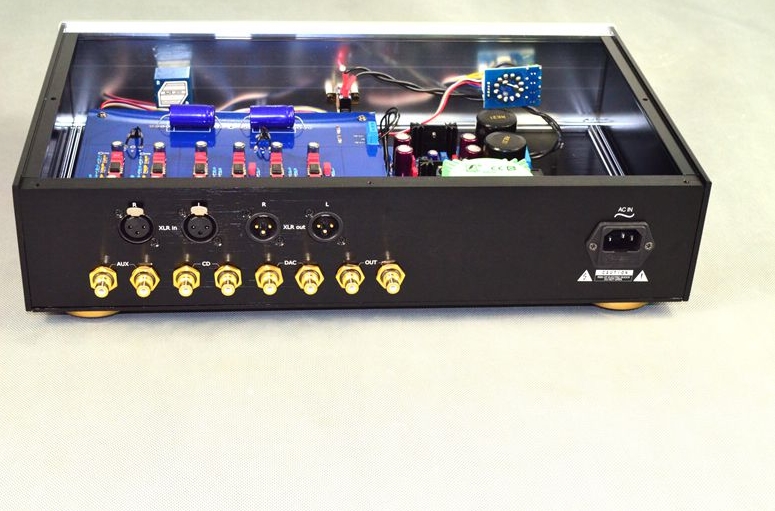

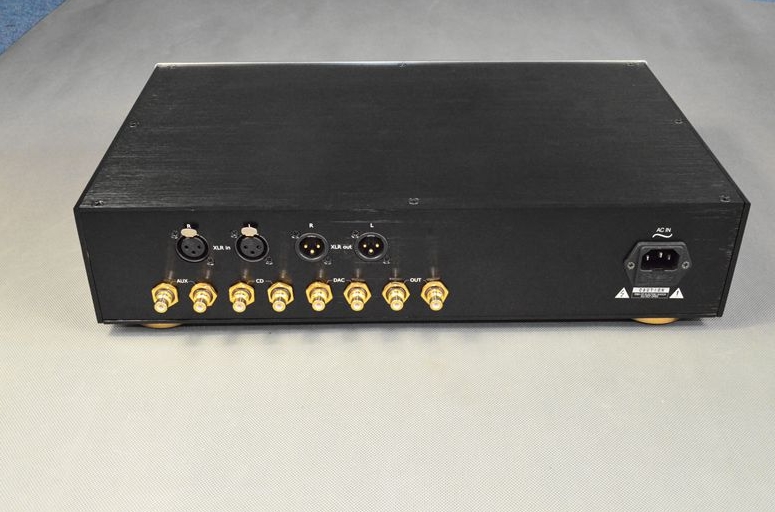

Input: RCA single ended x 3 sets, balanced x 1 set (with AUX input buffered)
Output: RCA single ended x 1 group; Canon balanced output x 1 group
Frequency range: 10Hz-30K balanced
Minimum distortion:<0.0006%
Signal to noise ratio: 103dB (CD)/102dB (high-level)
Input impedance: 47 kΩ
Channel Separation: 90dB
Power consumption: 15 W
Package list:
1 × B601 preamplifier(For the safe transportation of the amplifier, a power cord is not provided by default）
