Finished Precision Dual Channel Single-ended To Balance Audio Converter RCA to XLR DRV134 Converter

Product Details:

This is a two-channel single-ended (RCA) to balance (XLA) box , the box can be connected to the sound source (such as CD), the CD has a balanced output function; can also be connected to the pre-amplifier, With balanced output function.

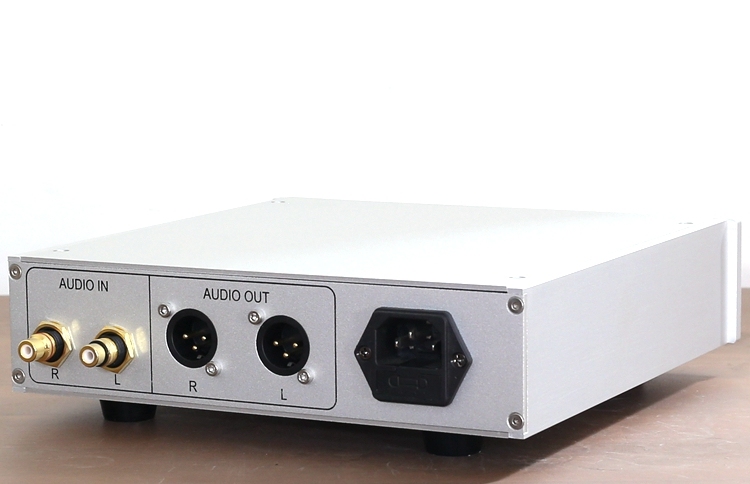

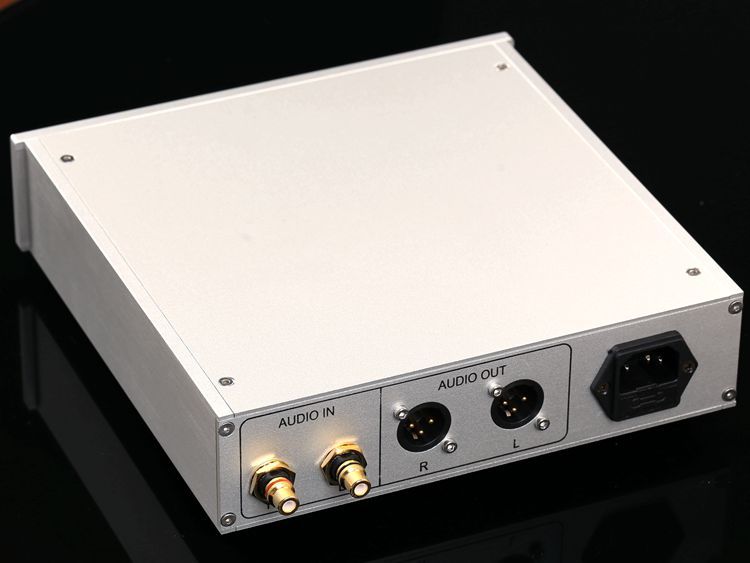

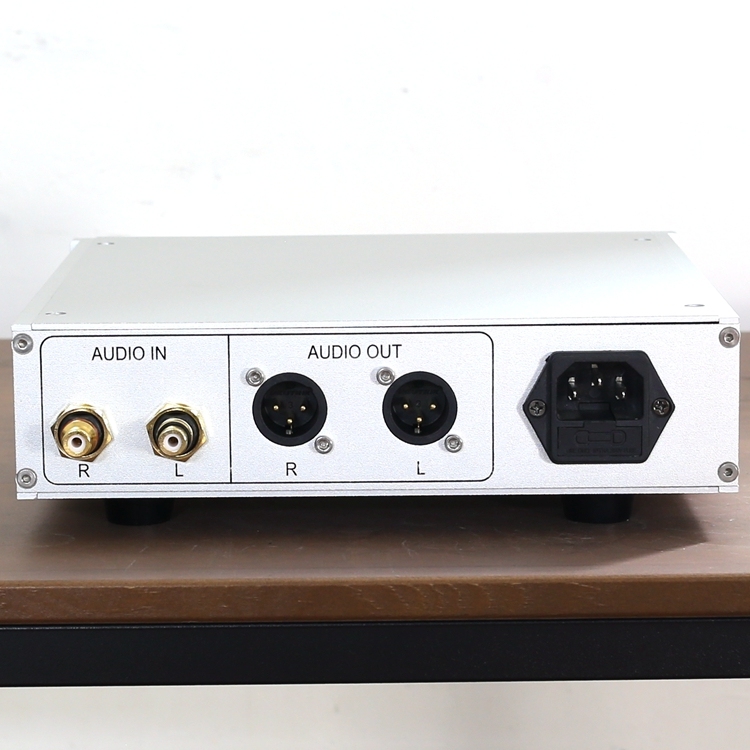

XLR output is standard American wiring: 1 ground, 2 positive, 3 negative

Pin 1 is grounded, and pin 2 and pin 3 transmit positive and negative signals respectively

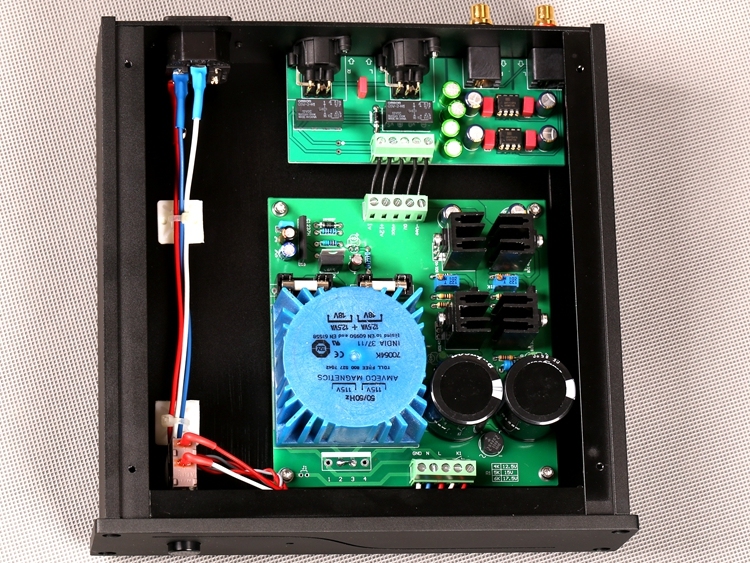

The use of BB's professional-grade integrated circuit DRV134PA as the conversion core, with low distortion, high output symmetry, low output impedance advantages, the output distortion level can reach 10v, the use of flexible.

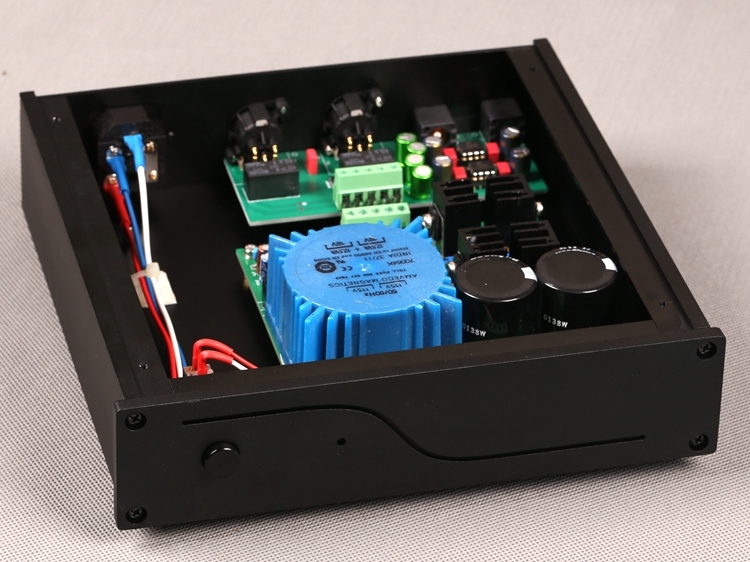

Using imported 25W Talema transformer.

With relay output protection, with power-on delay, shutdown instantaneous function, to avoid the impact on the power amplifier

Low-noise, high-transient parallel regulated power supply

Dimensions: 215*210*52MM

Package list:

1× Finished audio converter
