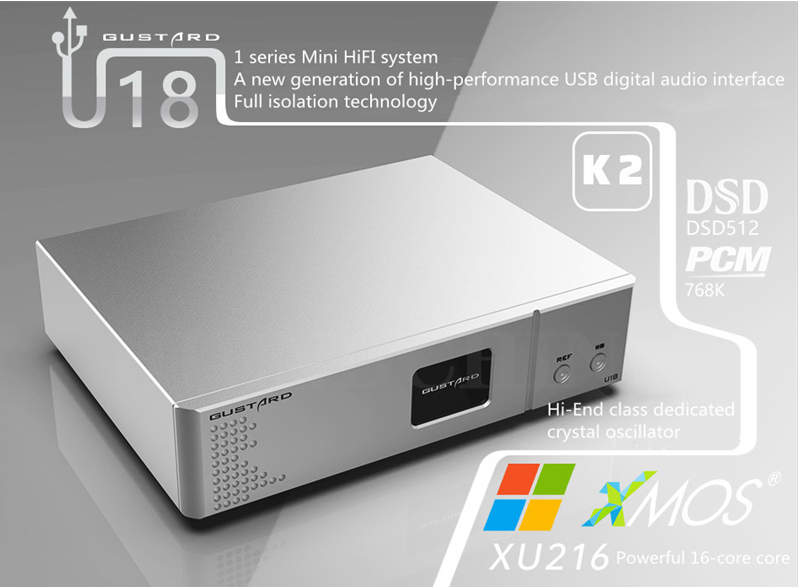

Digital input:

USB interface: USB Type-B female port, support USB2.0

10M BNC input interface: input impedance 50 ohm, 0dBm-20dBm

Digital output:

COAX coaxial interface: output impedance 75 ohm, output level 500mV P-P@75 ohm load 24bit 44.1k-384k/DOP64-128

AES XLR interface: output impedance 110 ohm, output level 2.1VP-P@110 ohm load 24bit 44.1k-384k/DOP64-128

OPTICAL TOSLINK interface: 24bit 44.1k-192k/DOP64

Word clock interface

Output impedance 75 Ohm, output level 3.3~5V P-P@100k Ohm load

Word clock output frequency:

PCM: 44.1k-768k

DSD: 2.82M-22.57M

IIS over HDMI interface (non-standard HDMI interface):

LVDS output level:

PCM: 32bit 44.1k-768k,

DSD 2.82M-22.57M (DSD64-DSD512)

Other parameters:

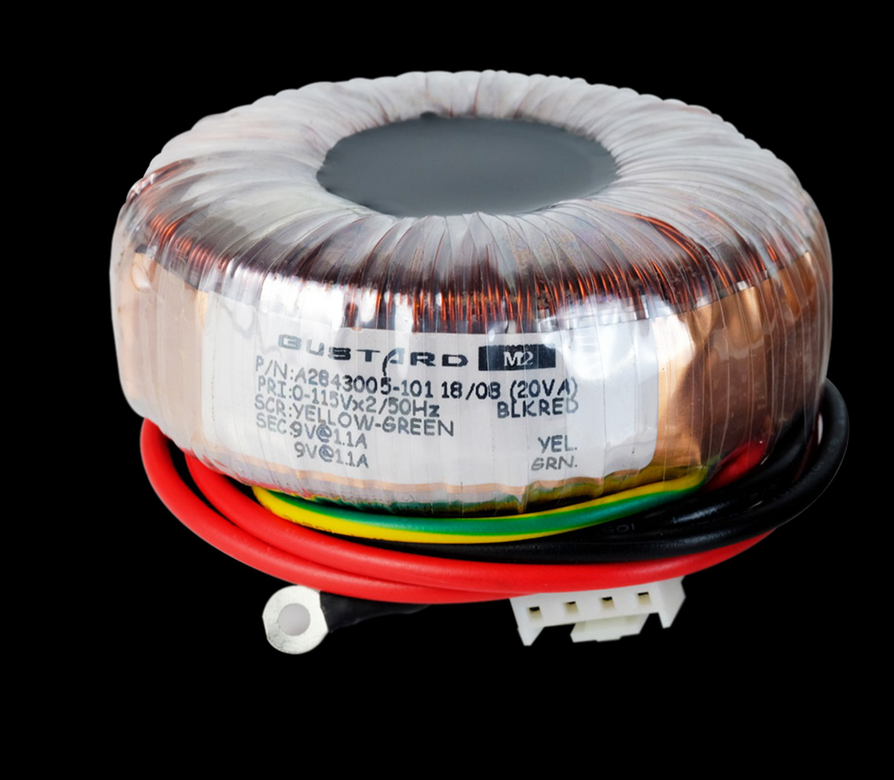

AC power supply: AC115V/230V 50/60Hz

Whole machine power consumption: <10W

Body size: 220mm wide and 50mm high* 170mm deep (excluding protruding parts)

Packing size: width 285mm*height 85mm*depth 270mm

Weight: 2.5Kg (including packaging)

•

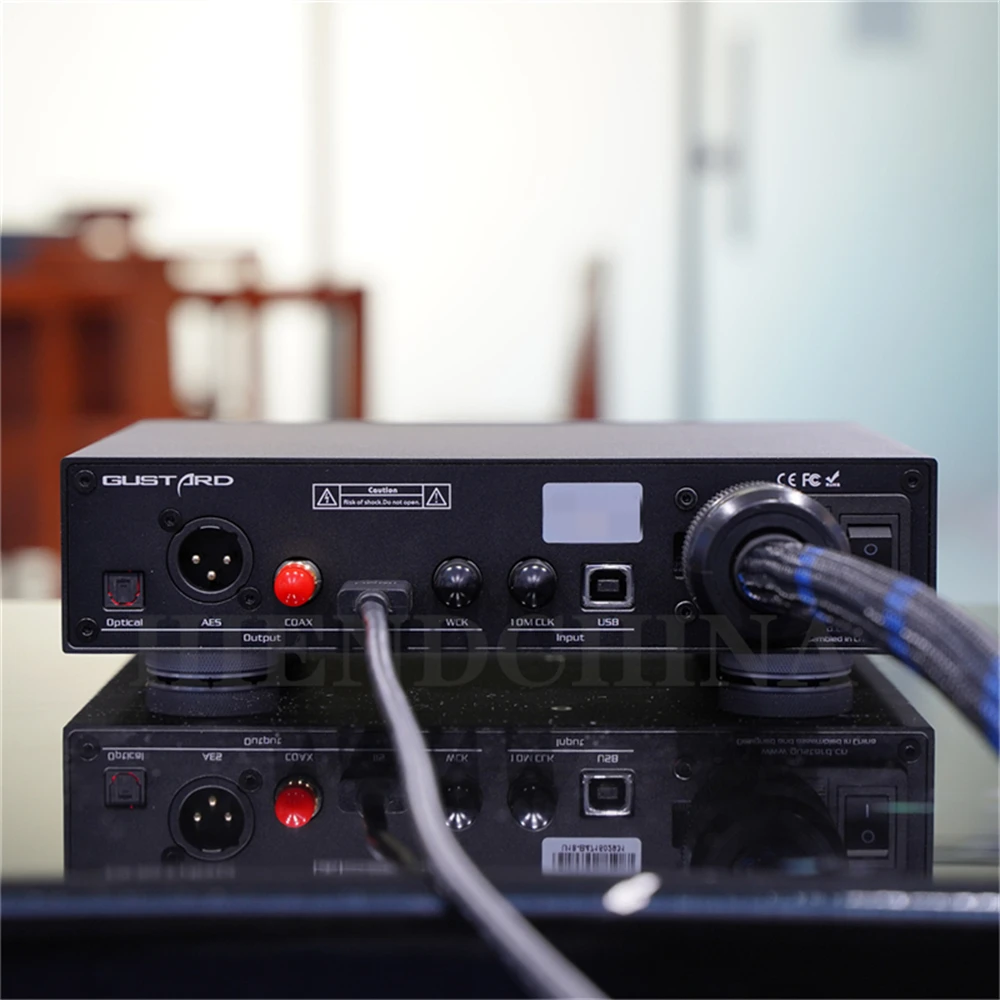

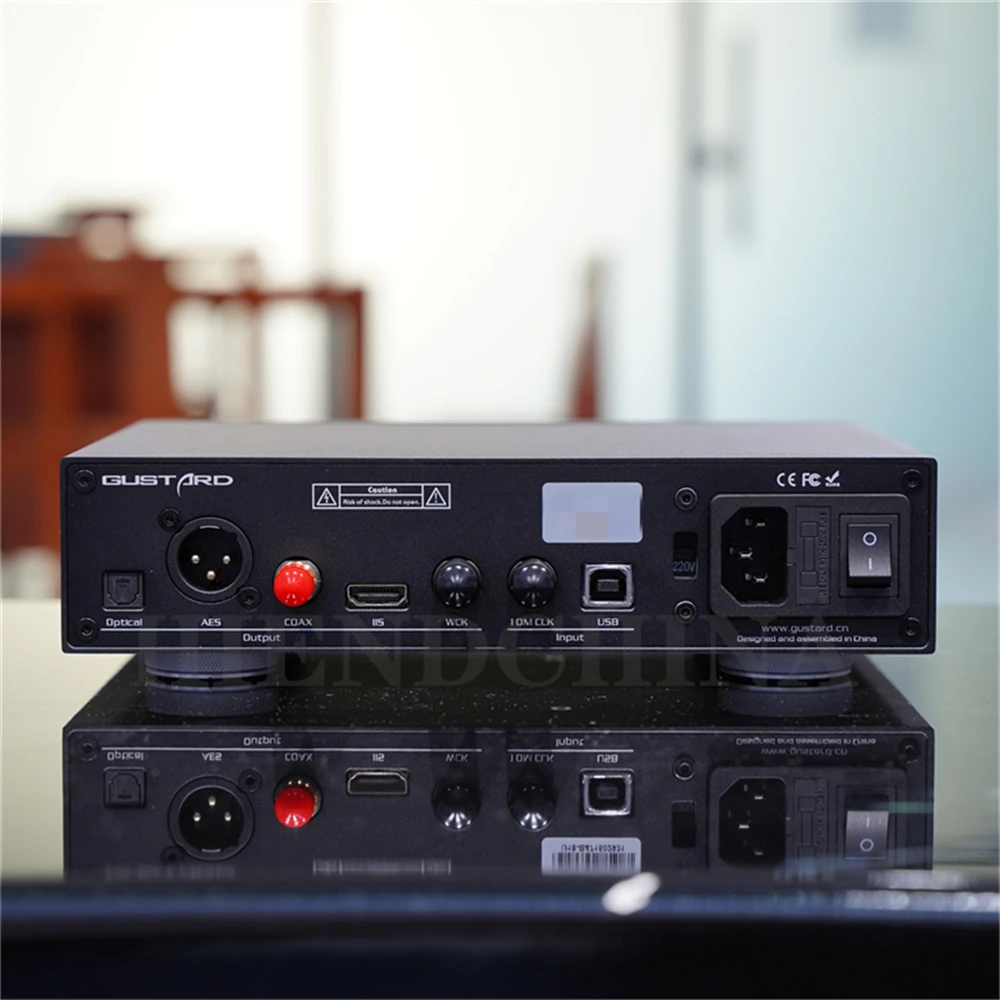

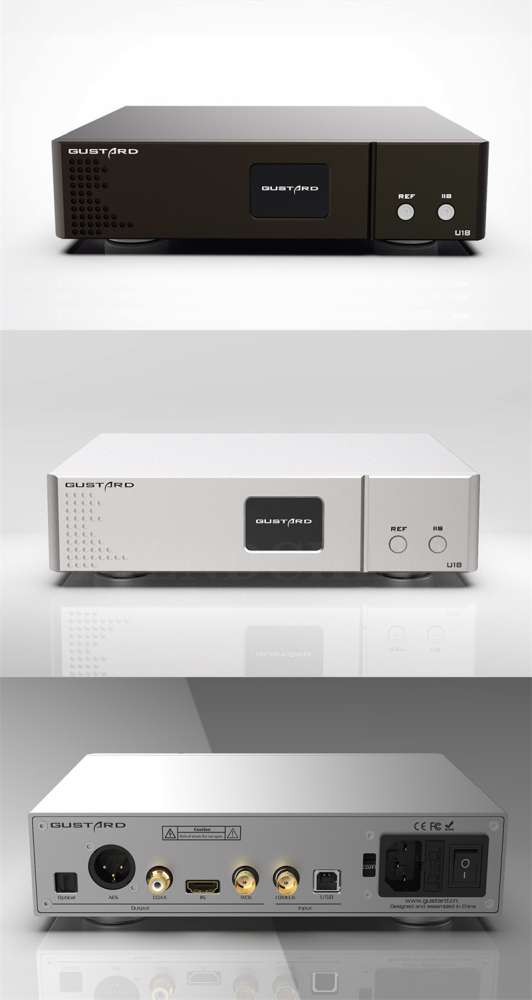

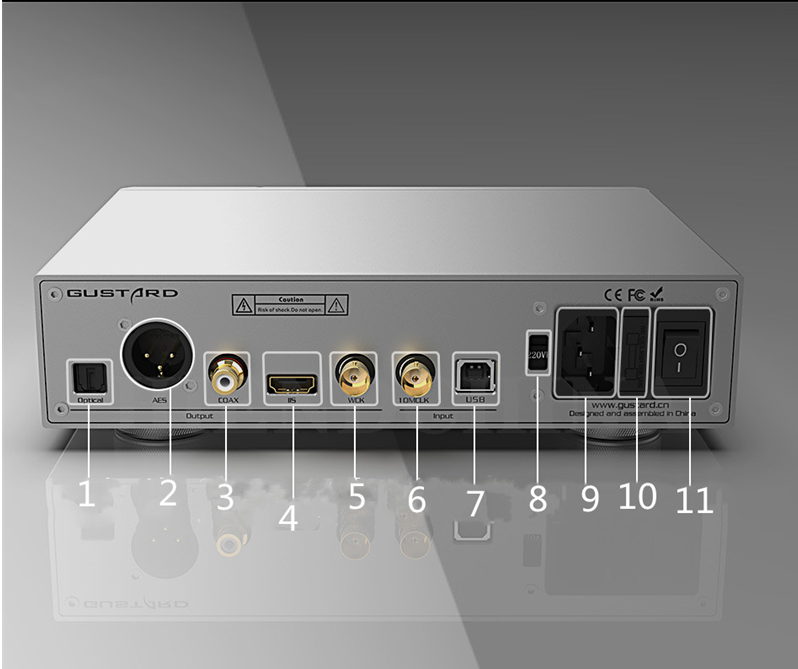

  1: Optical fiber output

  2: AES output

  3: Coaxial I output

  4: IIS output

  5: Clock output

  6: Clock input

  7: USB input

  8: Power switch

  9: Power input

  10: Fuse

  11: Power switch



•

•
