Product Details:
According to Audiophile's requirements, we have launched a linear power supply specifically designed for upgrading the Audiobyte Hydra Z digital interface.
1:) The communication input terminal adopts an imported input socket with filtering to isolate the noise and interference of AC power.

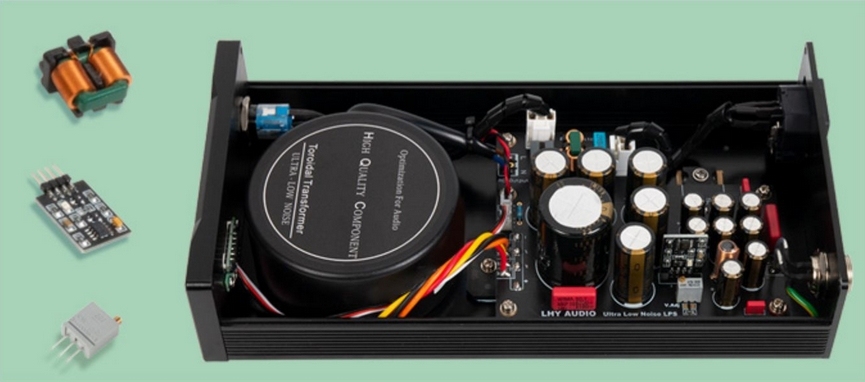

2:) Adopting a brand new original Noratel fully sealed Toroidal transformer Low noise, minimal interference, and good stability.
3:) Adopting ultra-low noise two-stage voltage regulator circuit, TILDO 3-terminal low voltage difference regulator chip, OP operational amplifier+MOS field-effect transistor regulator.
4:) LC filtering output circuit composed of imported electrolytic capacitors and inductors.

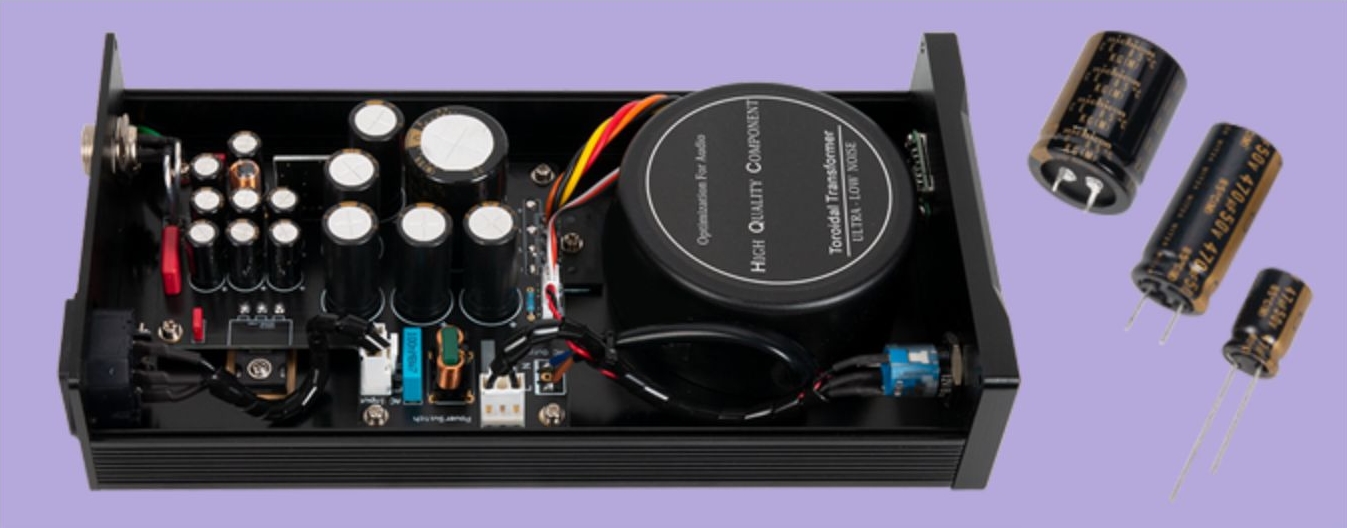

5:) ON MUR860 fast recovery rectifier diode, Nichicon audio specific filter electrolysis from Japan, WIMA capacitor from Germany.
6:) Pure manual production, using single crystal copper plated silver wire inside the power supply.
7:) Equipped with comprehensive overcurrent, overload, and short-circuit protection functions
Specifications:
Input voltage: AC110V/220V
Output voltage: DC 5V
Output terminal: 3P PLT aviation output female seat

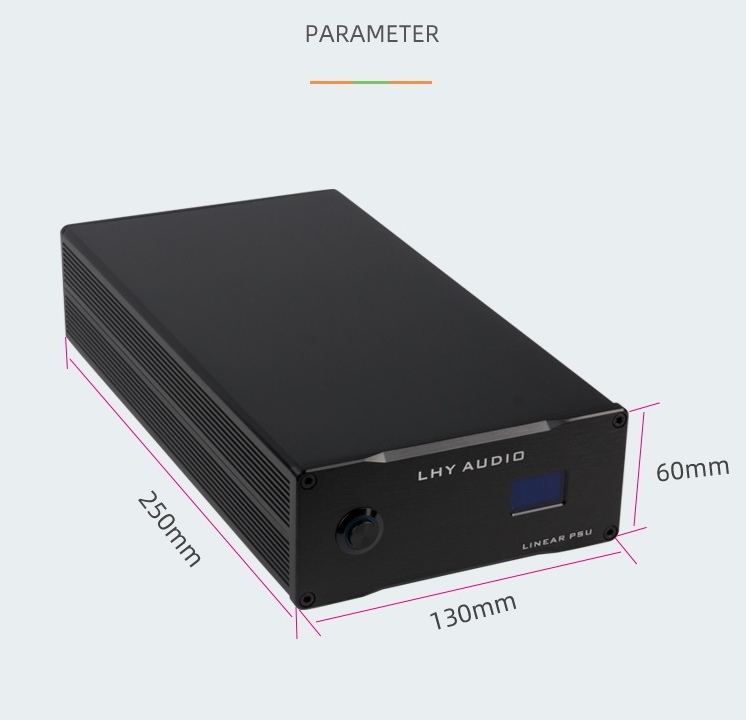

Size:W130*H60*L250MM
Weigth:about 3kg

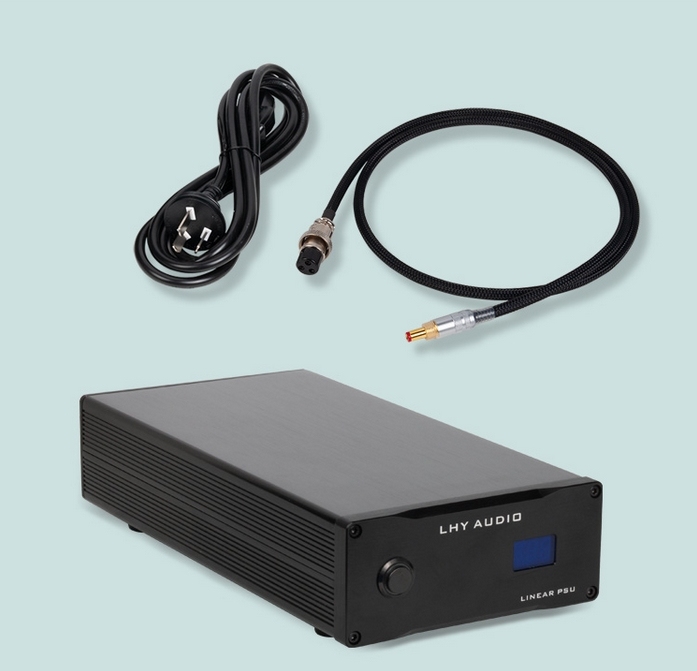

Package List:
1 × LHY 5V DC linear power supply
1 × DC output cable
1 × AC input cable
