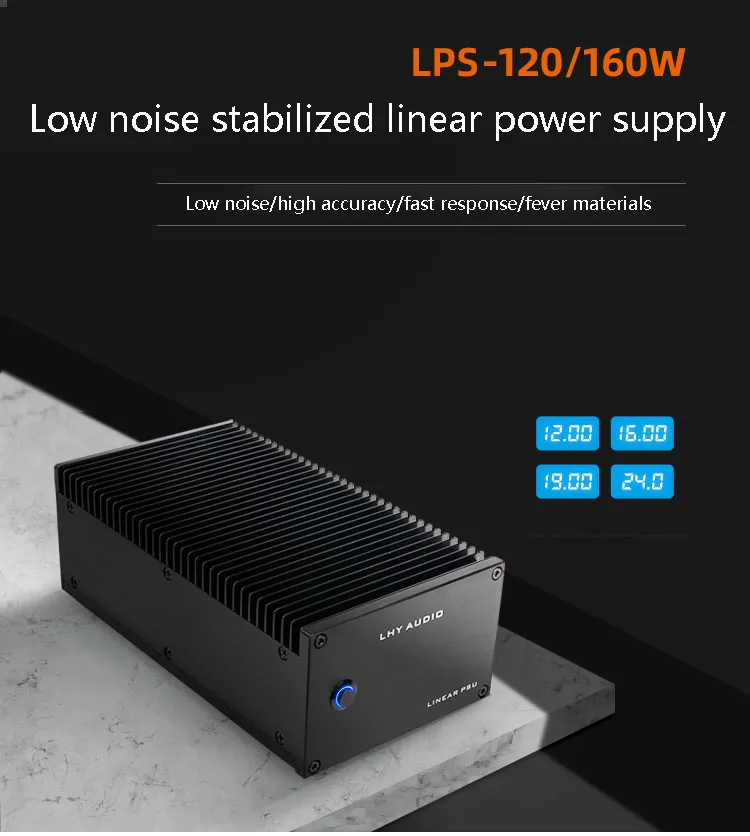

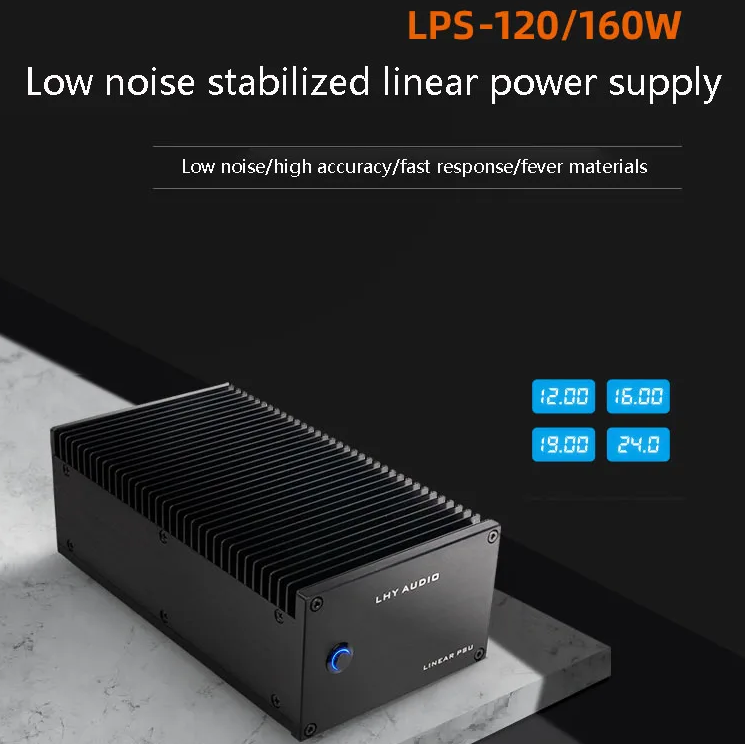

Product Introduction
In response to customer needs, we are now introducing a finished 160W/120VA linear power supply specifically designed to upgrade audio related equipment. This 160VA/120VA linear power supply uses a brand new imported 16OVA/120VA loop cow, an ultra-low noise OP+MOS discrete voltage stabilizing circuit with excellent performance, high-speed and low resistance fever electrolytic capacitors, and other fever materials.
This linear power supply is used to upgrade various audio devices, digital devices, NAS hard disk boxes, mobile hard disk boxes, various CAS, wireless routers, fiber optic modules, set-top boxes, MAC mini, PC HiFi, ThinkPad HP Asus, and other portable computers.
Due to the purely manual production, it generally takes 1 to 3 days for delivery. The standard output DC voltage is DC12V (commonly used for NAS routers, hard disks, set-top boxes, etc.). If you need other output voltages, such as 12V, 15V, 19V, and 24V, you can contact customer service.
120w (DC12V, maximum current 7A)

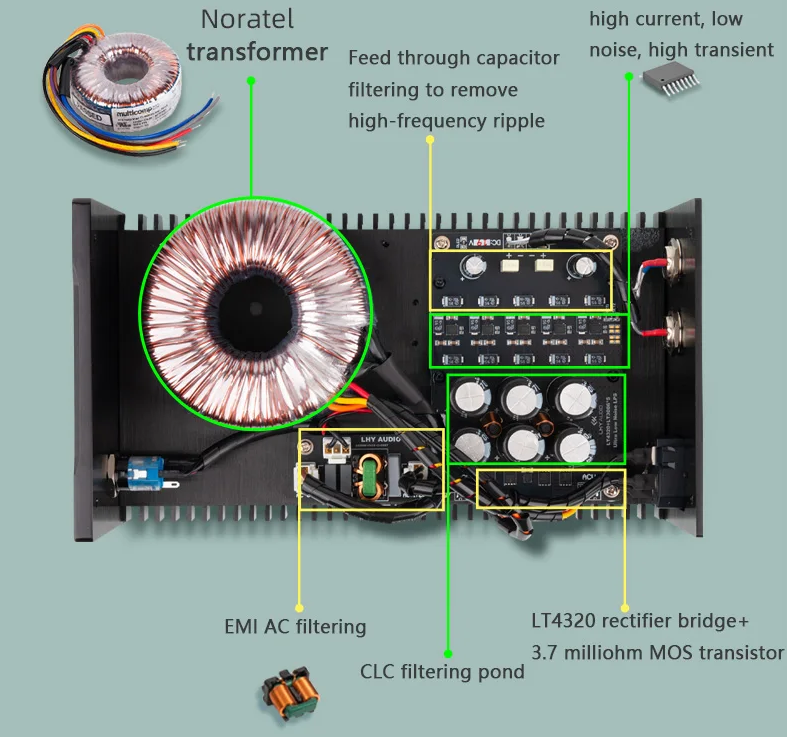

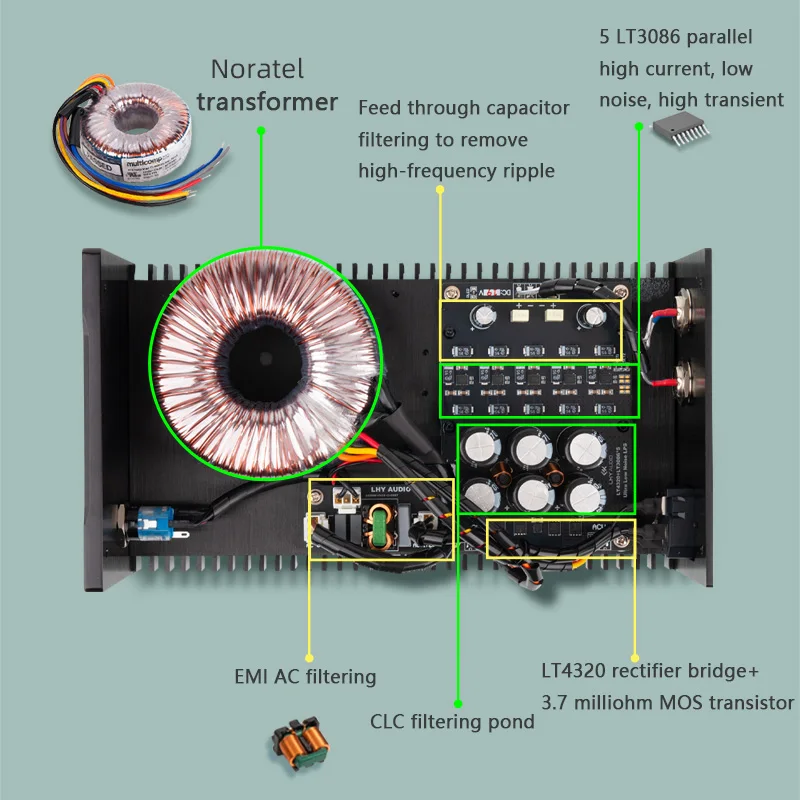

The transformer adopts imported Talema/Nortel brand new 120VA ring cattle. The safety tube adopts Shute gold plated safety tube 1.6A.

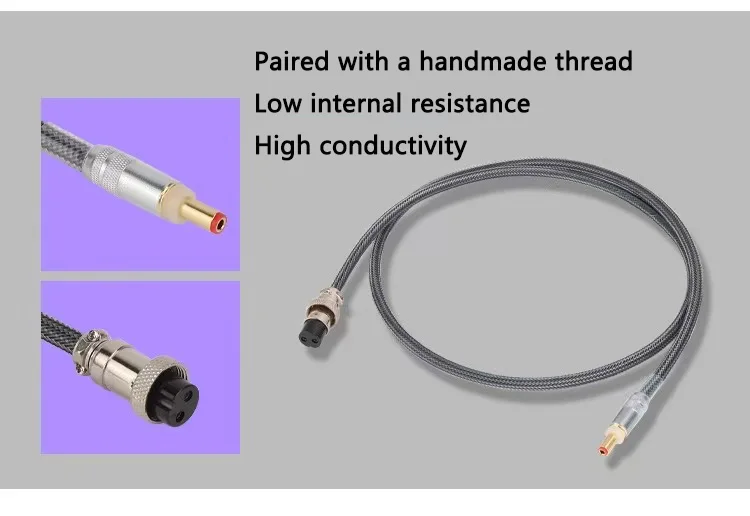

Output line standard configuration: pure copper wire, aviation 2P to DC5.5/2.5
160W (DC12V, maximum current 9A)
The transformer adopts imported Talema/Nortel brand new 160VA ring cattle. The safety tube adopts Swiss Shute gold plated safety tube 2A.
Output line standard configuration: pure copper wire, aviation 2P to DC5.5/2.5
120W Output voltage:
DC12V @7A (maximum output current);
DC15V @6A (maximum output current);
DC19V @5A (maximum output current);
DC24V @4A (maximum output current);
160W Output voltage:
DC12V @9A (maximum output current);
DC15V @7A (maximum output current);
DC19V @7A (maximum output current);
DC24V @5A (maximum output current);
Specifications
Input voltage: AC 230VAC (115VAC optional) Output voltage: DC 12V/15V/19v/24V optional

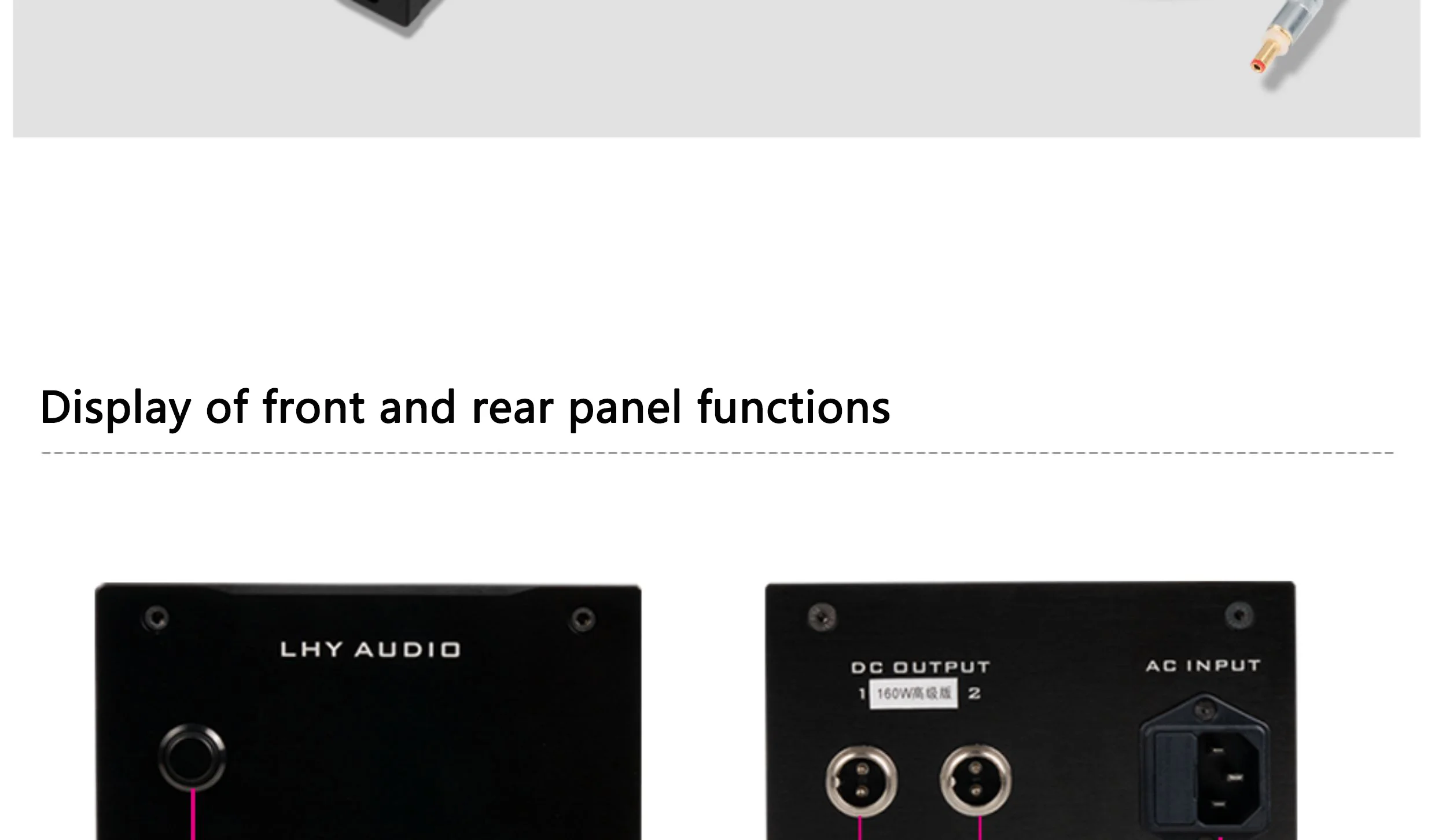

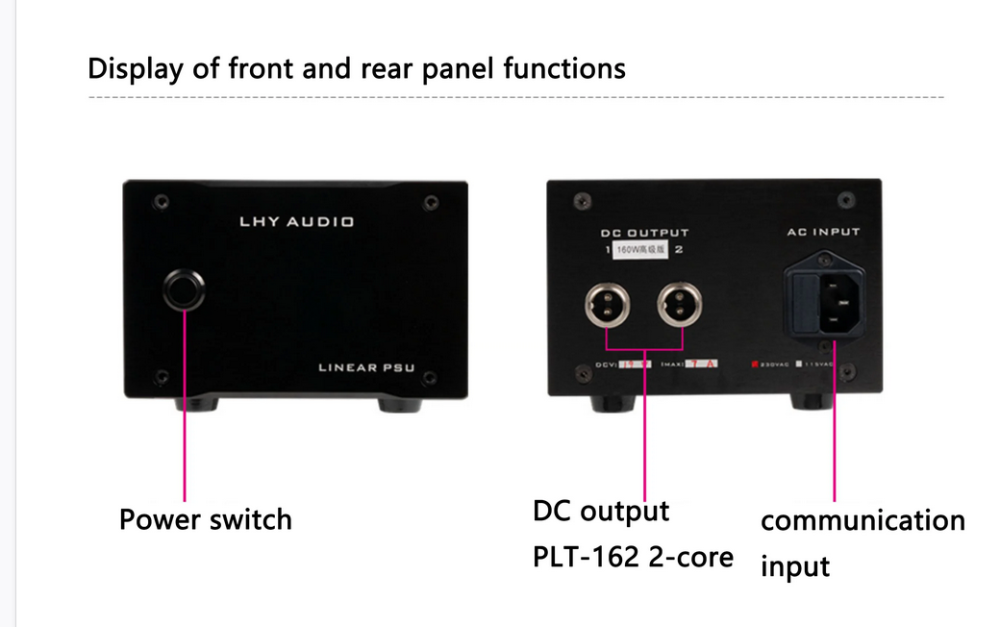

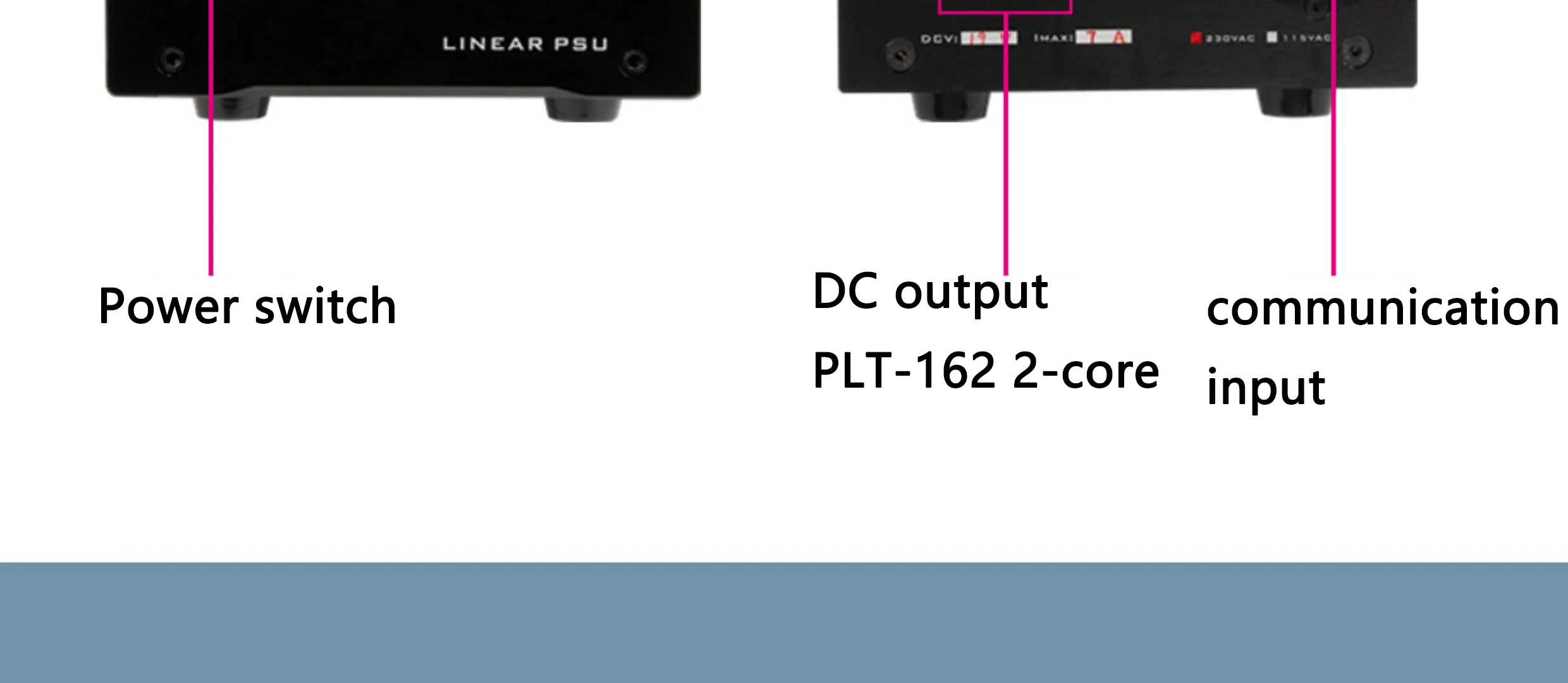

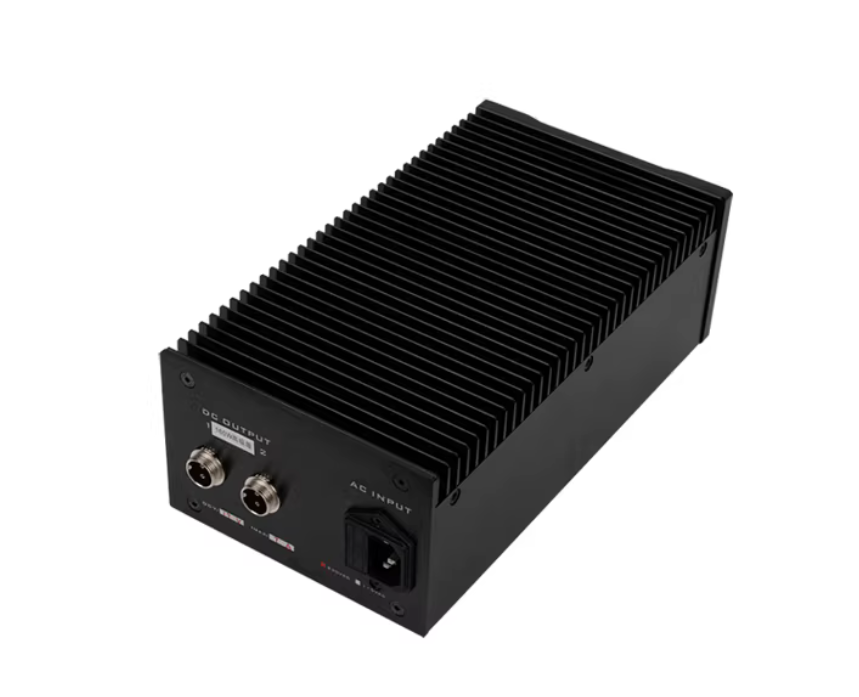

Output terminals: 2 2P aviation output mother seats

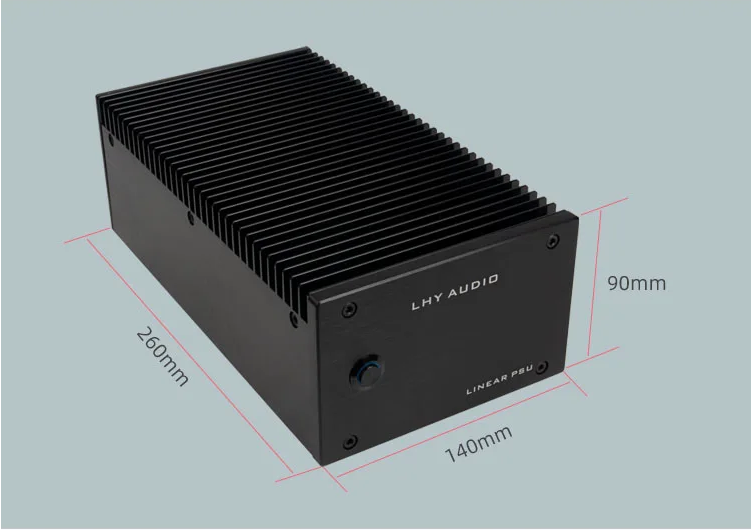

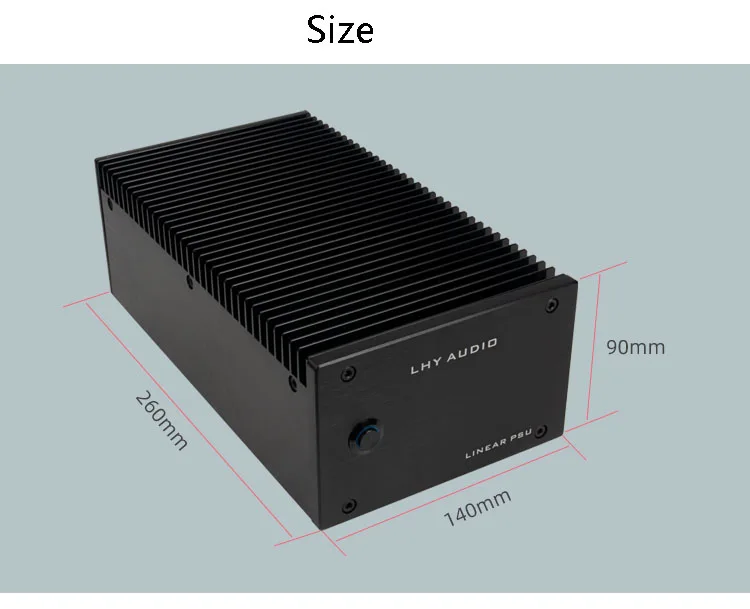

Overall dimension: 140mm wide x 90mm high × 260mm deep Overall weight: 4kg/4.5kg

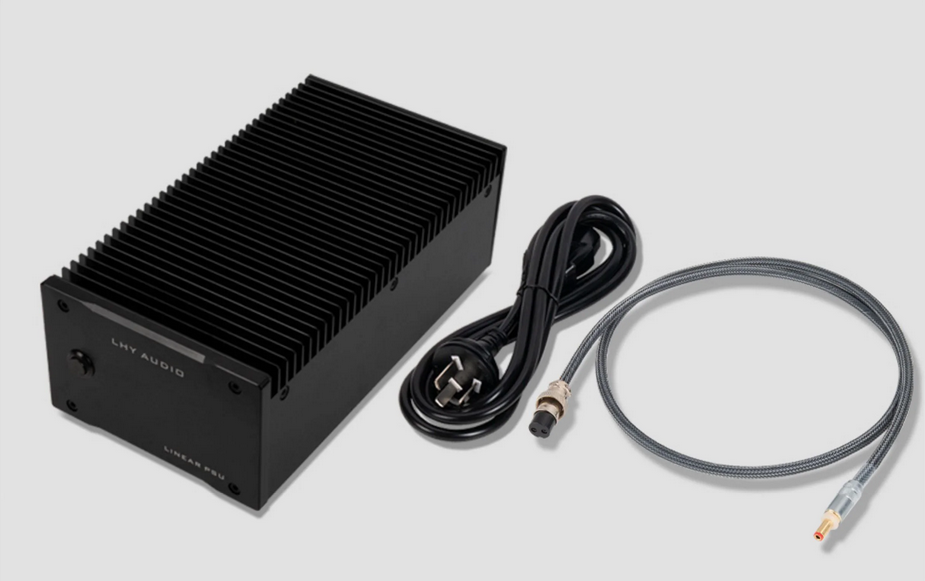

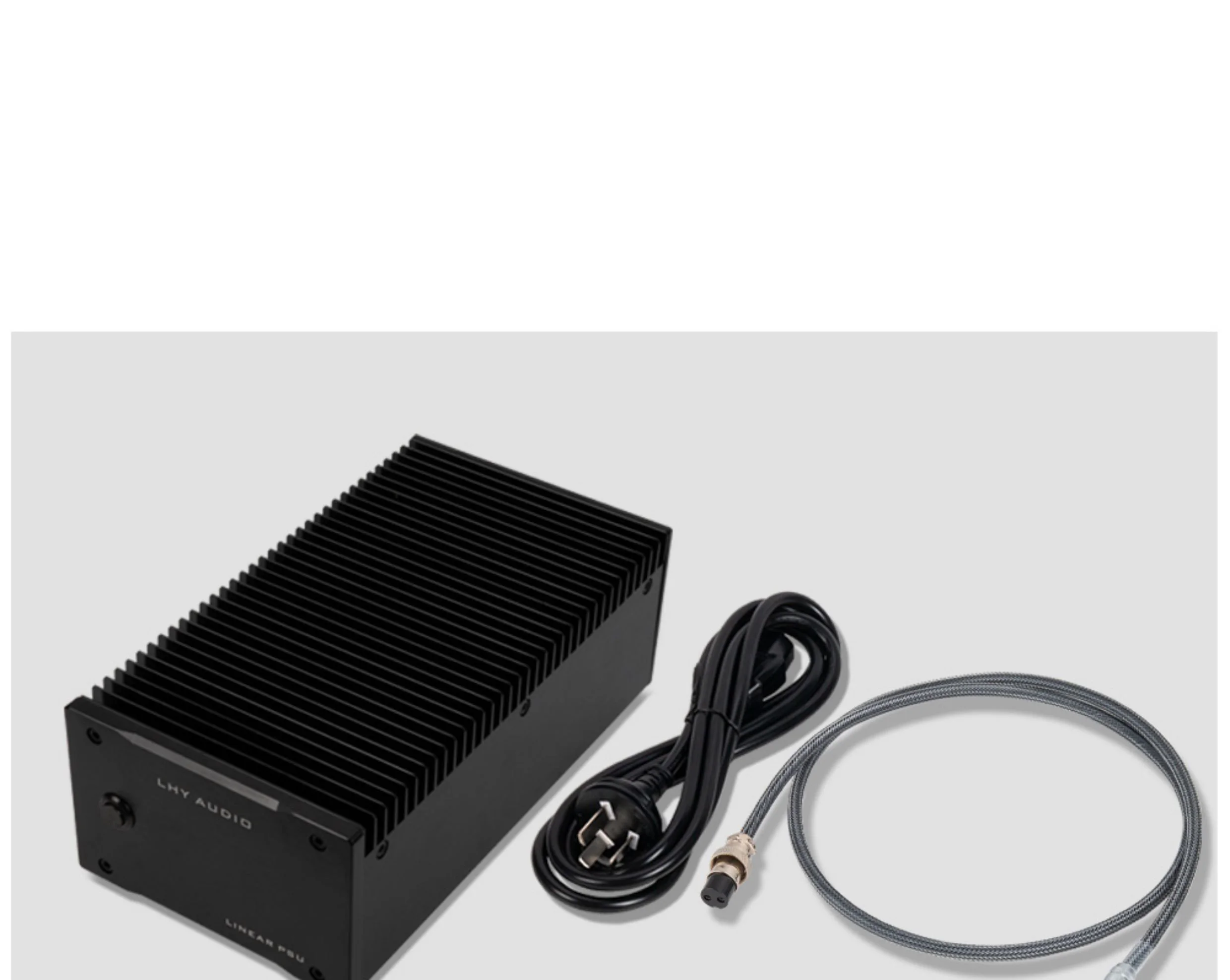

Accompanying accessories: 1 high-quality power cord (European, British or American standards can be specified); Standard configuration: 1 advanced manual DC output line, specification: aviation 2P to DC5.5/2.5 (internal positive and external negative). If you need other DC specification interfaces, please contact customer service.
