Product Details:

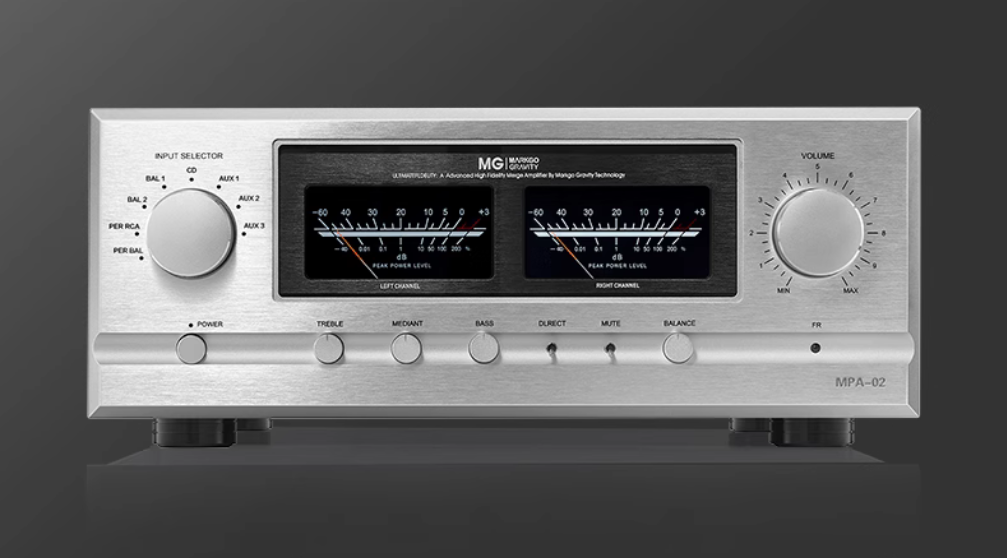

MPA-02 is a high-quality and high-efficiency combined power amplifier, designed with Accuphase circuit reference and fully symmetrical and balanced current amplification Selected components, stable performance, excellent driving and control power, natural sound.
The left and right channels are completely independent, with good separation and accurate positioning

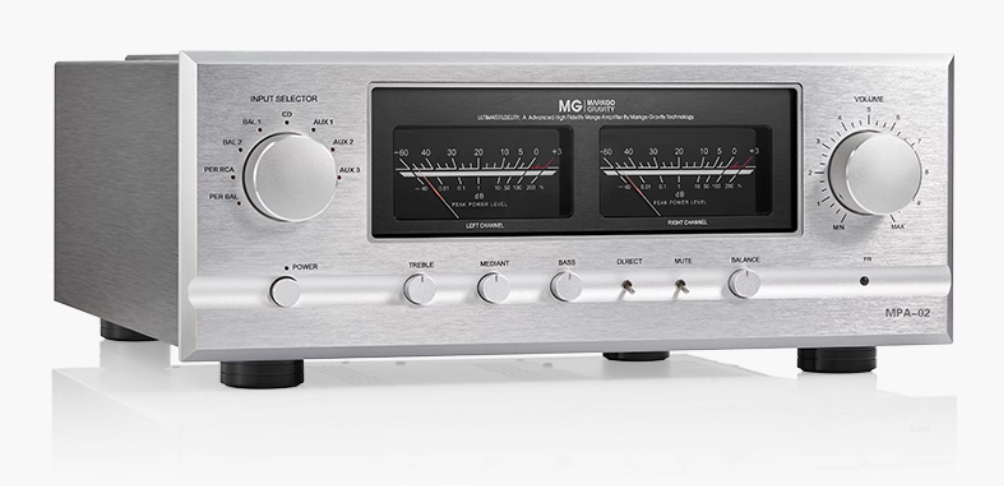

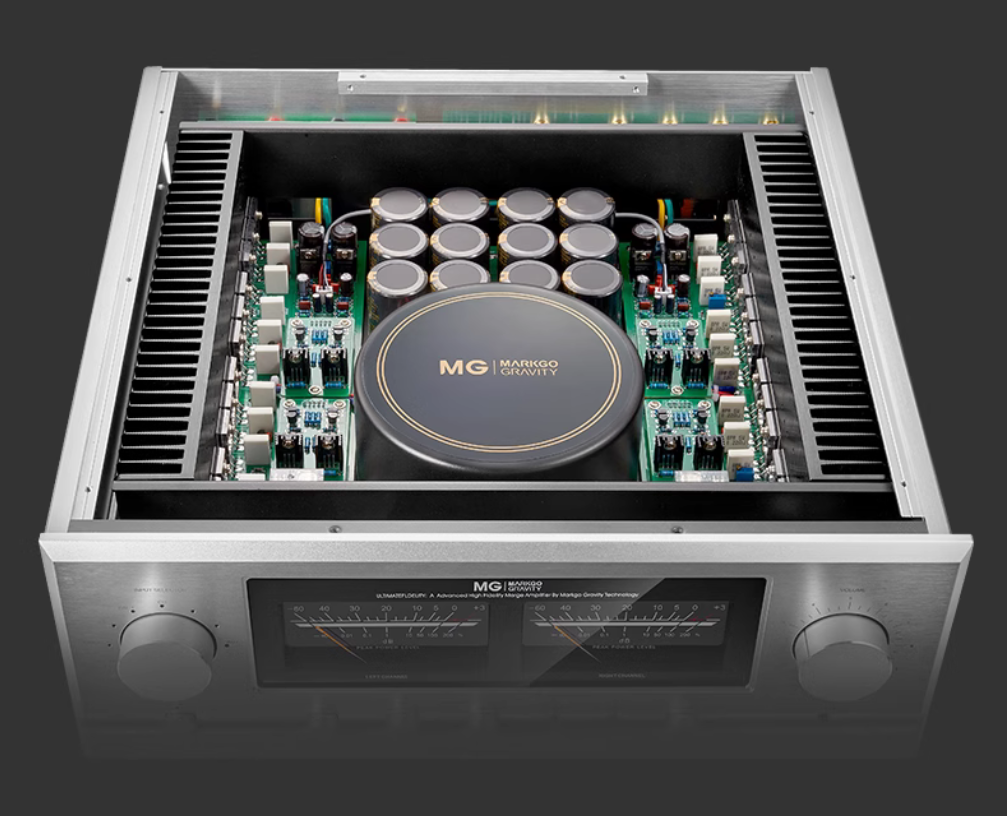

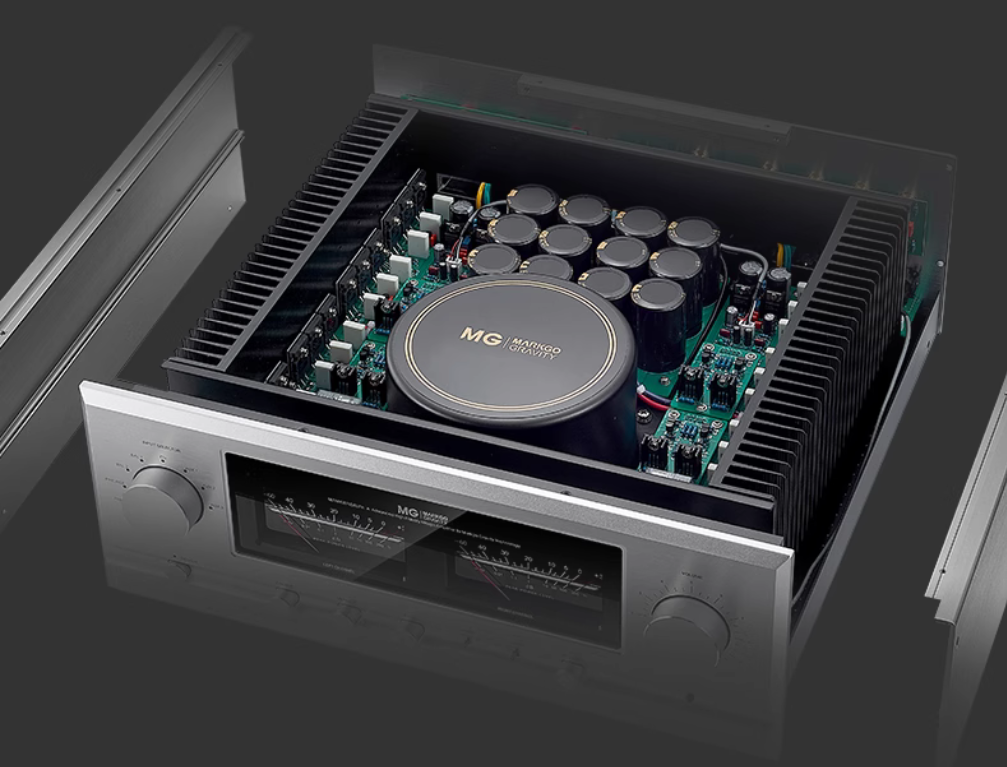

High end aluminum alloy chassis, equipped with a large heat sink to achieve rapid heat dissipation.

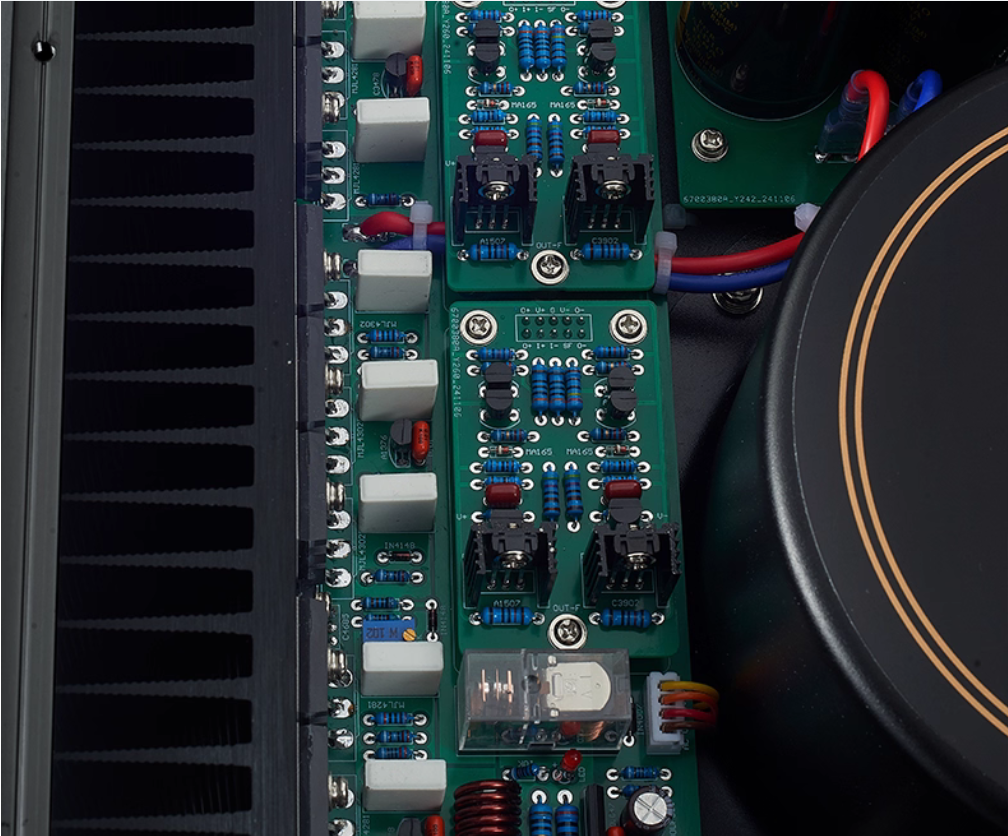

Mono mode, each channel has two independent amplifier boards for positive and negative feedback amplification, with extremely high common mode rejection ratio, completely isolated input and output, and lower distortion
.

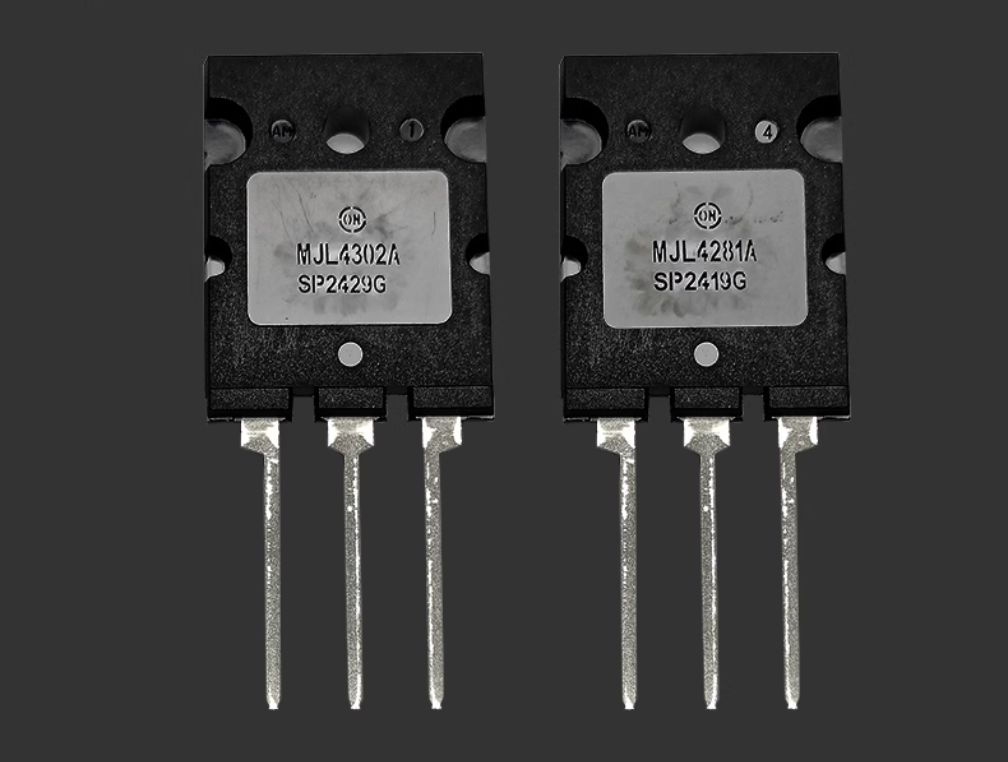

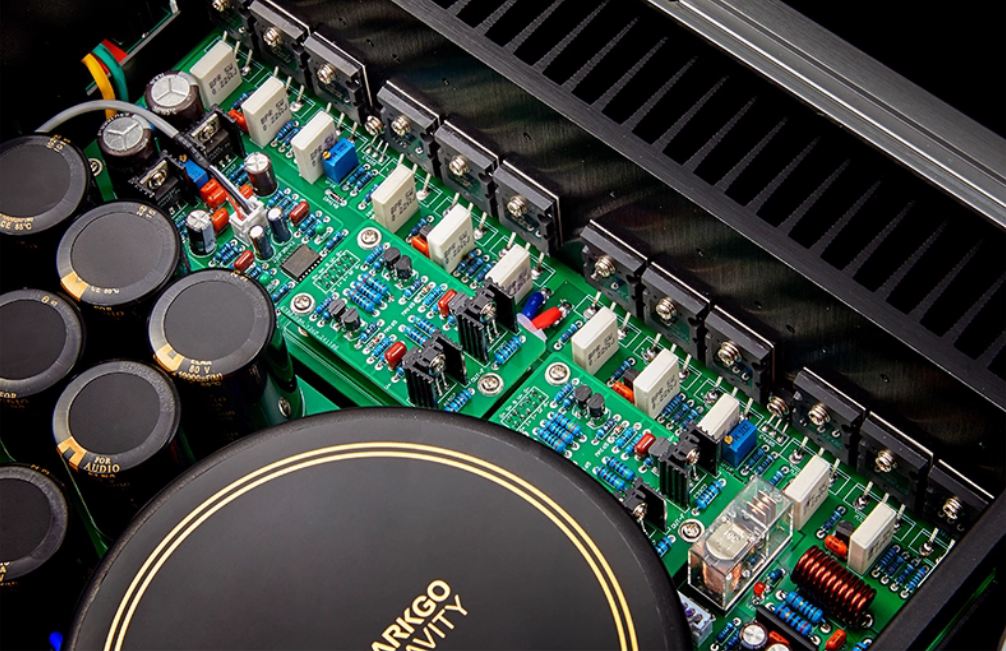

24 ON MJL4281/MJL4302 high-power transistors Strong control.

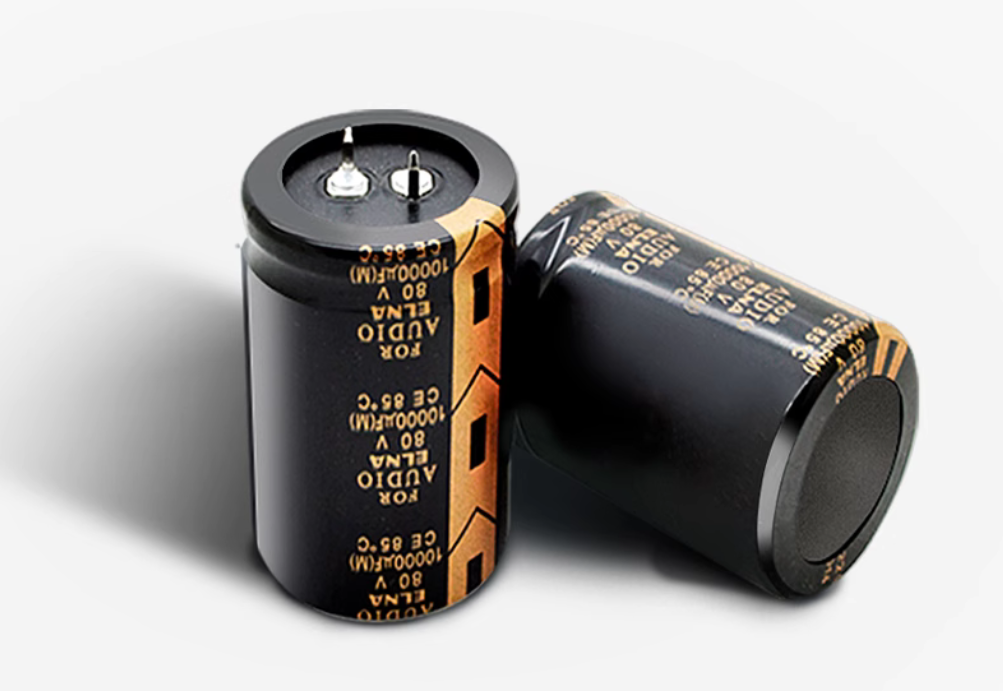

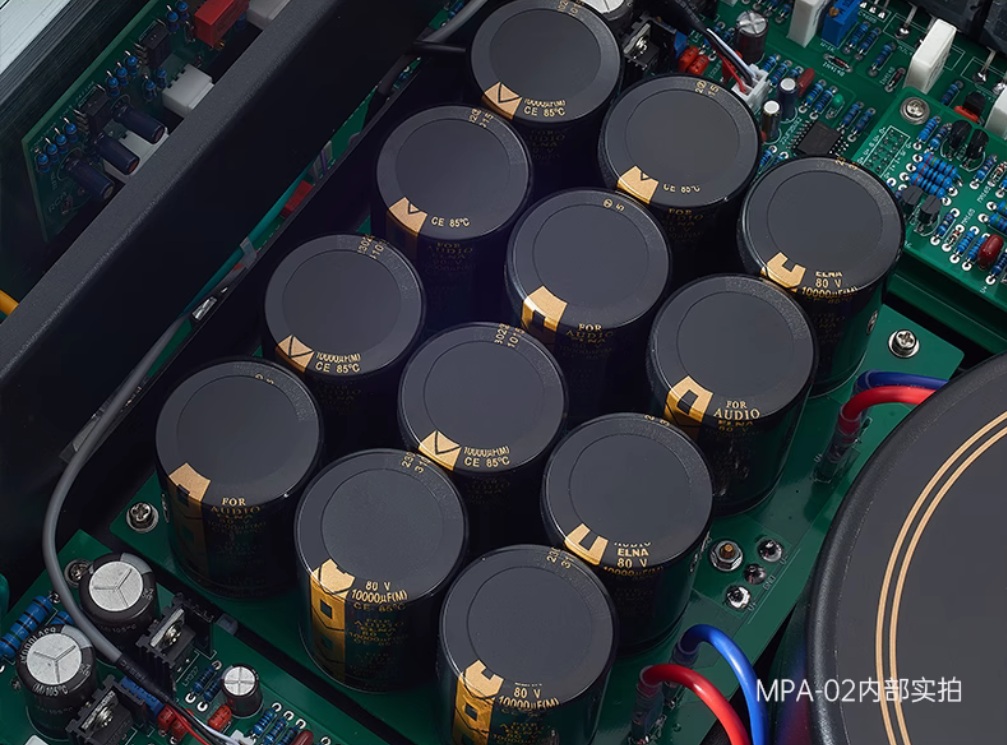

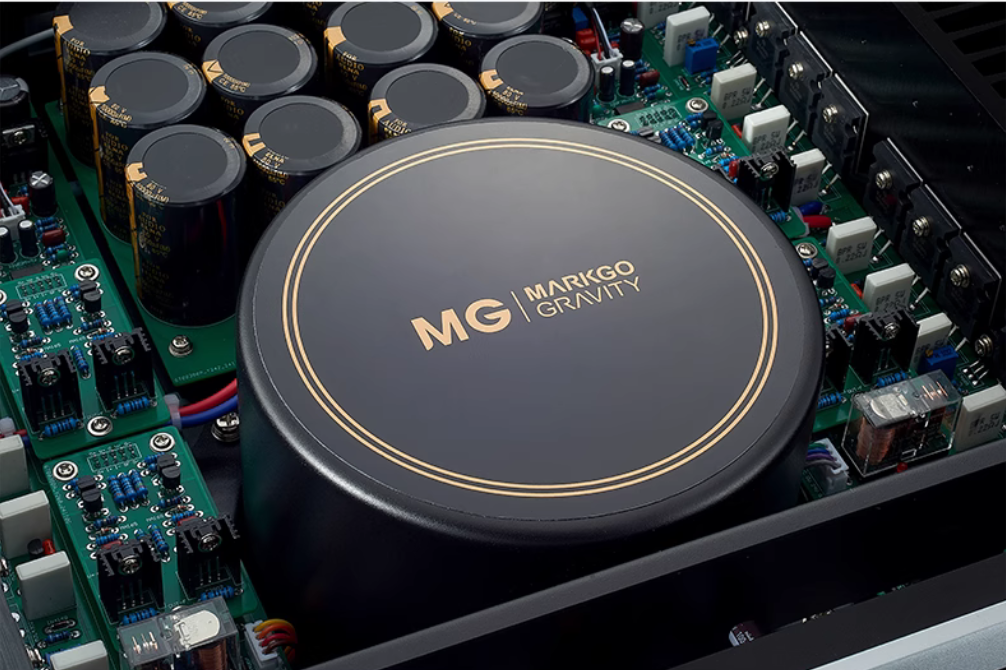

1200W transformer, 120000 Japanese ELNA capacitors form CLC filter.
.
Strong thrust, able to easily drive the majority of speakers.
Adopting direct current purification technology to provide a clean working environment for power amplifiers.
Japanese ALPS quad motor potentiometer with remote control of volume.
High quality and high-precision resistors produced in Taiwan.

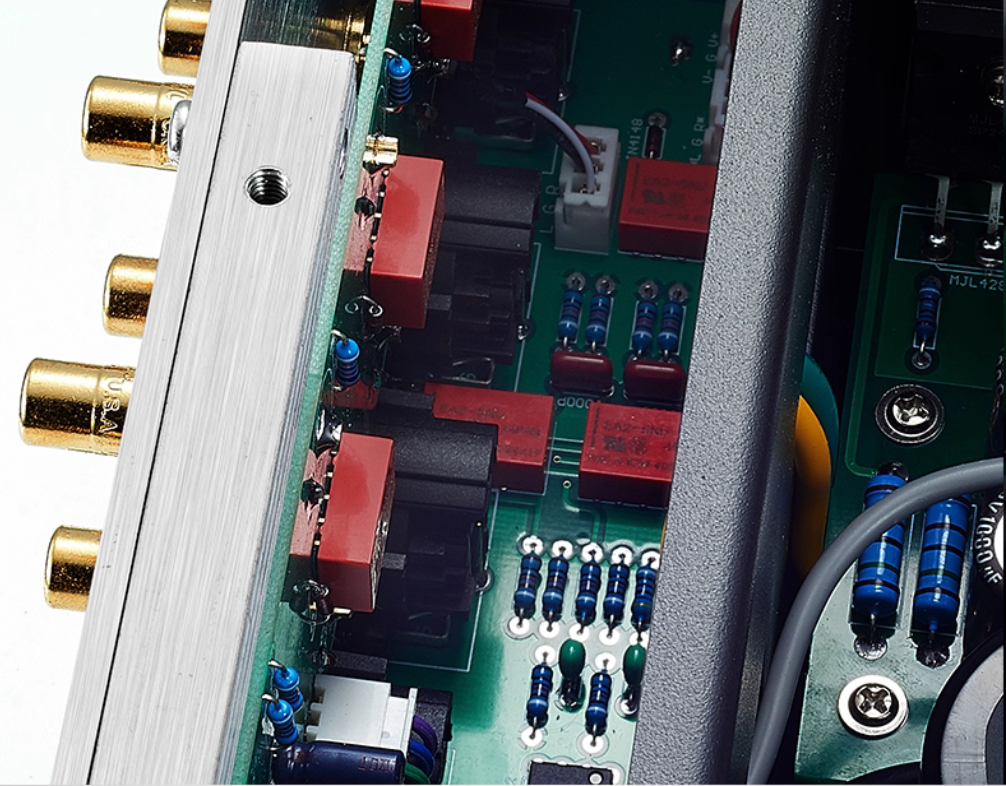

NEC relay as signal input, pure mechanical switching, rejecting noise pollution.
2 Omron relays per channel for audio protection.
Built in Class A preamplifier, with lively sound and wide sound field.
Parameters:

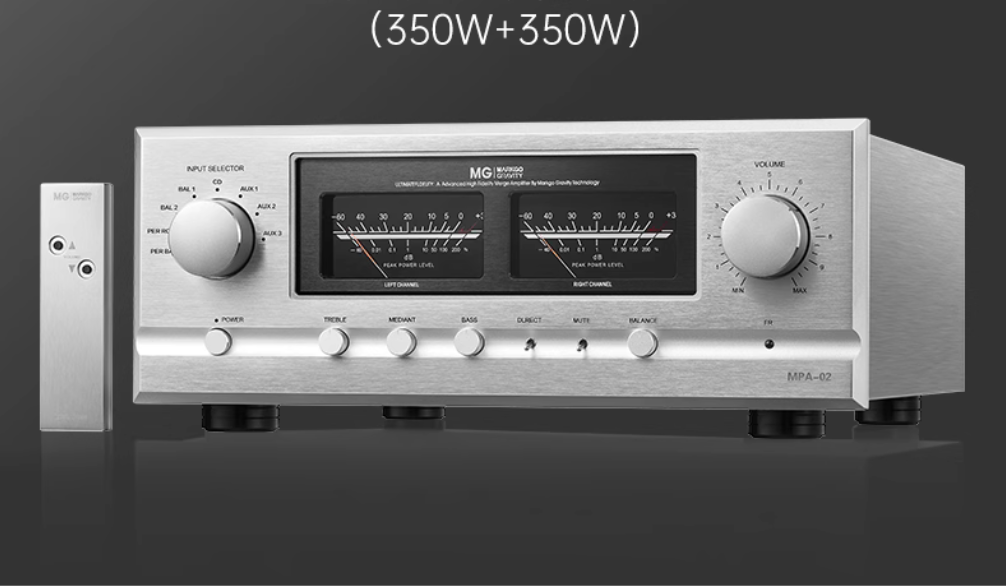

Output power: 350W * 2 8 ohms, 700W * 2 4 ohms (Class A and B)
Total harmonic distortion: 0.015%
Intermodulation distortion: 0.01%
Signal to Noise Ratio: 125db (Direct) 118db (Pitch)
Frequency characteristics: 20Hz-20KHz
Damping coefficient: 800

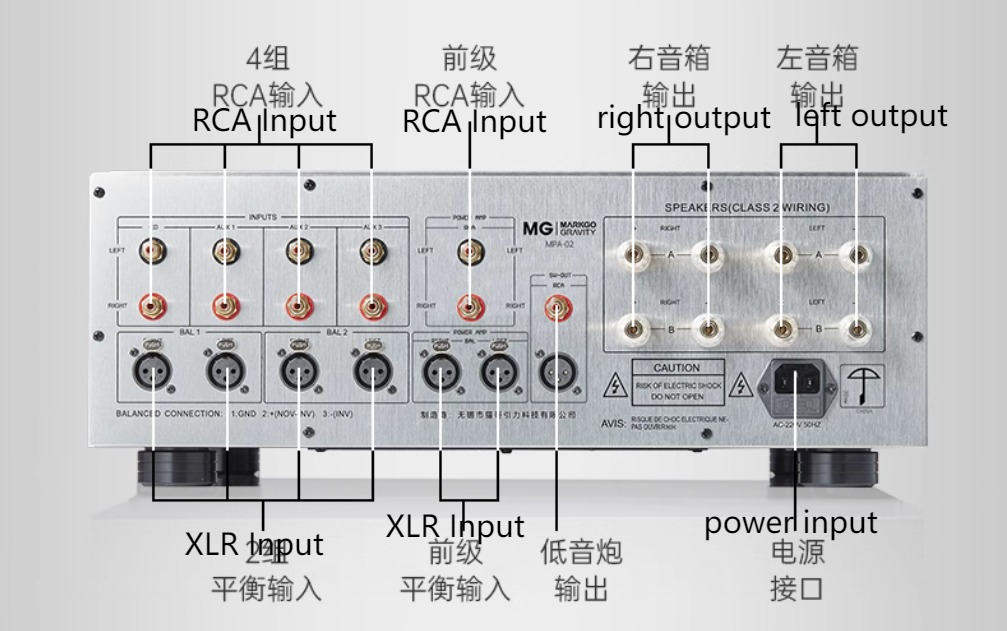

Input impedance: 40K Ω (XLR) 20K Ω (RCA)
Input voltage: 220V

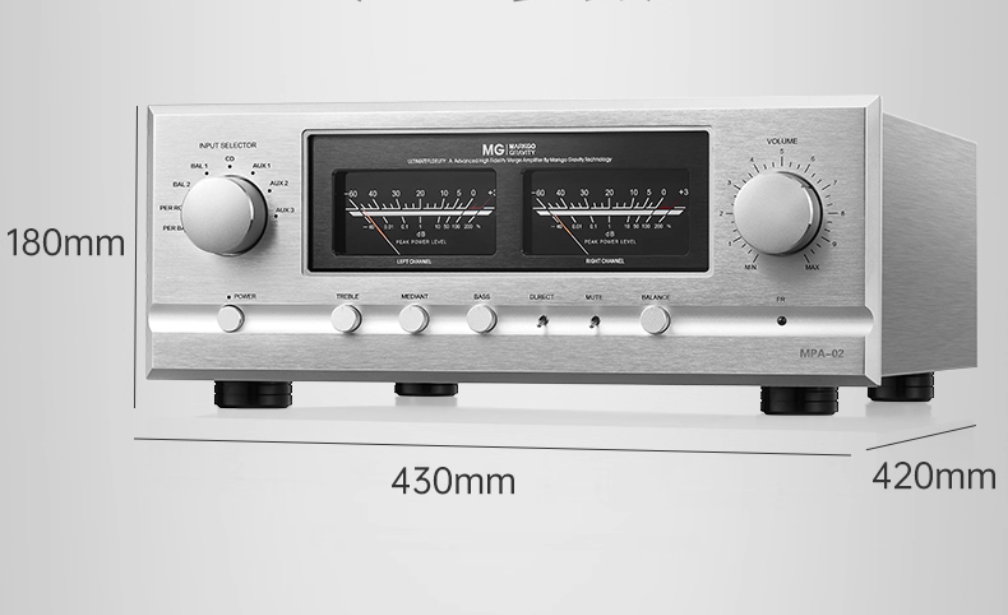

Size: 430 * 420 * 180mm
Weight: 24kg
Package list:
1 × MPA-02 amplifier
1 × remote control
