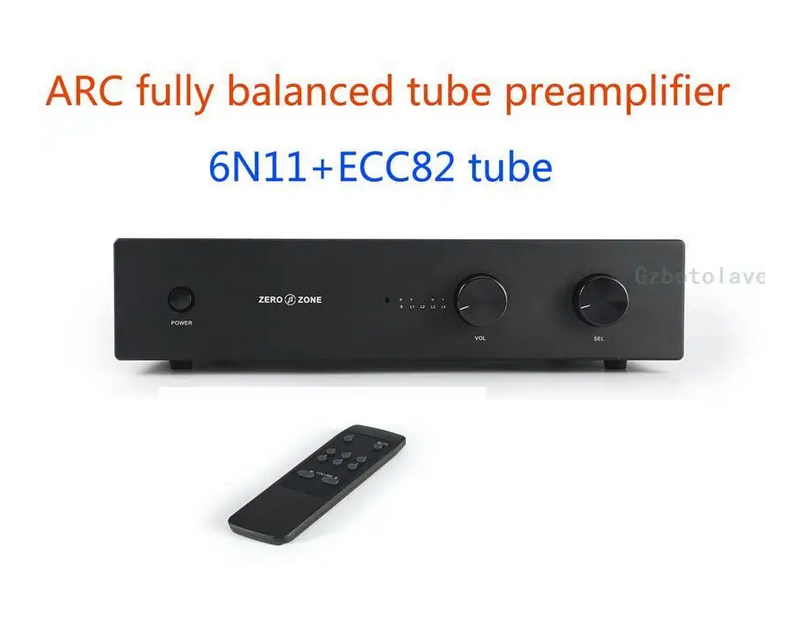

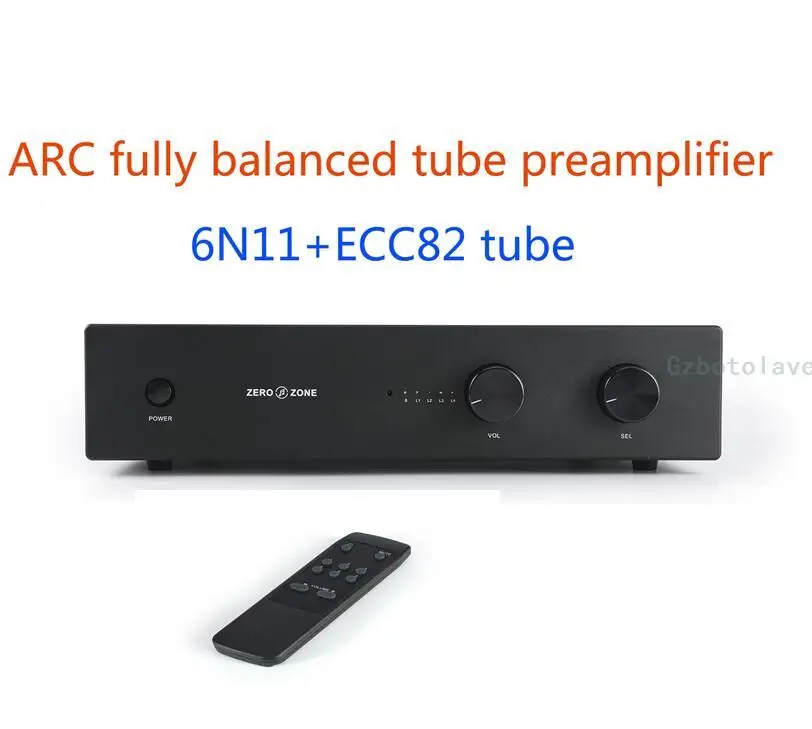

New arrive remote control ARC fully balanced tube preamplifier 6N11+ECC82 tube amplifier good sound
Product description：
1. Customized grade 50VA full copper tape shielded R-type transformer,

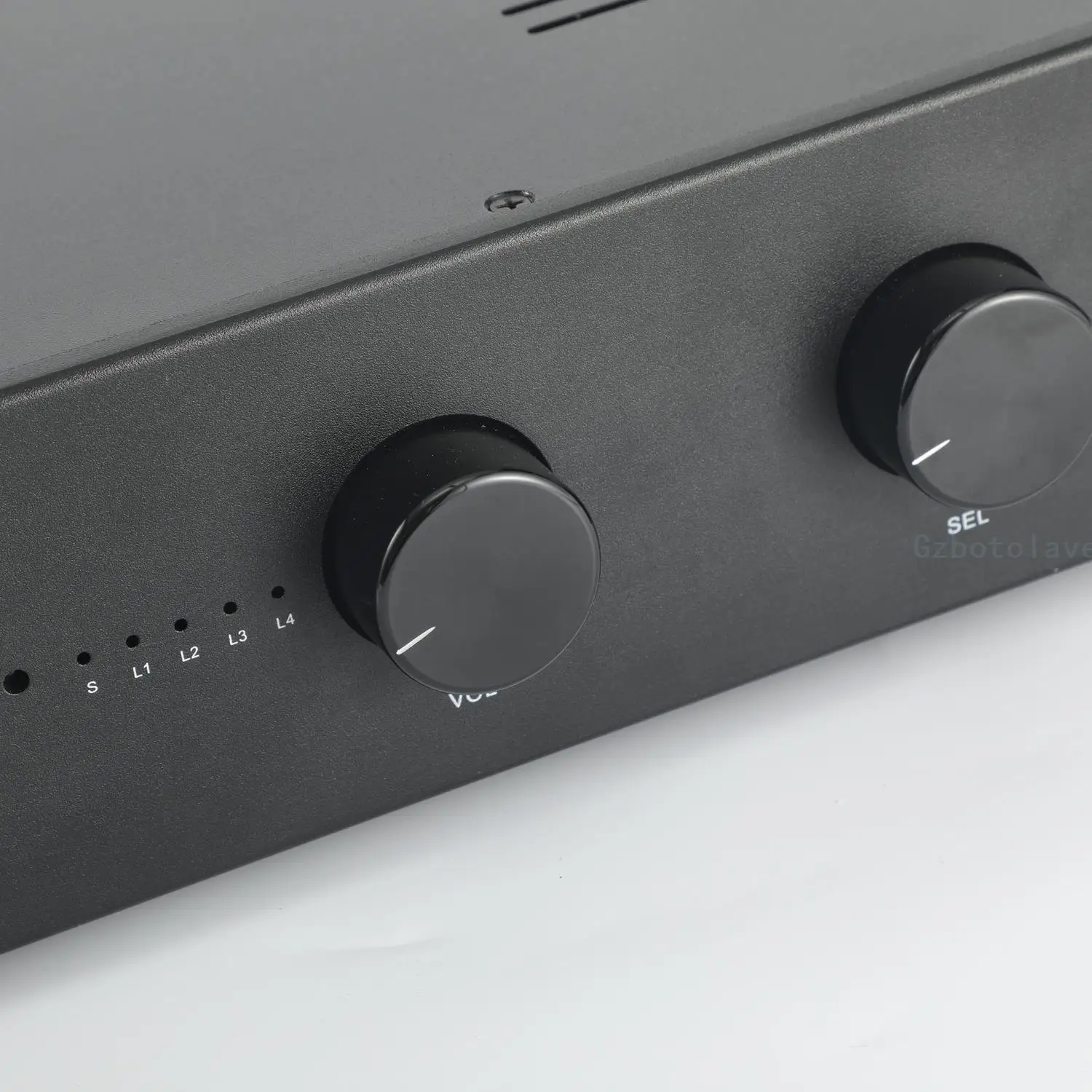

2. With volume remote control and signal source switching function, two groups of balanced inputs, two groups of conventional RCA single-ended inputs, one group of balanced outputs, and one group of conventional RCA single-ended outputs.

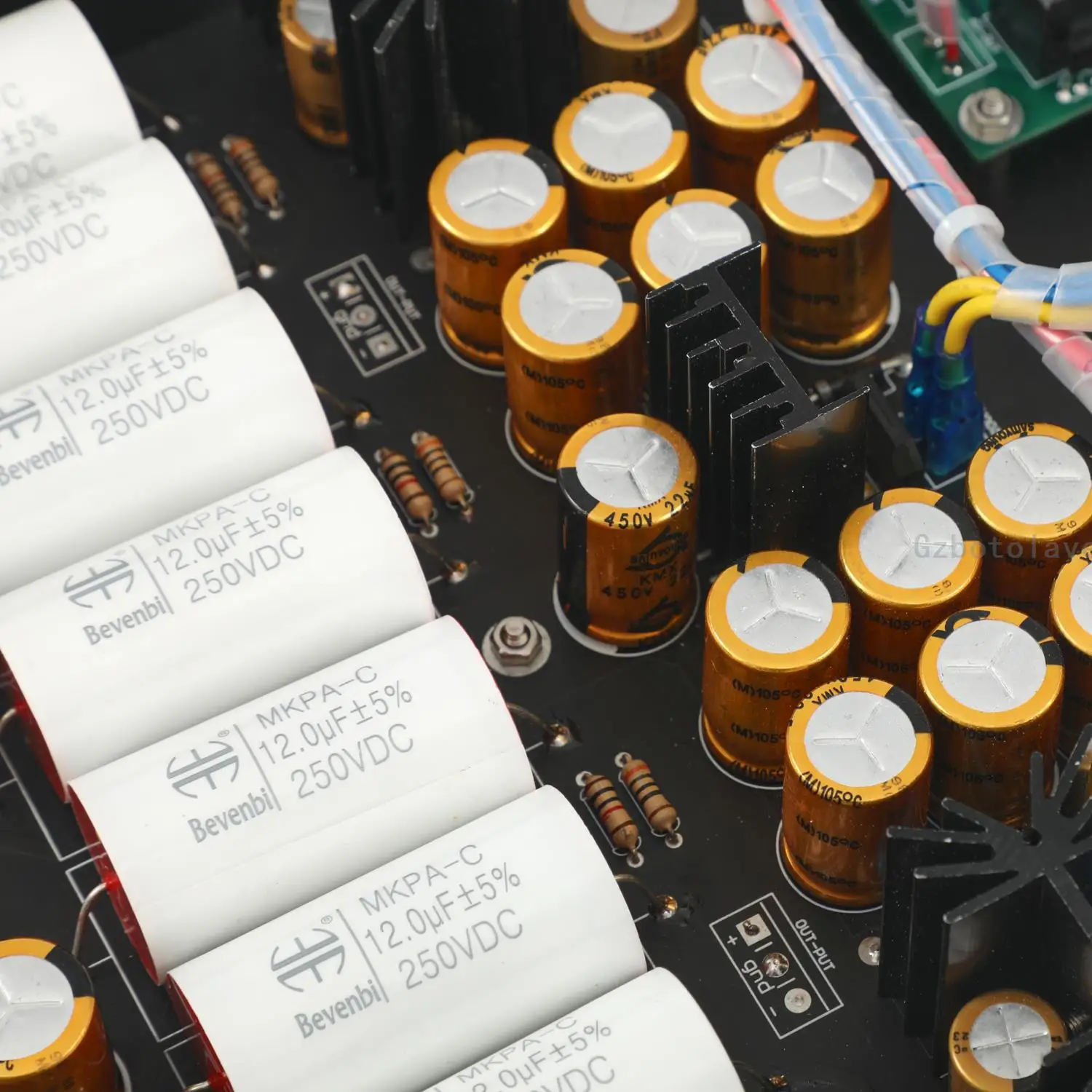

3. High-voltage power supply: using capacitor array, lower internal resistance of power supply, stronger instantaneous dynamic, and using MOS power supply adjustment tube at the same time, it has a gallbladder smell and will not produce annoying noise of gallbladder rectification and voltage regulation.
4. The left and right channel DC filaments are independently regulated for power supply, which is pure and does not interfere with each other.
5. Fever-grade capacitive-resistance components, a new benchmark for valve pre-stages.
6. Standard all-aluminum chassis, high-end sandblasting design, beautiful atmosphere.
Detailed parameters
Works voltage: AC115V or AC230V for choose
Using Tubes: 2pcs Beijing 6N11 and 2pcs PSVANE ECC82
buyer also can update with other better tubes, 6N11=6922=6DJ8 ECC82=12AU7

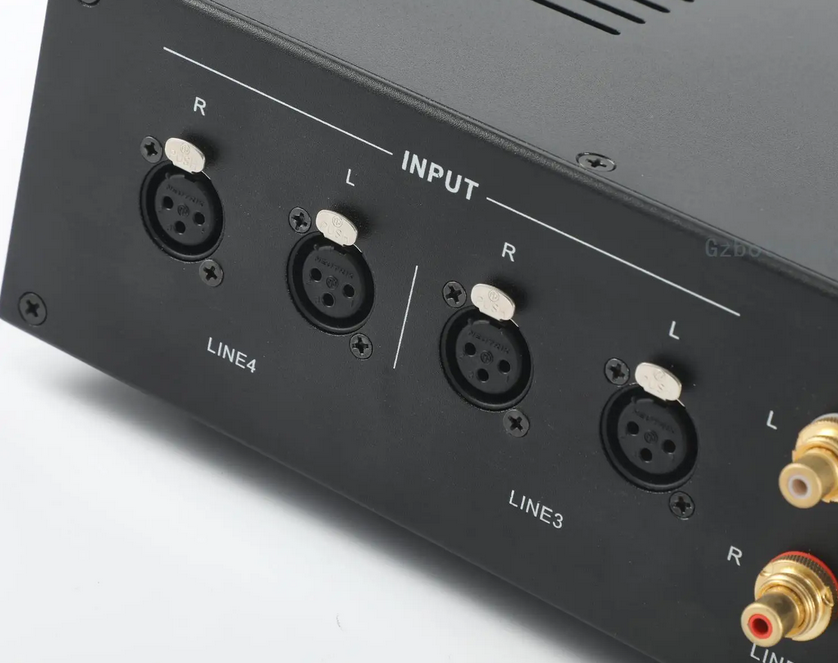

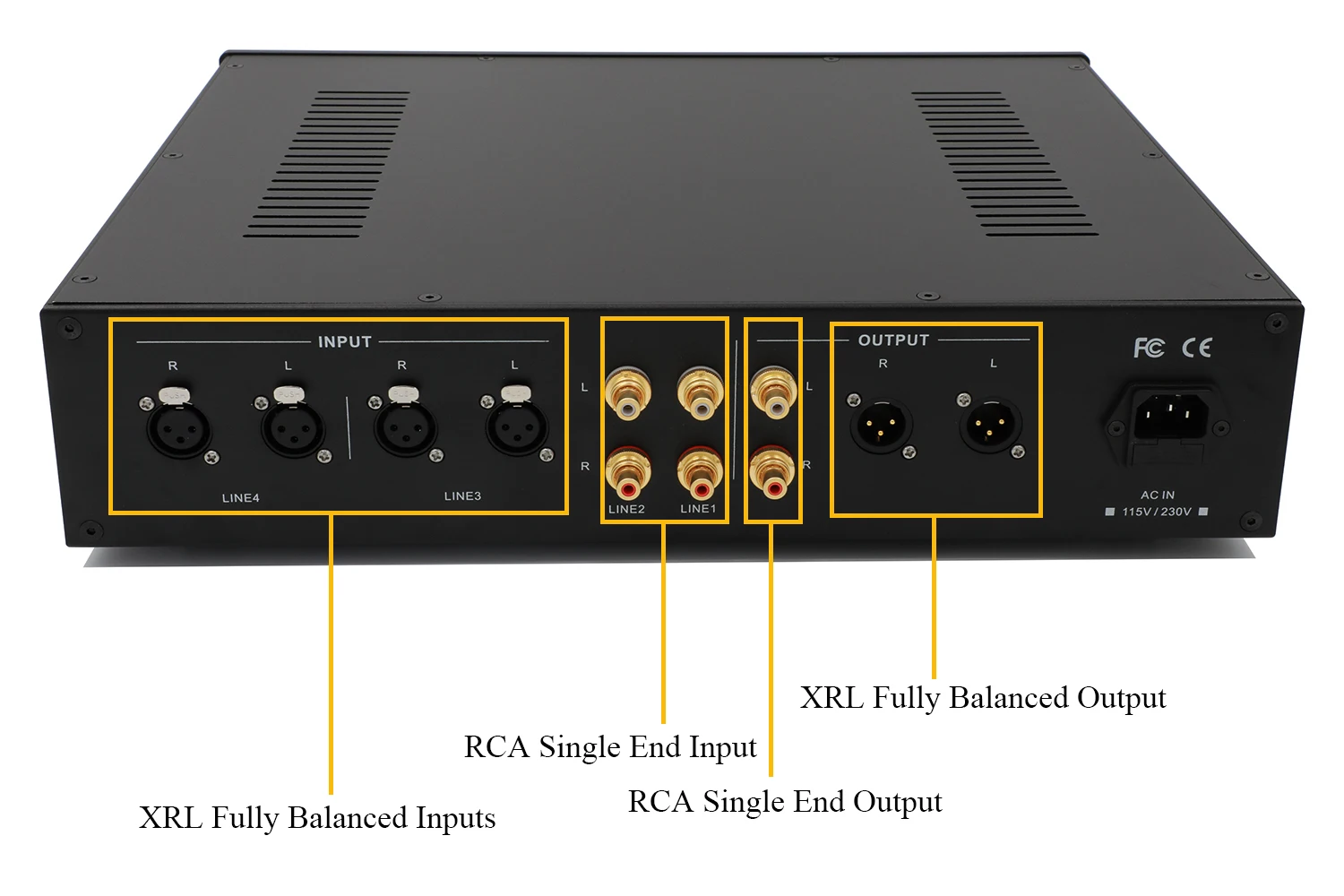

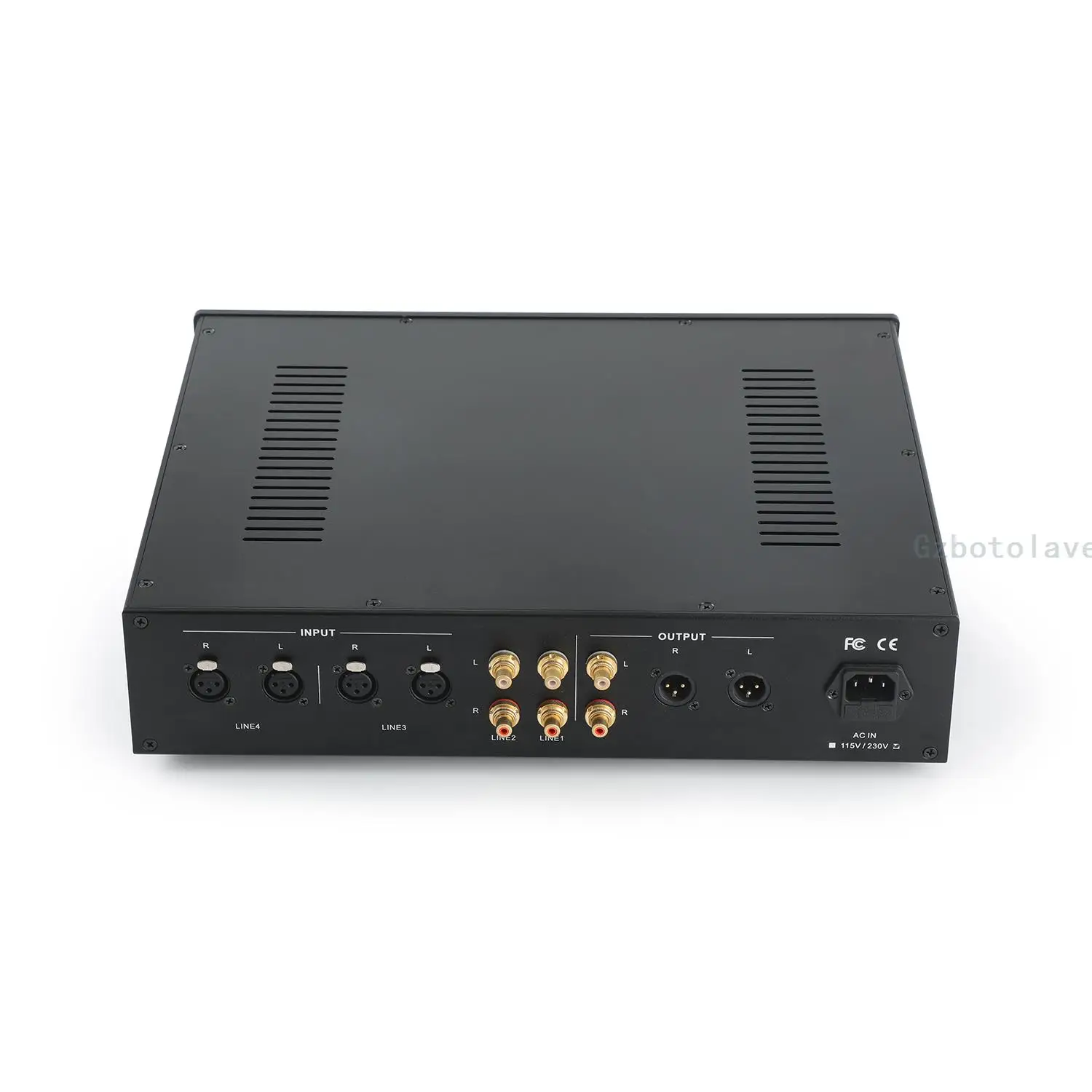

Input port: 2 groups balance XLR and 2 groups Single ended RCA

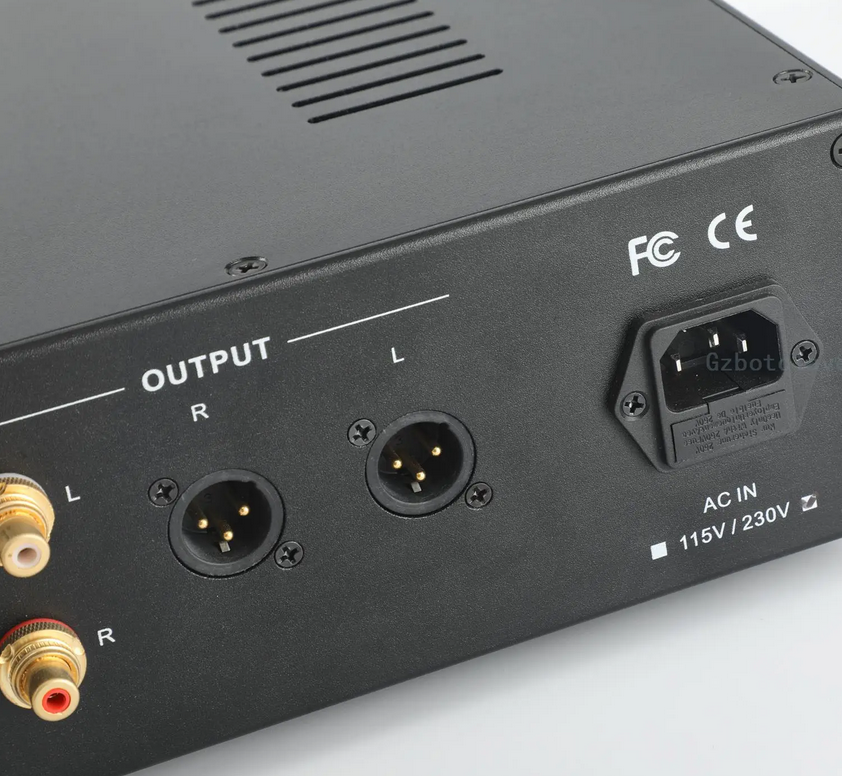

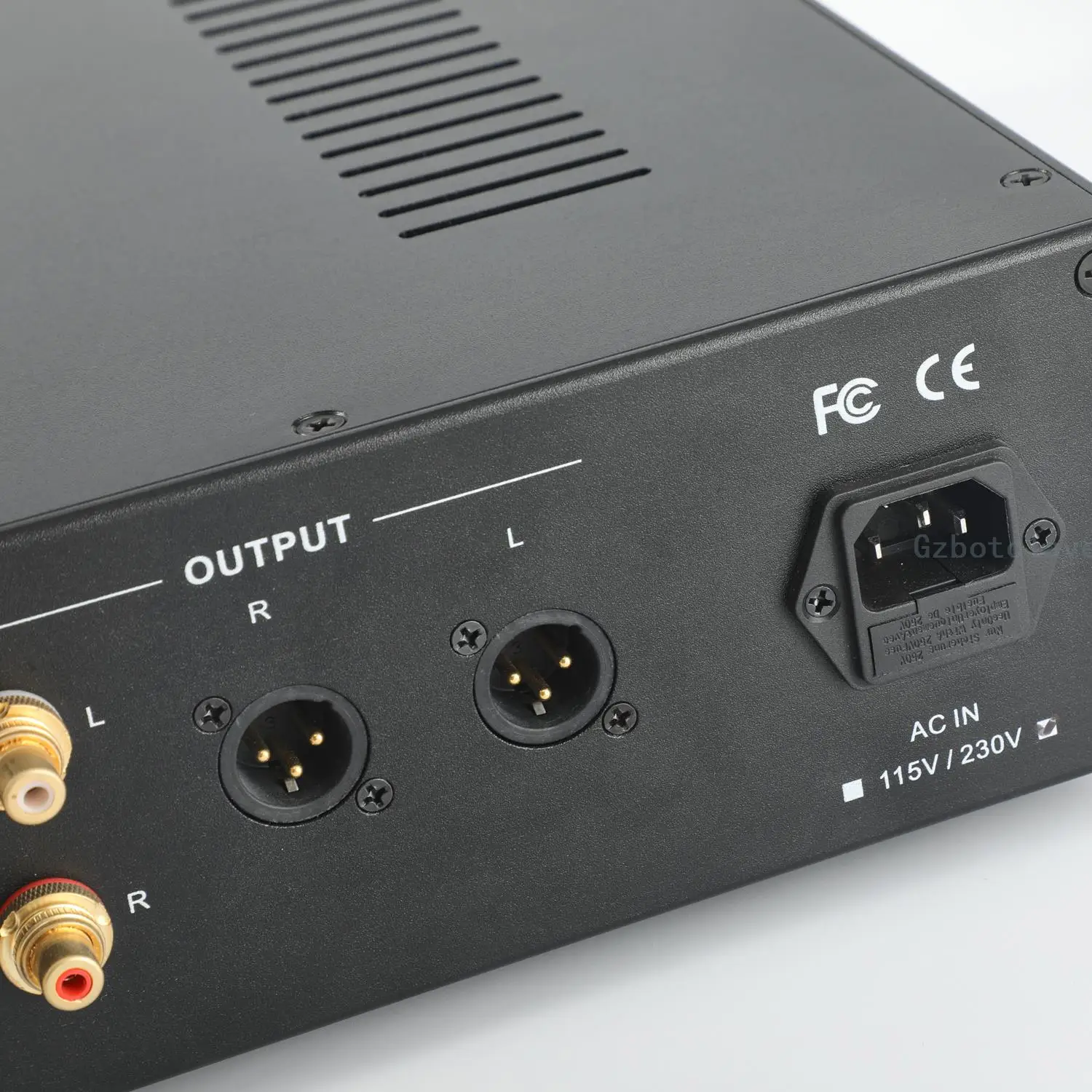

Ouput port: 1 groups balance XLR and 1 groups Single ended RCA
note: when input Single ended audio. only output Single ended. No XLR output.

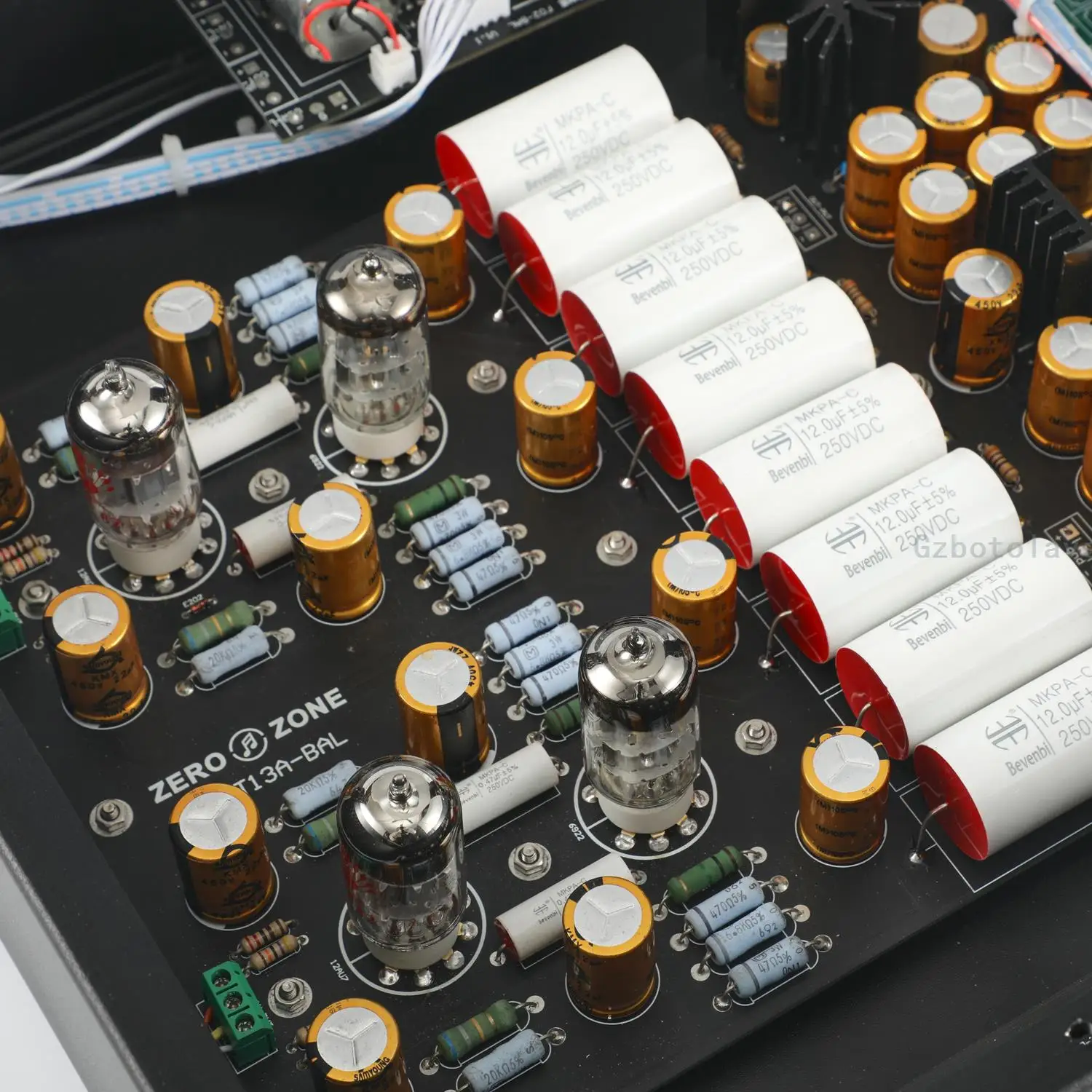

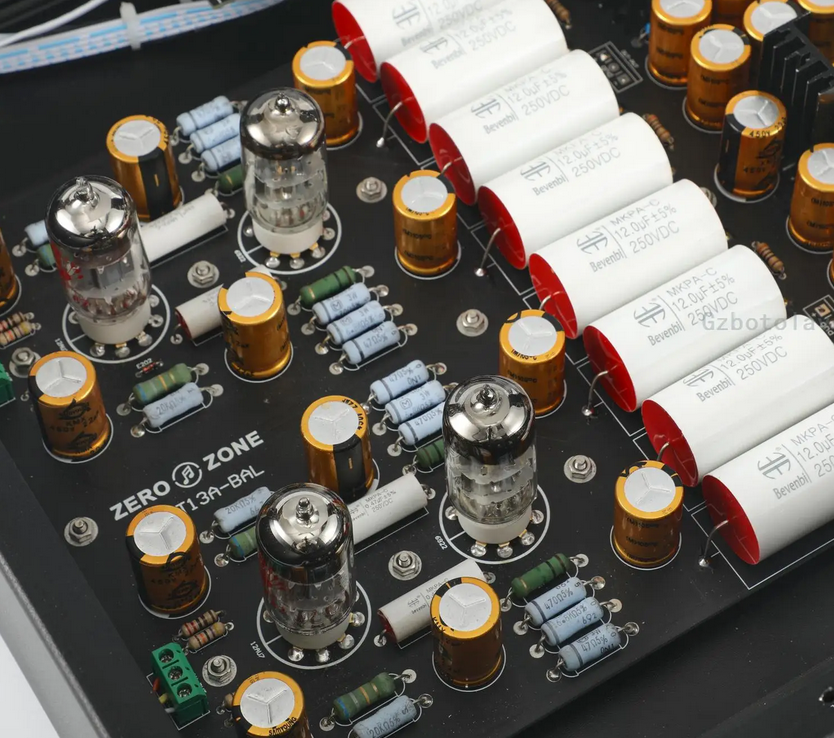

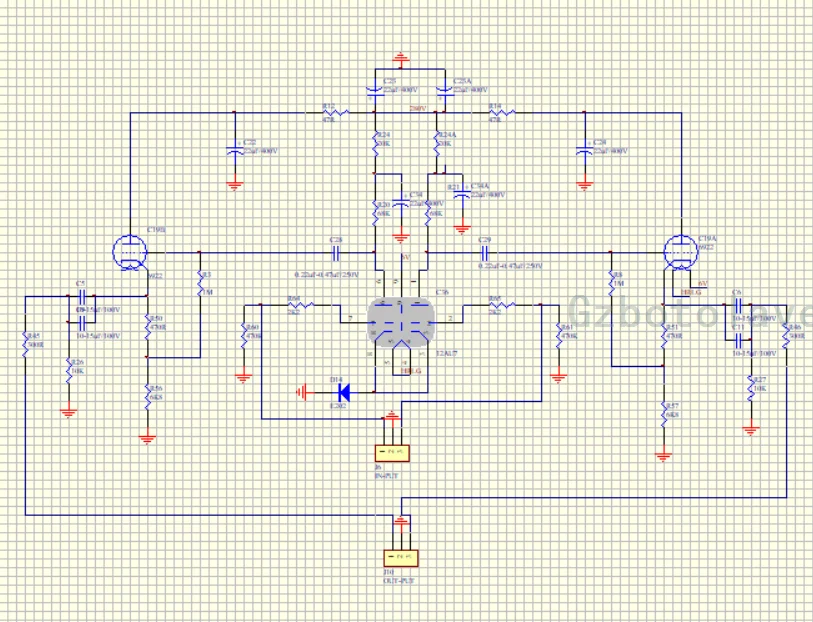

6N11 is used as cathode output in the output stage, ECC82 common cathode is used for voltage amplification in the first stage, and constant current diode is used as cathode constant current in the first stage. The output of the machine can be balanced and single ended, and the input also can be balanced and single ended.
Product Size

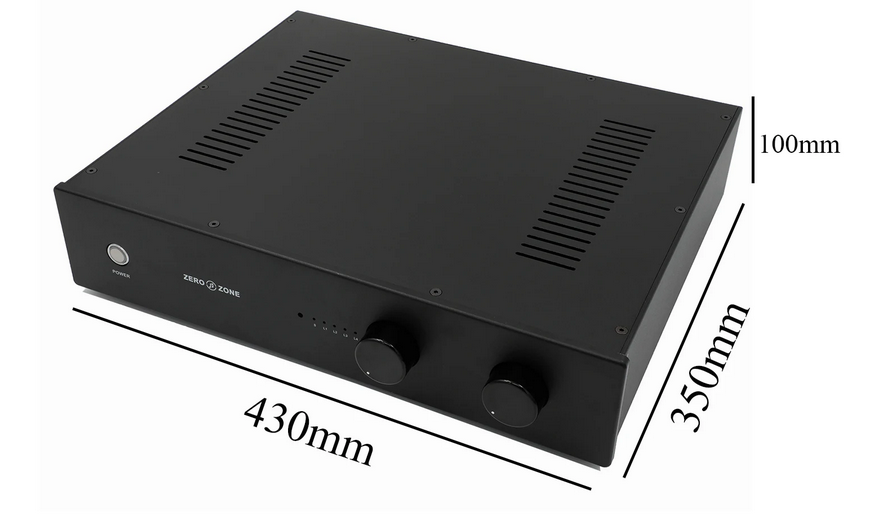

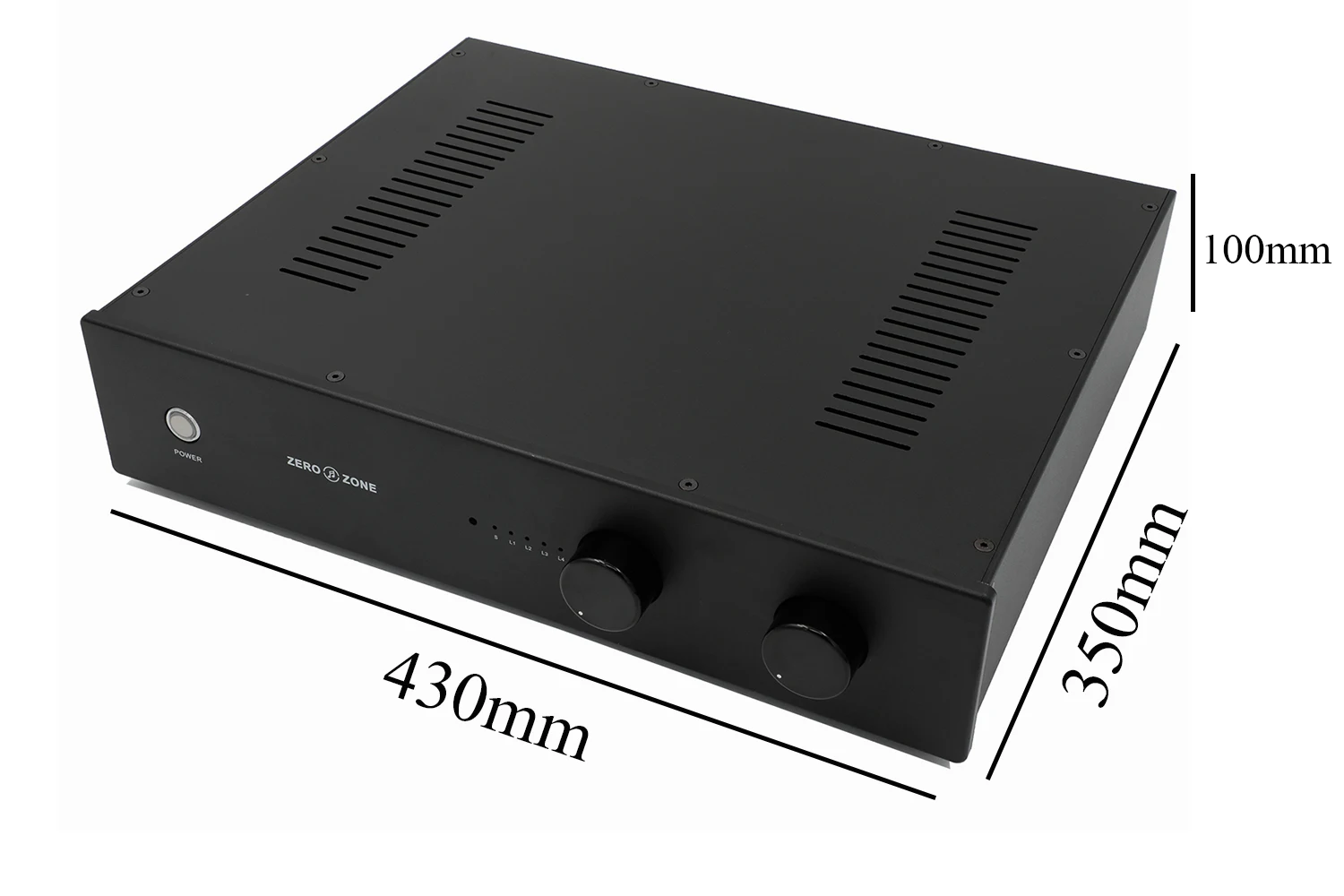

Size: 430mm*100mm*350mm (W*H*D) not include the Size of knob and RCA protrusion
Package includes: one finished amplifier, one remote controller
