Parameter

Output effective value: 14.3Vrms

Channel gain: 11.0dB 3.57 times

Signal to noise ratio: 114dB

Dynamic range: 114dB

Channel crosstalk: -86dB

THD distortion: 0.0006%

THD+N distortion: 0.0015%

Intermodulation distortion: 0.00398%

Frequency response bandwidth: ± 0.12dB 20-20kHz completely flat

Amplifier weight: 7kg

Overall dimensions: 430 * 310 * 95mm

Details

 BRYSTON BP26 circuit is adopted, the circuit, parameters and structure are exactly the same

• Large dynamic, high voltage, Class A core amplifier module

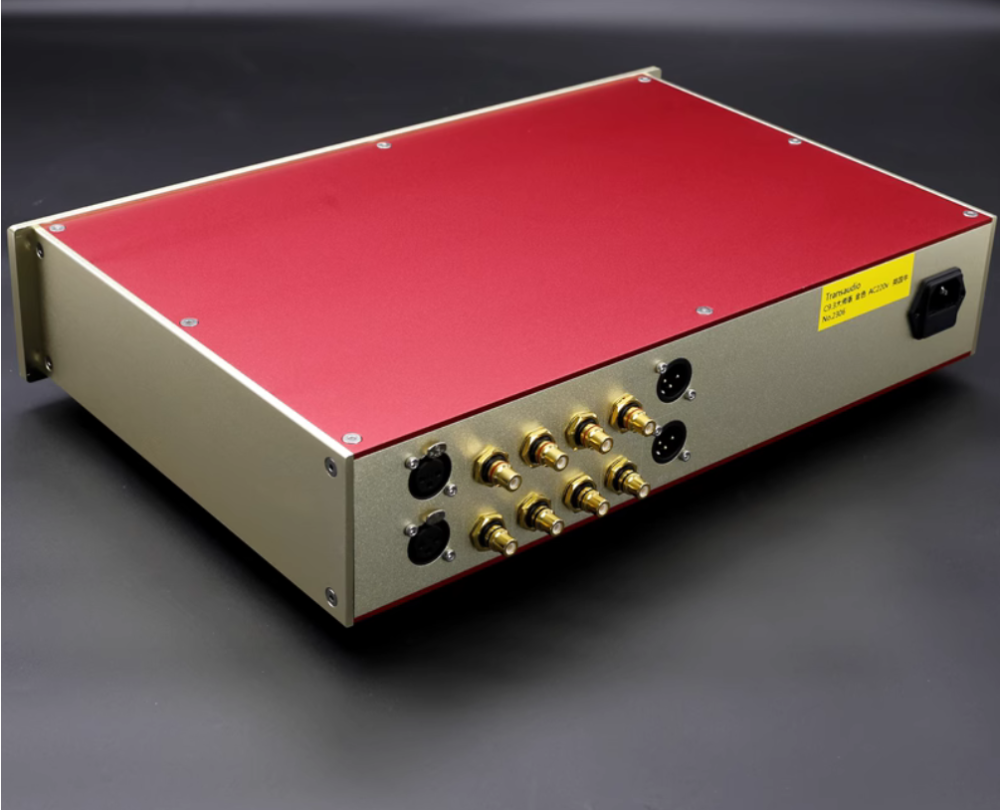

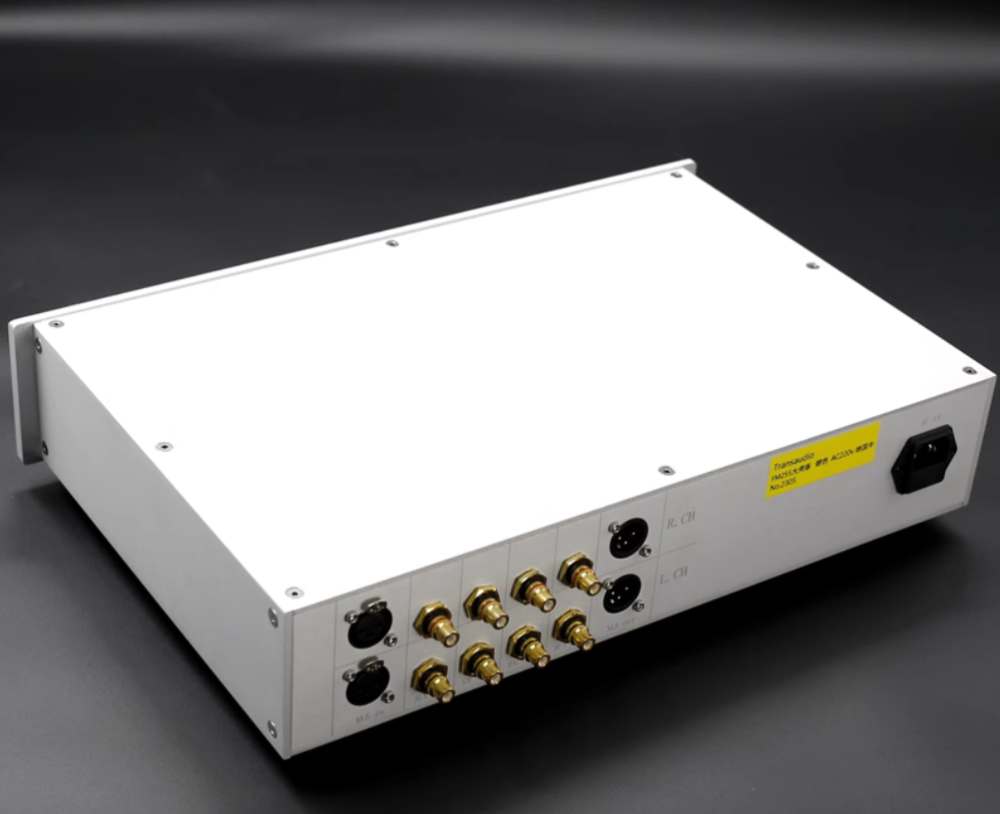

• There are three single-ended inputs and one balanced input

• 1 channel single end output, 1 channel balanced output two output at the same time, can be connected to two dual channel post amplifier.

• Balance input and output are American standard wiring

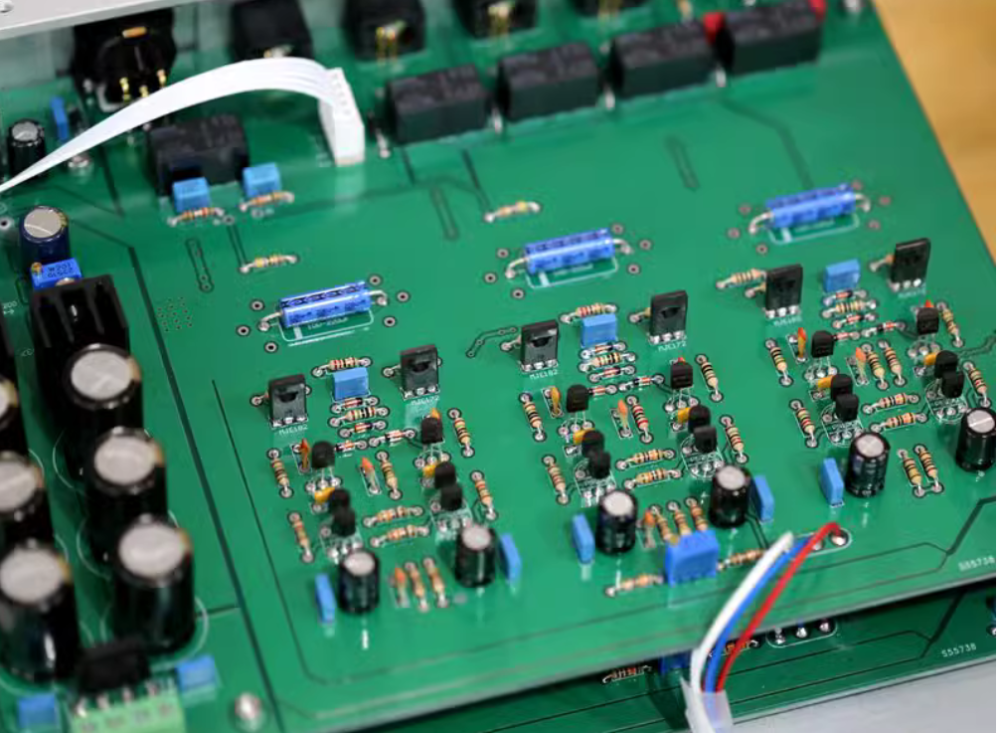

• Double motherboard design, left and right channel completely separated better than the original machine

• Fully discrete component design

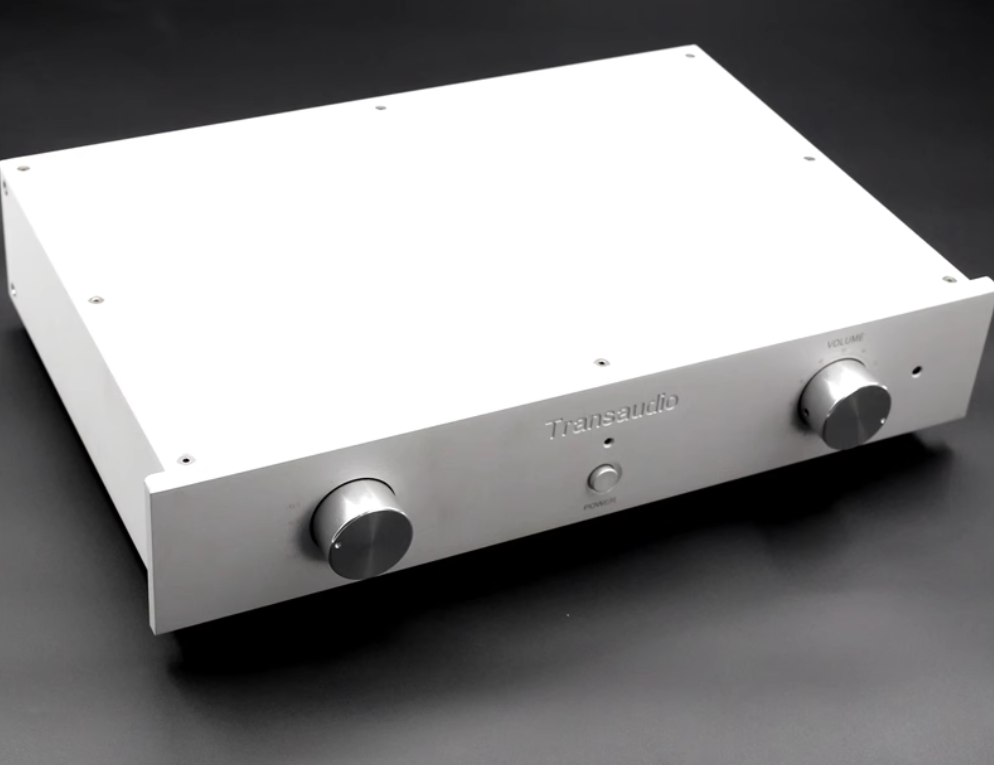

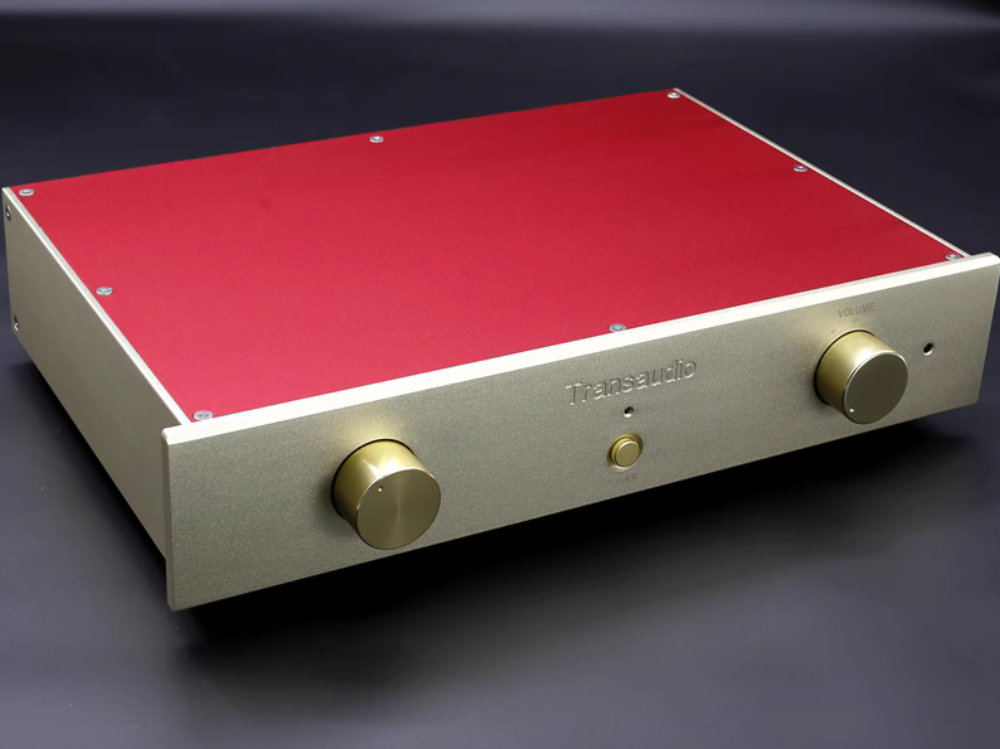

• CNC machining all aluminum chassis

• ALPS27 large potentiometer can be equipped with remote control components

• Two British talema 25w toroidal transformers are used for power supply supporting AC110V or AC230V

• Small signal wire Taiwan Teflon oxygen free copper wire

• The CMC pure copper platform provides high-quality RCA terminals

• The preamp adopts the capacitor produced recently

• All imported resistance, adjustable potentiometer
