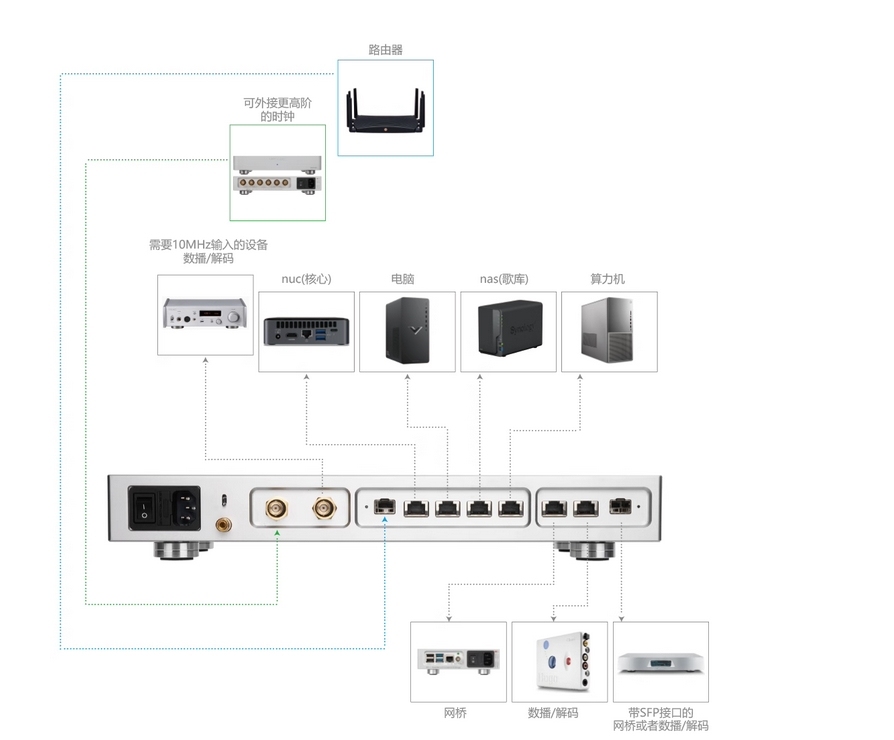

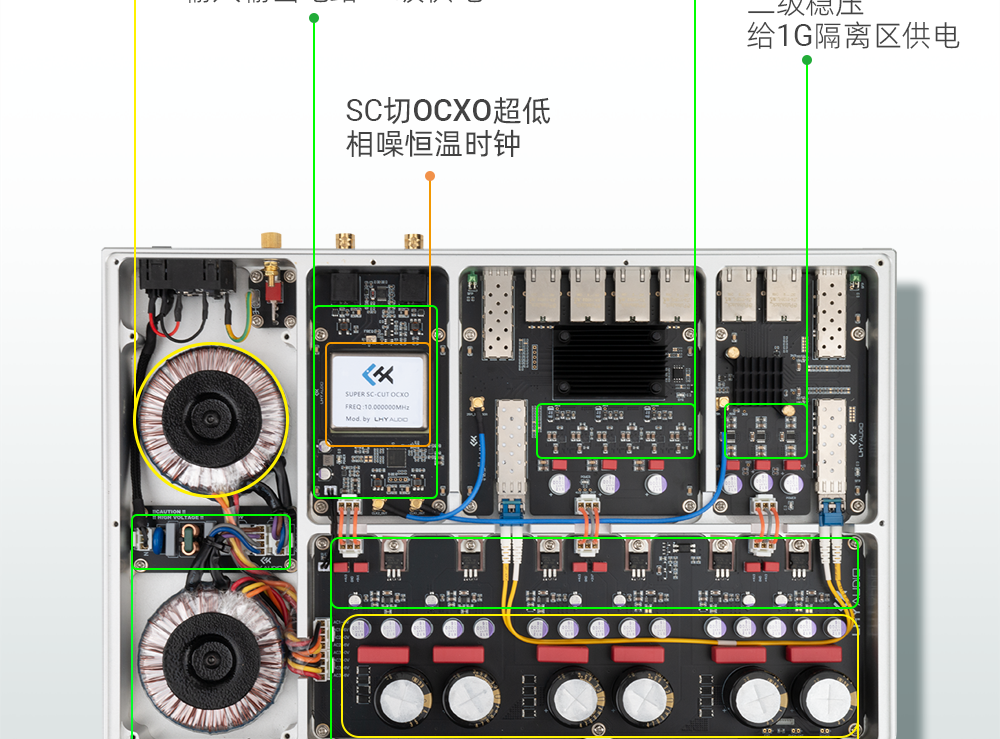

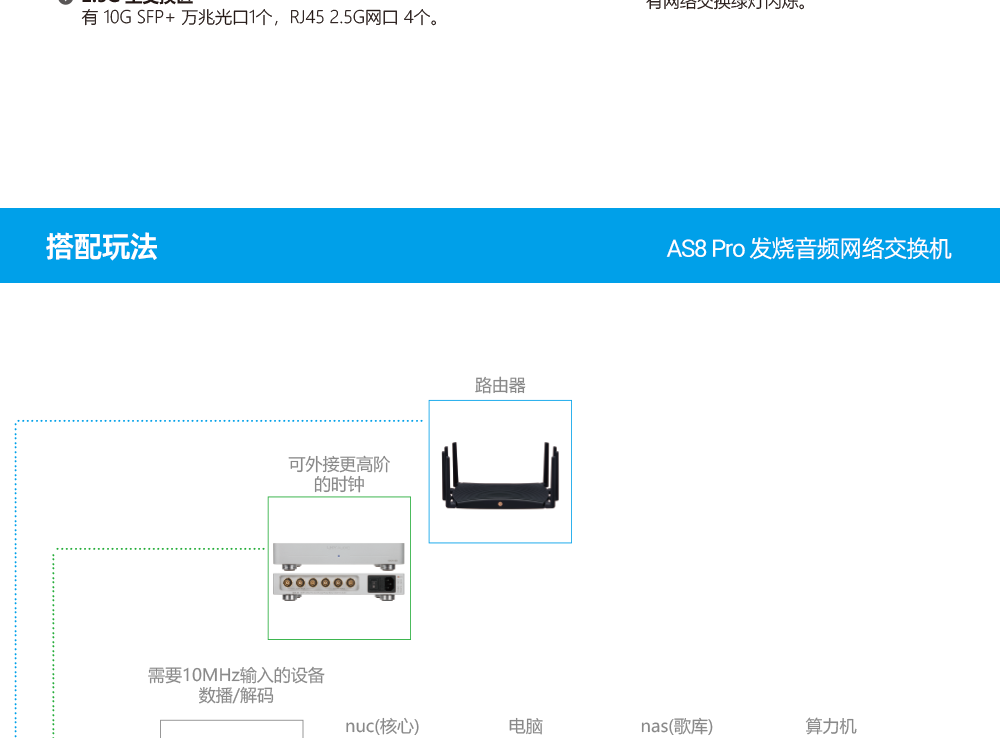

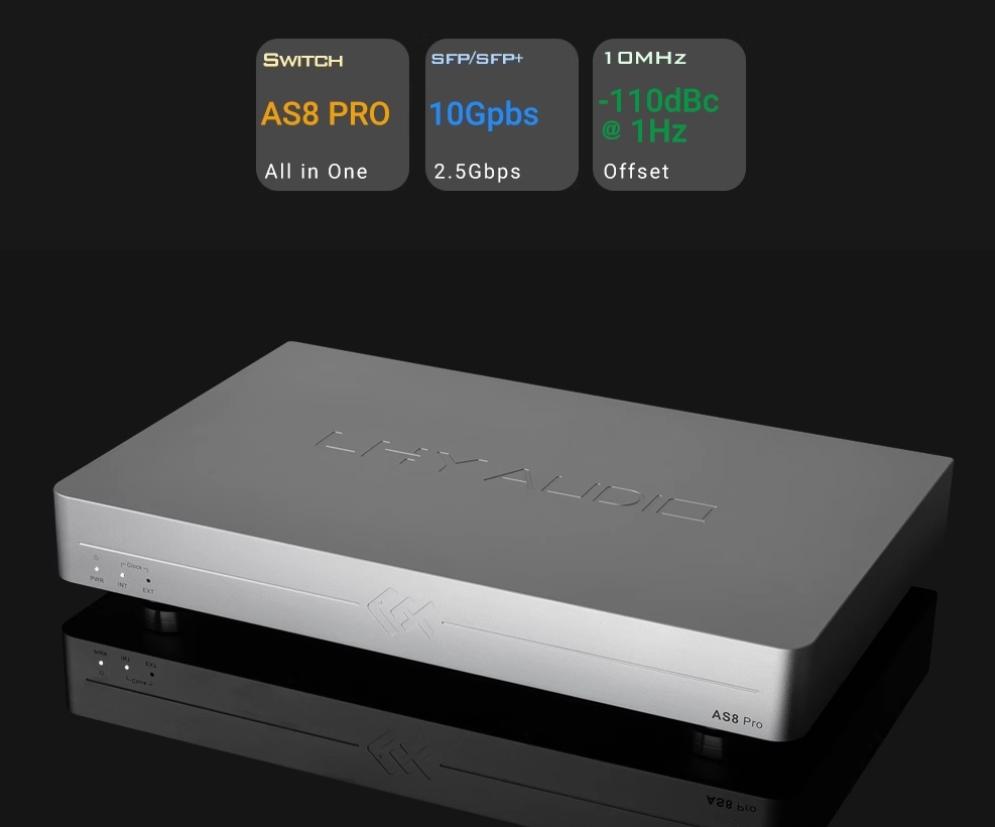

The AS8Pro machine is divided into three main parts. 2.5G main switch+1G audio quiet zone+ultra-low phase noise precision clock. All in One design, fully functional trinity and independent isolation from each other.

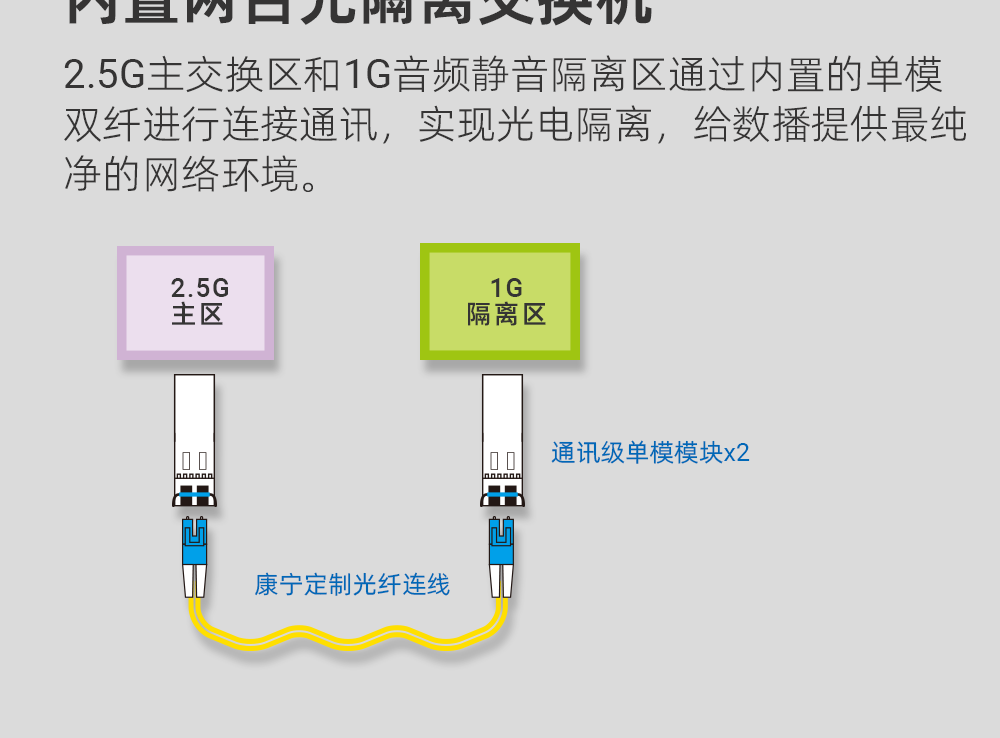

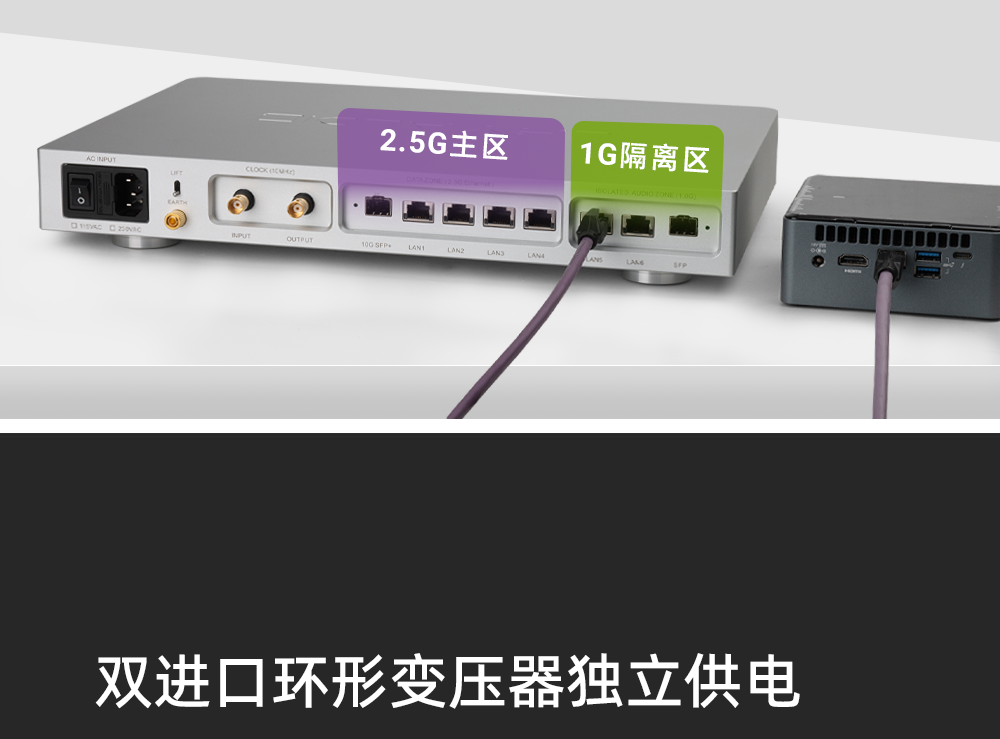

2.2.5G main switching area and 1G audio quiet area are connected for communication through built-in single-mode dual fiber, achieving optoelectronic isolation and providing the purest network environment for digital broadcasting.

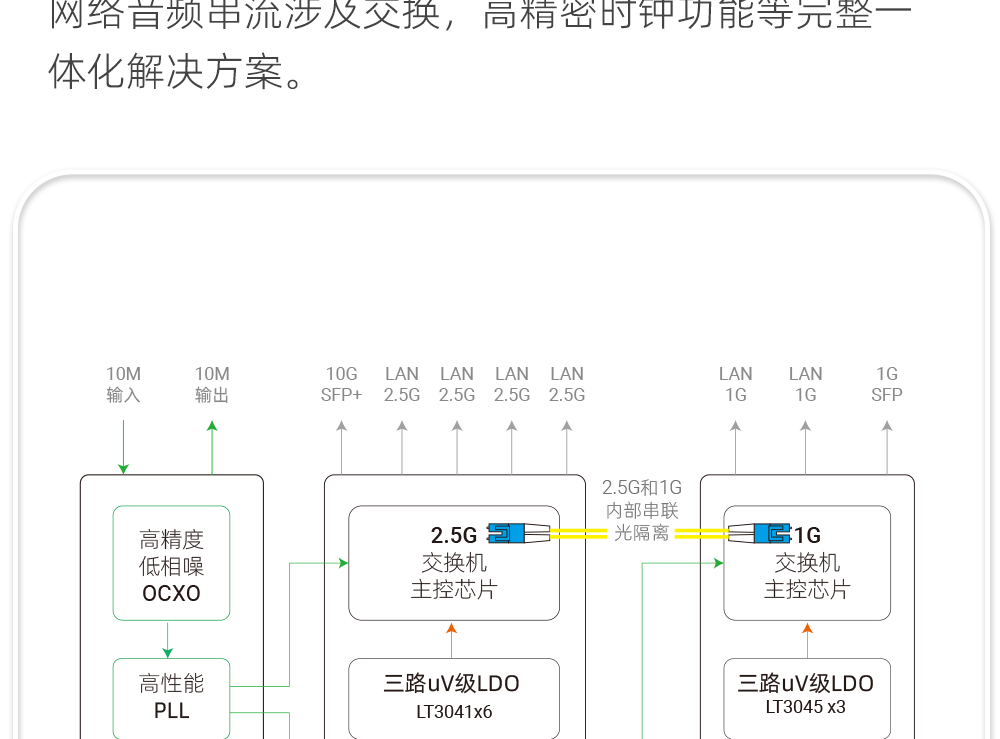

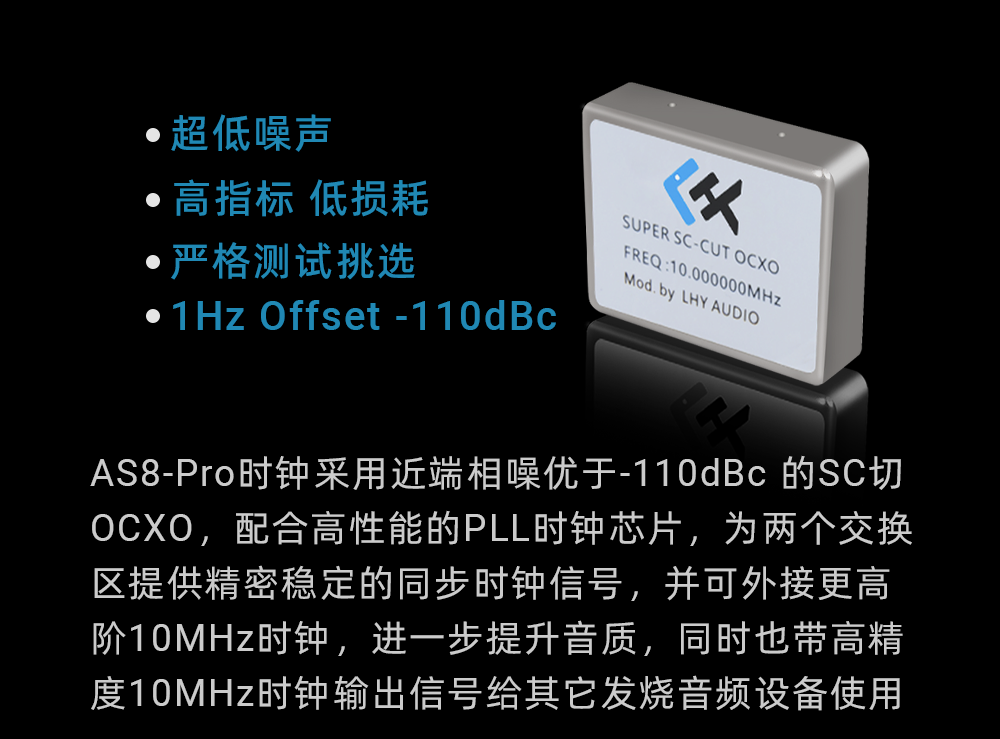

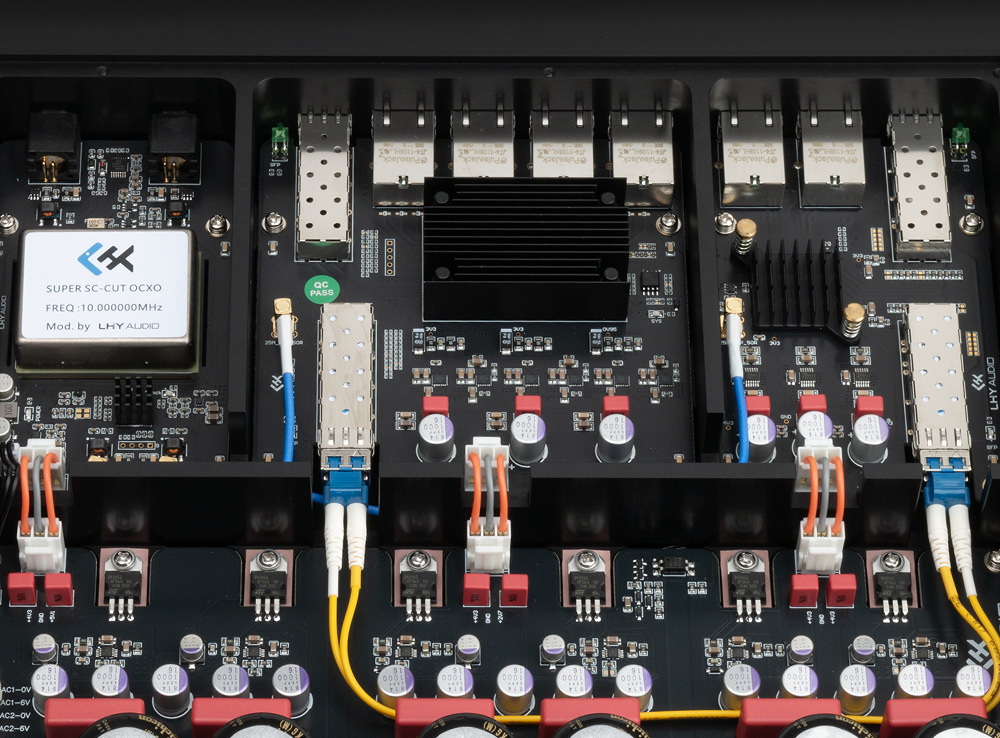

3. The clock area adopts SC cut OCXO with near end noise better than -110dBc, combined with high-performance PLL clock chip, to provide the most precise and stable synchronous clock signal for the two switching areas. At the same time, clock input and output ports are also configured for customers to further upgrade.

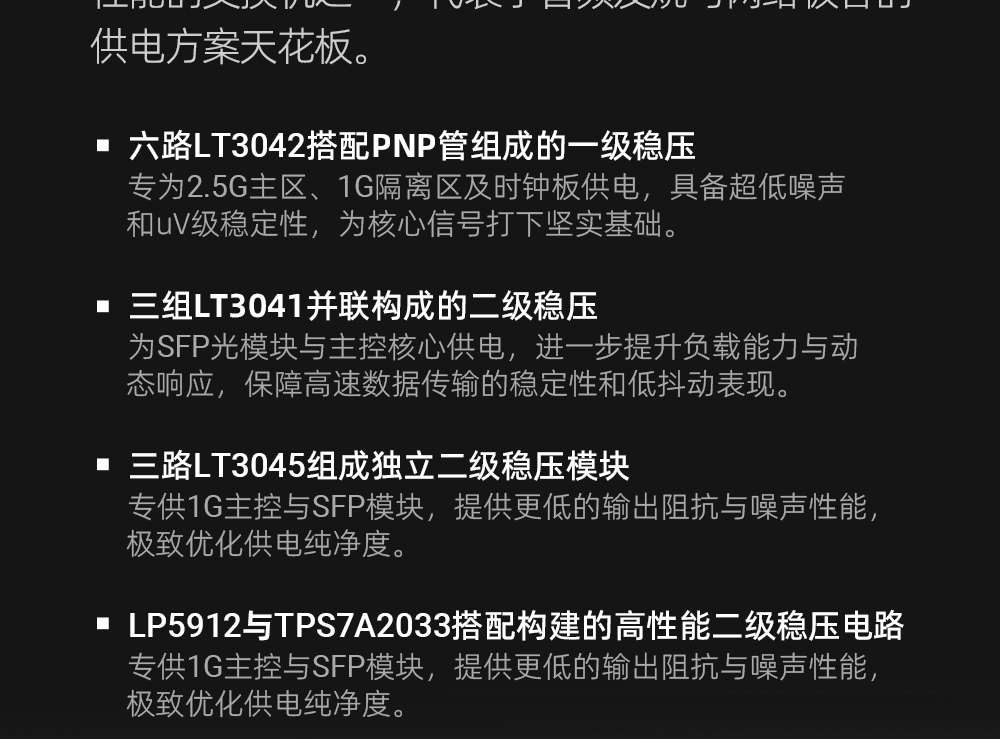

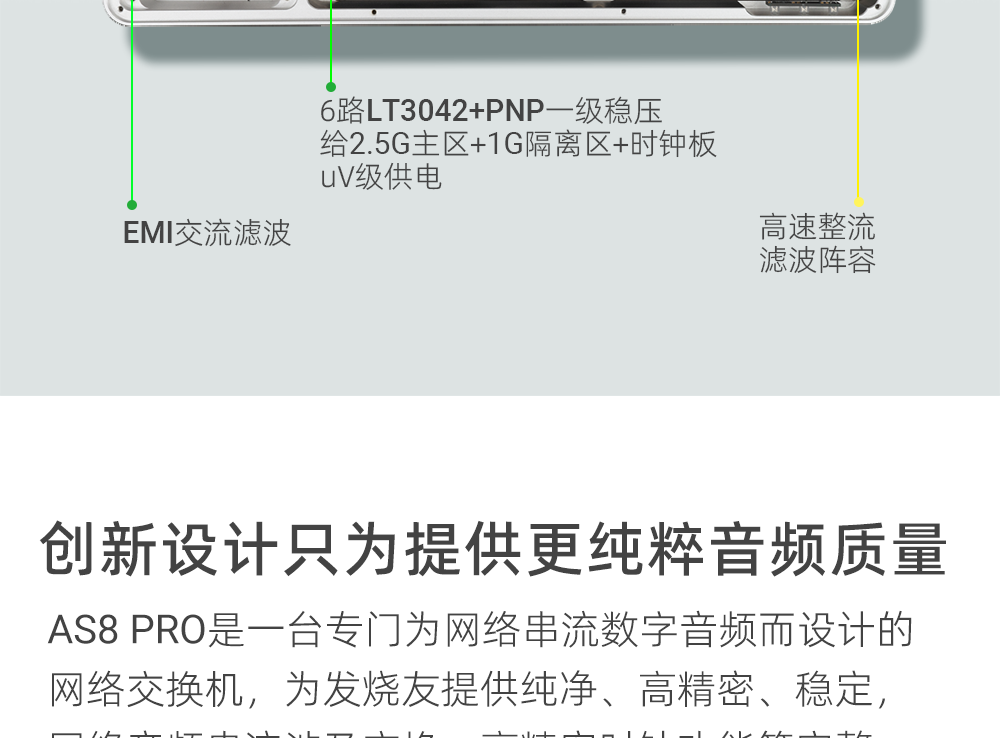

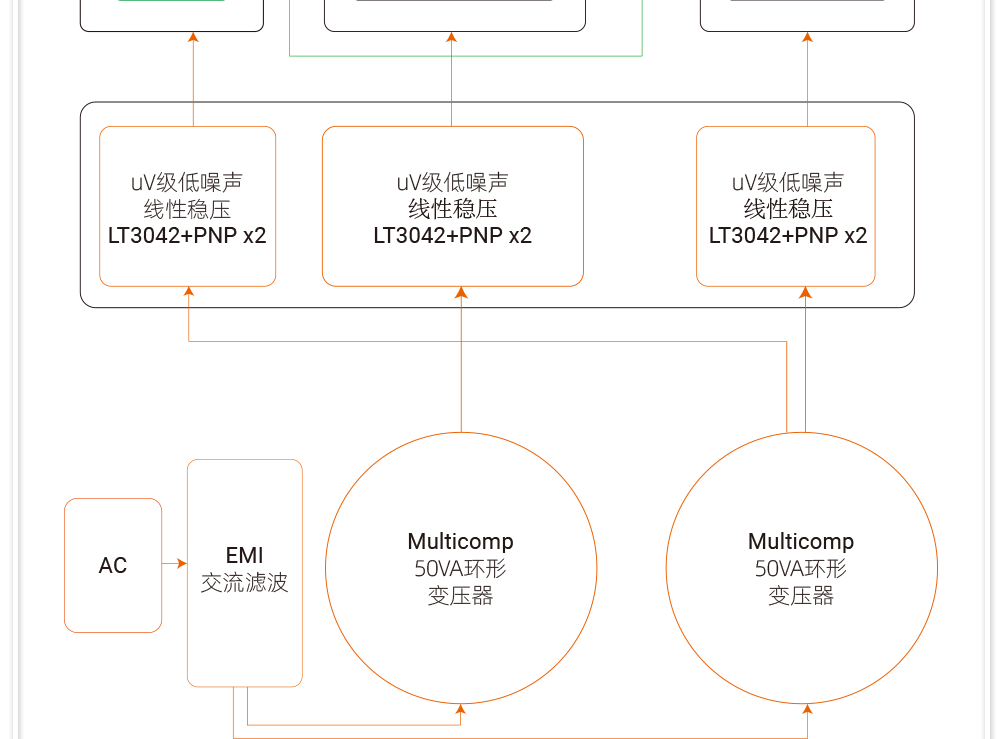

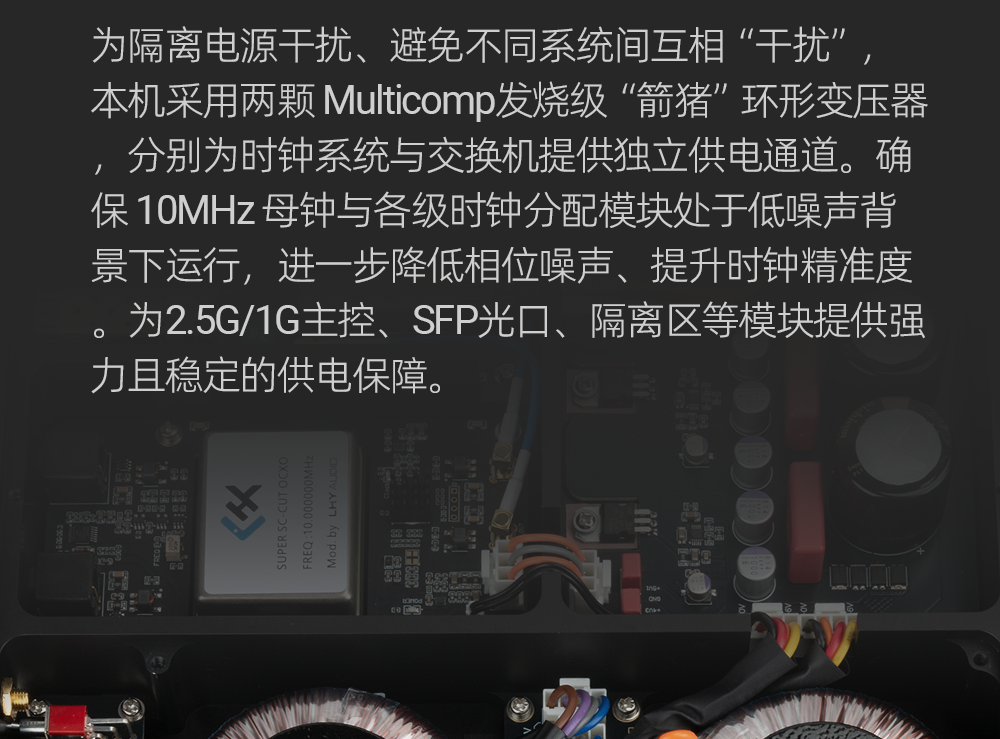

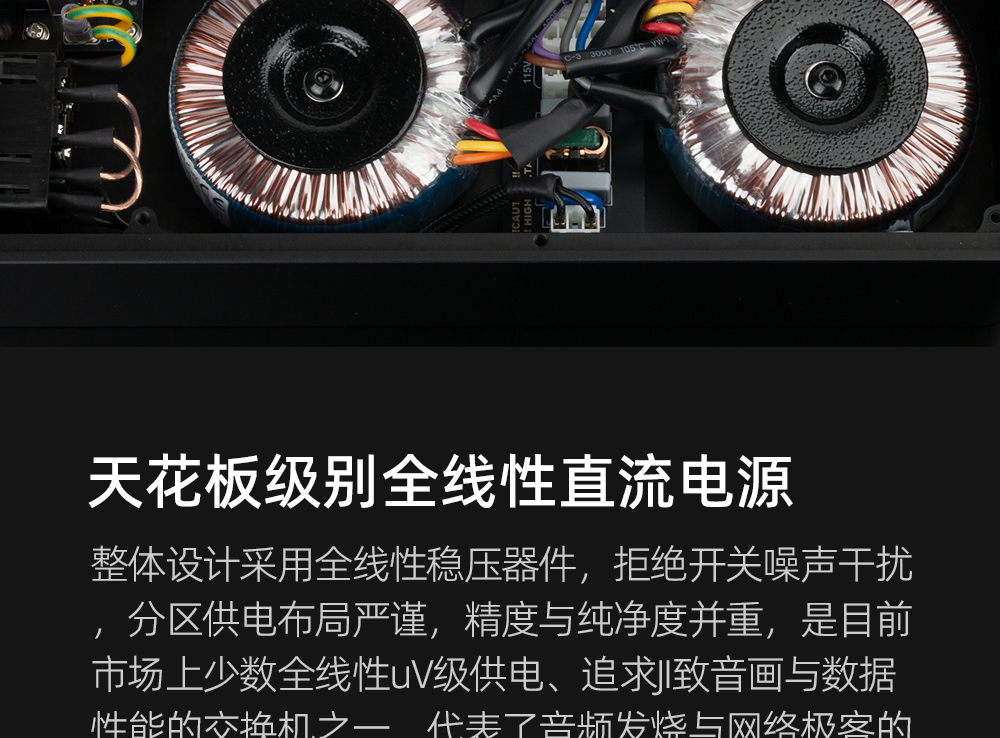

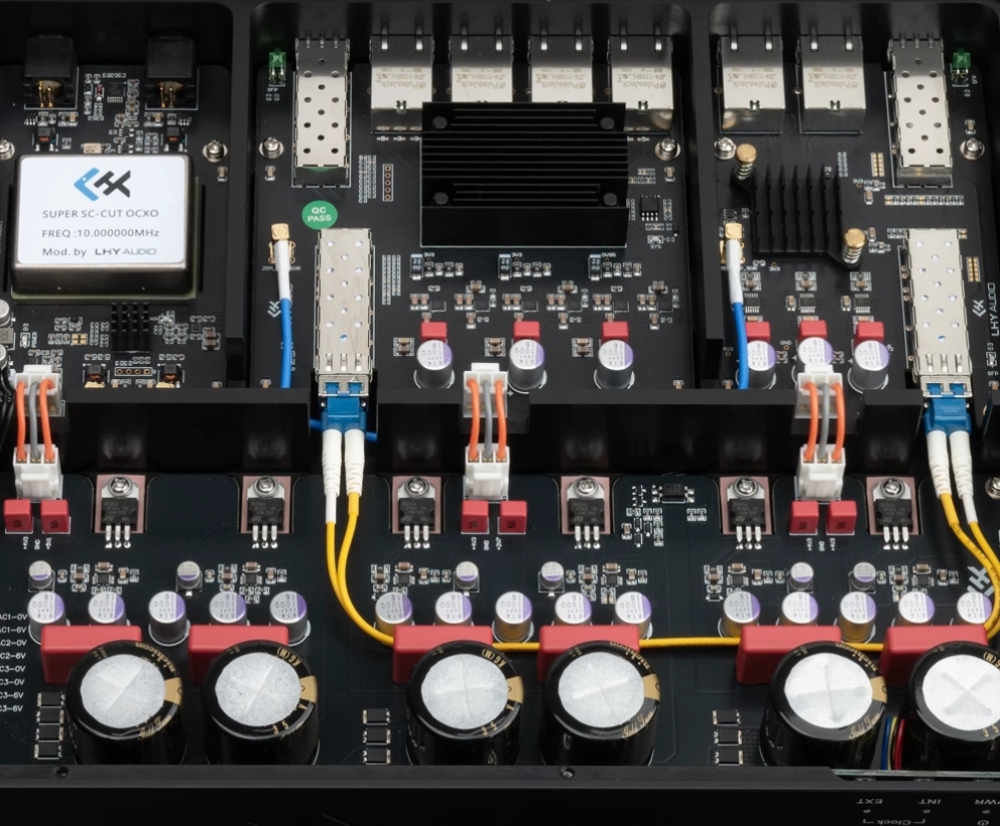

4. Equipped with two 50VA imported porcupine ring cattle and multiple uV level fully linear DC stabilized power supplies. Compared to competitors who only use linear power supply for the first level and DC2DC power supply for the rear end, AS8Pro is a truly linear power supply without any DC2DC circuit on the board.

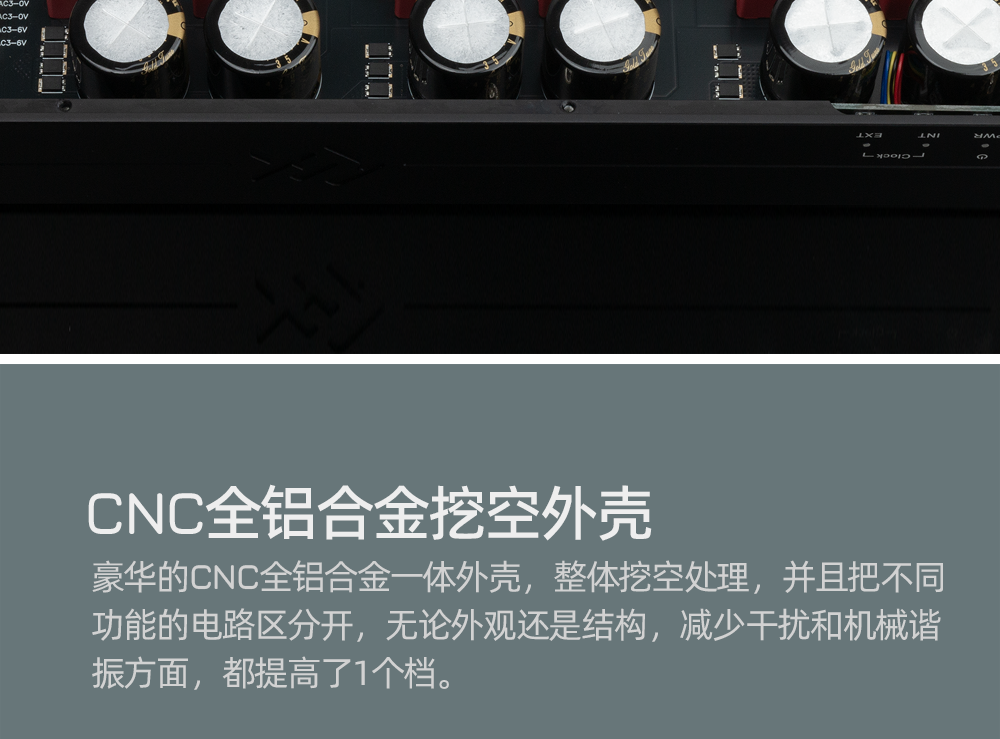

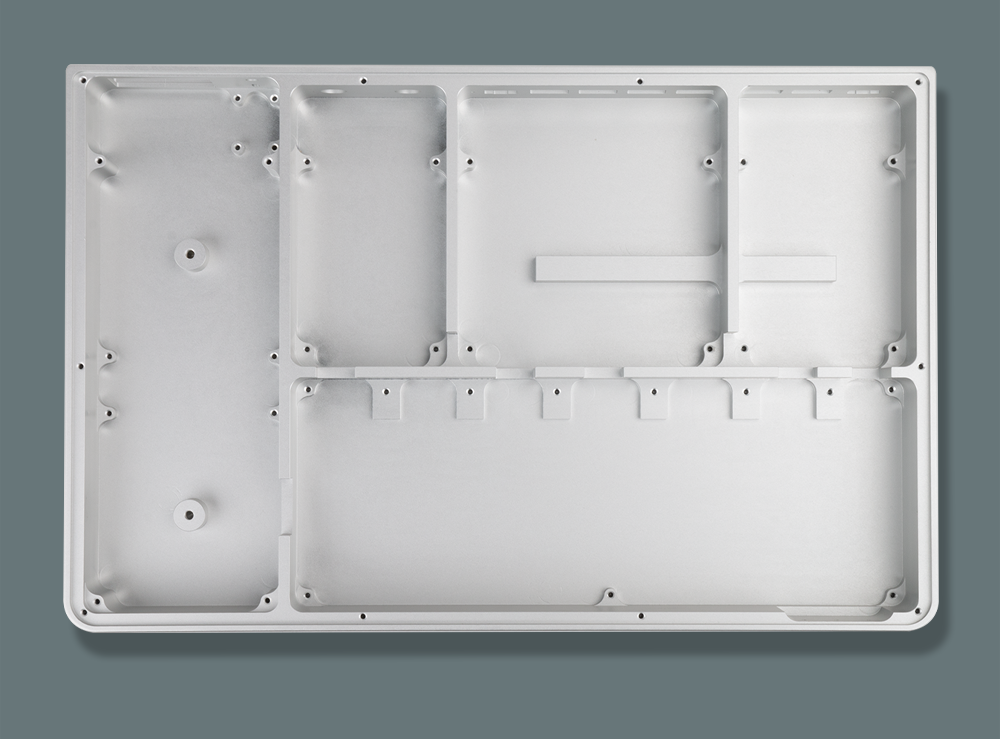

5. The chassis is made of a whole piece of aviation aluminum material, which is excavated through CNC precision machining. Compared with conventional assembled aluminum alloy chassis, it greatly reduces the overall resonance of the machine and improves the rigidity of the chassis. Different functional circuits can be isolated from each other to avoid interference.

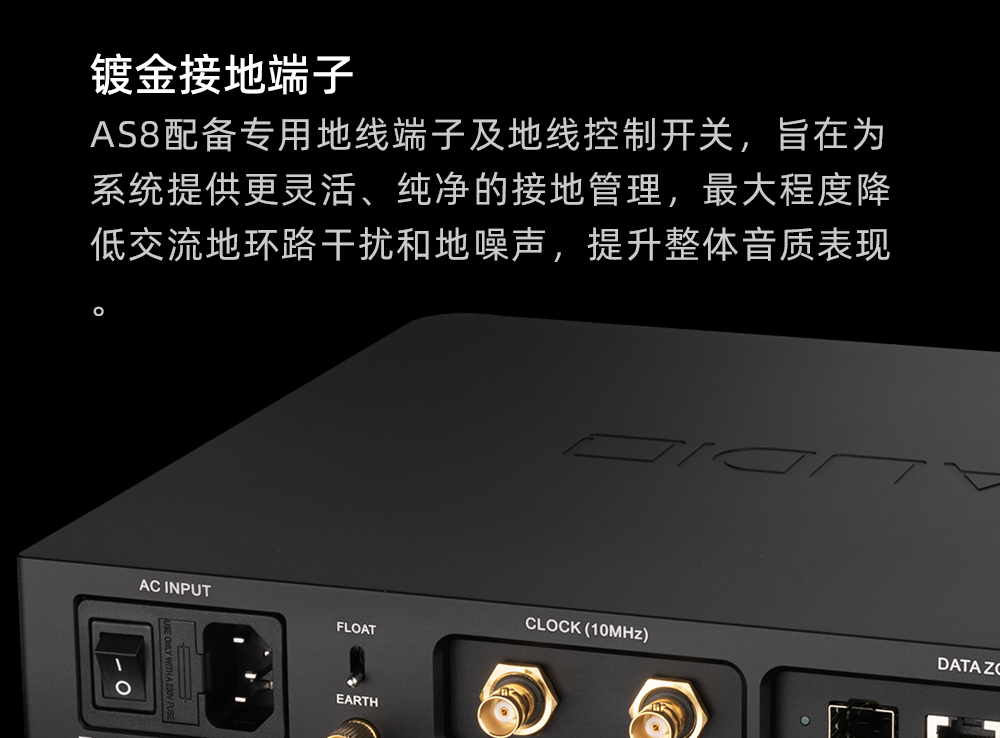

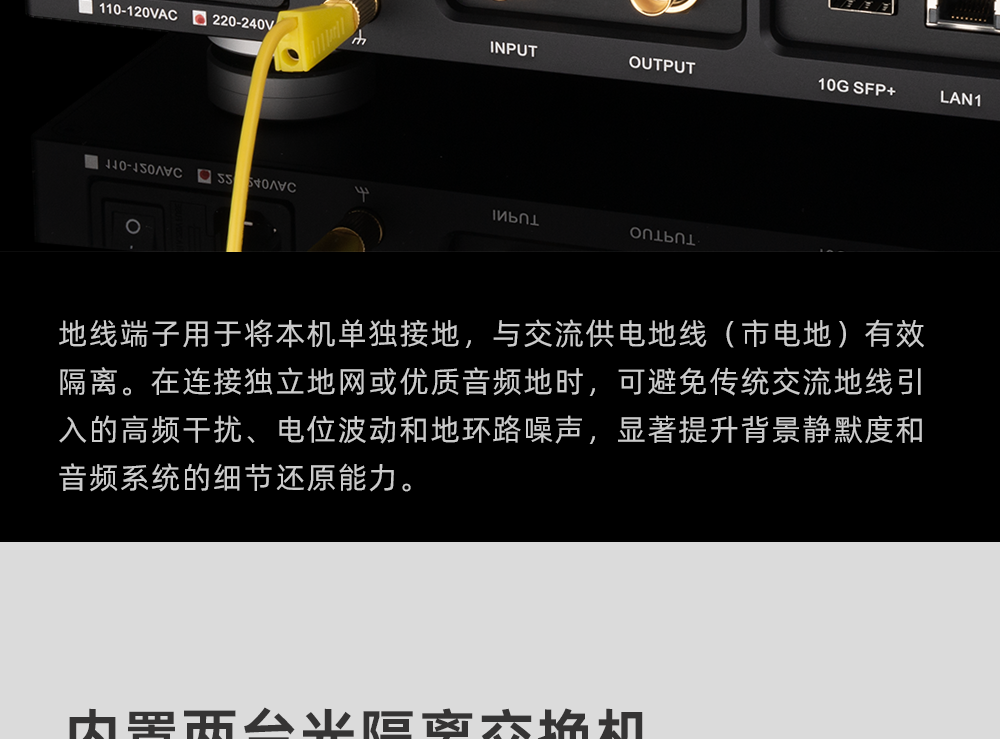

6. The independent grounding terminal and grounding switch designed specifically for audiophiles with extreme requirements can enable star shaped grounding between multiple devices in the entire audio system, thereby avoiding interference noise caused by ground loops.
Material Description for the Whole Machine:
Integral aluminum alloy CNC hollow chassis

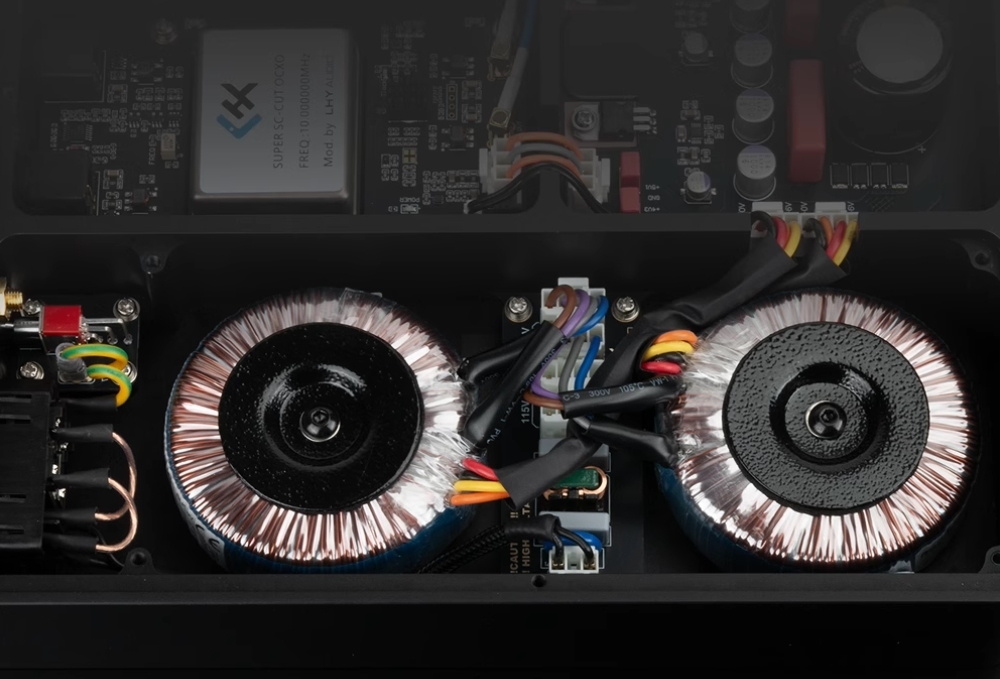

Two 50VA imported porcupine ring transformers
Communication grade single-mode module x2/Corning customized fiber optic connection
Swiss Gaofen machine internal connection cable
Imported PULSE 10 Gigabit RJ45 connector x 6
Four layer gold-plated circuit board
Imported SC cut OCXO crystals, each selected through manual testing
Nichicon,Rubycon，WIMA， Panasonic and other imported brand capacitors
Up to 10 sets of LT company uV level LDO linear voltage regulator chips
To be supplemented

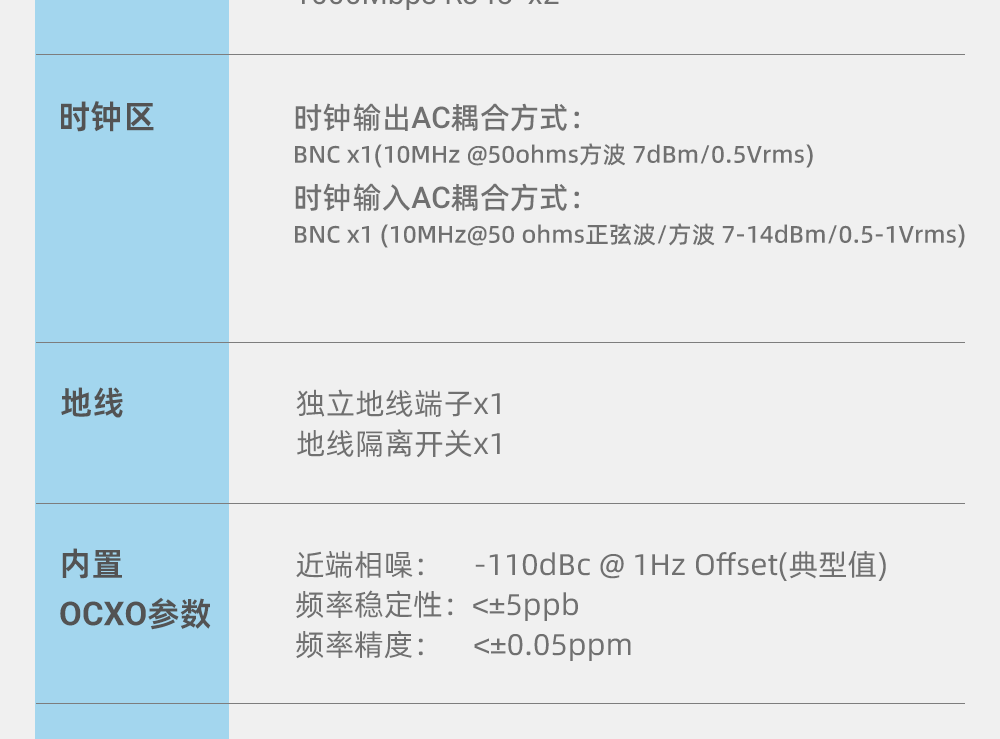

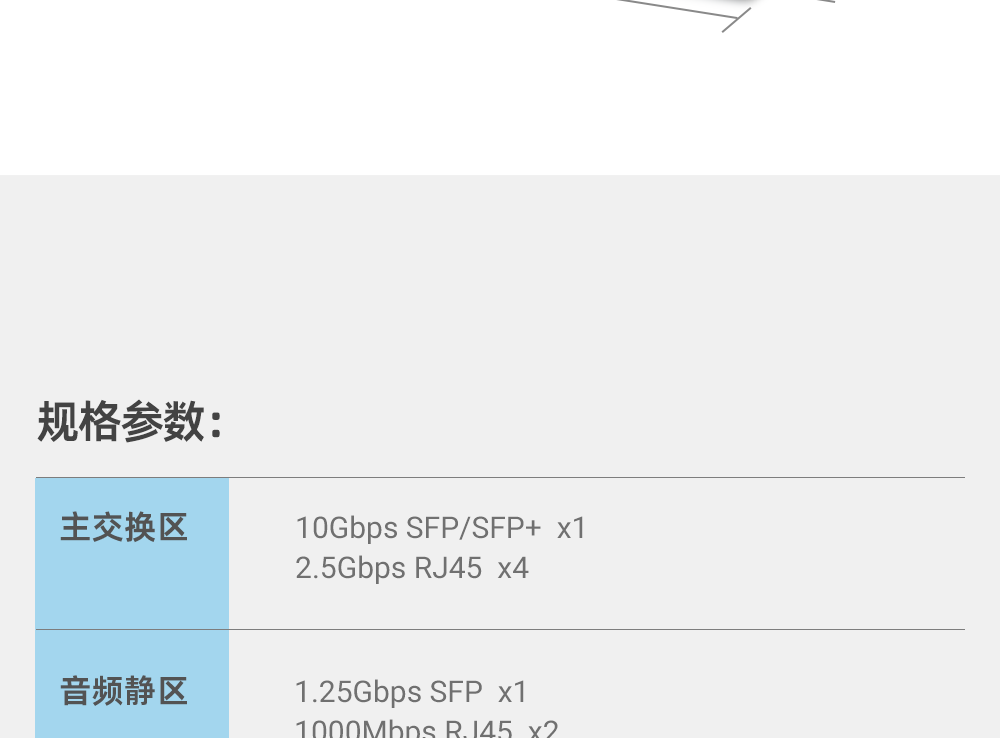

Specification parameters:

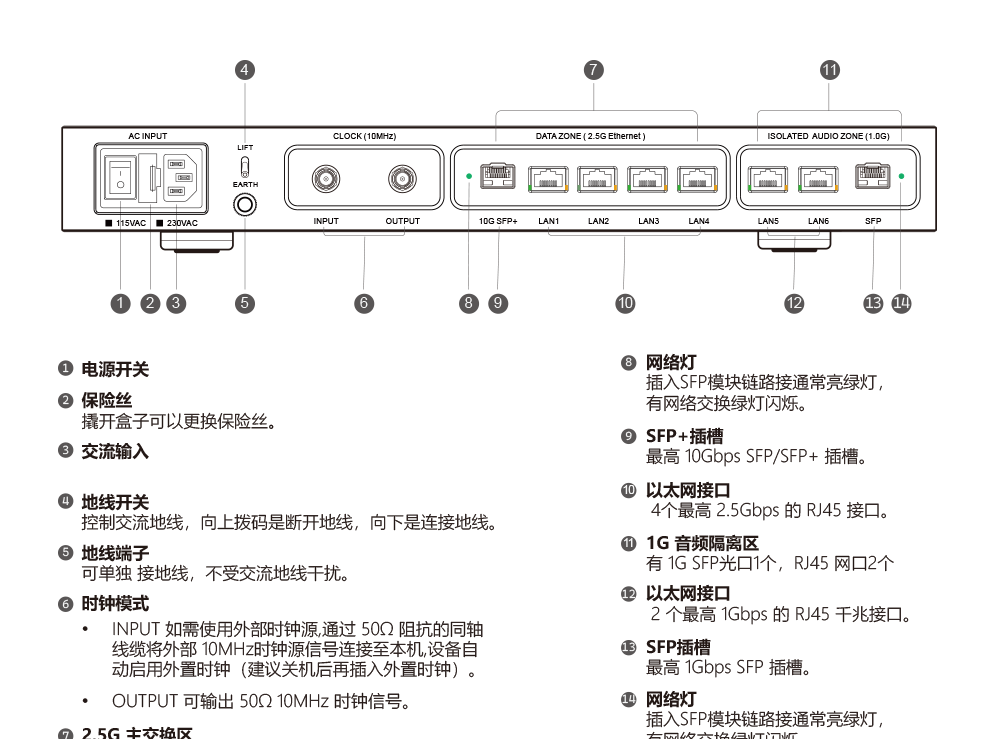

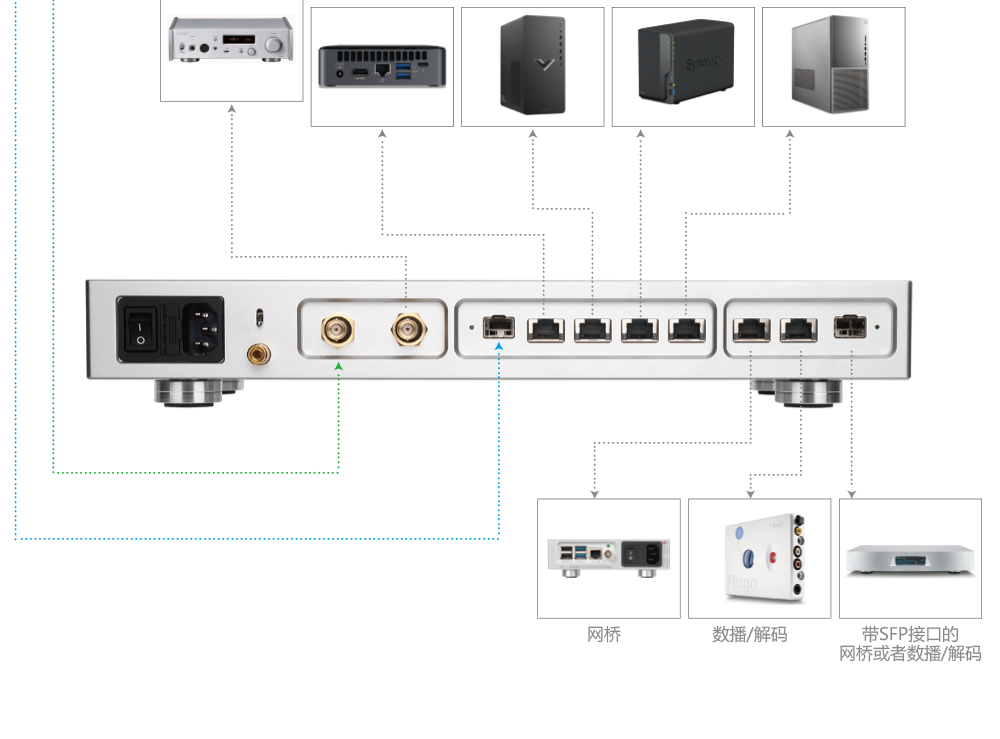

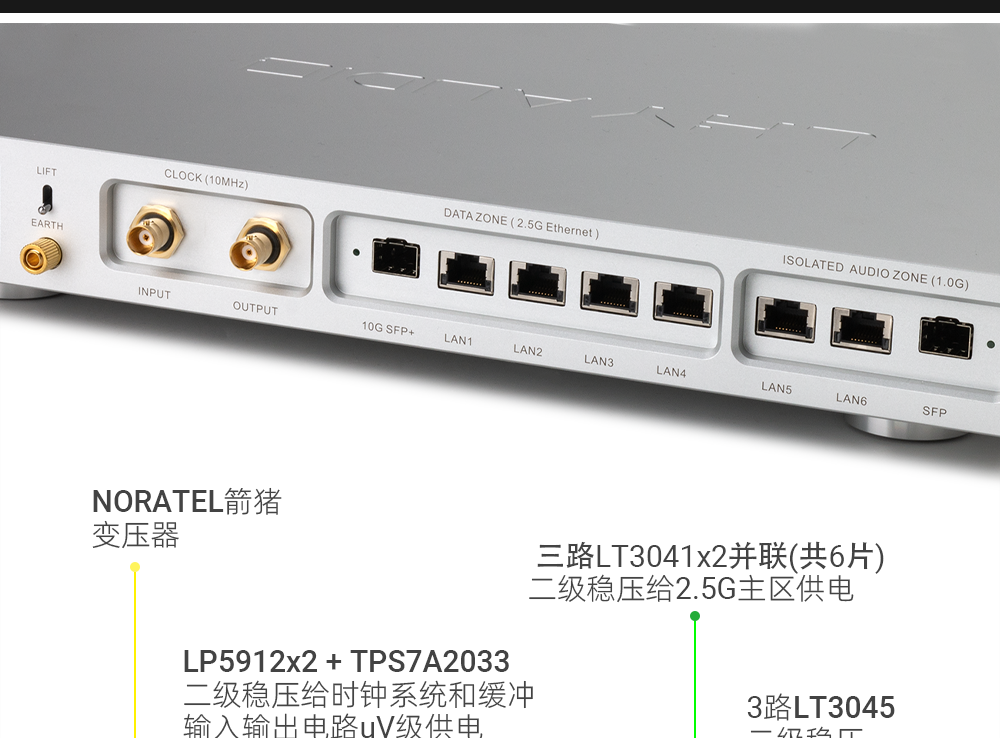

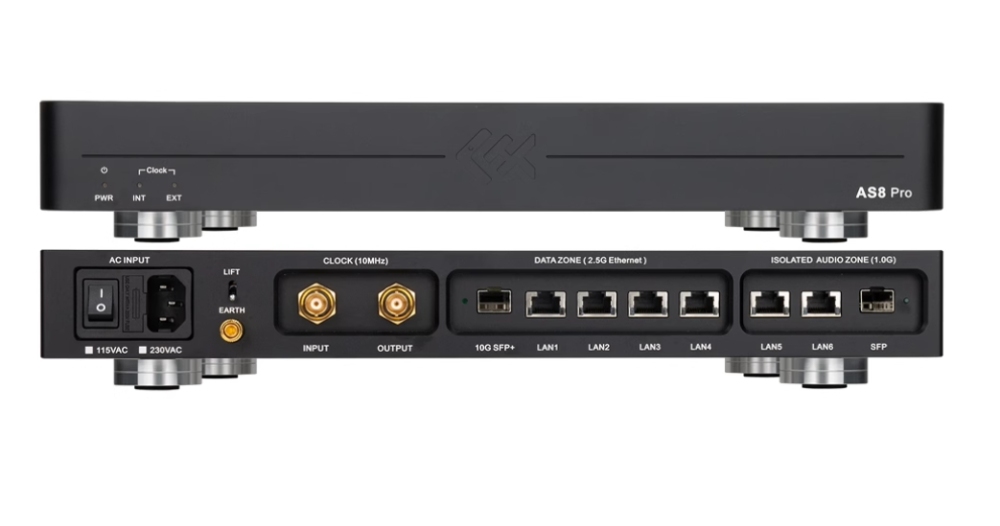

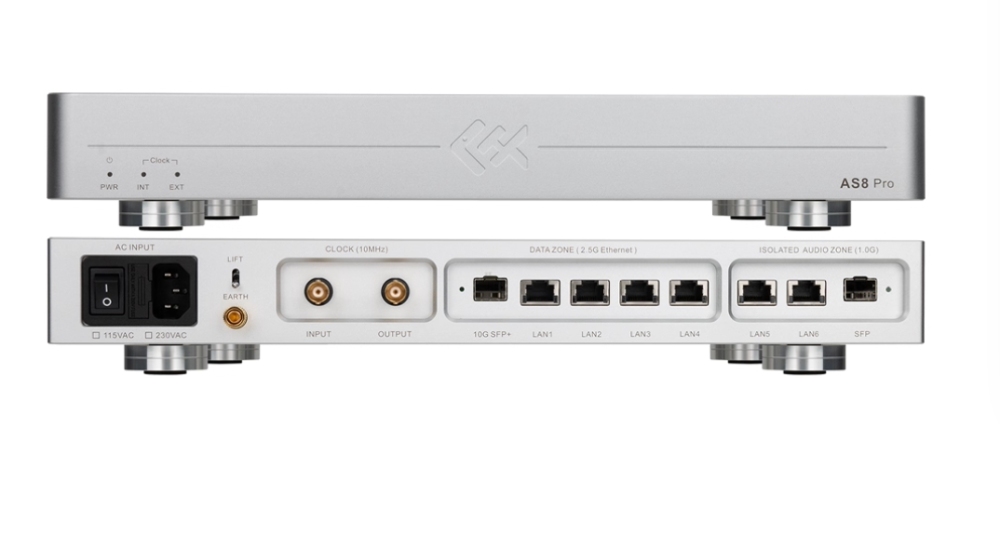

Main switch area: 10Gbps SFP/SFP+x1/2.5Gbps RJ45 x4
Audio Quiet Zone: 1.25Gbps SFP * 1/1000Mbps RJ45 * 2
Clock area: Clock output BNCx1 (10MHz @ 50ohms square wave)
Clock input BNCx1 (10MHz/50 ohms sine wave/square wave)
Ground wire: independent ground wire terminal x1, ground wire isolation switch x1
Built in OCXO parameters:

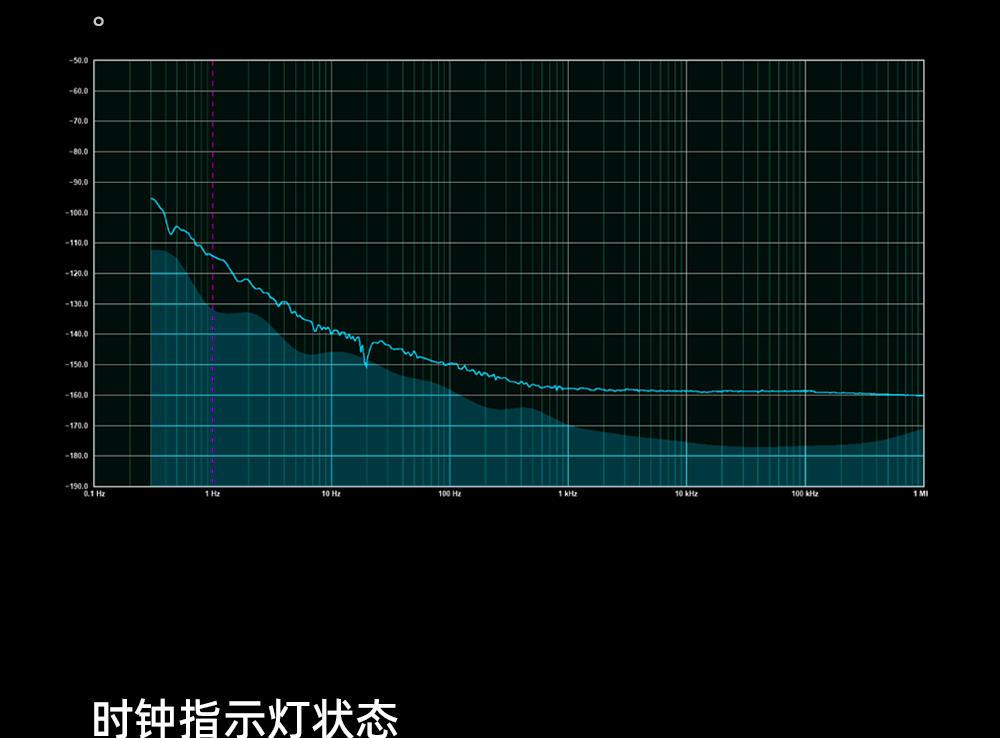

Near end noise: -110dBc@1Hz Offset (typical value)
Frequency stability:<± 5ppb
Frequency accuracy:<± 0.05ppm

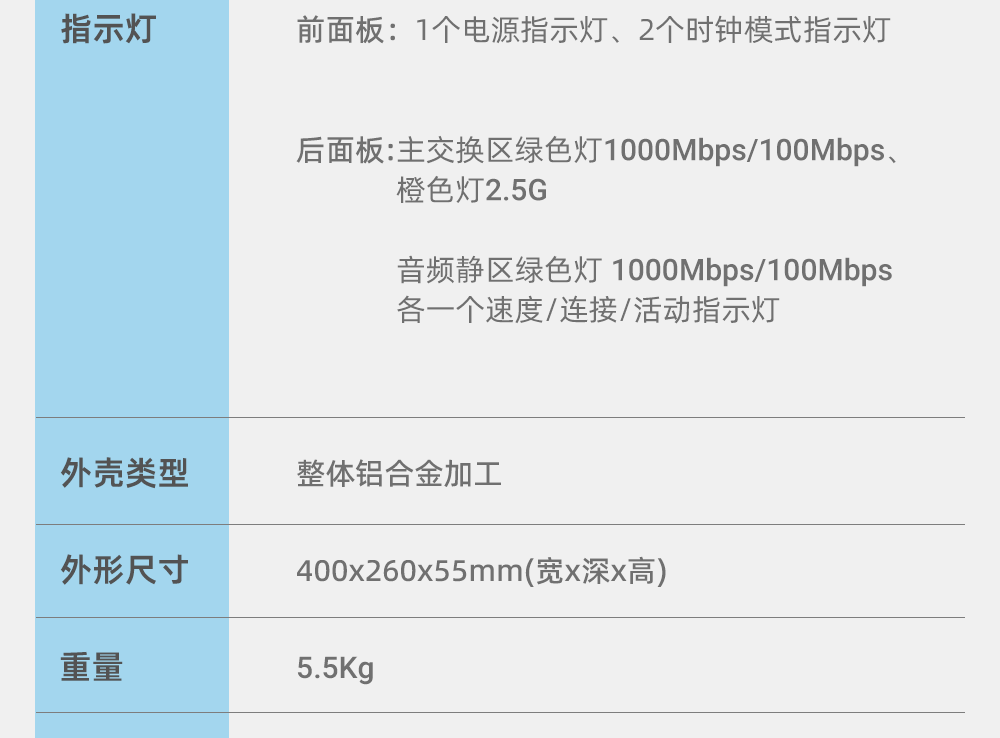

indicator light:

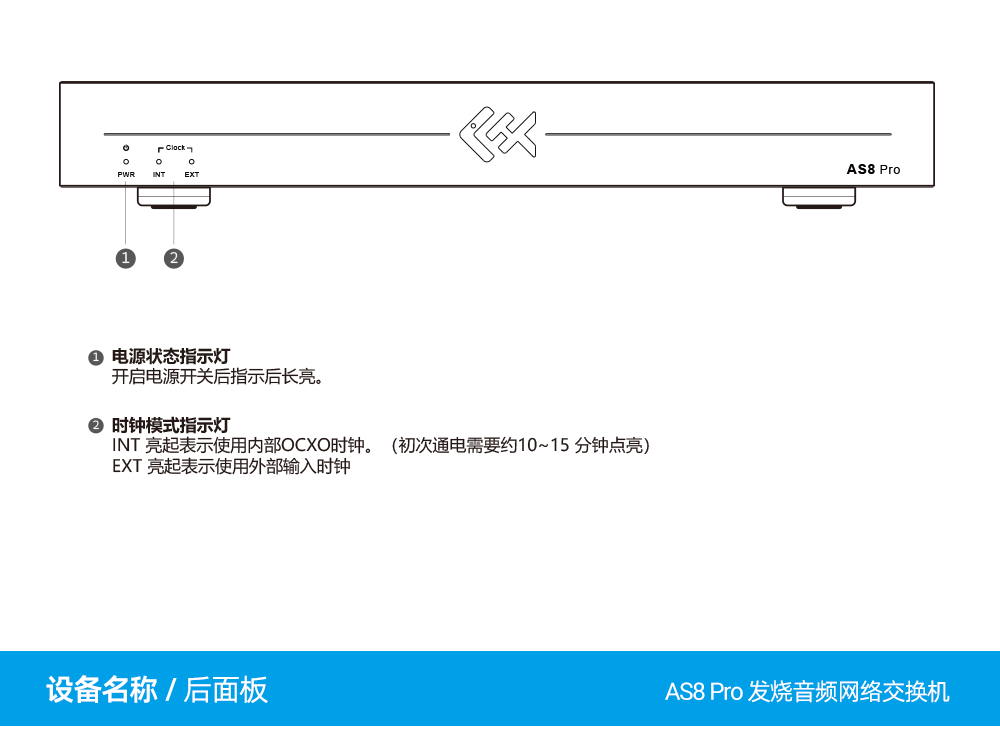

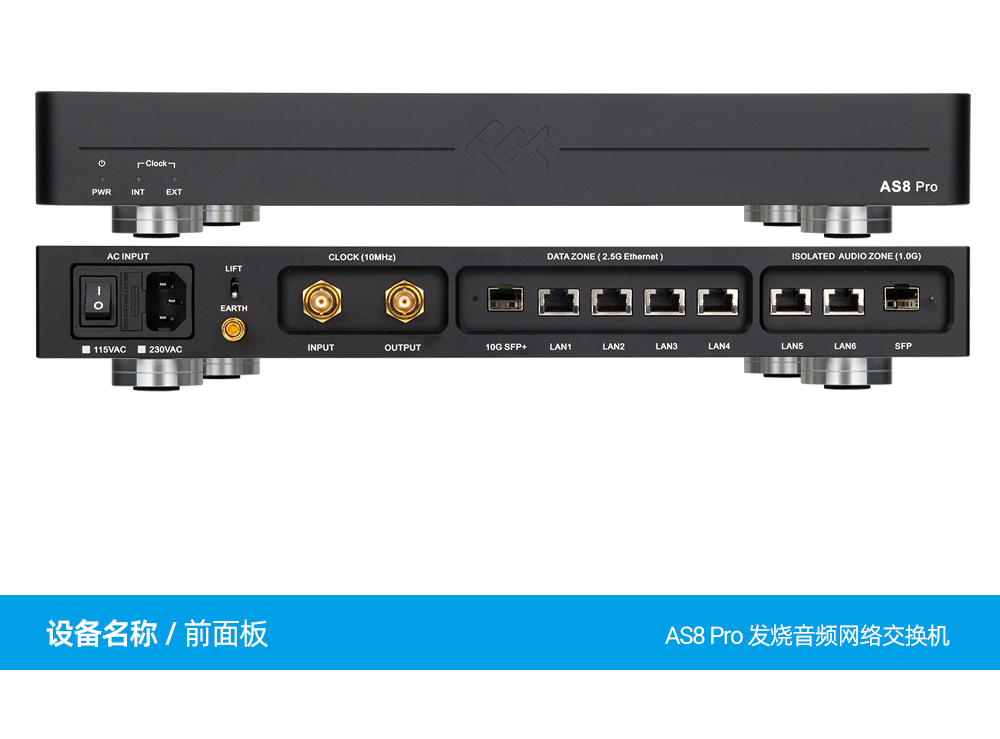

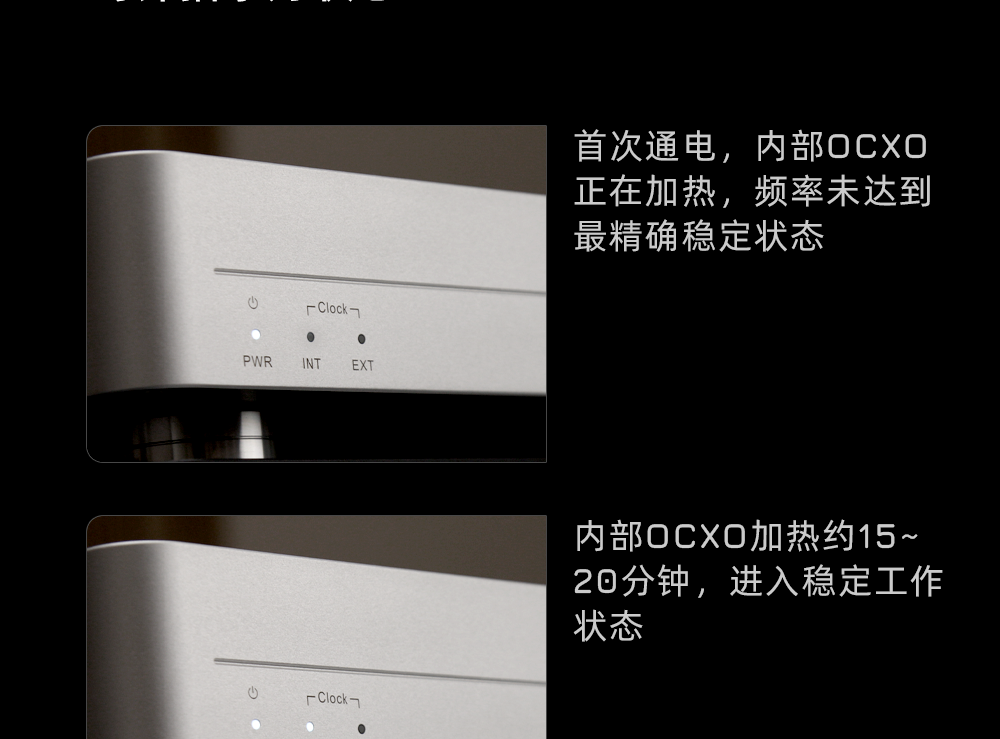

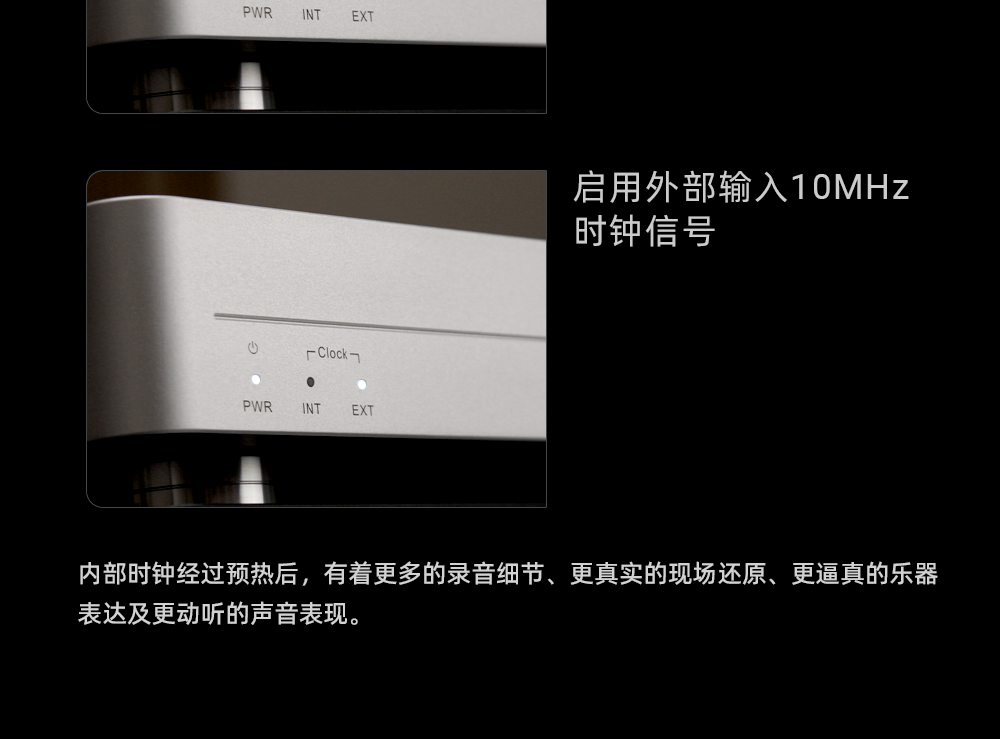

Front panel: 1 power indicator light, 2 clock mode indicator lights
Rear panel: Main exchange area green 1000Mbps/100Mbps, orange light 2.5G
Audio quiet zone green light with one speed/connection/activity indicator light for 1000Mbps/100Mbps each
Shell type: integral aluminum alloy processing

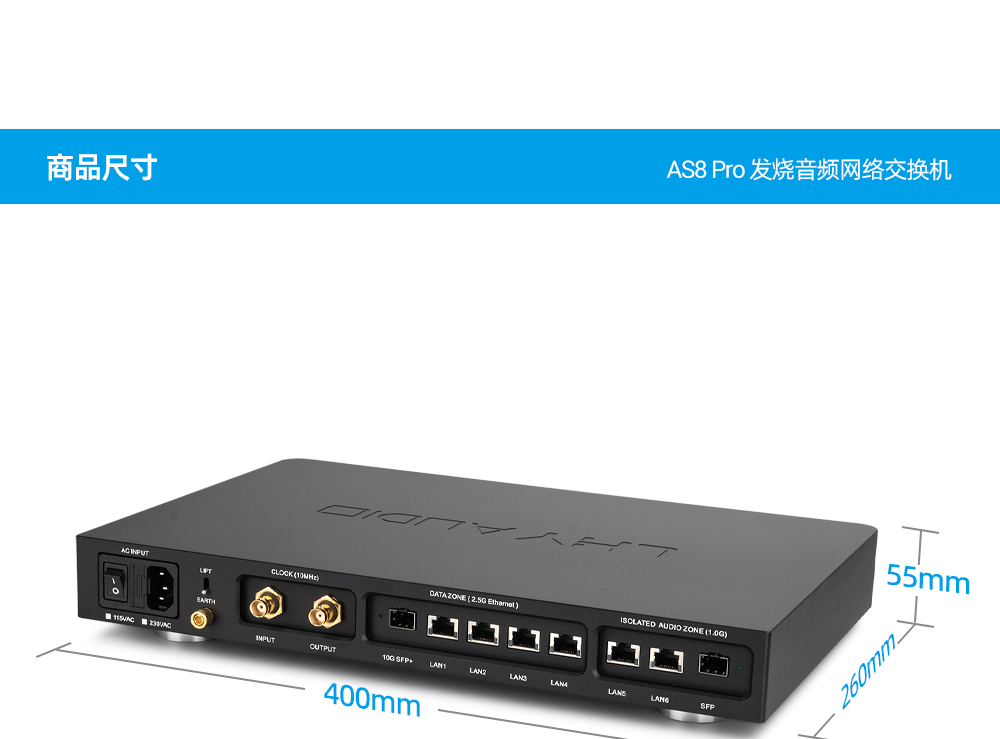

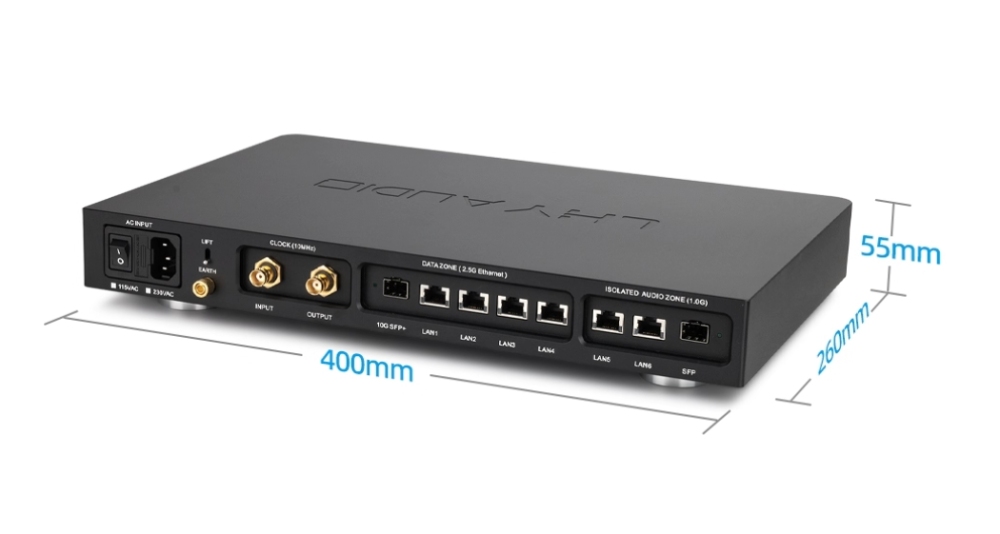

Dimensions: 400 × 260 × 55mm (width × depth × height)
Weight: 5.5Kg

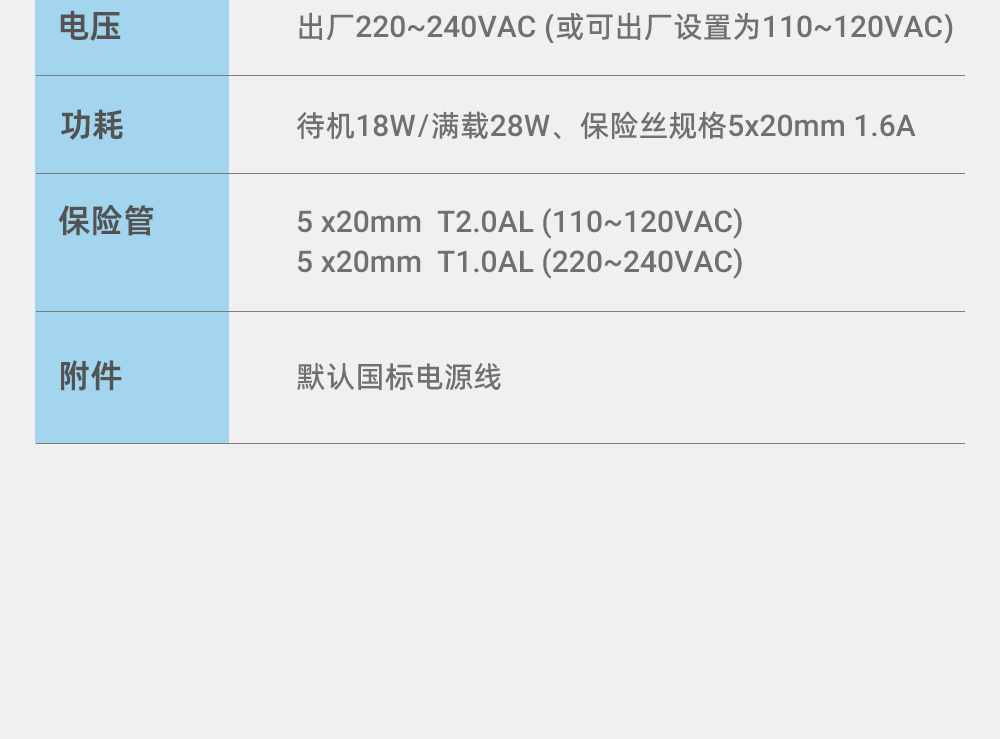

Voltage: 220-240VAC (or factory set to 110-120VAC)
Power consumption: standby 18W/full load 28W
Fuse specification: 5 × 20mm 2A
