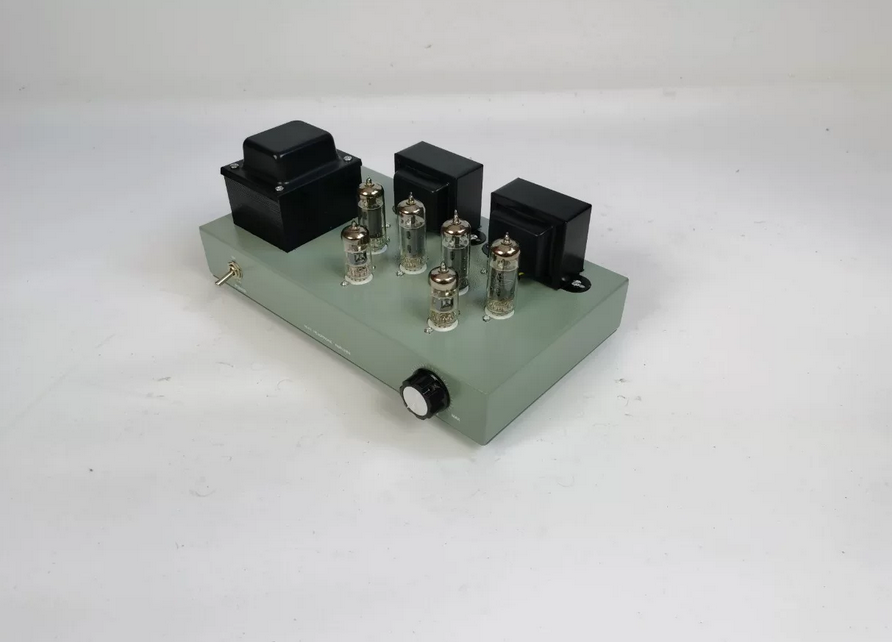

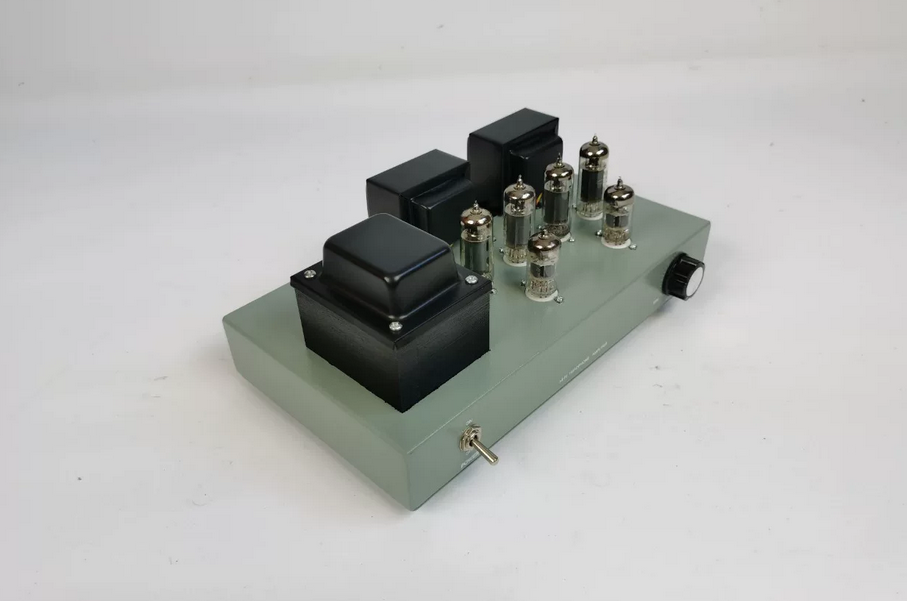

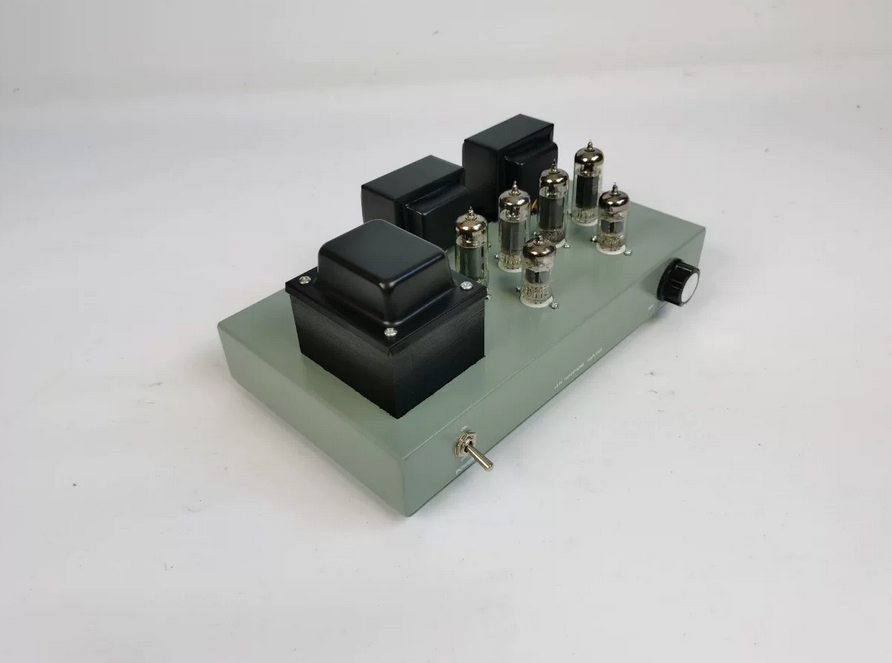

NEW Vacuum tube 6F2+6p1 push-pull tube power amplifier kit finished amplifier for choose
Rated Output Power: 12W+12W
Frequency Response: 20Hz--20KHz
Total Harmonic Distortion: <1% (1kHz)
Input Sensitivity: 500mV--2000mV
Input Impedance: 100KΩ
Output Impedance: 4/8Ω
Signal-to-Noise Ratio: 88dB
Affordable Hi-Fi Sound, allowing more people to enjoy the joy of good audio and improve their listening experience. Breaking the myth that tube amplifiers are unattainable and overpriced.

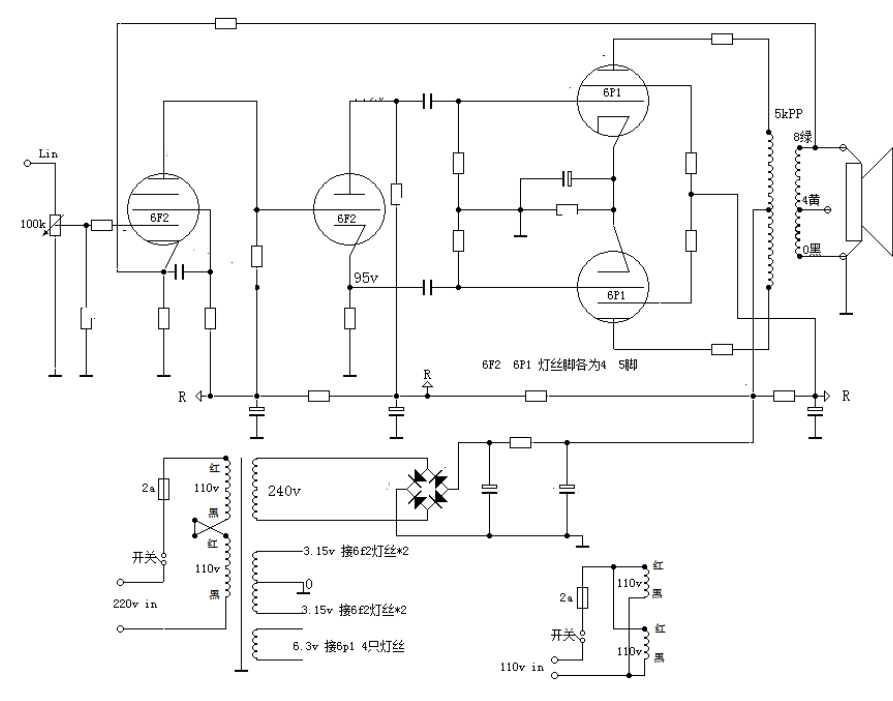

- Adopts full-bridge rectifier with triode and pentode structure
- 6F2 vacuum tubes for pentode amplification, 6P1 tubes for phase-inverted push-pull output
- Chassis made of 0.8mm brushed stainless steel, all holes precision-machined by imported CNC lathes; side panels made of imported beech wood with eco-friendly paint finish
- Power and output transformers use imported high-grade silicon steel sheets for audio, wound with layered and sectional interleaving technology
- Potentiometer: Type A audio-dedicated potentiometer
- Vacuum tubes configuration: 6F2 × 2, 6P1 × 4
