Refer to Goldmund Telos T600 circuit 350W*2 Class AB Fully Balanced HIFI stereo Audio Amplifier

Name: Refer to Goldmund Telos T600 circuit 350W*2 Class AB Fully Balanced HIFI stereo Audio Amplifier
Brand: BRZ-hifi-audio
SKU: Telos 600
Price: 1011.08 USD
Availability: InStock

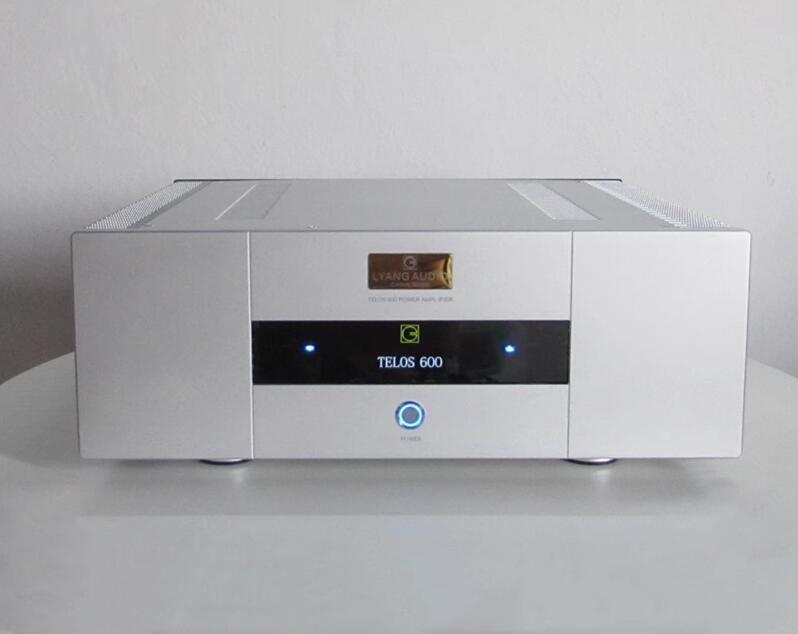

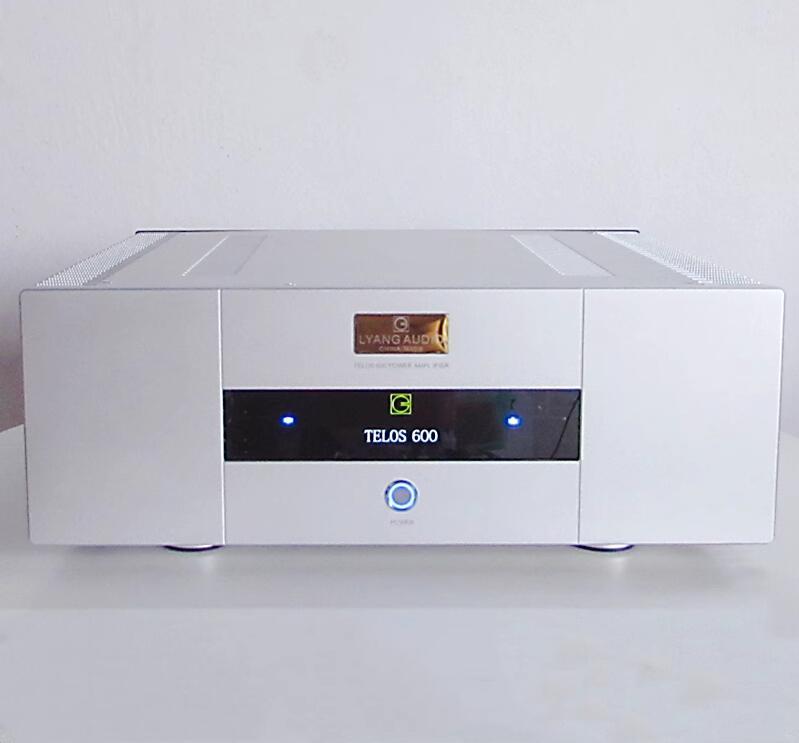

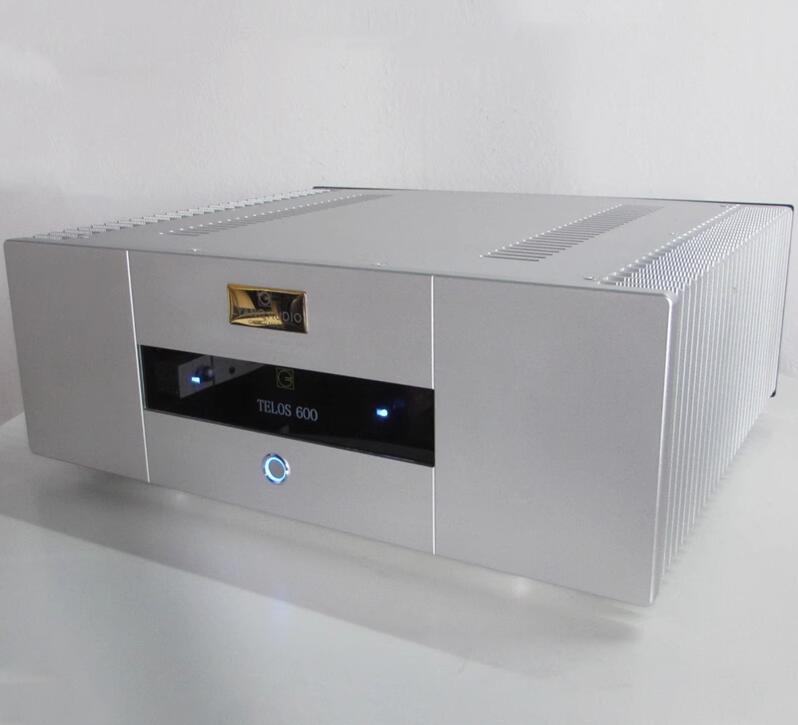

Telos 600 circuit 350W*2 Class AB Fully Balanced HIFI stereo Audio Amplifier

Limited Offer!

0.0 (0 Reviews)

5 Sold

~~$1,099.00~~ $1,011.08

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

Description

Product details:

It took about 7 months to design, debug, and calibrate the sound. Our shop's replica of the Swiss Goldmund T600 pure power amplifier is finally on the market! The circuit architecture is somewhat similar to the Goldmund29M, with differential input amplification resulting in very little crossover distortion. Strictly speaking, copying is imitation, and there is no blind direct copying. I made some modifications based on the design and the actual audition parameters to make the listening in the most "comfortable" state! Referring to the famous machine circuit is that we have always pursued the principle of reference + actual audition and debugging.

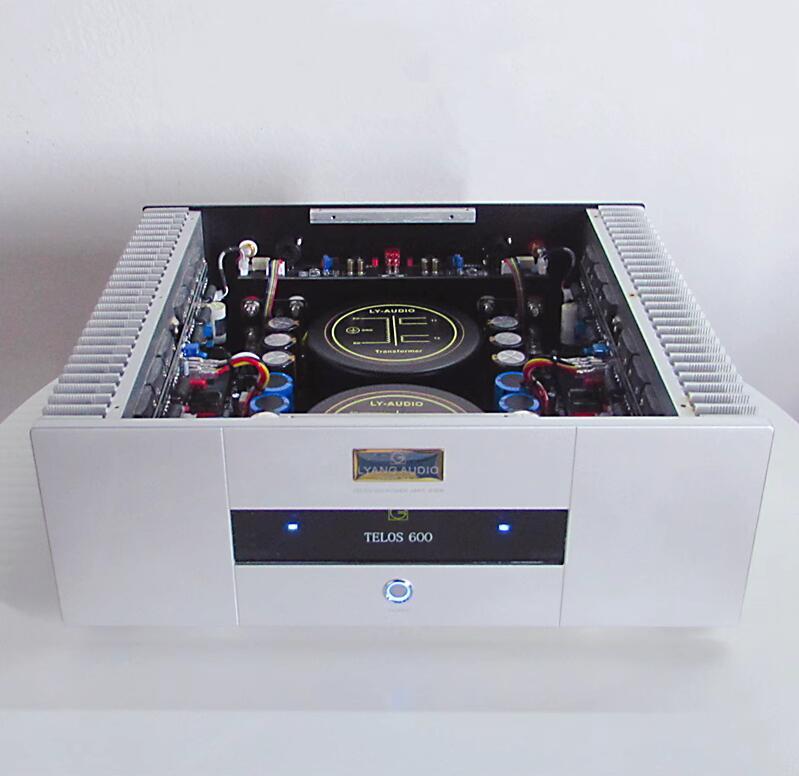

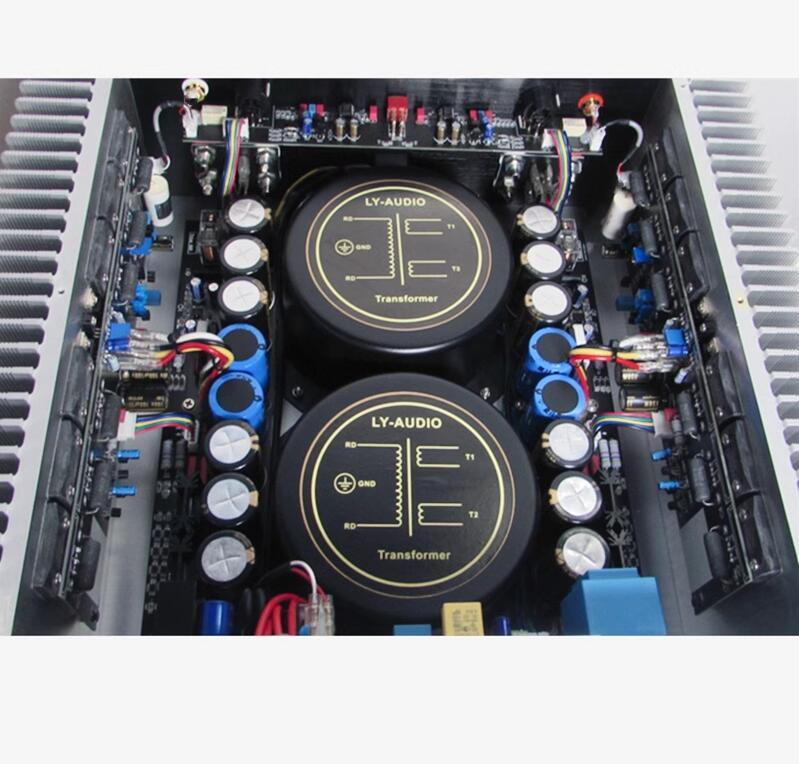

Two 700-watt Nippon iron core toroidal transformers are filled with epoxy resin (total 1400 watts)

and two-way rectifier filter board, two channels are independently powered to improve separation.

two transformer cover can better shield transformer interference.

120,000 Ina audio large capacitors supply power to the current stage,

and the power supply is sufficient to ensure low frequency and large dynamics without soft feet.

Four Philips BC capacitors 4700uF X 4 (blue) supply power to the voltage stage,

and the voltage stage and current stage are separated and filtered for power supply

parameter:

Frequency response: 5Hz-160KHz (+0/-2dB)

Input Impedance: 47K

Input Sensitivity: 2V

Signal-to-Noise Ratio: 120dB

Total Harmonic Distortion: 0.01%

Damping coefficient Dampin fator (20Hz to 20kHz, 8R load): 220

Output power: 220W/8R; 350W/4R (continuous undistorted rated power)

Power input: AC110V/AC220V 50/60HZ

Size: 430 width * 390 depth * 165 height

weight:21.5Kg

List:

Telos 600 Amplifier X 1
