Product Details:
1:) The FM411MK2 amplification circuit is powered by ± DC56V high voltage, with an output power of up to 2 * 160W8 ohms.

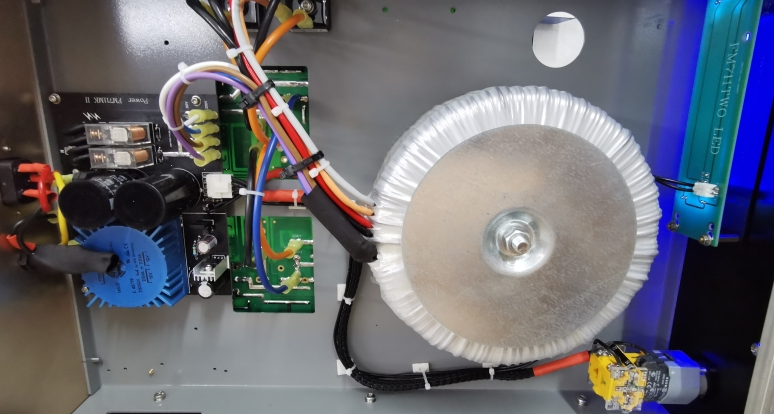

2:) The 650VA premium audio transformer supplies power to two channels. The 8AV square sealed transformer supplies power to the protection circuit and switch section.

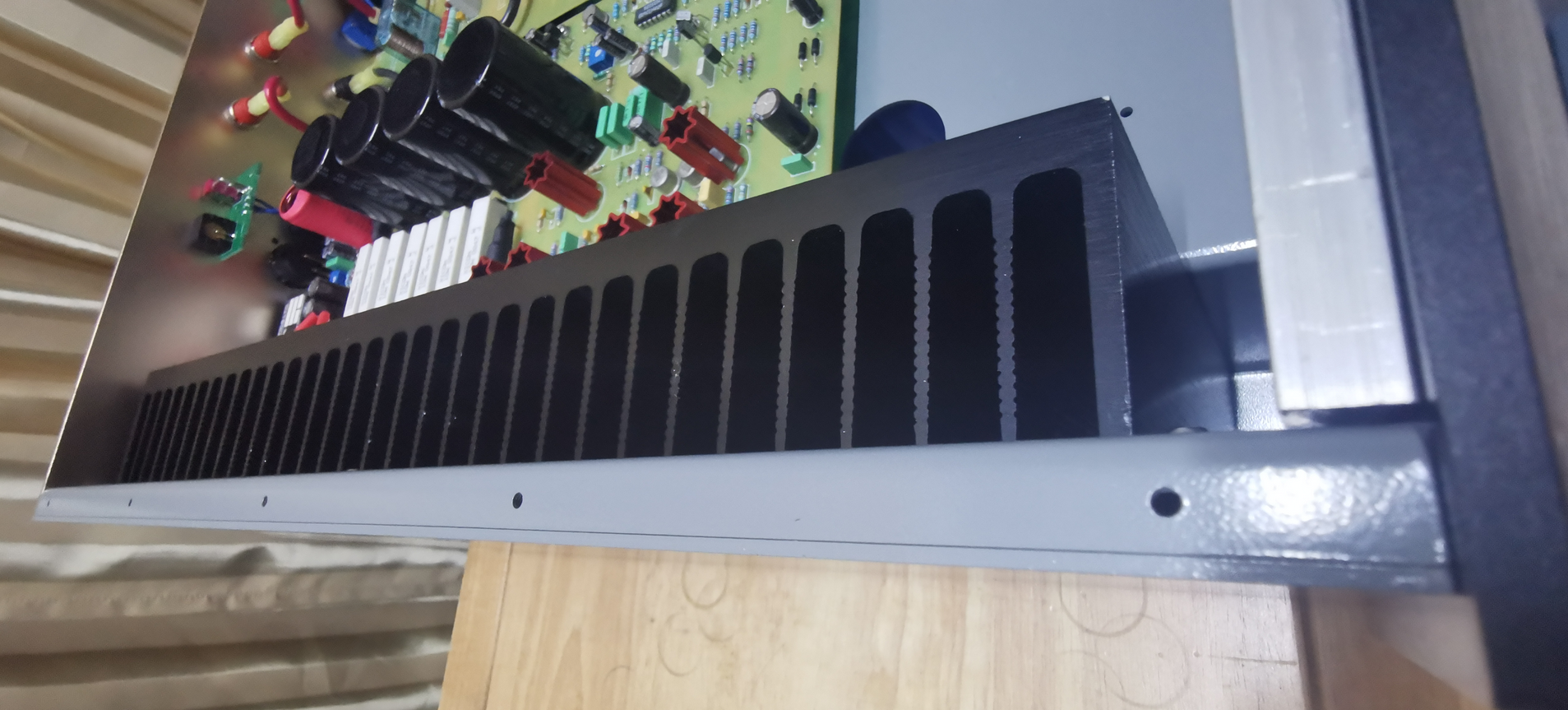

3:) FM411MK2 uses 8 high-power audio transistors per channel, providing strong thrust.
4:) Fully balanced design, three-stage push-pull amplifier circuit, no current feedback.

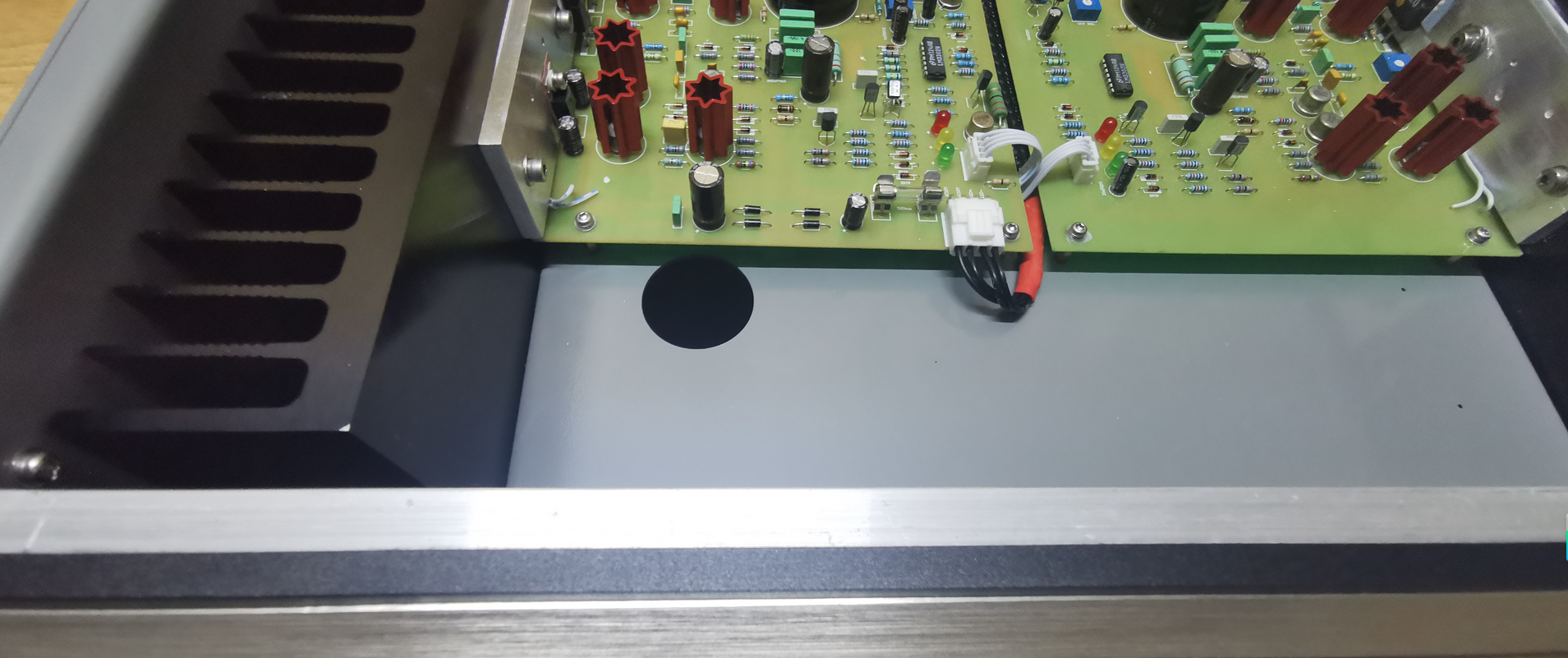

5:) The power supply and amplification circuit are separated to effectively reduce interference.
Specifications:
Output power: 160W+160W (8) 300W+300W （4） 600W+600W（2）
Signal to noise ratio: 105DB
Balanced output gain: 32 times (adjustable) Single ended output gain 28 times (adjustable)
Input sensitivity: 1.2V
Input impedance: 47k

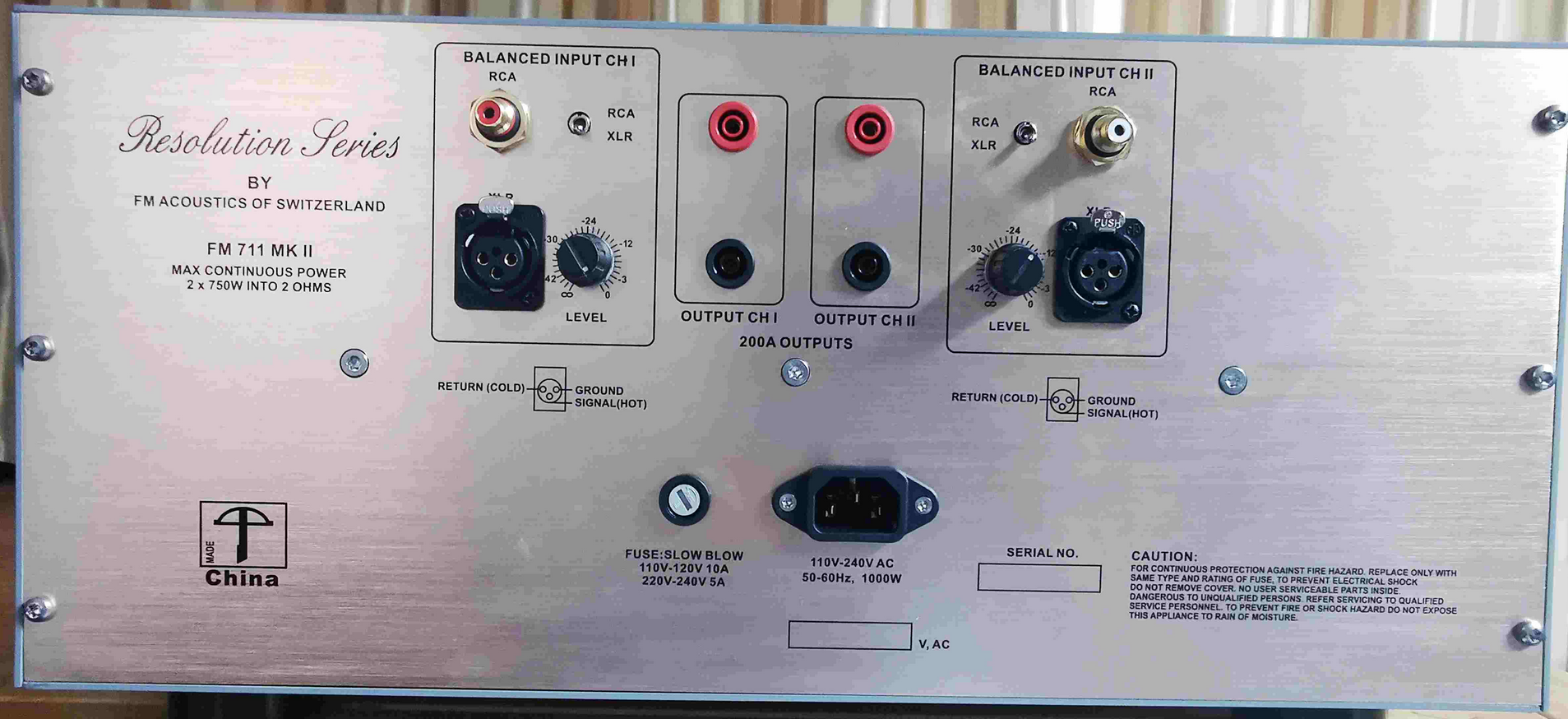

Input channel: 2-channel balanced (XLR), single ended (RCA), maximum output voltage: 140Vp-p
Distortion rate: 0.005% THD
Regenerated bandwidth amplitude:< 1Hz 60kHz 3dB
Consumption power: 35W (standby) 300W (30% output) 600W (maximum)
Size: 475W × 17H × 464Dmm
Weight: 37kg
Package list:
1 × Finished FM411MK2 amplifier
