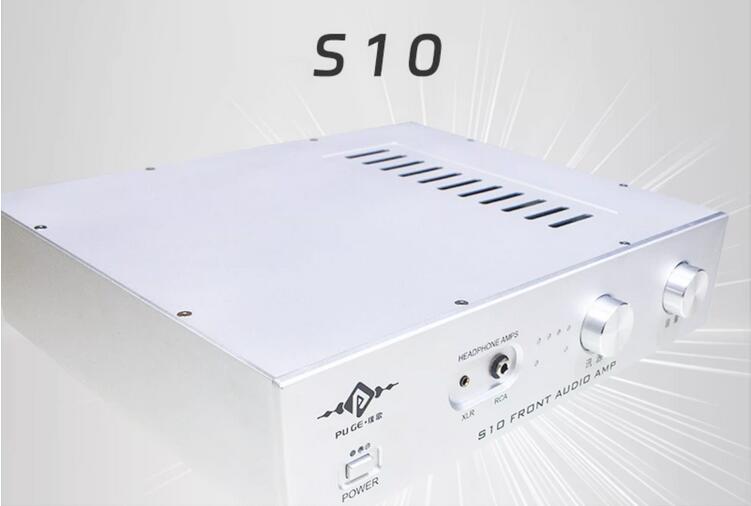

S10 HI-END Pure Class A Full balance of field-effect transistor DIY preamplifier Refer to ELECTROCOMPANIET circuit

Product details:

1. Pure Class A circuit, fully balanced design.

2. Selected components for beautiful sound.

3. With remote control function, easy to operate.

4. With memory function.

5. High thrust, can also serve as a headphone amplifier.

6. Sweet voice, warm timbre, wide vocal field, and high analytical power.

7. Rich input and output interfaces.

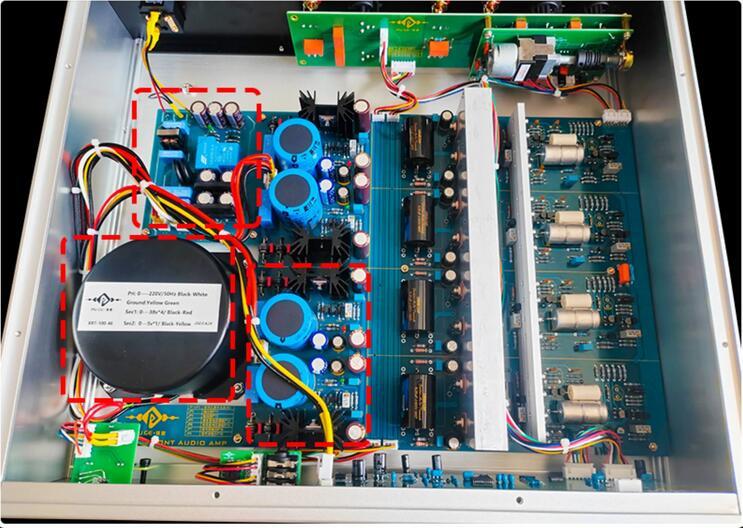

8. Ring shielded transformer.EMI filtering .DC purification circuit

Parameters:

Frequency response: 20Hz-25KHz

Power consumption: 45W

Signal to noise ratio: 108db

Magnification: 6x

Input impedance: RCA/47K XLR/100K

Total harmonic distortion: ≤ 0.008%

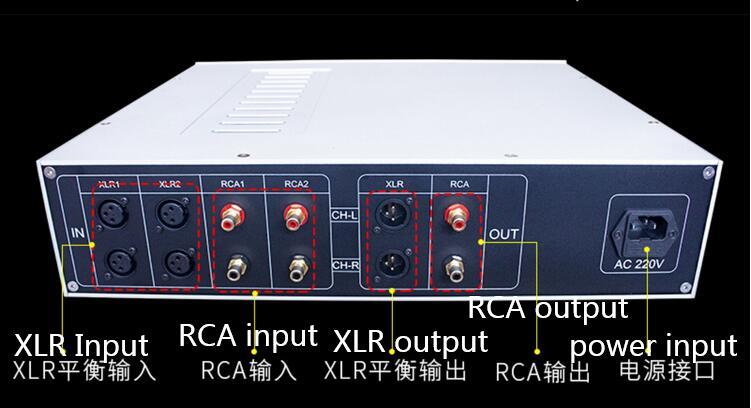

Input method: 2 sets of RCA+2 sets of XLR

Output method: 1 set of RCA+1 set of XLR

Headphone interface: 6.5mm stereo+4.4mm balanced headphone output interface

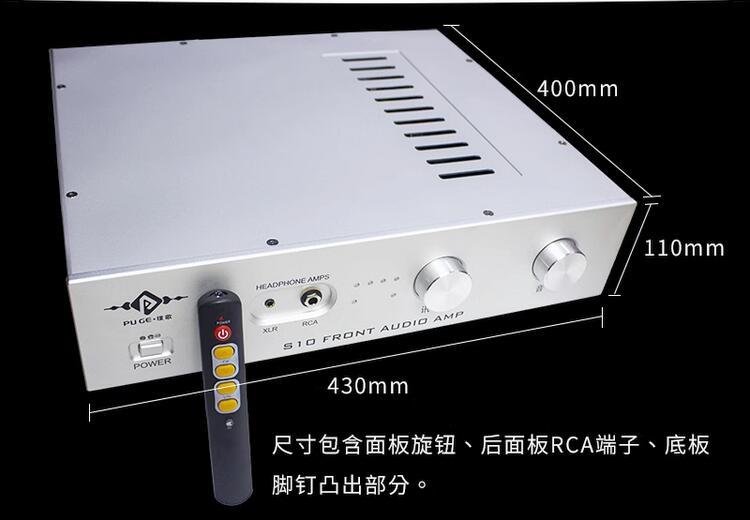

Size: 430 * 400 * 110 (including protruding parts)

Weight: 8.7kg
