TD600 class D 300W*2 High power hifi stereo digital amplifier with XLR input

Product details:

Adopting the classic 2902 digital architecture scheme, the design has a high starting point. A large number of high-quality components are used and the circuit design is optimized. The sound quality is significantly improved.

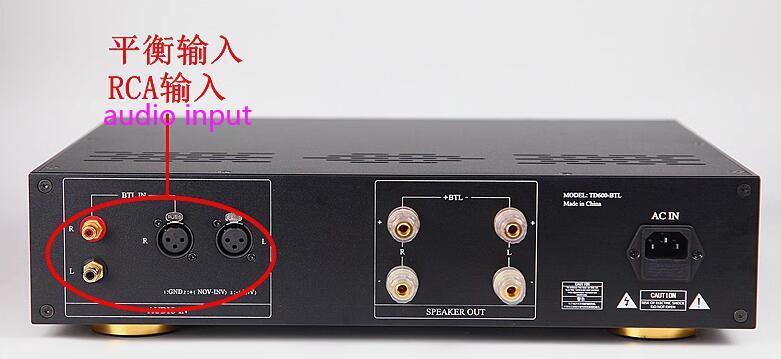

• Rich input interfaces with RCA and XLR inputs.

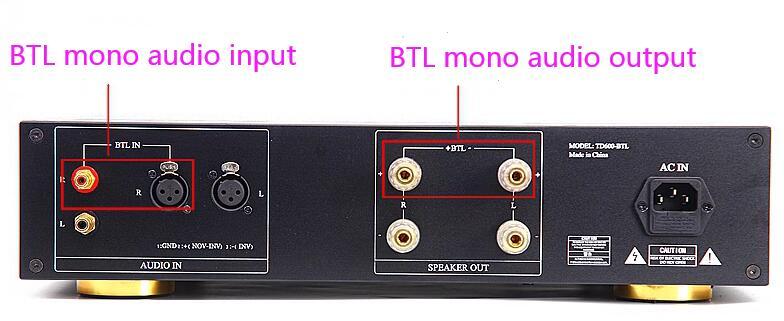

• BTL can be used as a mono amplifier.

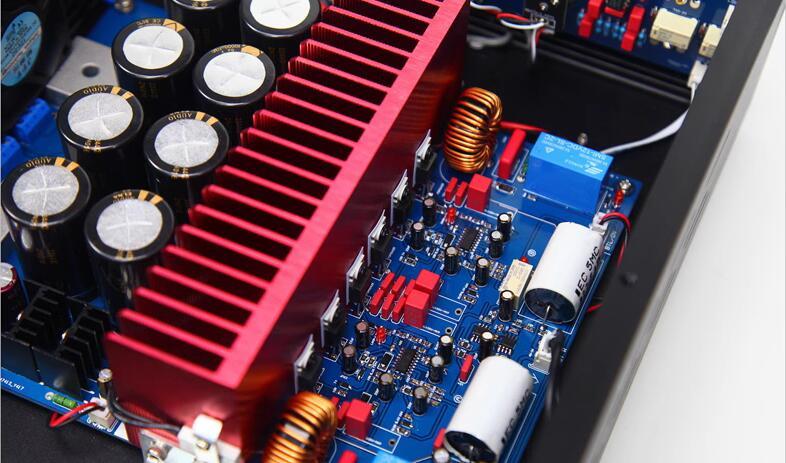

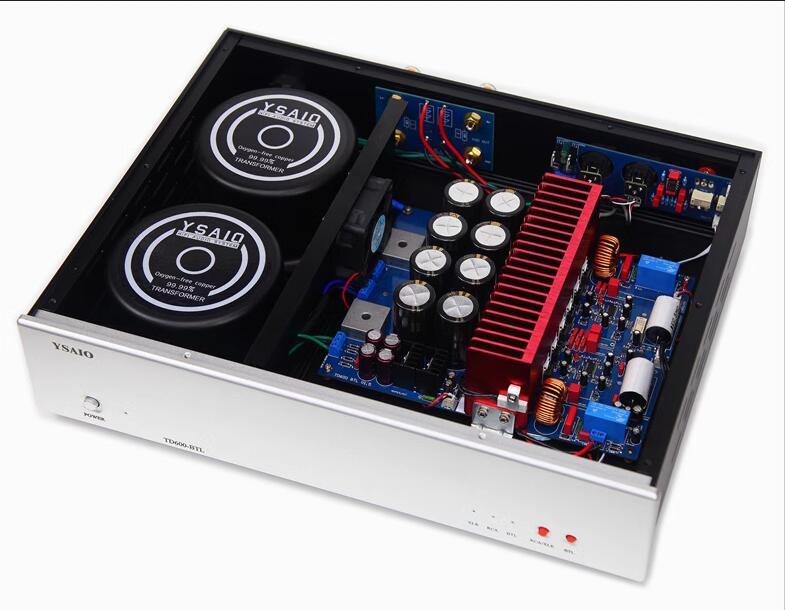

• Selected components, reasonable layout, and a clear view of the internal structure.

• Multiple protection functions such as startup delay protection, midpoint voltage protection, overcurrent protection, etc. effectively protect your audio equipment.

• Two customized shielded sealed Toroidal transformers, with independent power supply for left and right channels, anti vibration, anti-interference, and low noise.

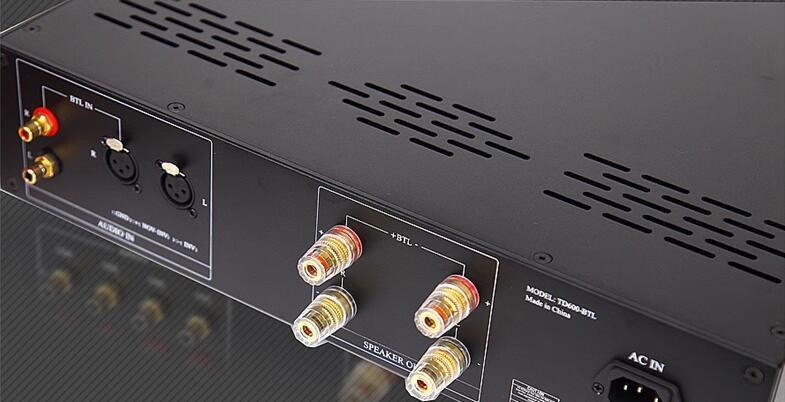

• Gold plated RCA and wiring terminals, low internal resistance, good conductivity, and oxidation resistance.

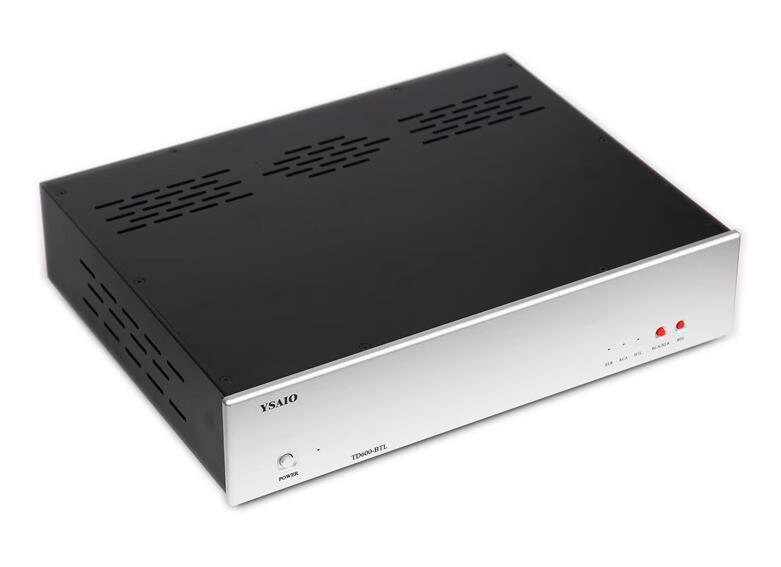

• CNC processed all aluminum chassis, noble and elegant.

Parameters:

Output power: 300W+300W. 600W when bridging mono

Harmonic distortion: ≤ 0.01%

Frequency response: 10Hz-30Hz

Signal to noise ratio: ≥ 100dB

Input impedance: 50KR

Output impedance: 4-8R

Input interfaces: RCA group, XLR group

List

TD600 amplifier X 1
