Details:

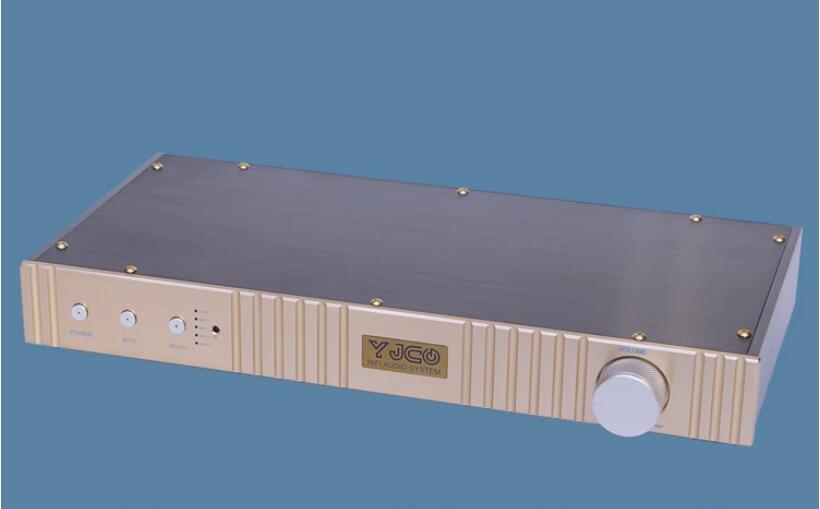

Referring to the Accuphase C3850 circuit design, we have made improvements to the circuit to improve the sound quality of the preamp.

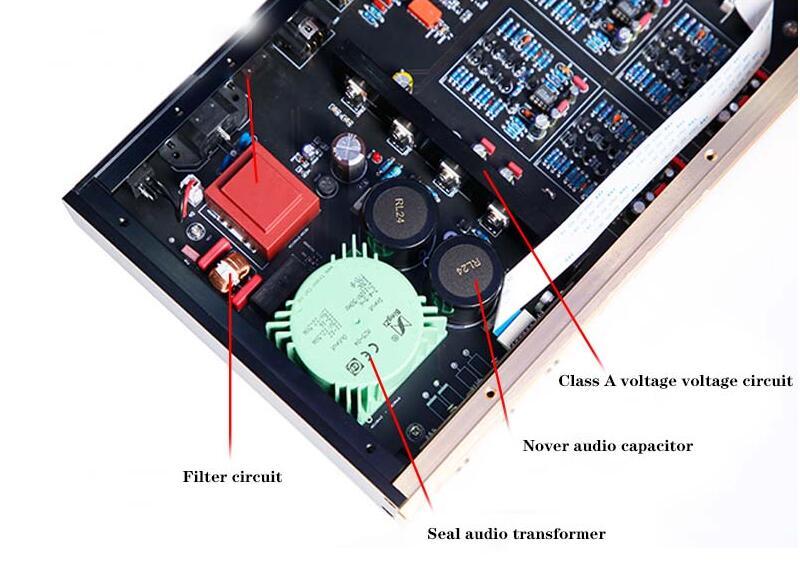

C3850 has a built-in filtering circuit and a fully discrete voltage regulator circuit, making the current larger, the ripple smaller, the sound warm and durable, and the details more diverse.
C3850 is compatible with RCA and XLR inputs, and a buffering circuit is added to ensure that the input impedance can be compatible with various audio sources.

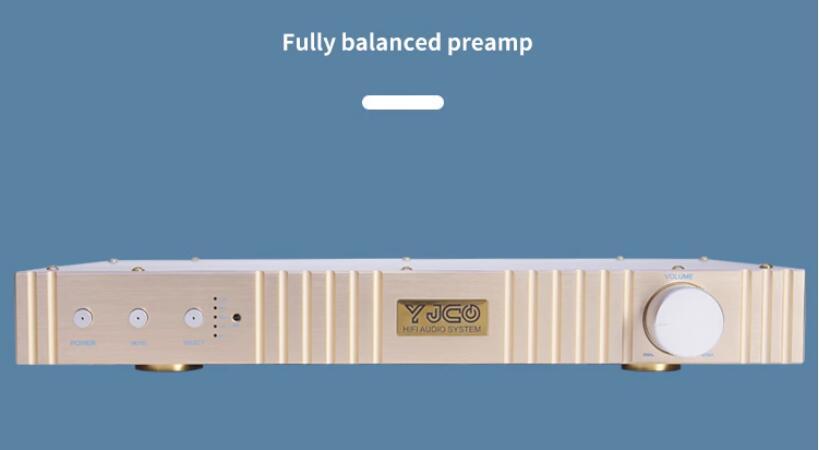

ALPS quadruple motor potentiometer, fully balanced architecture.

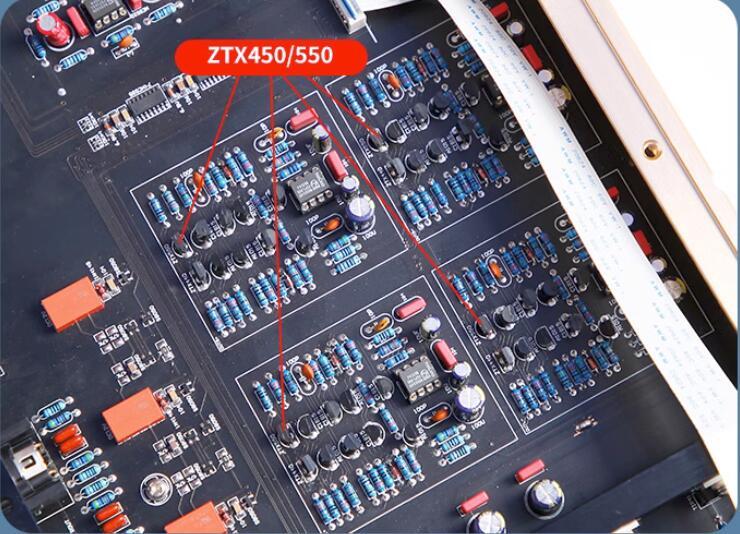

The amplified output uses ZTX450/550, and the operational amplifier uses Philips 5534, making the sound field wide and charming
Parameter:

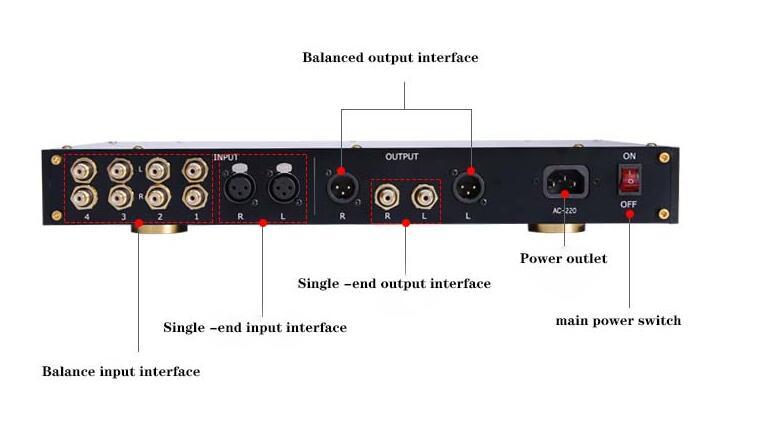

Input: RCA group 4, XLR group 1
Output: RCA 1 group, XLR 1 group
Standby power consumption: 15W
Input impedance: 47K
Total harmonic distortion: ＜ 0.0006% @ 1K
SNR:115dB
Frequency response range: 20-20k@1kHz ±0.3dB

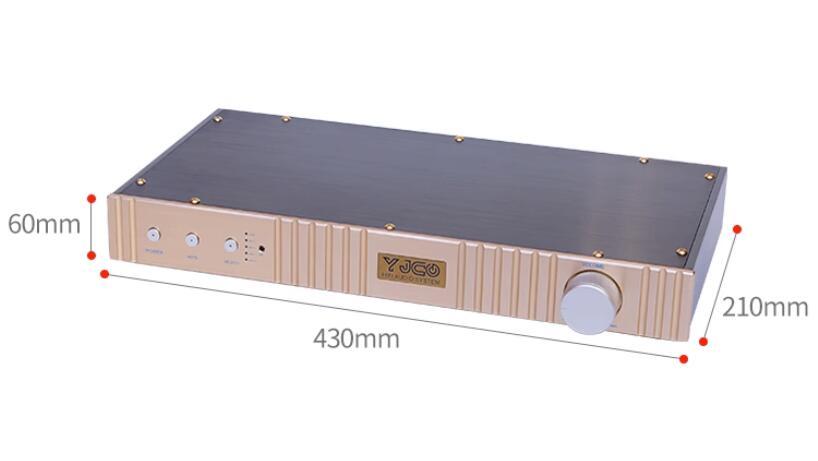

Size:430*210*60mm
Weight:3.6KG
