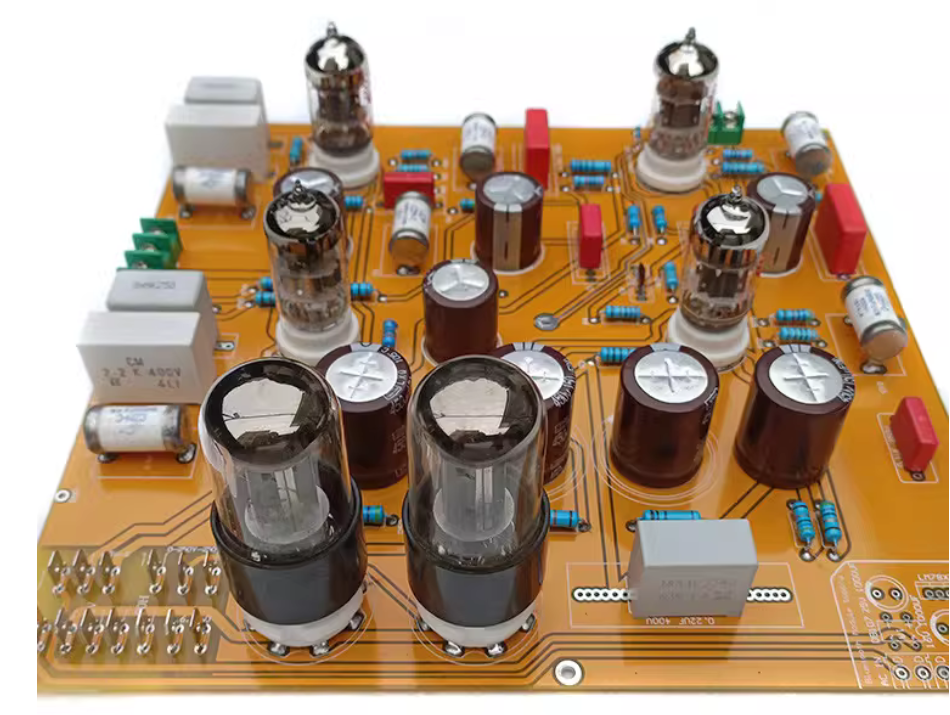

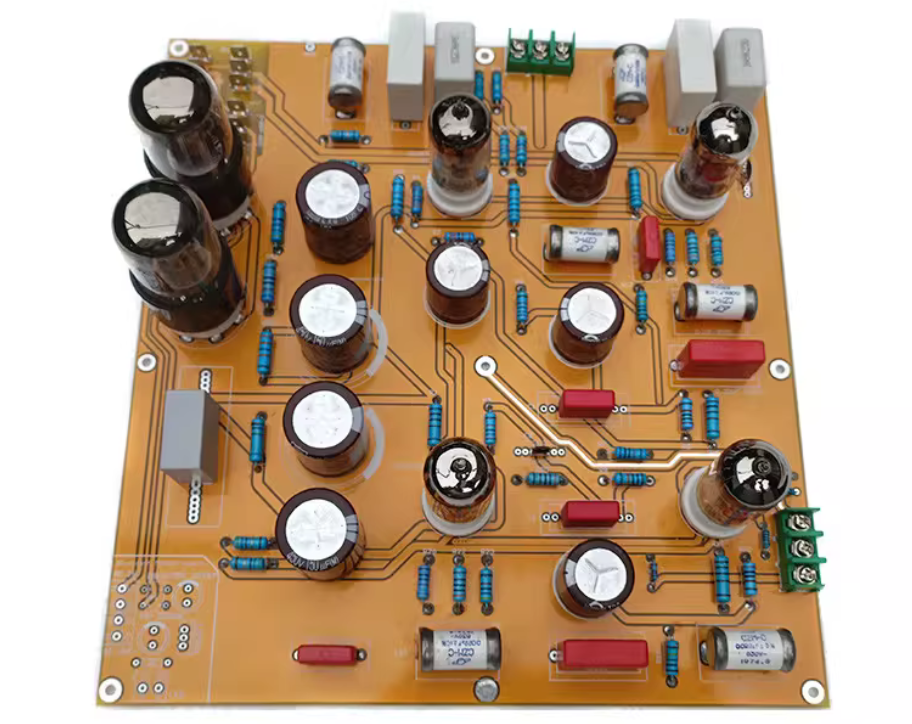

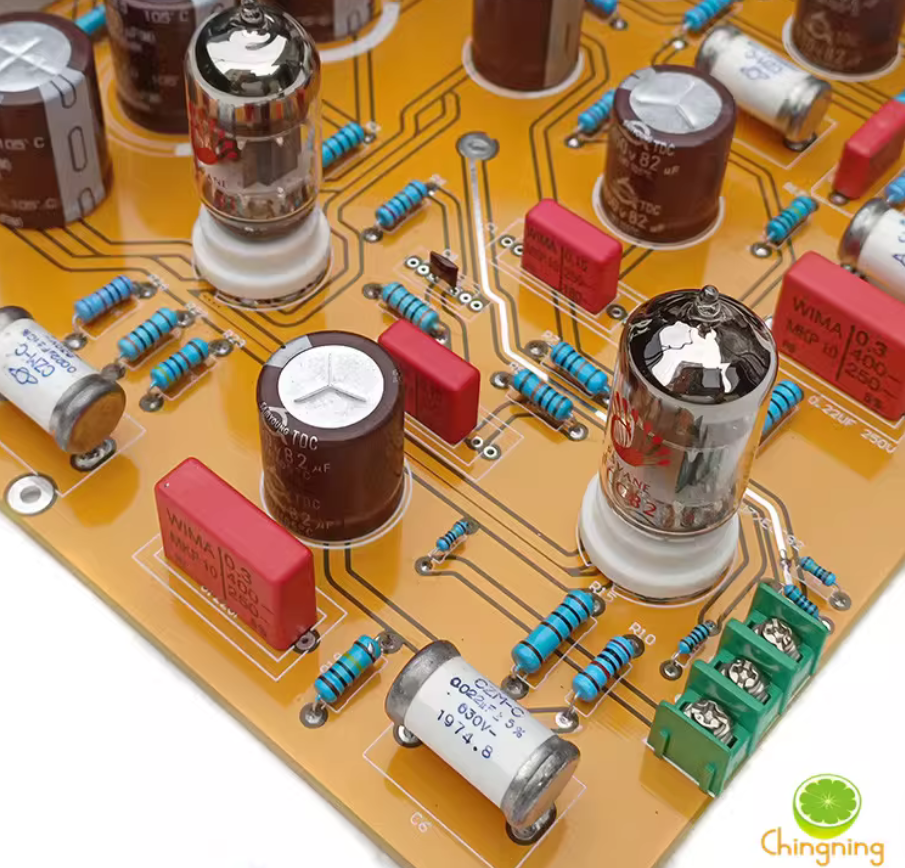

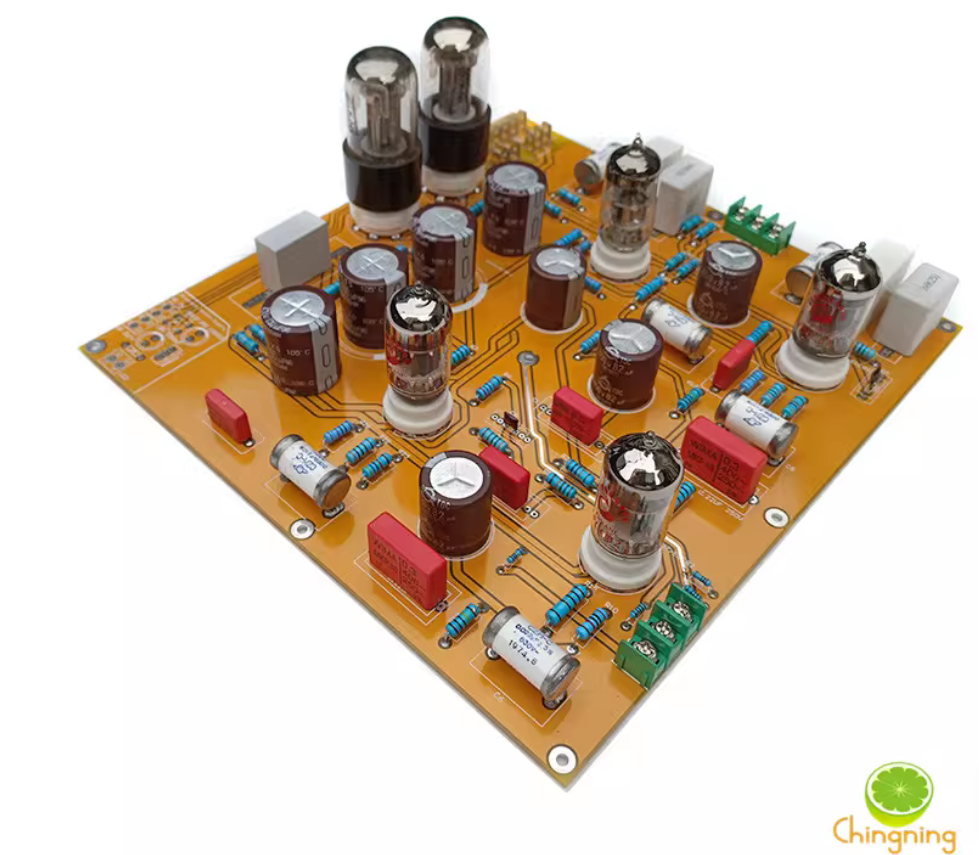

American CAT SL-1 circuit bile preamp circuit board, tube preamplifier board, AC filament power supply. sweet toneCAT can be said to be a standard tuning technique, using three different types of vacuum tubes on the entire circuit, with a total of four bipolar transistors
Manage. First level utilization of 12AU7, taking its high bandwidth and sweet tone direction. The second level is even more exciting, using a high magnification tube 12A
X7's SRPP has created an incredibly wide bandwidth and dynamic performance for the entire line. Afterwards, use 6DJ8 for output to achieve extremely low output
Impedance and driving force can be fully matched with various post stages without any matching issues.
[Material Description]
Standard electronic tubes: 1 *ECC82, 2 *ECC83, 1* Beijing 6N11-J,
power supply uses electronic tubes: Shuguang 2pcs 6Z5P is connected in parallel.
You can also upgrade imported electronic tubes by yourself, and the effect will generally have different levels of improvement.

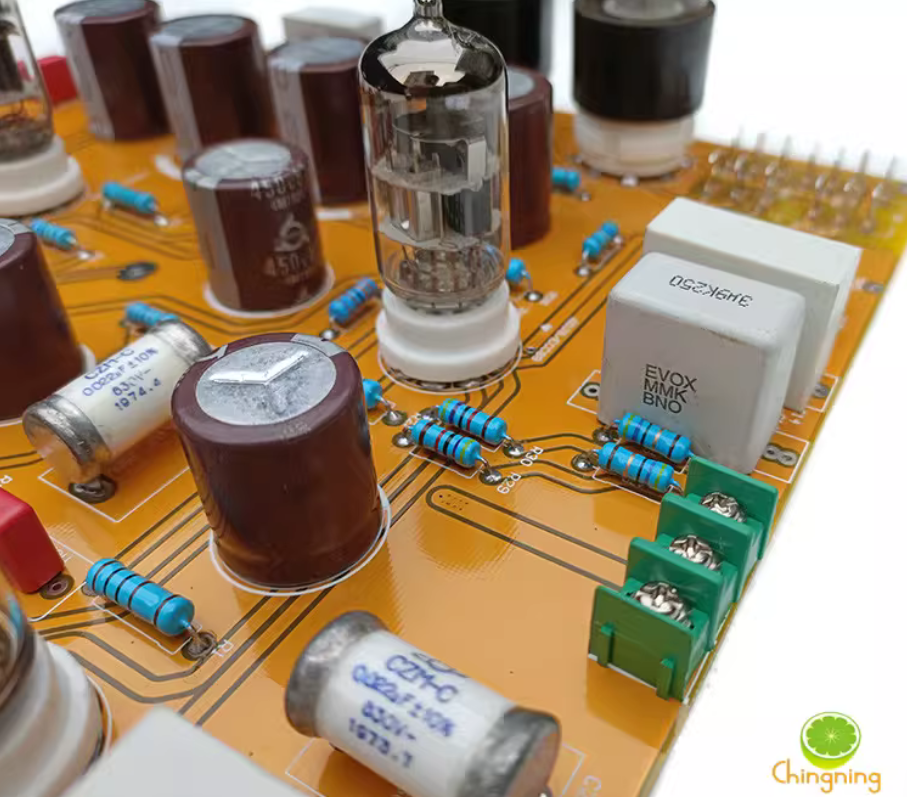

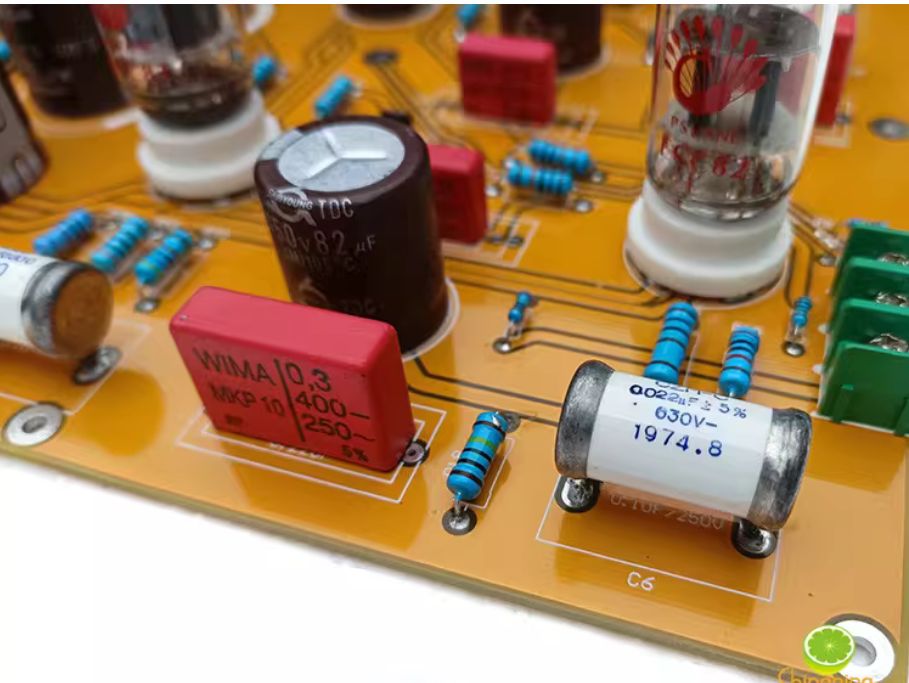

The signal level coupling capacitor adopts German wIMA MKP Dong copper foot thin film capacitor in parallel with high-quality domestic Jianghai antique copper head ceramic tube
Oil immersed capacitor. The end output capacitor adopts Swedish R | FA+Jianghai oil immersion+Hong Kong TE, with high sound intensity, not loose, and an open sound field
Wide, resilient and elastic, all frequency bands are quite balanced.

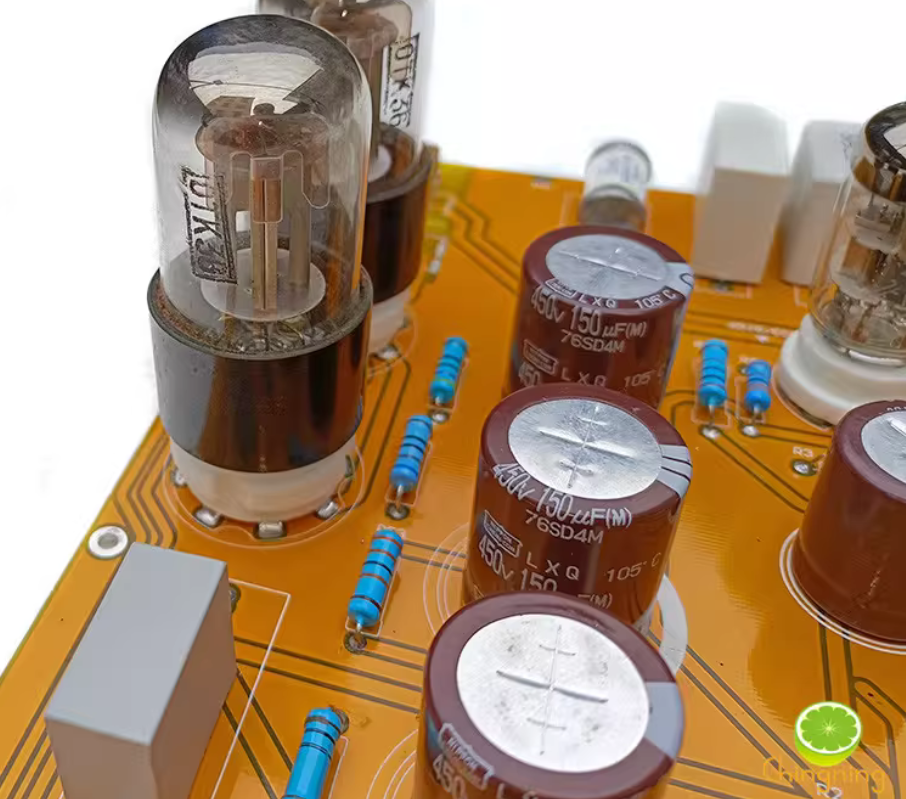

The high voltage section is rectified in parallel with two Shuguang 6z5P rectifiers, and then passed through a 20H choke coil (optional) and four 150UF rectifiers
Japanese Chemical Industry
After filtering with a low internal resistance capacitor, it is led to the anode of the tube. The current is already very flat, there is no need to blindly increase the capacitance, as it will affect the high frequency
Performance. The small capacity high-voltage capacitor adopts NICHICON from Japan, and all filaments are powered by AC, which has a more musical flavor because the board passes through
Optimized design, even with communication, the noise floor is only 2MV.
Most resistors use 5-ring copper alloy precision metal film resistors, which are stable and reliable, with lower thermal noise than carbon film.
Copper silver plated ceramic electronic tube socket, high temperature resistant! Upgrading the gold-plated socket will cost an additional 20 yuan.

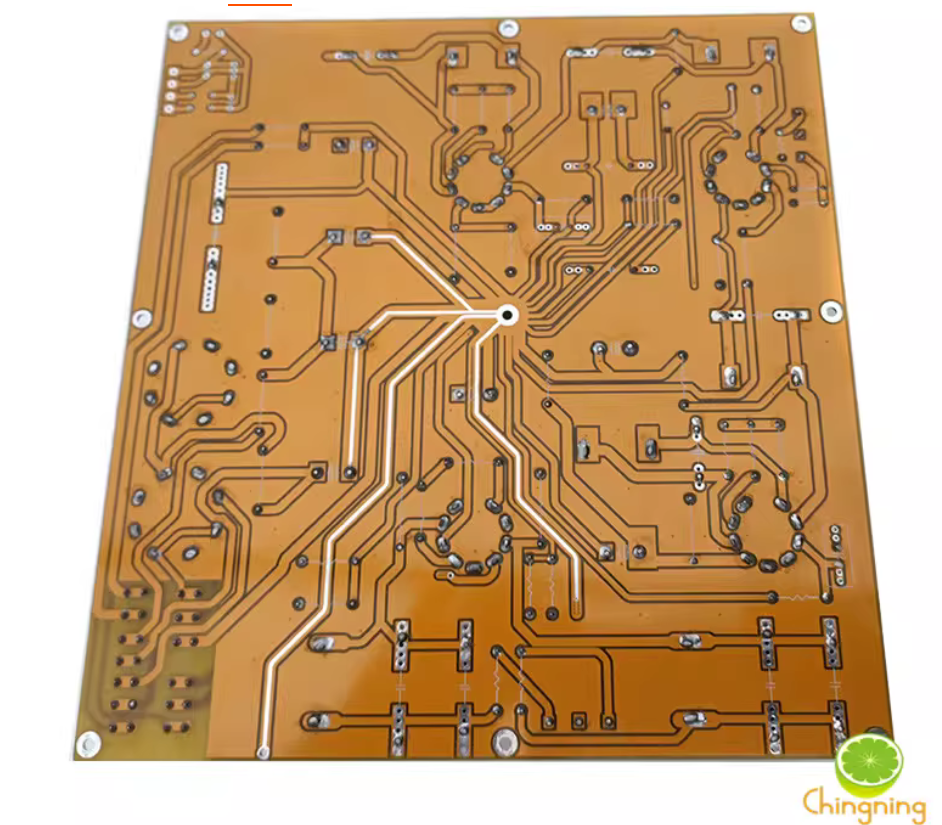

PCB size: 232.7MM * 246MM, with a tube height of 7.8CM and connected to 5MM columns.

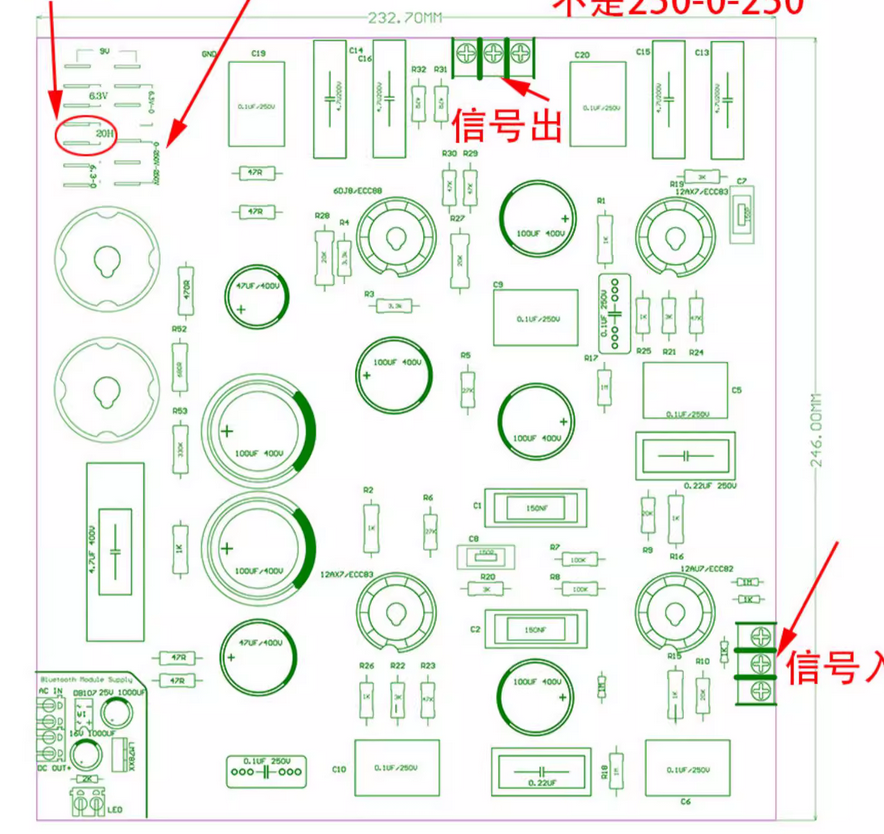

【 Wiring diagram, high voltage can be used between 250-270V, higher voltage, slightly wider sound field 】
