Basic parameters:
Power amplifier board input voltage: positive and negative 30V-60V DC input.
Output power: Class A 150W+150W undistorted power Class A and Class B 600W+600W undistorted power output.
Output impedance: 4-8 ohms
Basic parameters of horn protection
Adopting original Omron silver contact relay, reliable contact
7812 stable power supply, more stable performance.
Power supply voltage: AC 12-18V, 0.2A, around 3W
The red light of the circuit is on, and the green light is on for 3-5 seconds when the circuit is normal. Circuit activation,
Maximum carrying power 500W, midpoint potential drift 1V, protection activated
Recommended transformer parameters: dual 28-38V dual AC output power (above 800W)
Size of gold sealing tube plate: L380 * W180 * H40 MM (with thermal conductivity plate)

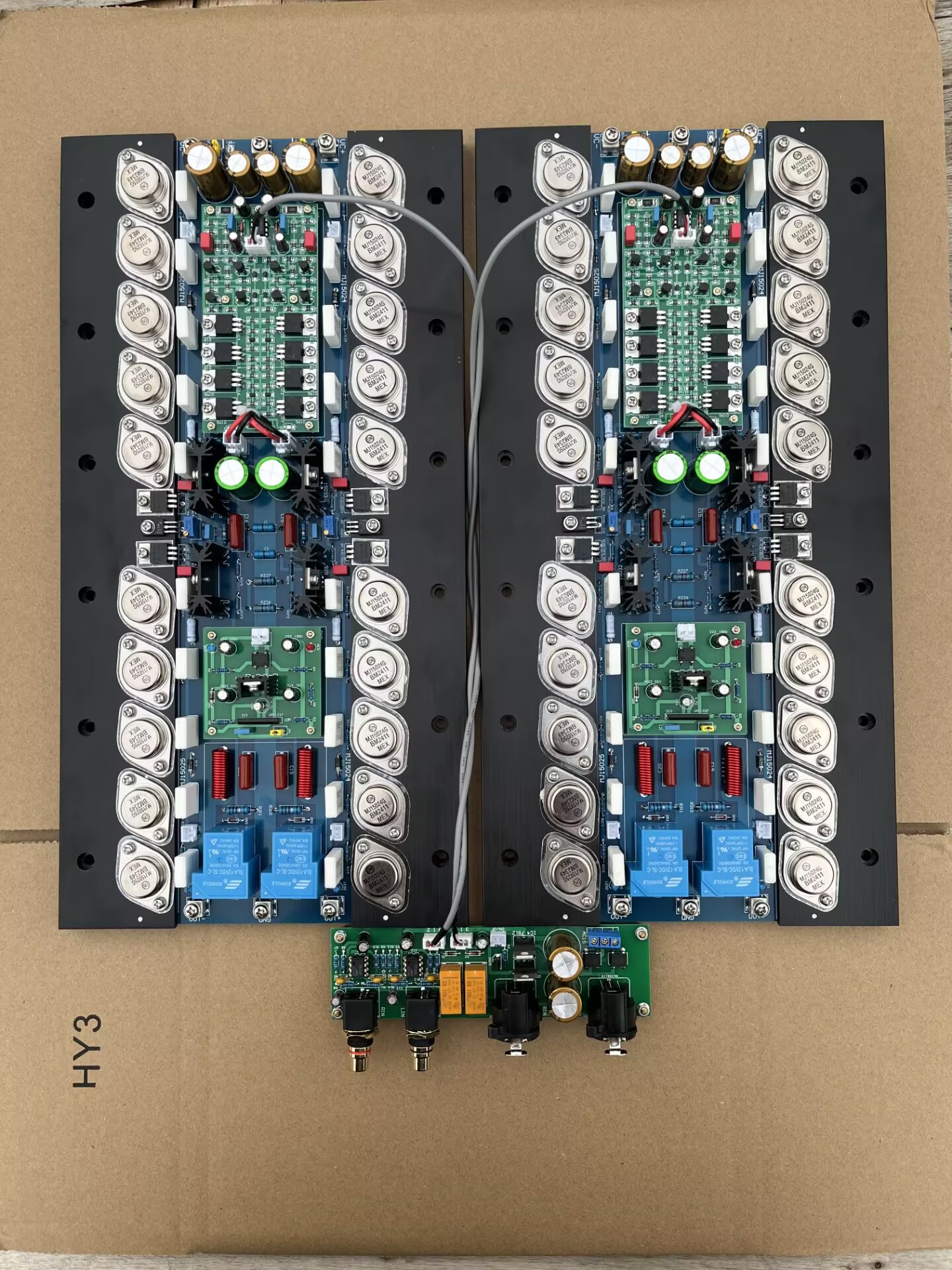

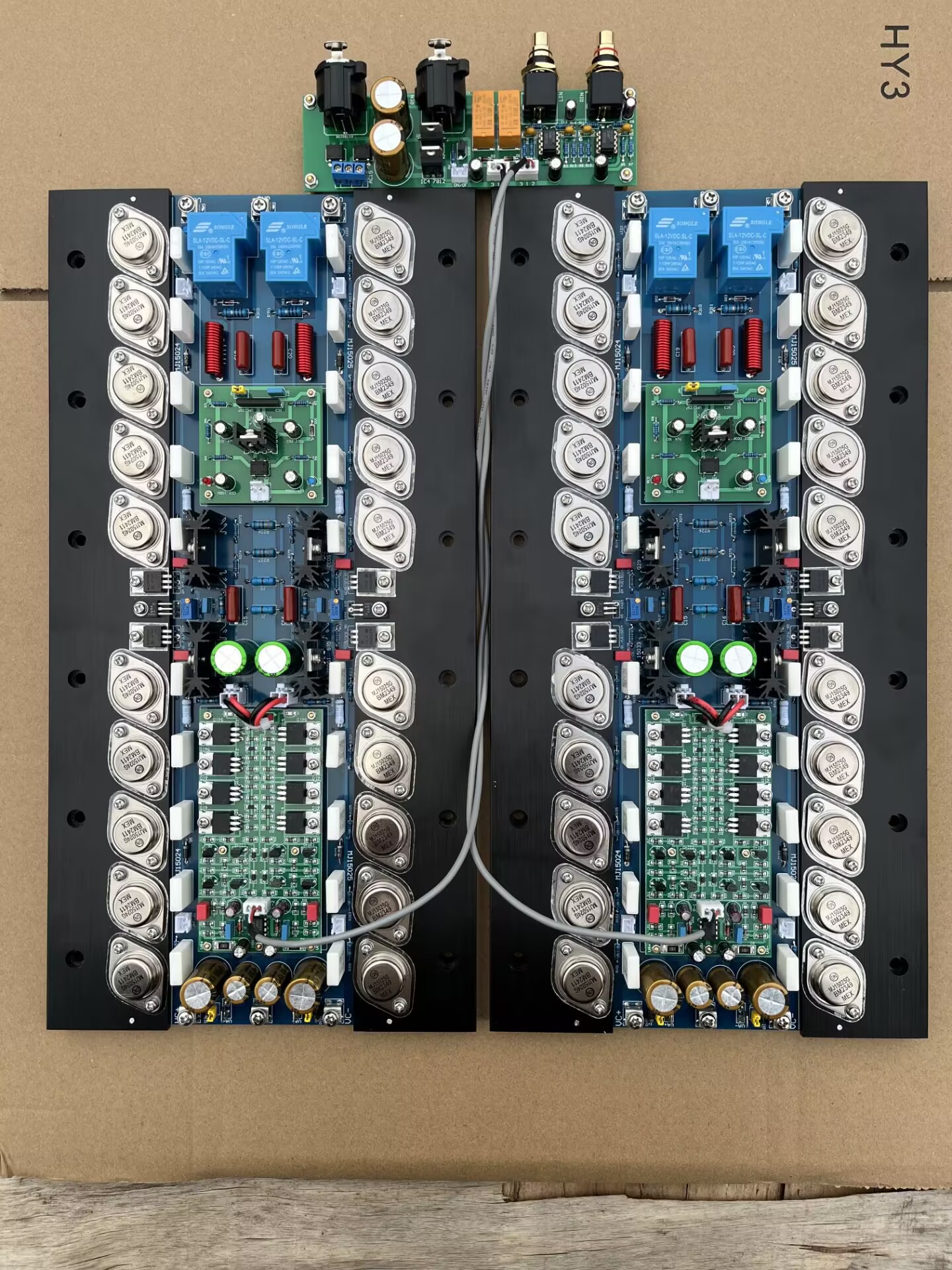

package include ：1 pair Assembled amp board + 1pcs input board
Materials used:
1: This board adopts a 2.0mm double-sided design, with a metal film of 1% error and high-precision Taiwan produced Kunmao coarse copper pin resistor. The load resistor is a Nissan KOA non-inductive power resistor, the film capacitor is a German Weima WIMA, and the electrolysis adopts Japanese ELAN and Nikon or Panasonic Fever capacitors. The power tube uses all new original Ansemy audio tubes (MJ15025 and MJ15024 tube king), with 8 pairs of 16 per channel. The excitation tube and voltage amplifier tube respectively use (MJE15035/15034 and MJE15033/15032) audio pair tubes, with neatly arranged components, reasonable circuit design, pure and sweet sound quality, and outstanding details. The sound is warm and smooth. Powerful and dynamic, usually large volume speakers can be pushed with ease
2. The integrated horn protection circuit on the board is provided separately and does not interfere with each other

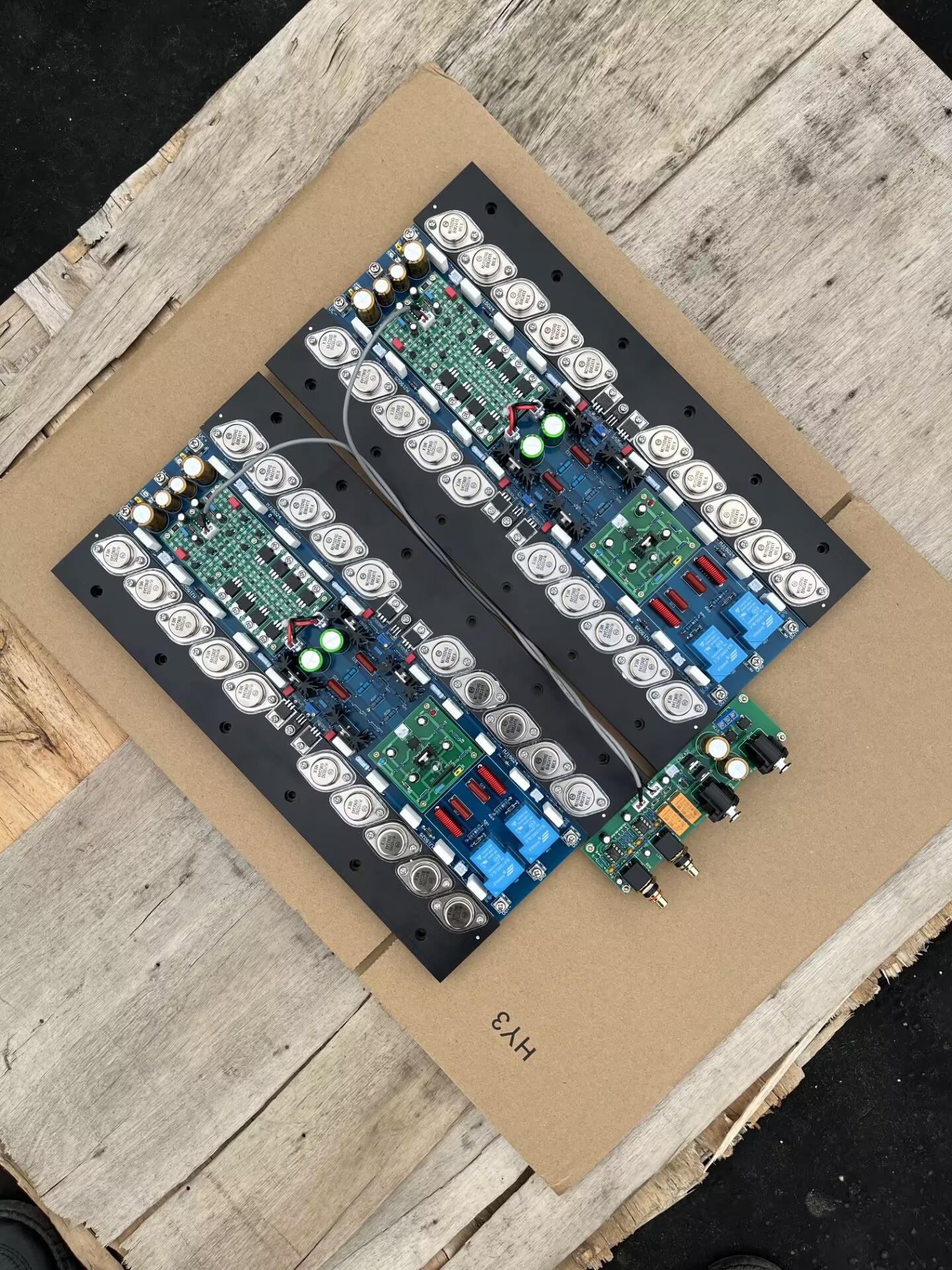

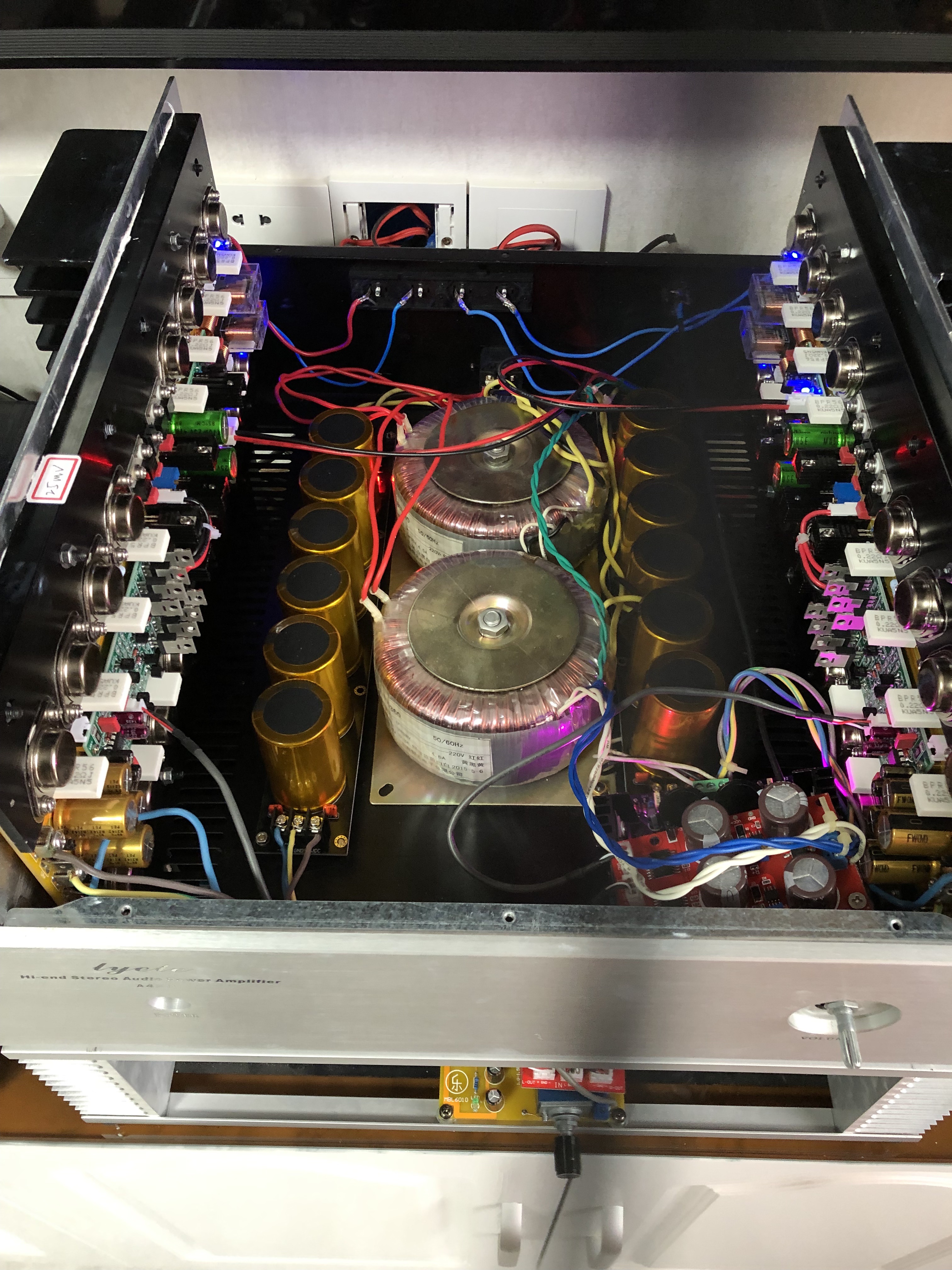

Buyer photo shown , for reference only,
