Details:
This price is for mono channels. If you need stereo sound, you need to purchase 2 units
FM original parameters amplifier circuit
Mono channel design, left and right channels without any interference
Single ended/balanced input is possible

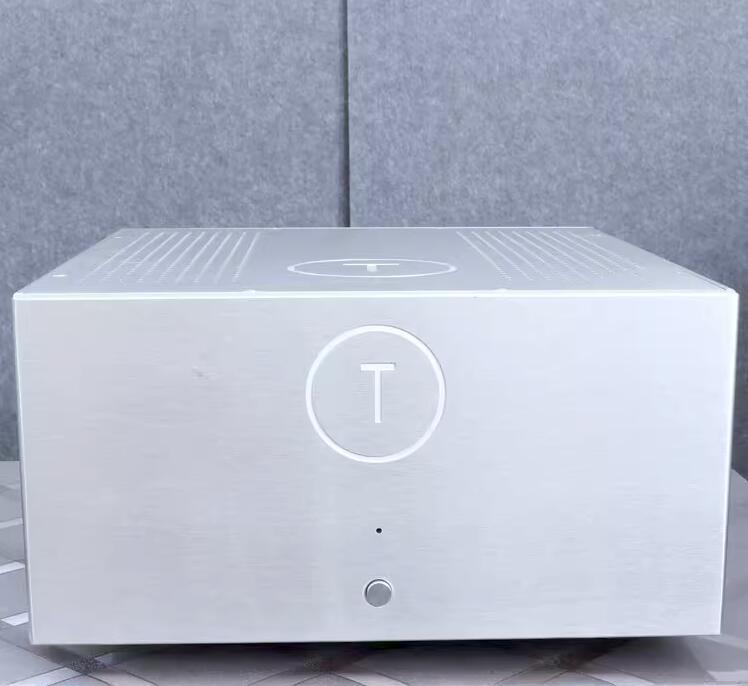

The front panel is 10mm, and the other top, bottom, side, and rear panels are all 5mm thickened aluminum
Built-in integrated large radiator 400*168*50mm
800w Nippon Steel core transformer
ELNA FOR AUDIO 80v10000uF Audio Electrolysis 4 PCS
14 ON high-power tube king MJL4281 with matching accuracy <1%
Perfect horn protection to effectively protect your expensive speakers

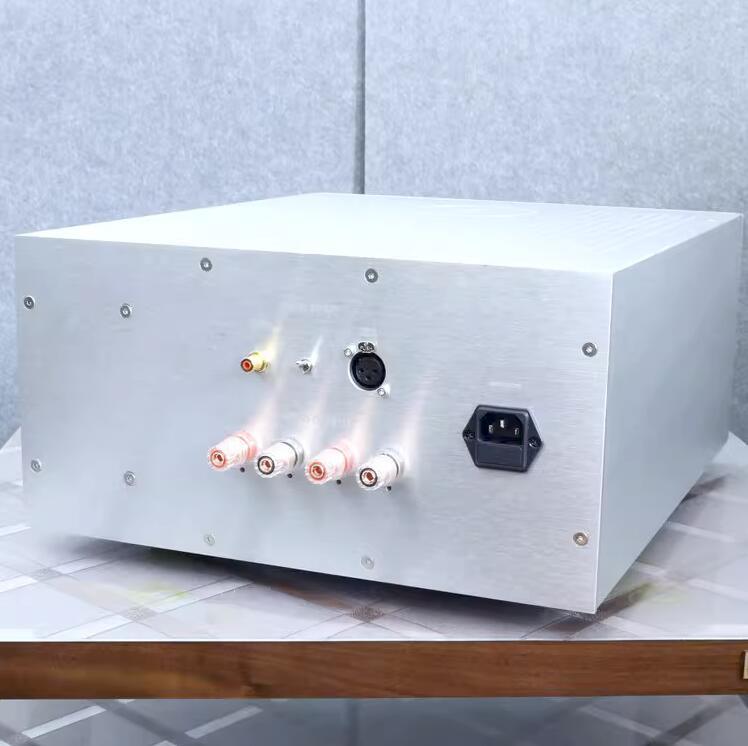

Four CMC terminals, CMC RCA terminals
Shute power outlet, gold insurance
Single crystal copper is used for signal lines
It has the function of soft startup and DC filter of power supply
Parameters
Signal to noise ratio: 125dB
Static power consumption: 100w Class AB
Full load distortion: 0.001%
Output power: 250w/ 8ohm; 500w/4 ohms, easy to push big food speaker
Supply voltage: AC115V or AC230V
Size: Width 360* depth 450* height 190mm
weight: about 20kg
Packing list
1× FM801 Power Amplifier
