ET3 Features:

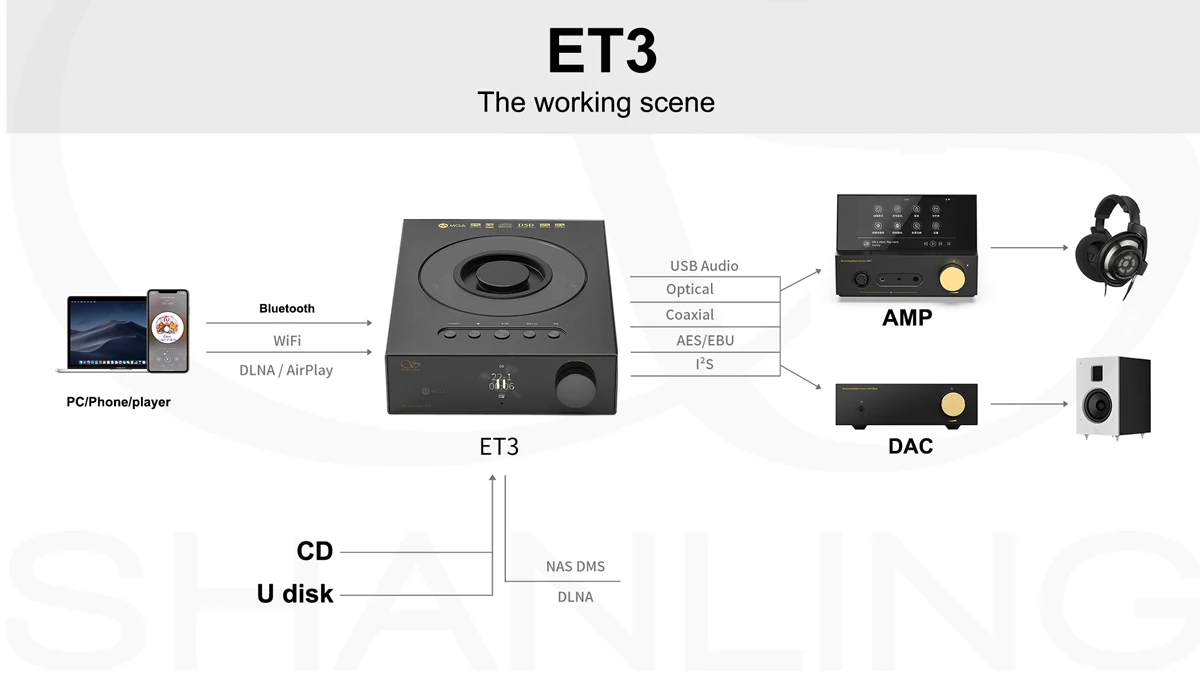

ET3 is actually a full-featured digital turntable with CD as the core. Today we will show you the input and output methods of ET3 through a simple picture, so that you can clarify the working scene of ET3.
Wired input: CD, U disk
Wireless input: DLNA, AirPlay, Bluetooth

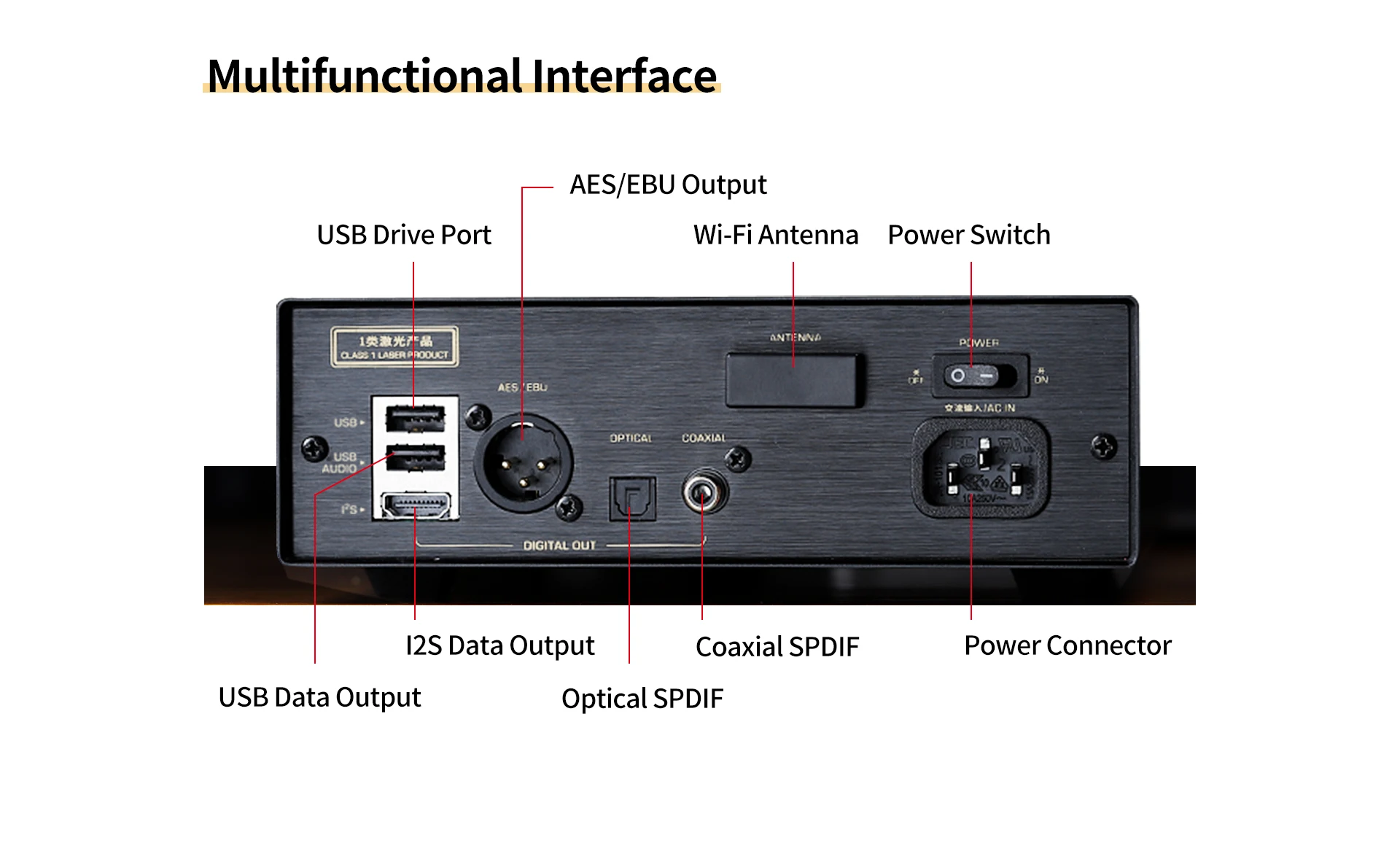

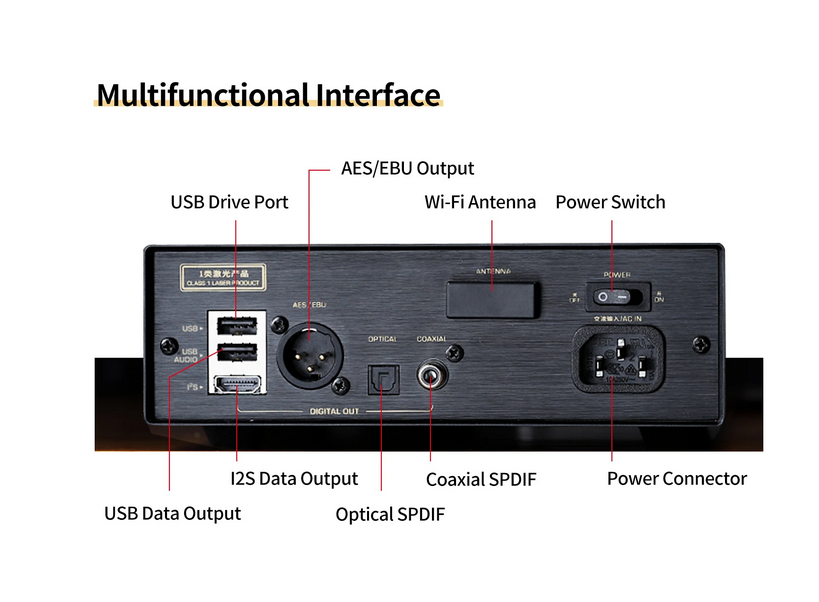

Wired output: USB, I²S, optical fiber, coaxial, AES/EBU
Wireless output: NAS DMS (pushing to other devices via DLNA)
* Please note SRC is not supported when ET3 uses UDB output.
In general, ET3 is a model that mainly uses CD input and has both turntable and interface functions. ET3 supports wired and wireless input, complete output interface, local and streaming signals can be output through ET3 through wired output, matching the decoding equipment in your home.
At the same time, ET3 can also be used as a NAS server. After the U disk is inserted into ET3 and connected to the local area network, other devices can access and play ET3 song content through NAS DMS. For example, M series portable players can play through this method. Songs in the U disk.

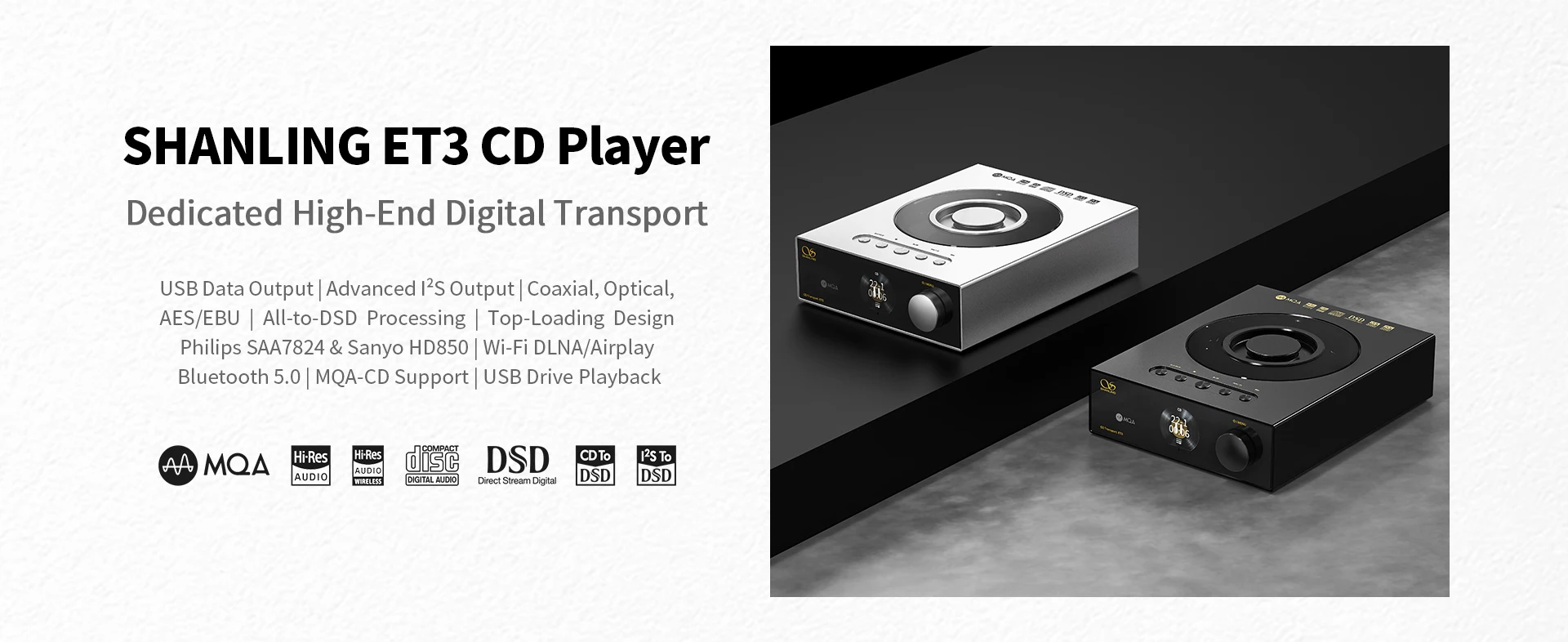

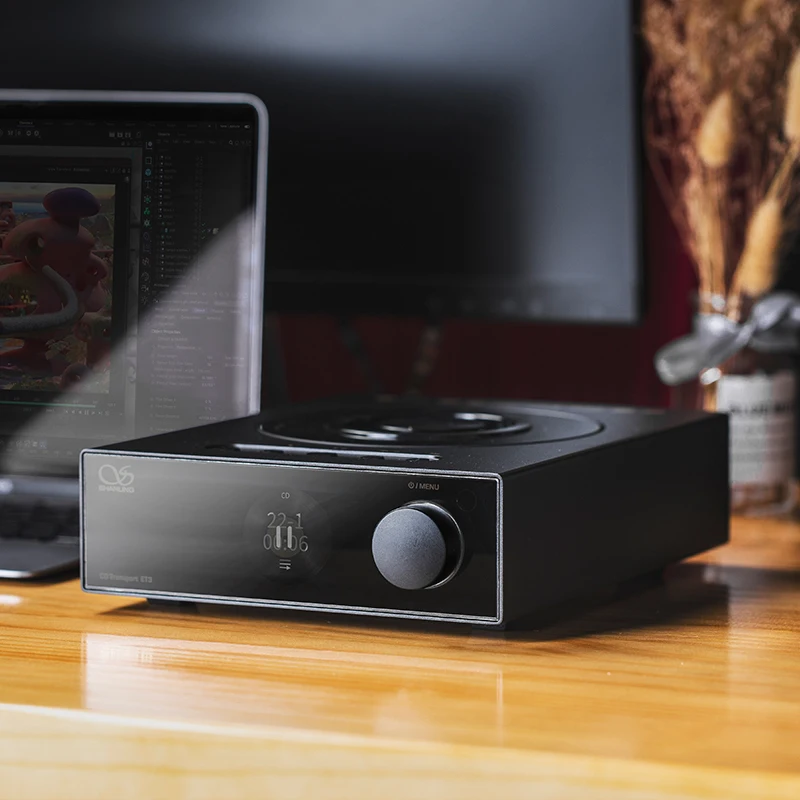

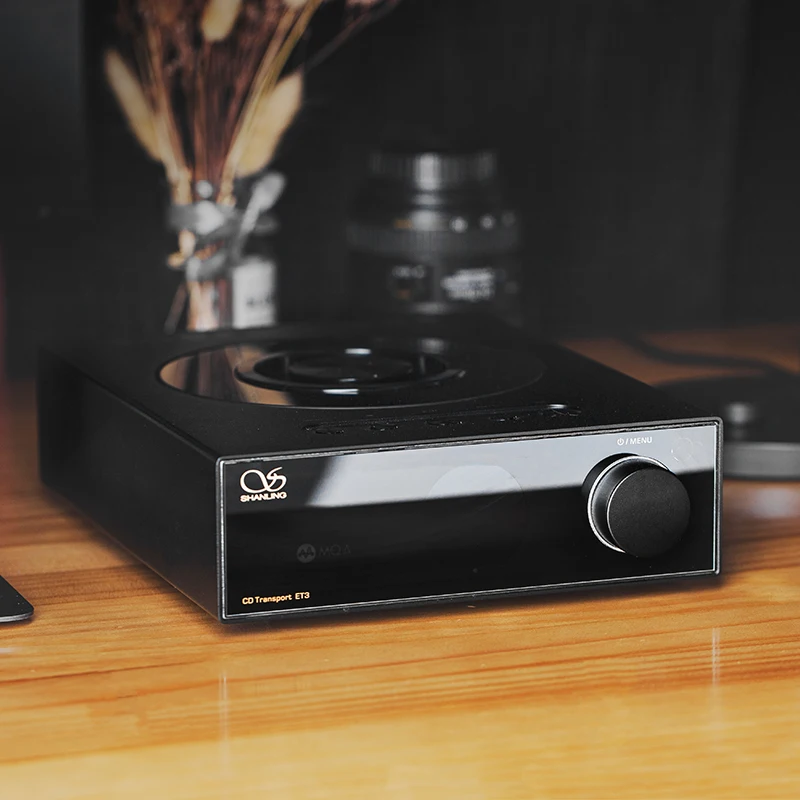

SHANLING ET3 CD Player
Dedicated High-End Digital Transport
USB Data Output |Advanced |s Output|Coaxial, Optical,AES/EBU|All-to-DSD Processing |Top-Loading DesignPhilips SAA7824 & Sanyo HD850 |Wi-Fi DLNA/AirplayBluetooth 5.0 |MQA-CD Support | USB Drive Playback

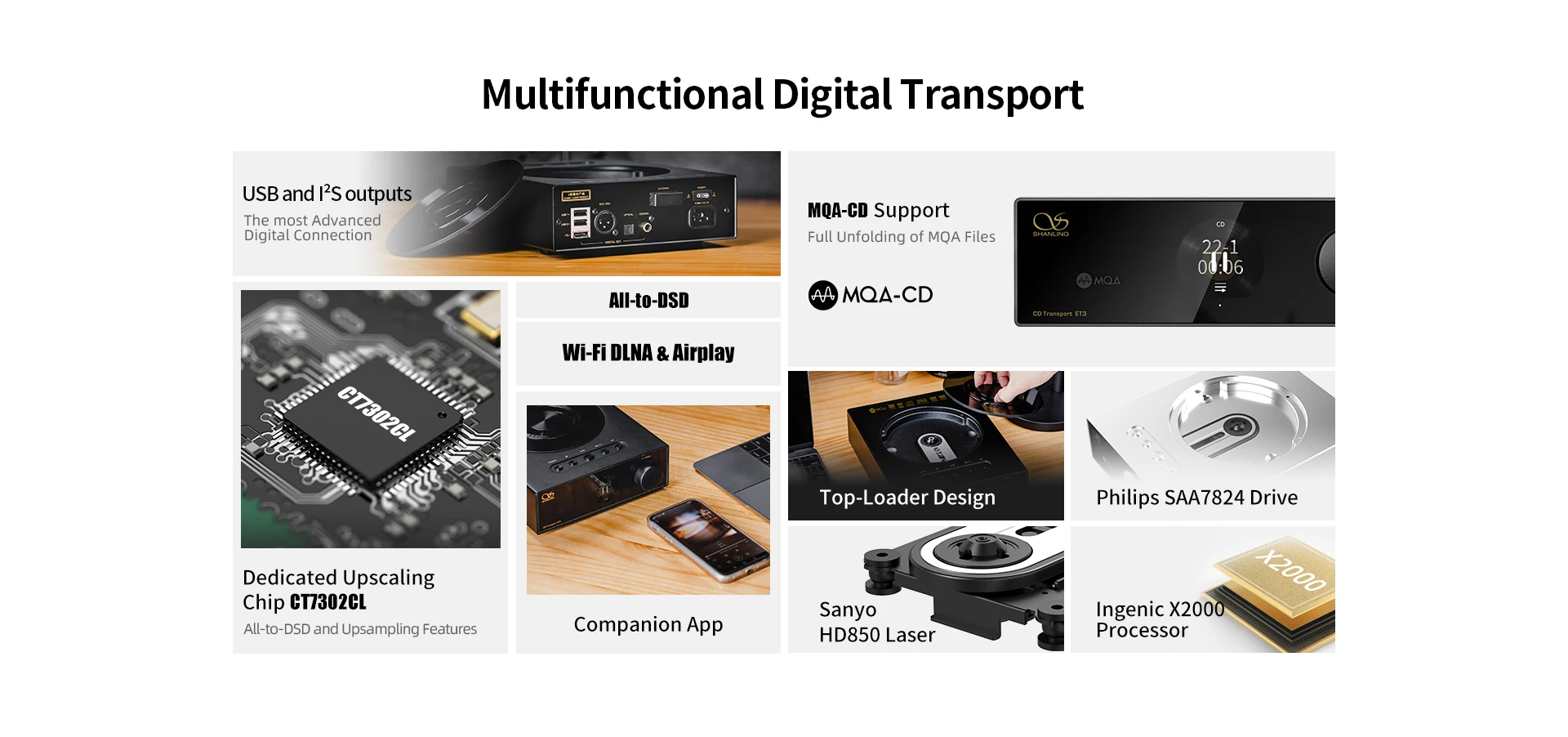

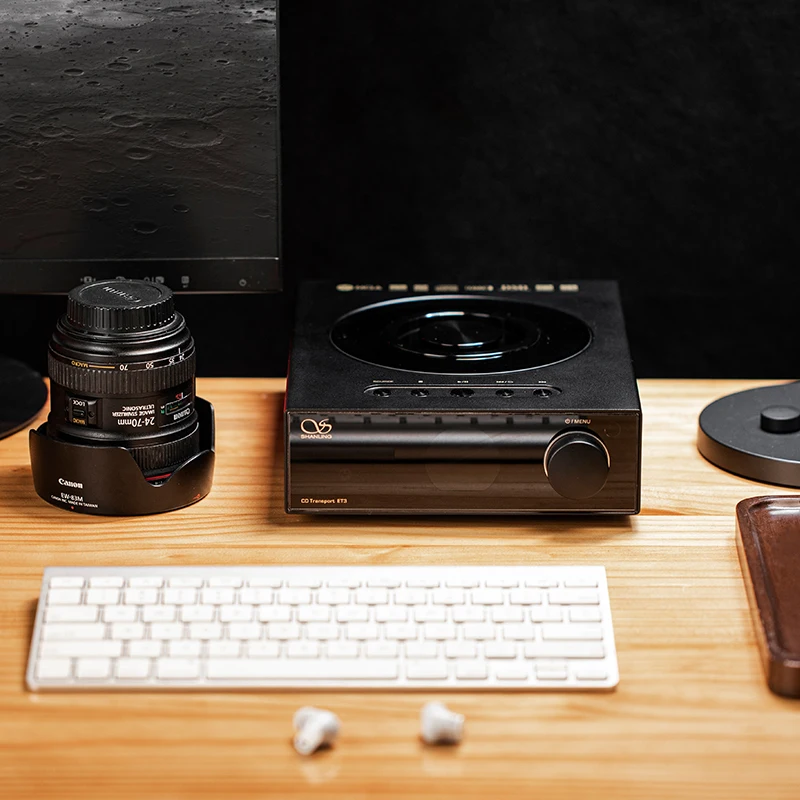

Multifunctional DigitalTransport

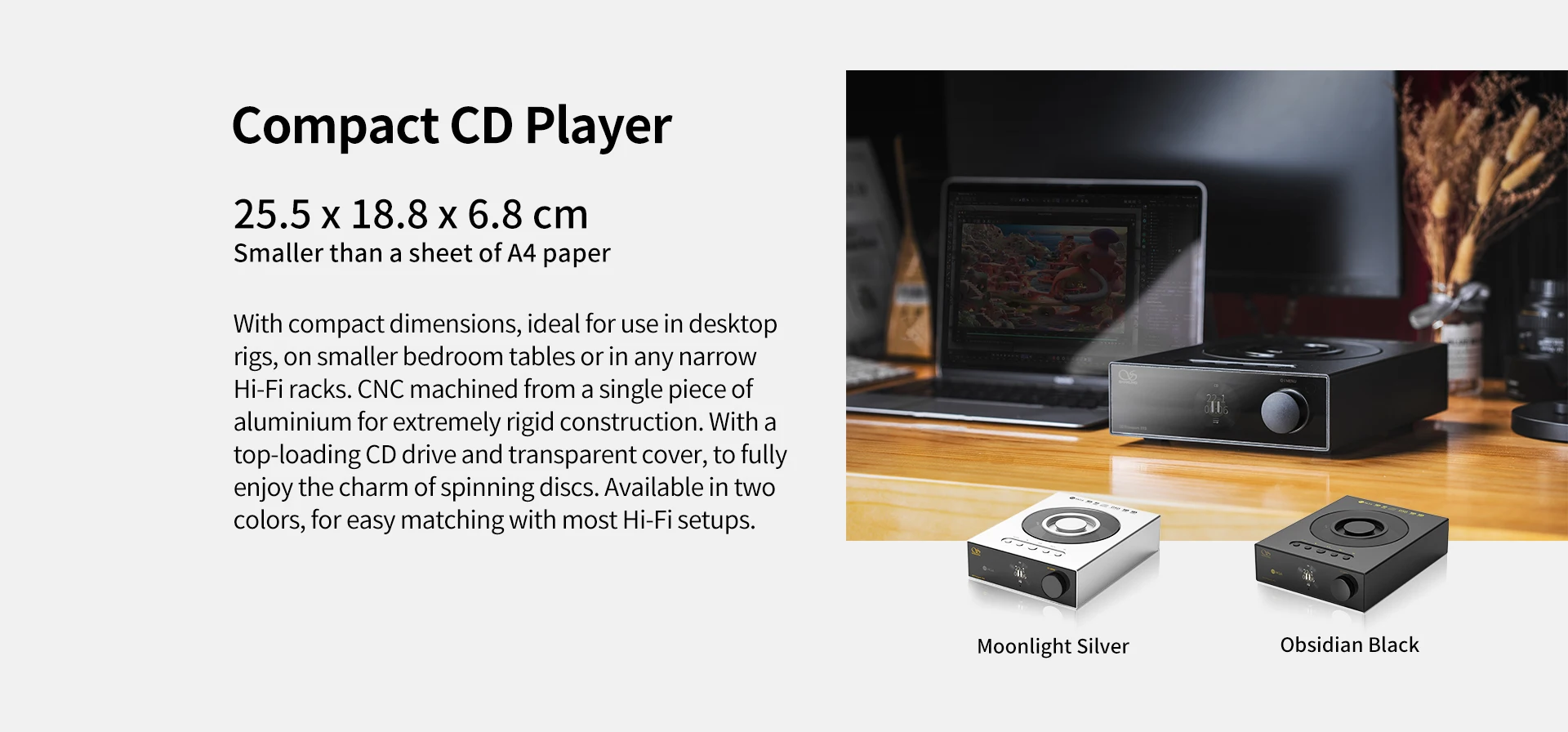

Compact CD Player
25.5 x18.8 x6.8 cmSmaller than a sheet of A4 paper

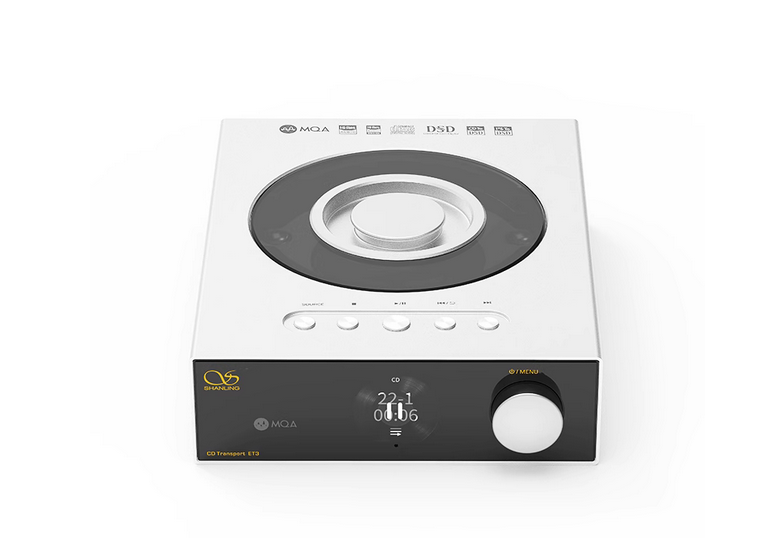

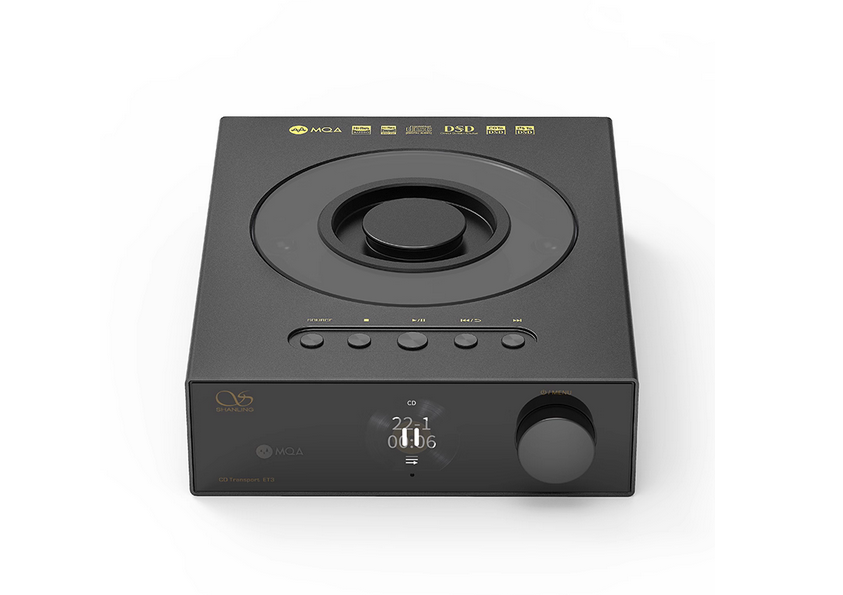

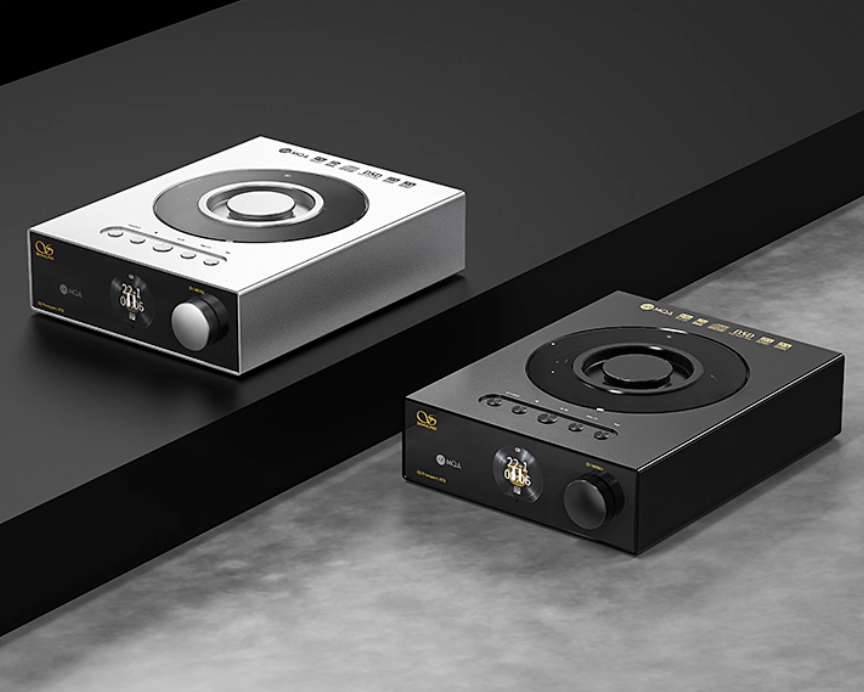

With compact dimensions, ideal for use in desktoprigs, on smaller bedroom tables or in any narrowHi-Fi racks.CNC machined from a single piece ofaluminium for extremely rigid construction. With atop-loading CD drive and transparent cover, to fullyenjoy the charm ofspinning discs. Available in twocolors, for easy matching with most Hi-Fi setups.

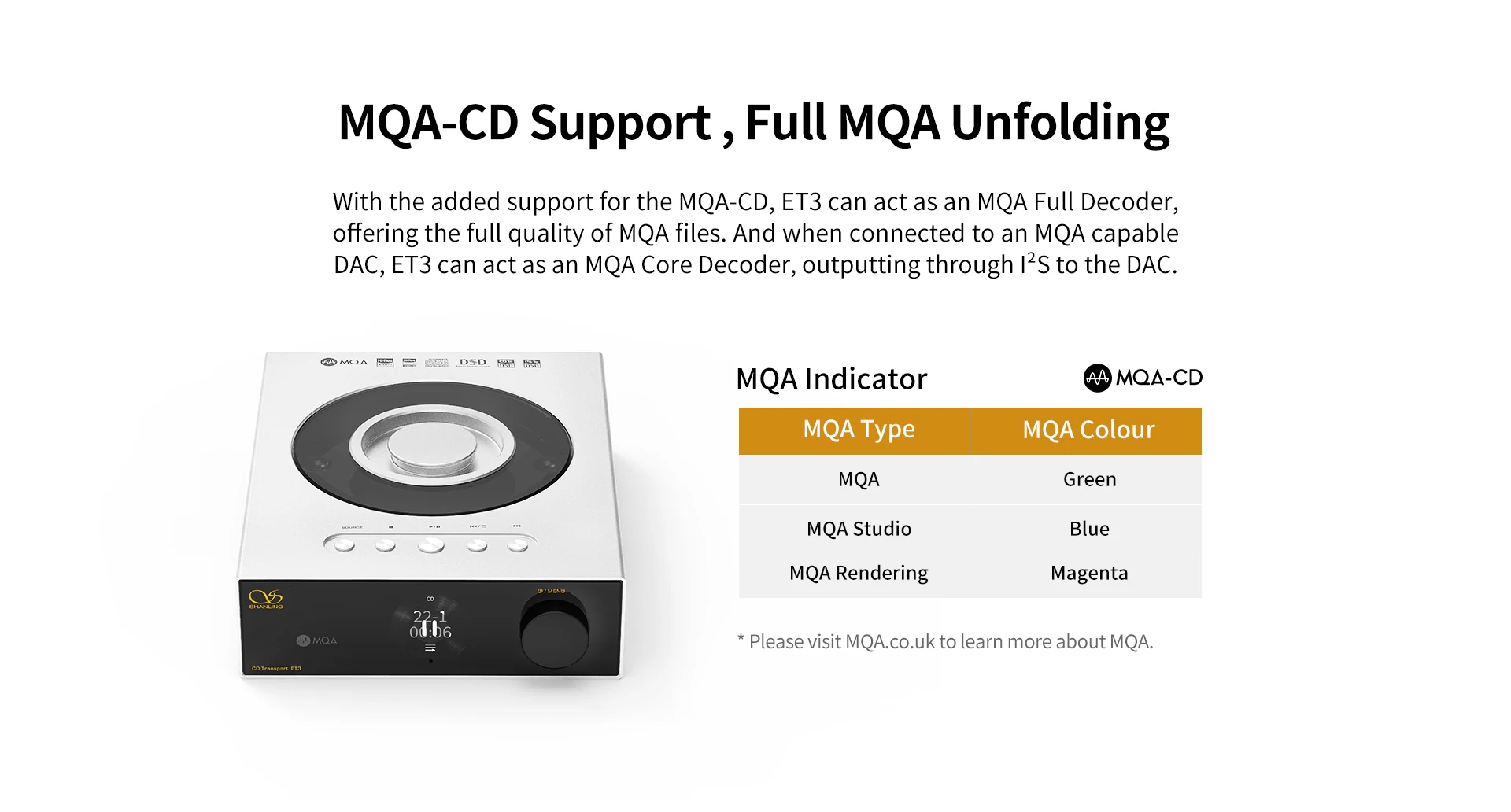

MQA-CD Support , Full MQA Unfolding
With the added support for the MQA-CD, ET3 can act as an MQA Full Decoder,offering the full quality of MQA files. And when connected to an MQA capableDAC, ET3 can act as an MQA Core Decoder, outputting through i'S to the DAC.

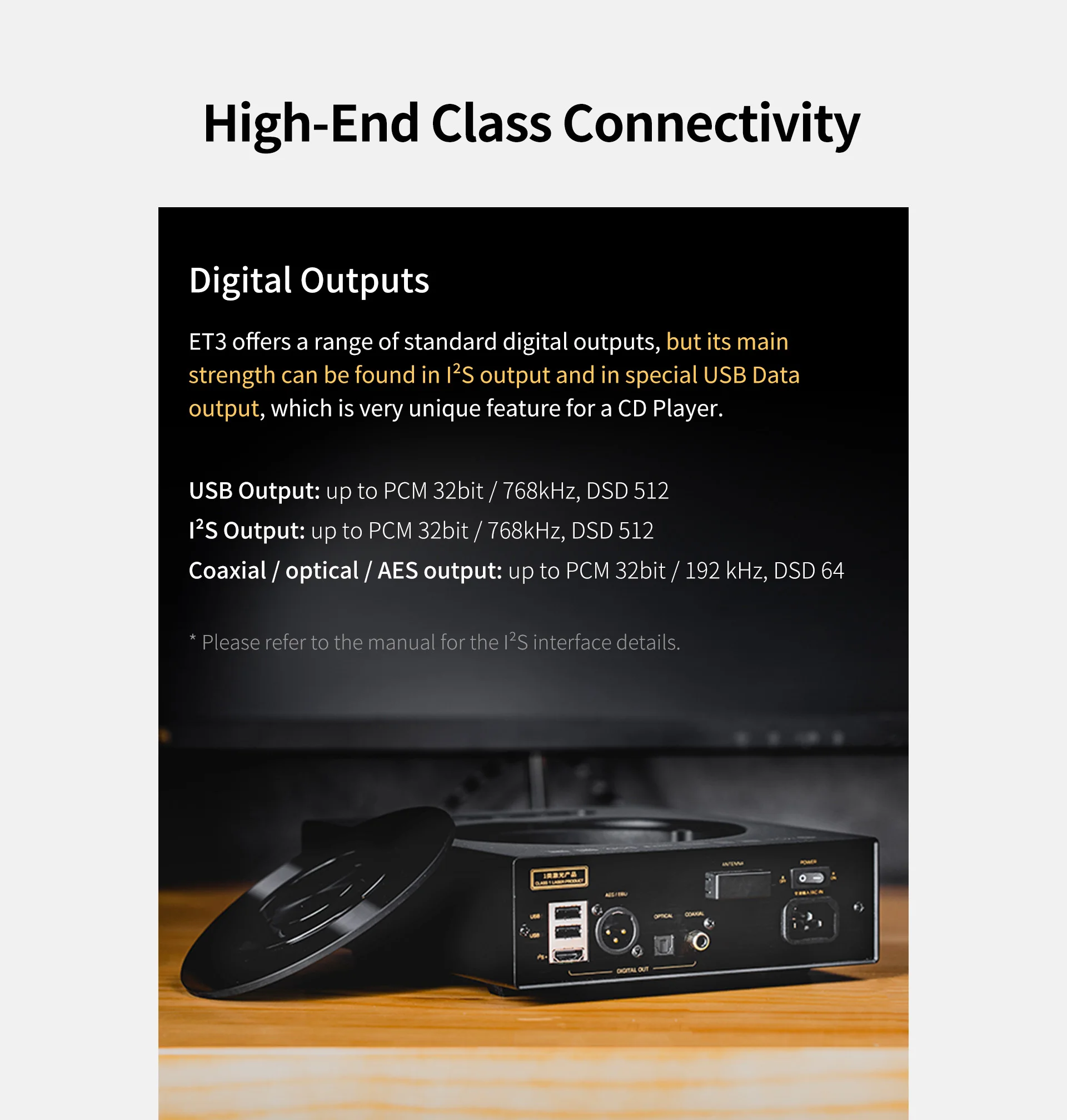

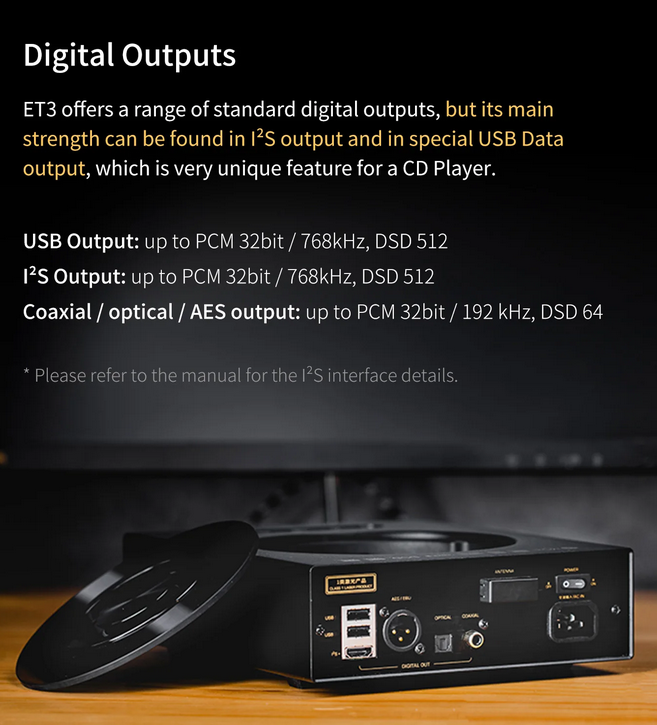

High-End Class Connectivity

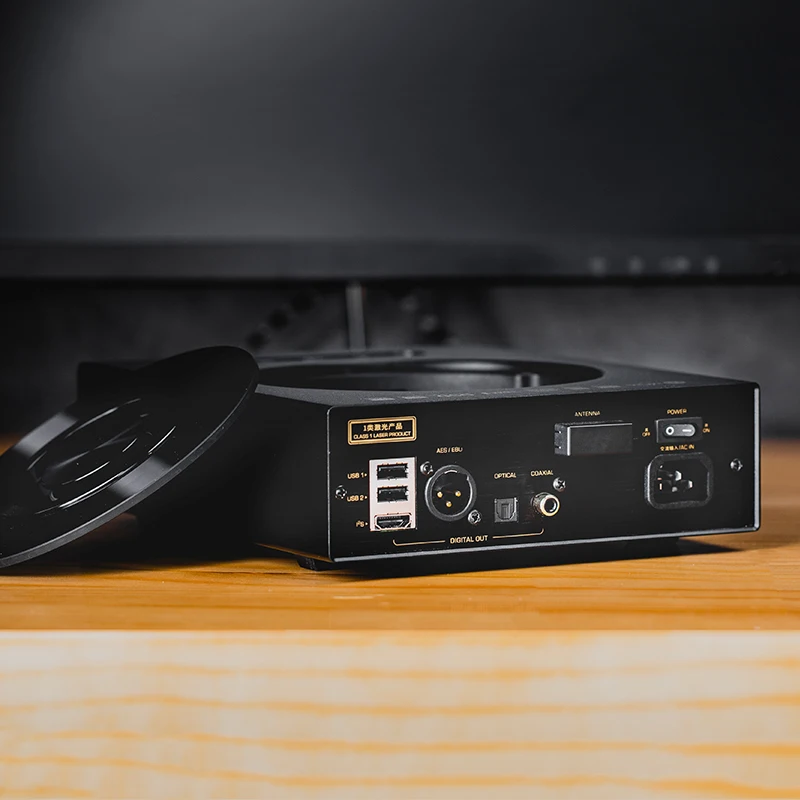

Digital Outputs
ET3 offers a range of standard digital outputs, but its mainstrength can be found in l`S output and in special USB Dataoutput, which is very unique feature for a CD Player.
USB Output: up to PCM 32bit/768kHz, DSD 5122s Output: up to PCM 32bit /768kHz, DSD 512Coaxial/optical/AES output: up to PCM 32bit / 192 kHz, DSD 64

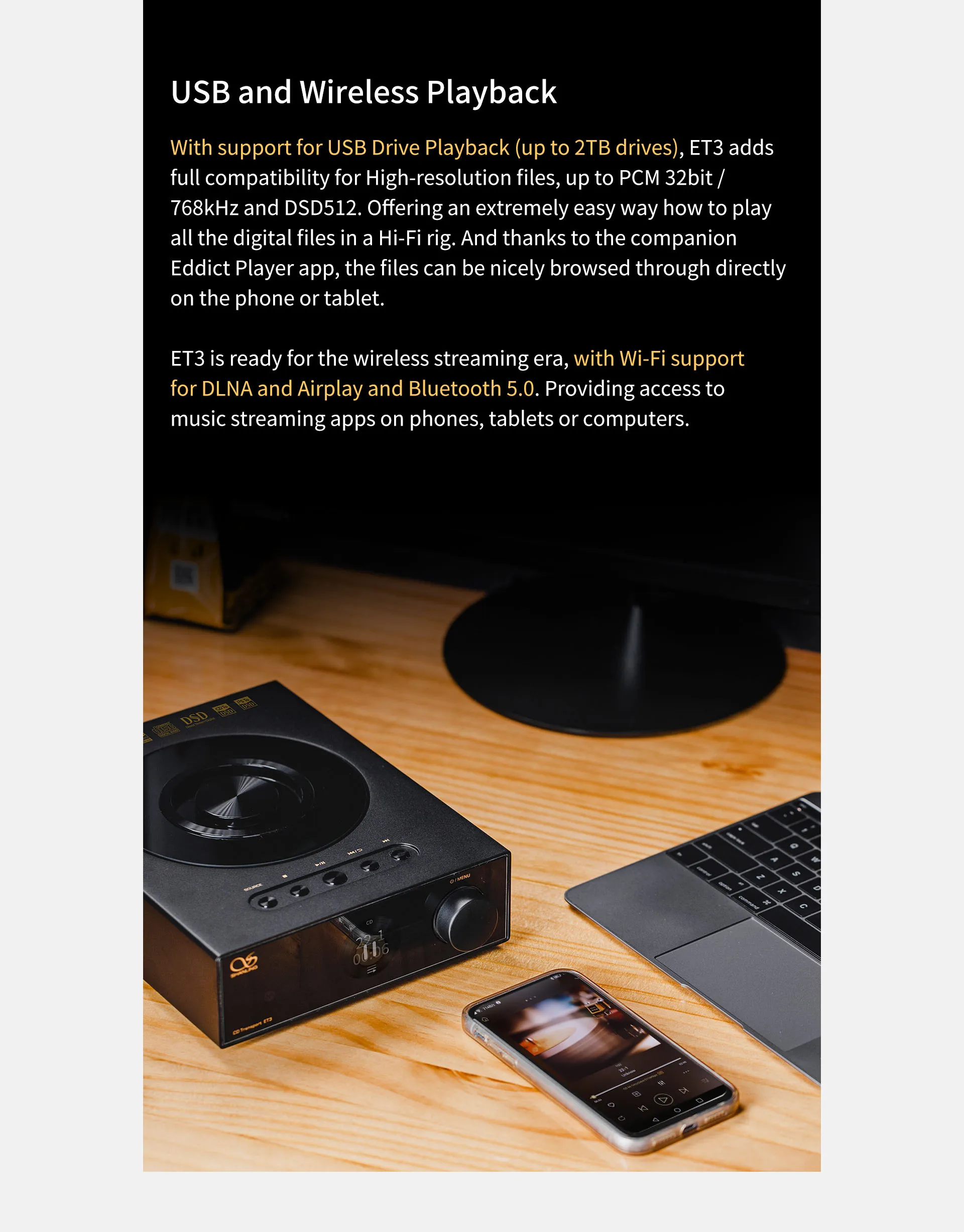

USB and Wireless Playback
With support for USB Drive Playback (up to 2TB drives), ET3 addsfull compatibility for High-resolution files, up to PCM 32bit /768kHz and DSD512. Offering an extremely easy way how to playall the digital files in a Hi-Fi rig. And thanks to the companionEddict Player app, the files can be nicely browsed through directlyon the phone or tablet.
ET3 is ready for the wireless streaming era, with Wi-Fi supportfor DLNA and Airplay and Bluetooth 5.0. Providing access tomusic streaming apps on phones, tablets or computers.

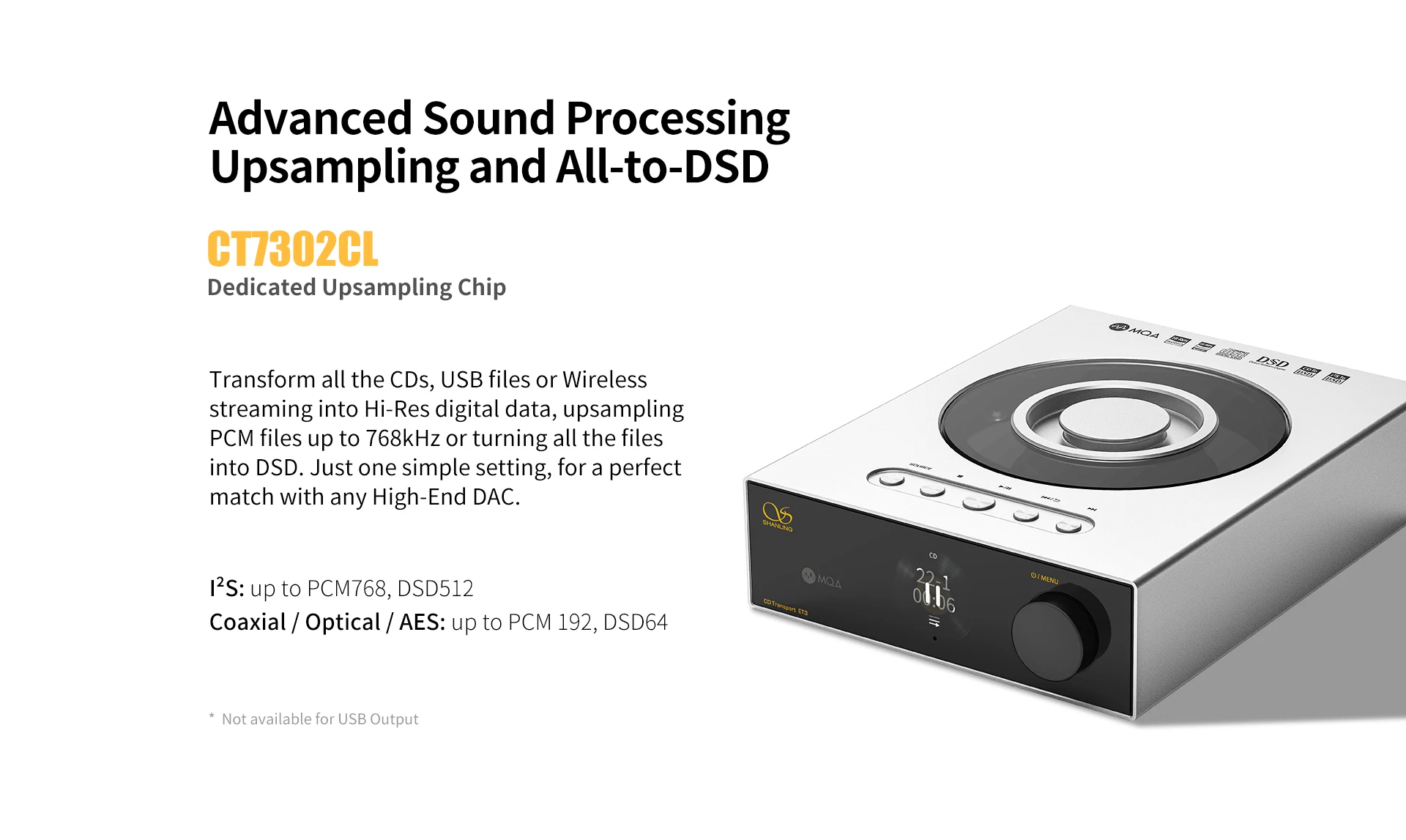

Advanced Sound ProcessingUpsampling and All-to-DSD
CT7302CL
Dedicated Upsampling Chip
Transform all the CDs, USB files or Wirelessstreaming into Hi-Res digital data, upsamplingPCM files up to 768kHz or turning all the filesinto DSD, Just one simple setting, for a perfectmatch with any High-End DAC.
PS: up to PCM768, DSD512Coaxial/Optical/AES: up to PCM 192, DSD64

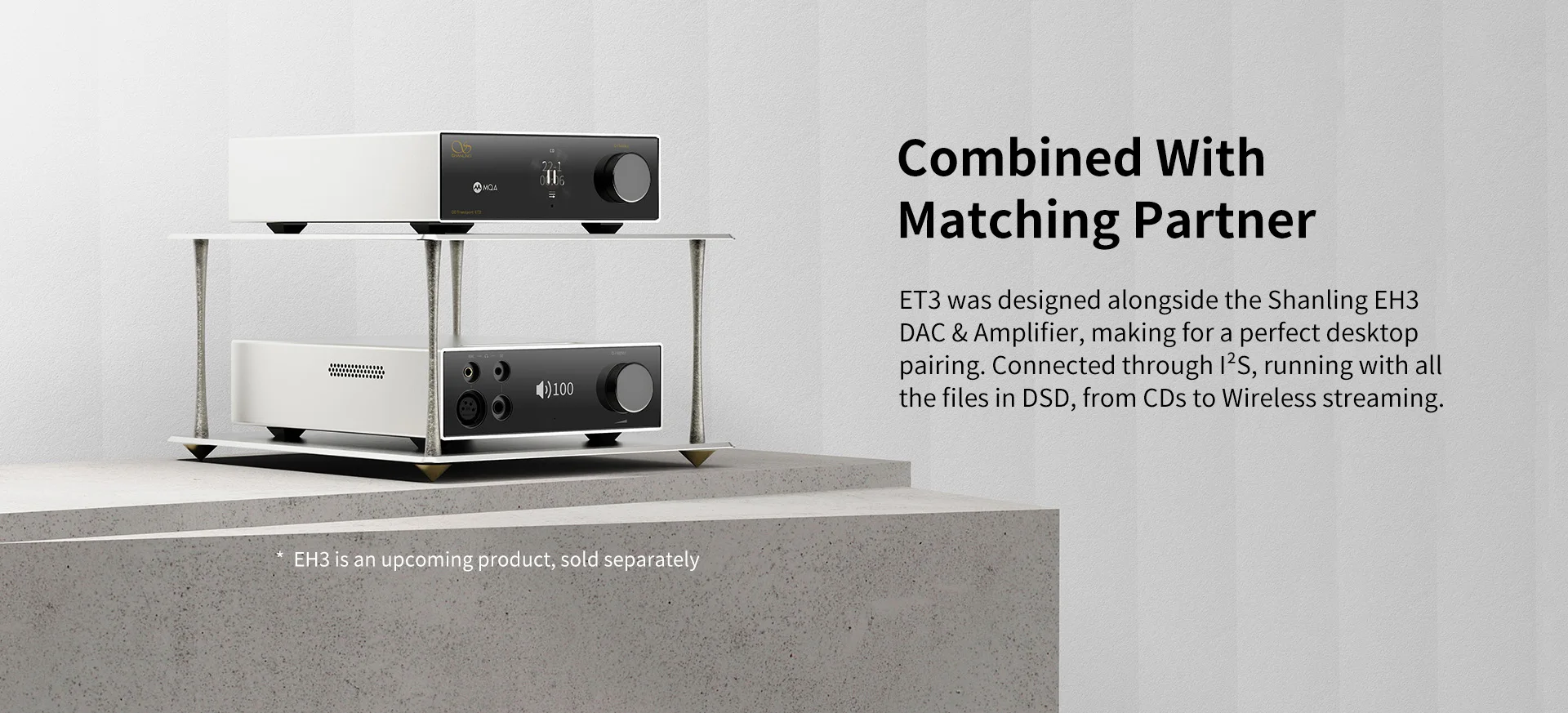

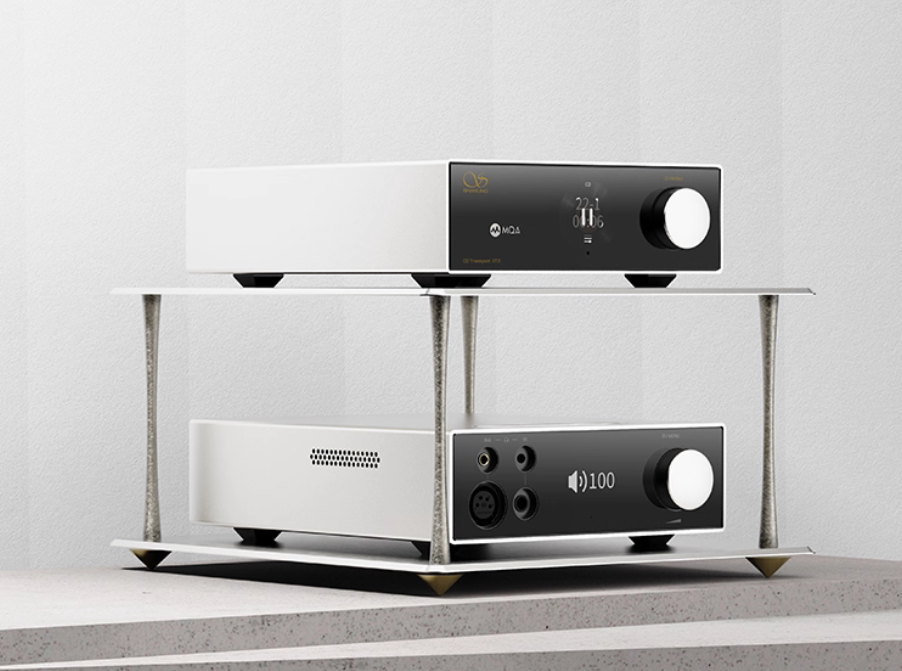

Combined WithMatching Partner
ET3 was designed alongside the Shanling EH3DAC & Amplifier, making for a perfect desktoppairing.Connected through I?S, running with allthe files in DSD, from CDs to Wireless streaming.

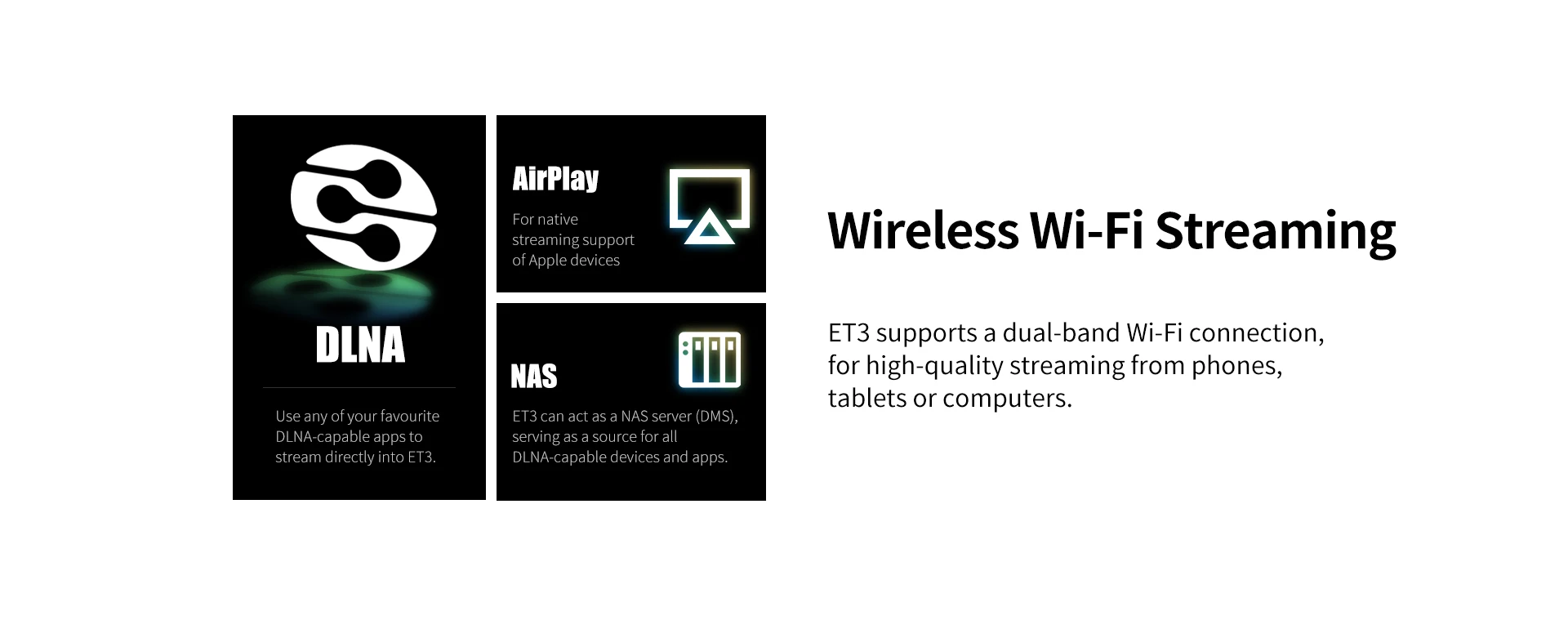

Wireless Wi-Fi Streaming
ET3 supports a dual-band Wi-Fi connection,for high-quality streaming from phones,tablets or computers.

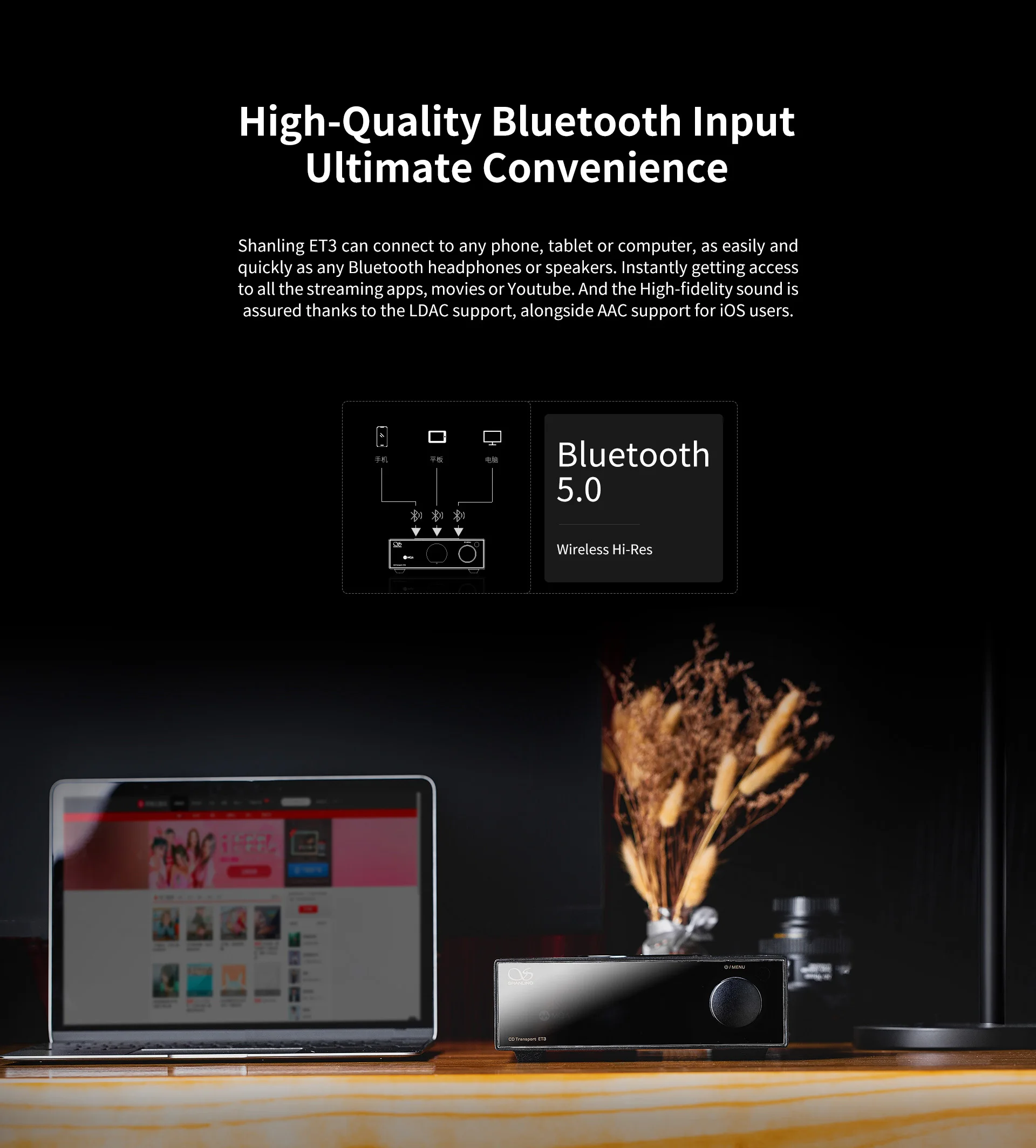

High-Quality Bluetooth InputUltimate Convenience
Shanling ET3 can connect to any phone, tablet or computer, as easily andquickly as any Bluetooth headphones or speakers. Instantly getting accessto all the streamingapps, movies or Youtube. And the High-fidelity sound isassured thanks to the LDAC support, alongside AAC support for i0S users.

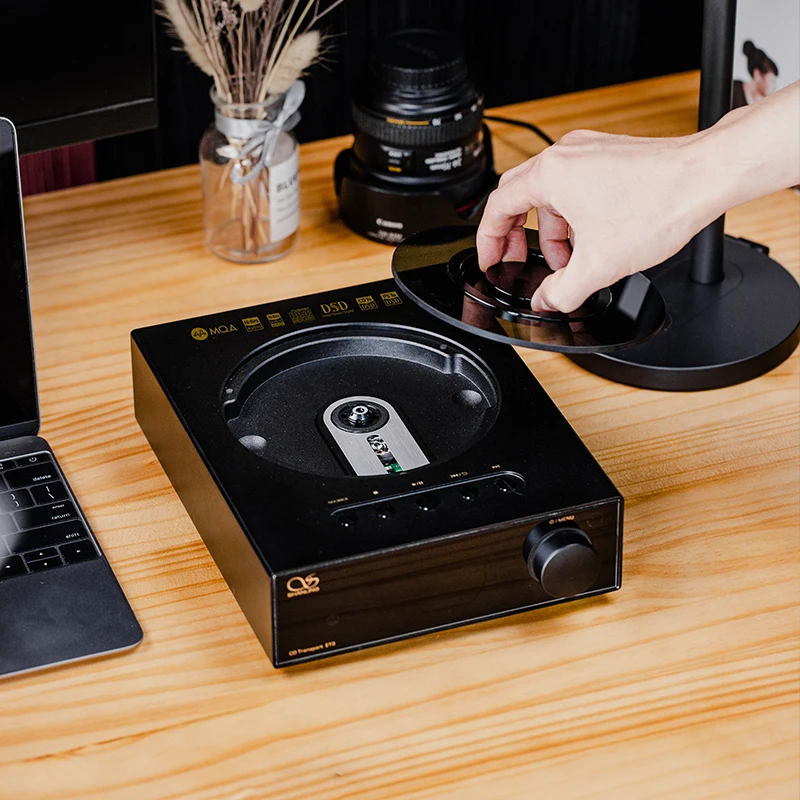

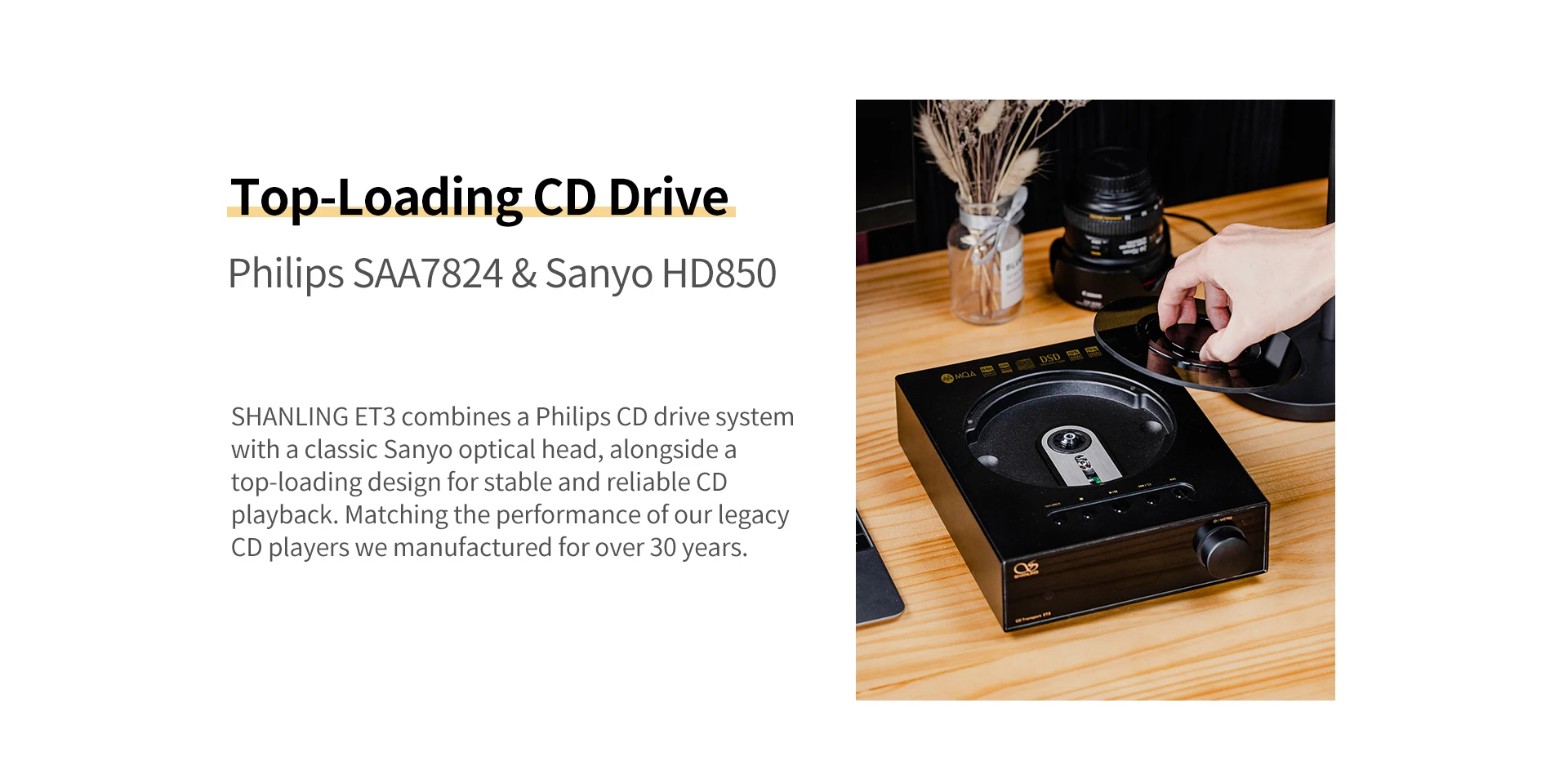

Top-Loading CD DrivePhilips SAA7824& Sanyo HD850
SHANLING ET3 combines a CD drive systemwith a classic Sanyo optical head, alongside atop-loading design for stable and reliable CDplayback. Matching the performance of our legacyCD players we manufactured for over 30 years.

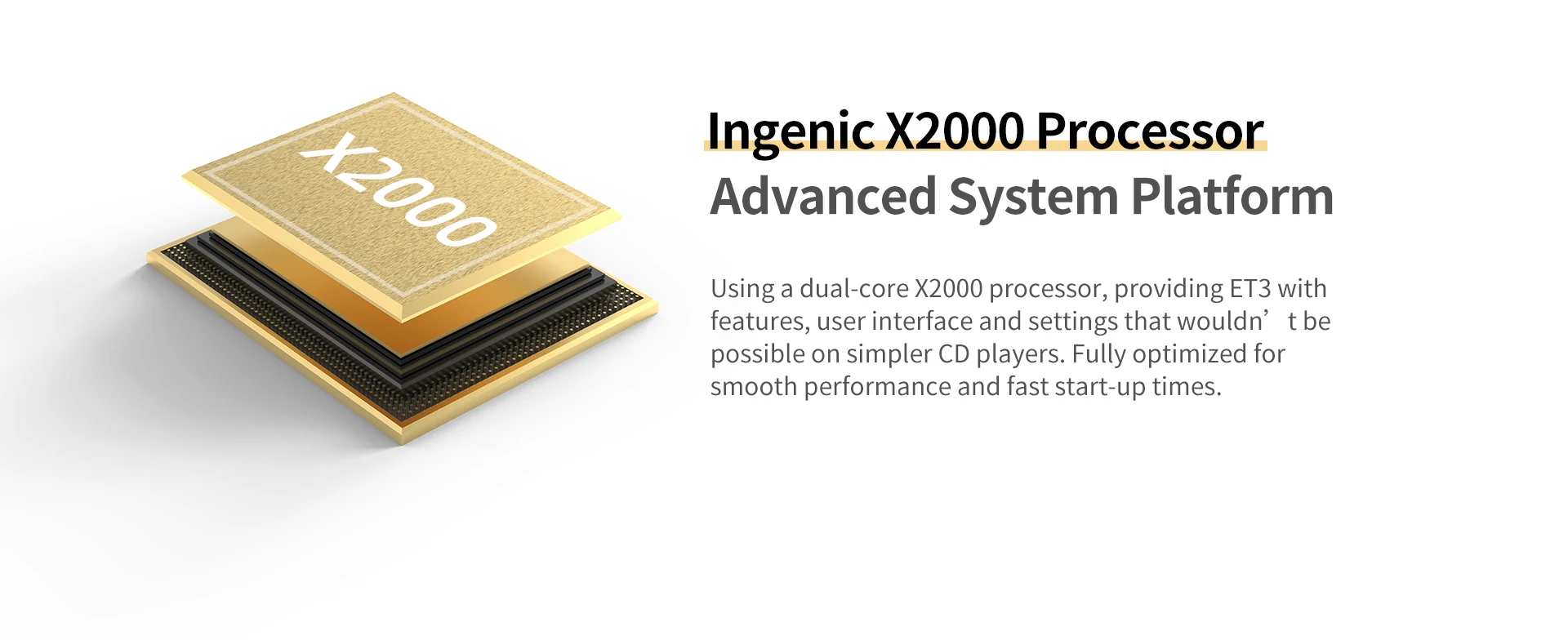

Ingenic X2000 ProcessorAdvanced System Platform
Using a dual-core X2000 processor, providing ET3 withfeatures, userinterface and settings that wouldn'`t bepossible on simpler CD players. Fully optimized forsmooth performance and fast start-up times.

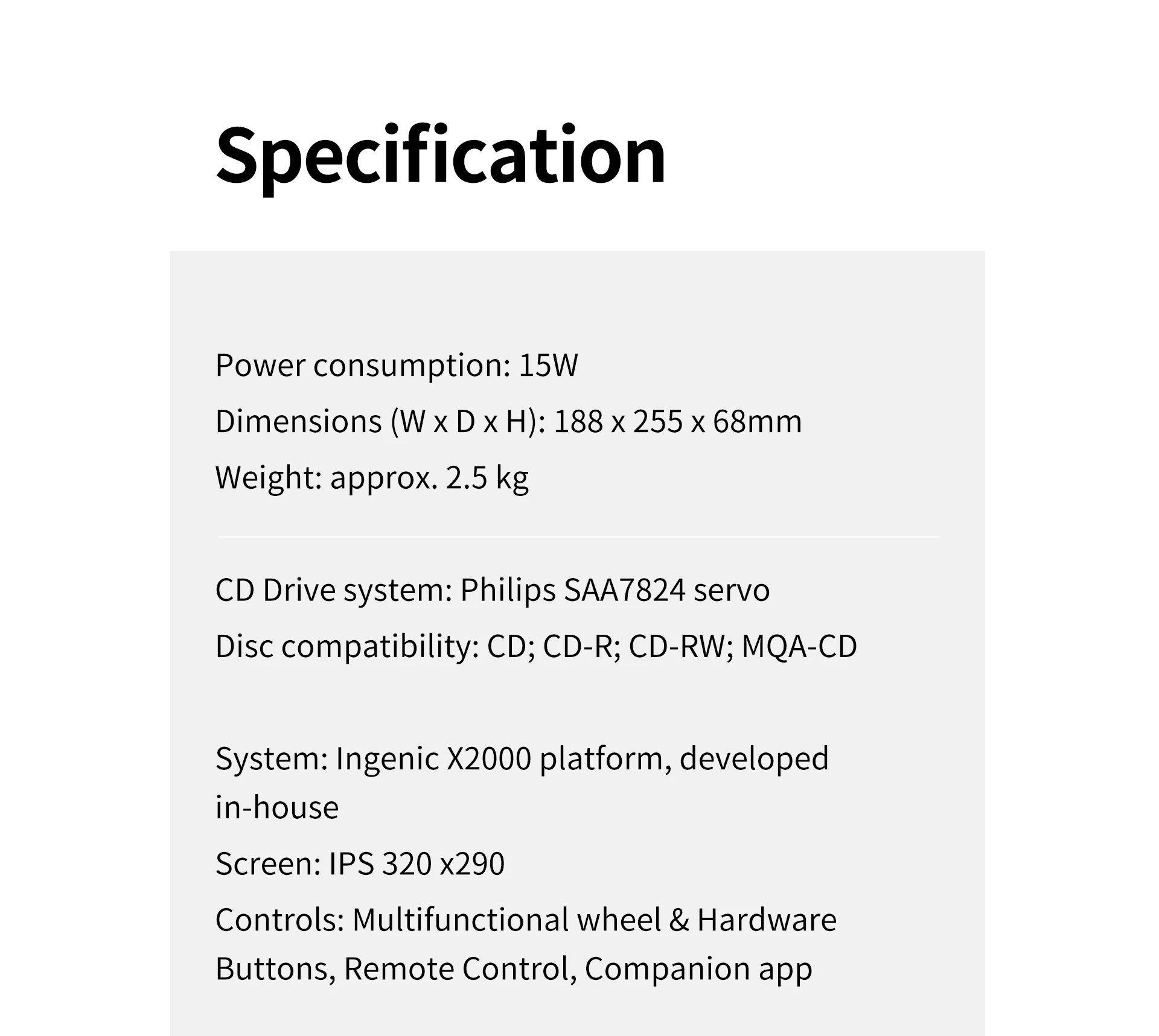

ET3 Specification:
Power consumption:15W
Dimensions (WxDxH):188 x255 x68mmWeight: approx. 2.5 kg
CD Drive system: SAA7824 servoDisc compatibility: CD; CD-R; CD-RW; MQA-CD
System:Ingenic X2000 platform, developedin-house

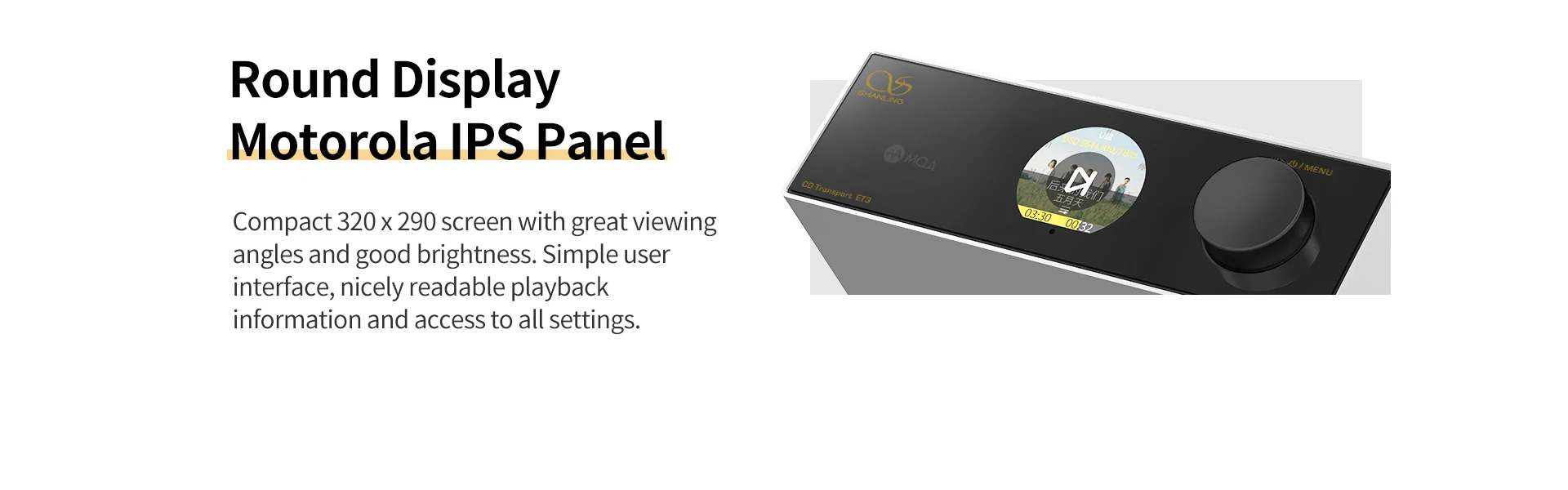

Screen:lPS 320 x290
Controls: Multifunctional wheel & HardwareButtons, Remote Control,Companion app

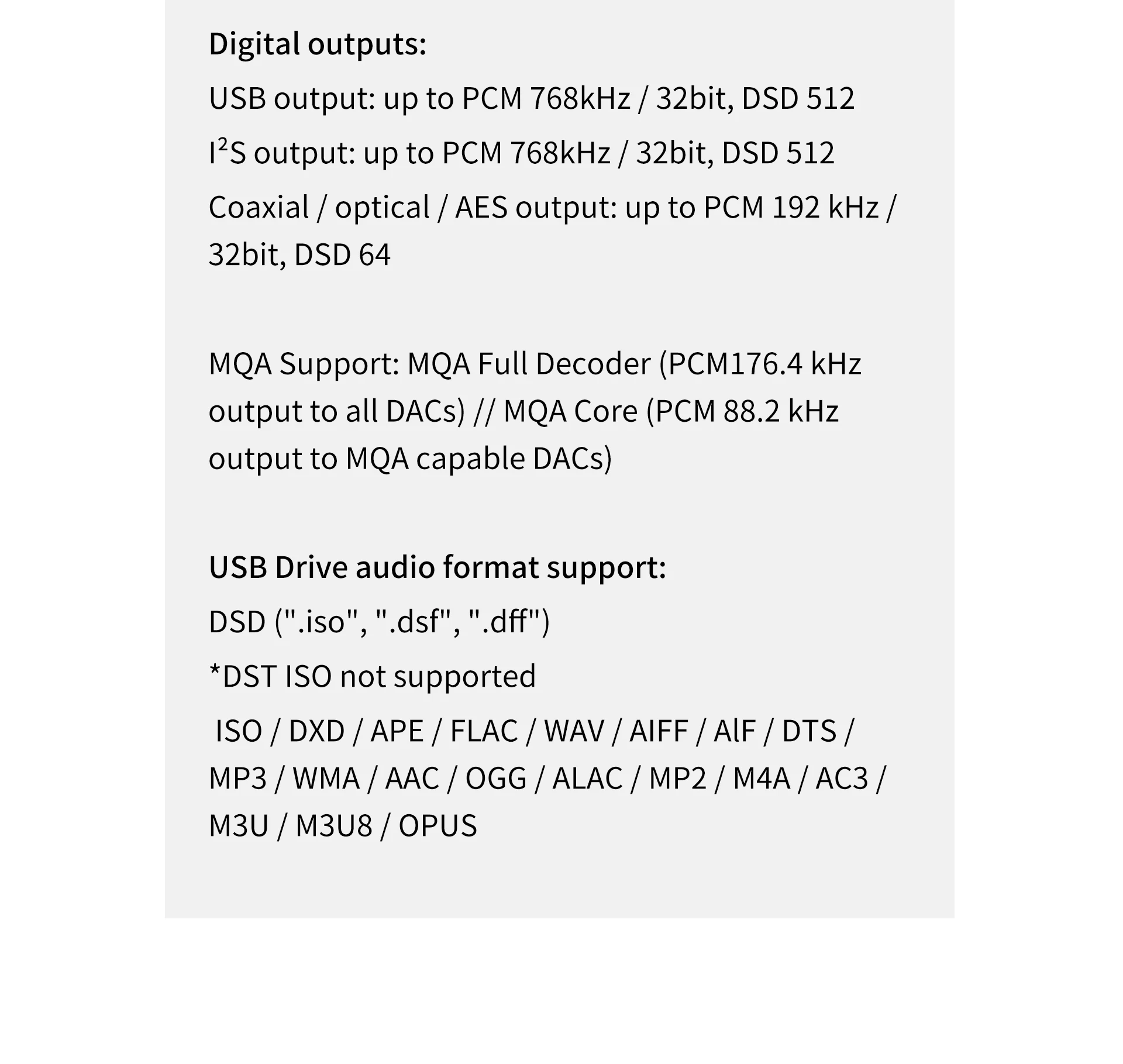

Digital outputs:
USB output: up to PCM 768kHz/32bit, DSD 512S output: up to PCM 768kHz/32bit, DSD 512Coaxial/optical/AES output: up to PCM 192 kHz/32bit, DSD 64
MQA Support: MQA Full Decoder (PCM176.4 kHzoutput to all DACs)// MQA Core (PCM 88.2 kHzoutput to MOA capable DACs)
USB Drive audio format support:
DSD (" iso", " dsf", " dff")
*DST ISO not supported
ISO/DXD/APE/FLAC/WAV/AIFF/AIF/DTSMP3/WMA/AAC/OGG/ALAC/MP2/M4A/AC3/M3U/M3U8/OPUS
