Specification
Dimensions (including feet): 280mm * 280mm * 110mm
Weight: 6.4kg
Screen: 5.8-inch 1080P Sharp Touch Screen
Processor: Rockchip ARM CPU
DAC System: AKM AK4191EQ + AK4499EX DAC Chip
Storage: 64 GB Internal Memory + SSD M.2 Slot
External Drive Capacity: up to 2TB
Power Supply: 220 or 110V Region Locked
Bluetooth Version: 5.2
Bluetooth Codecs: LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC
Dual-Band WiFi 6: 2.4G / 5G
Supported Audio Formats: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. Supports CUE.
Hi-Res support: 768kHz / 32bit DSD512
Technical Parameters
RCA Output:
Output Level: 2.36V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 118dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 118dB
XLR Output:
Output Level: 4.72V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 121dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 121dB
Headphone Output:
Output Power:
Low Gain: 19mW@32Ω
Medium Gain: 180mW@32Ω
High Gain: 1015mW@32Ω
High Gain: 132mW@300Ω
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0013%@32Ω
Dynamic Range: 117dB@32Ω
Channel Separation: 70dB@32Ω
Signal-to-Noise Ratio: 117dB@32Ω
Noise: 111dB
Output Impedance: 4.7Ω

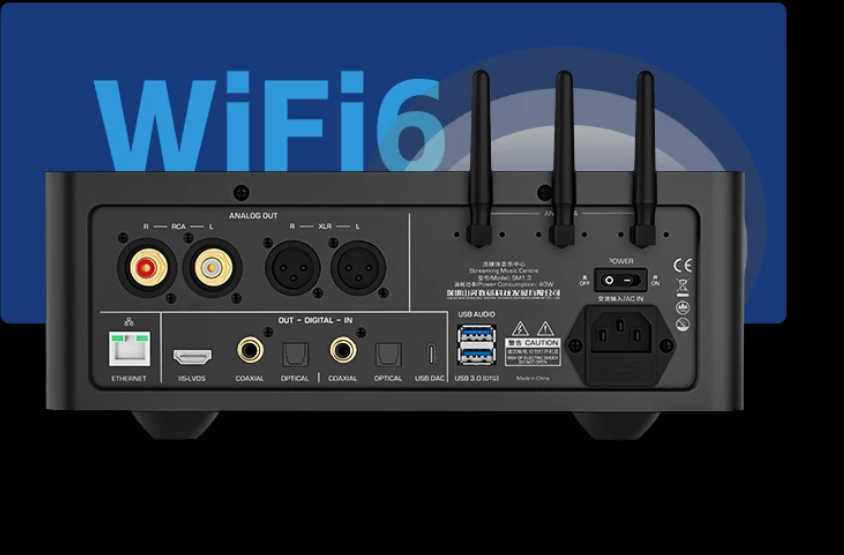

Digital Ports Specifications
Coaxial Input: PCM192kHz / 24bit
Optical Input: PCM192kHz / 24bit
USB Input: PCM768kHz / 32bit, DSD512
Coaxial Output: PCM192kHz / 24bit
Optical Output: PCM192kHz / 24bit
USB Output: PCM768kHz / 32bit, DSD512
I²S Output: PCM768kHz, DSD512

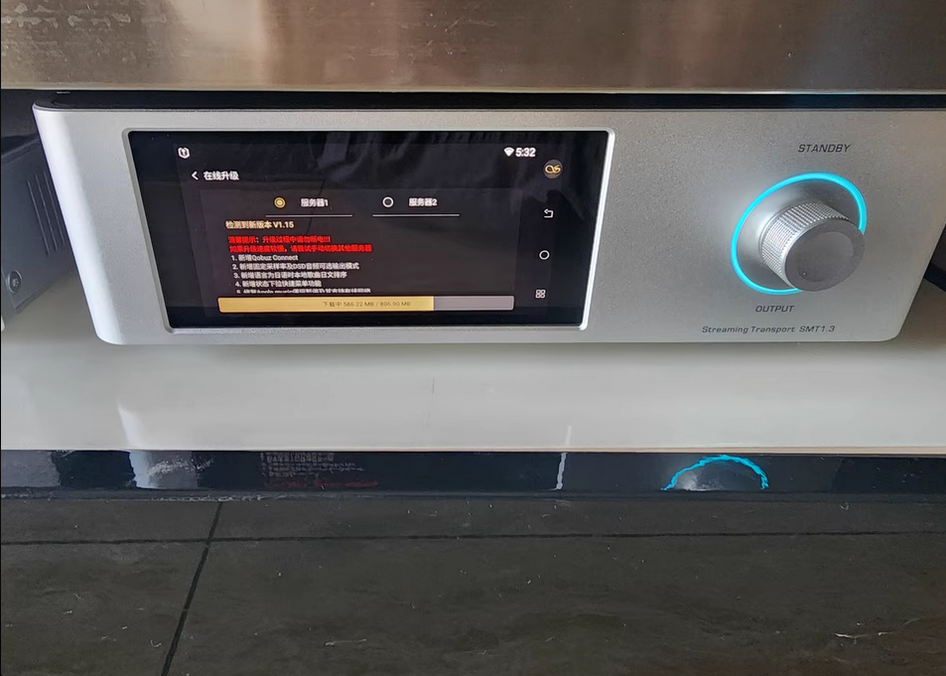

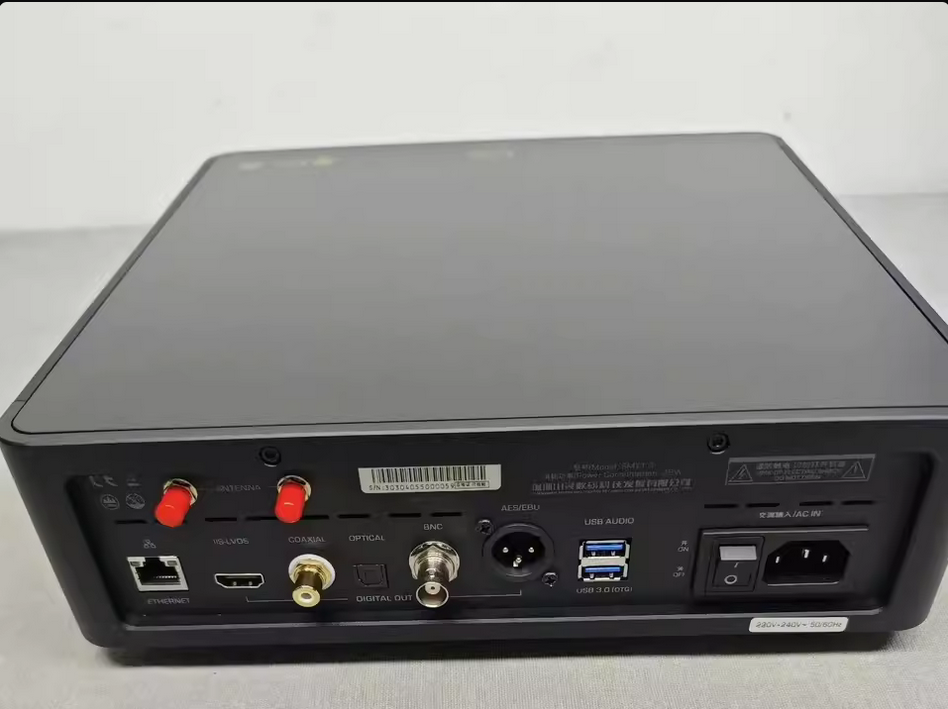

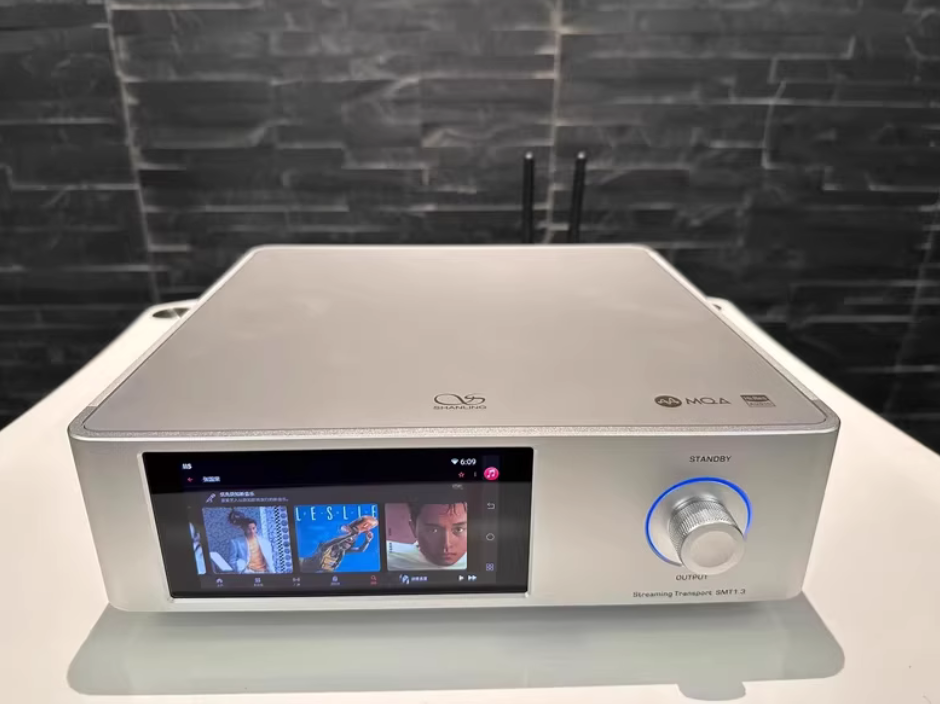

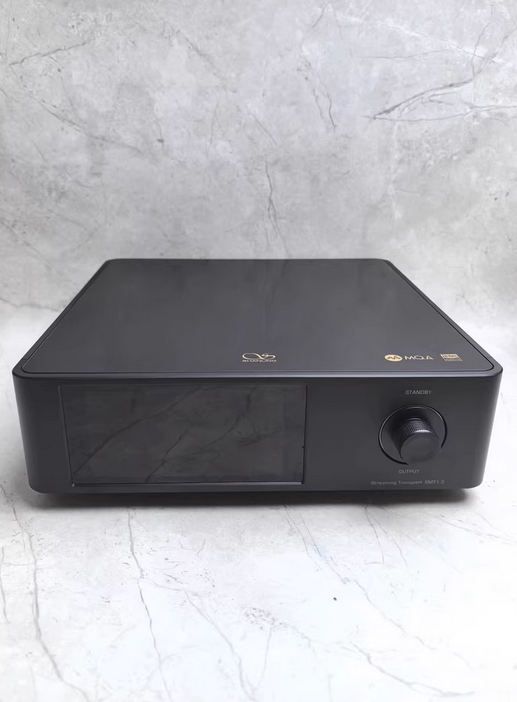

buyers photo shown ,just for reference！
